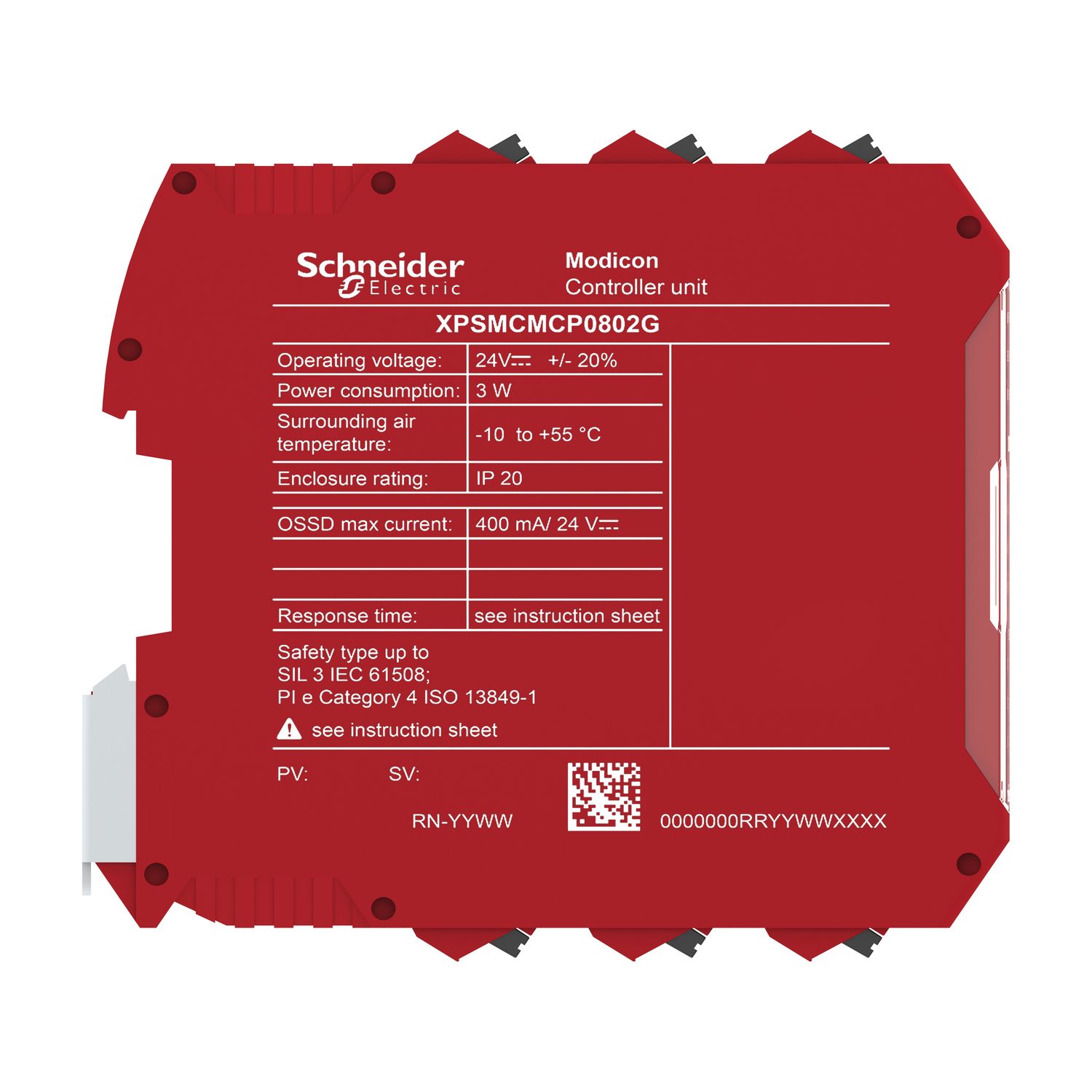

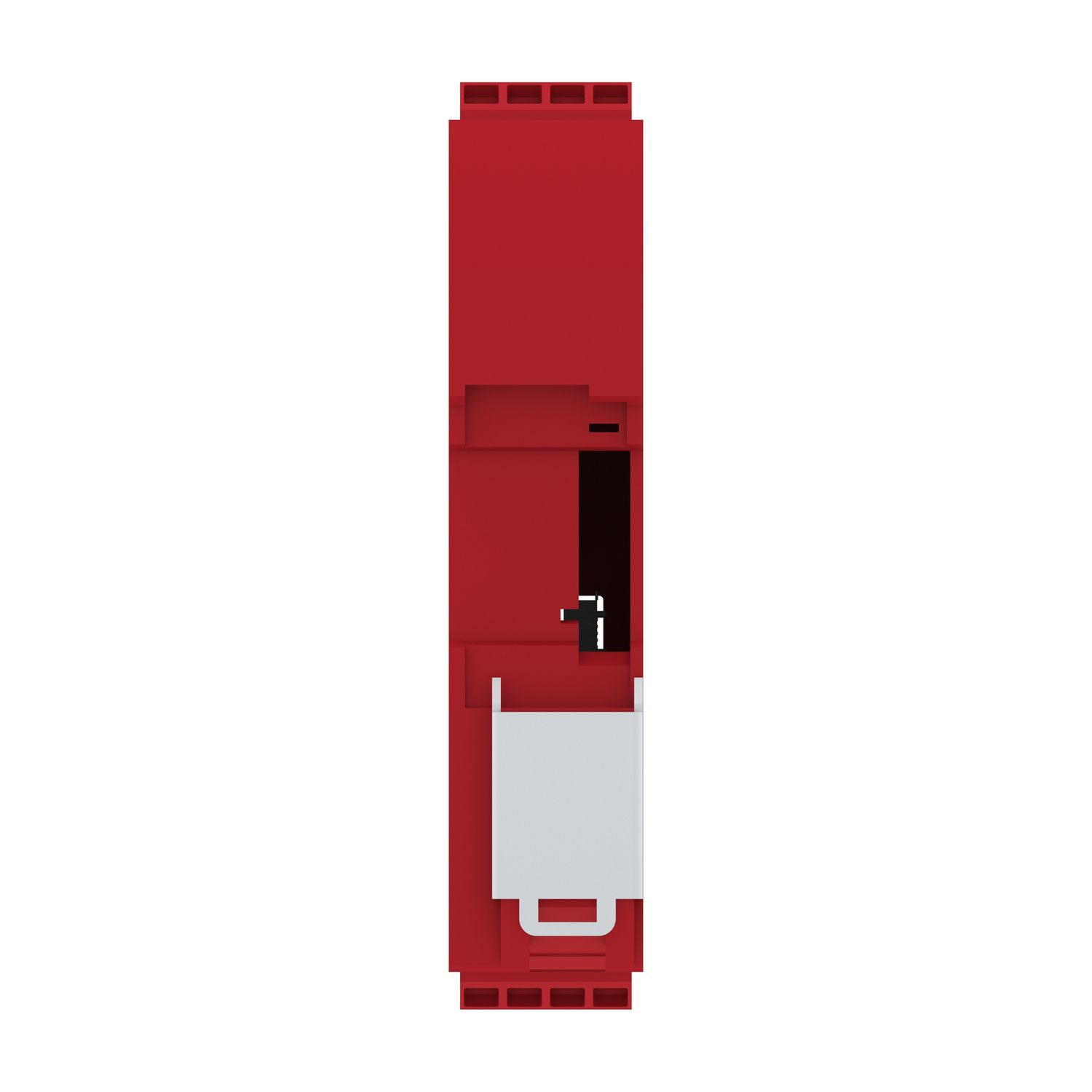

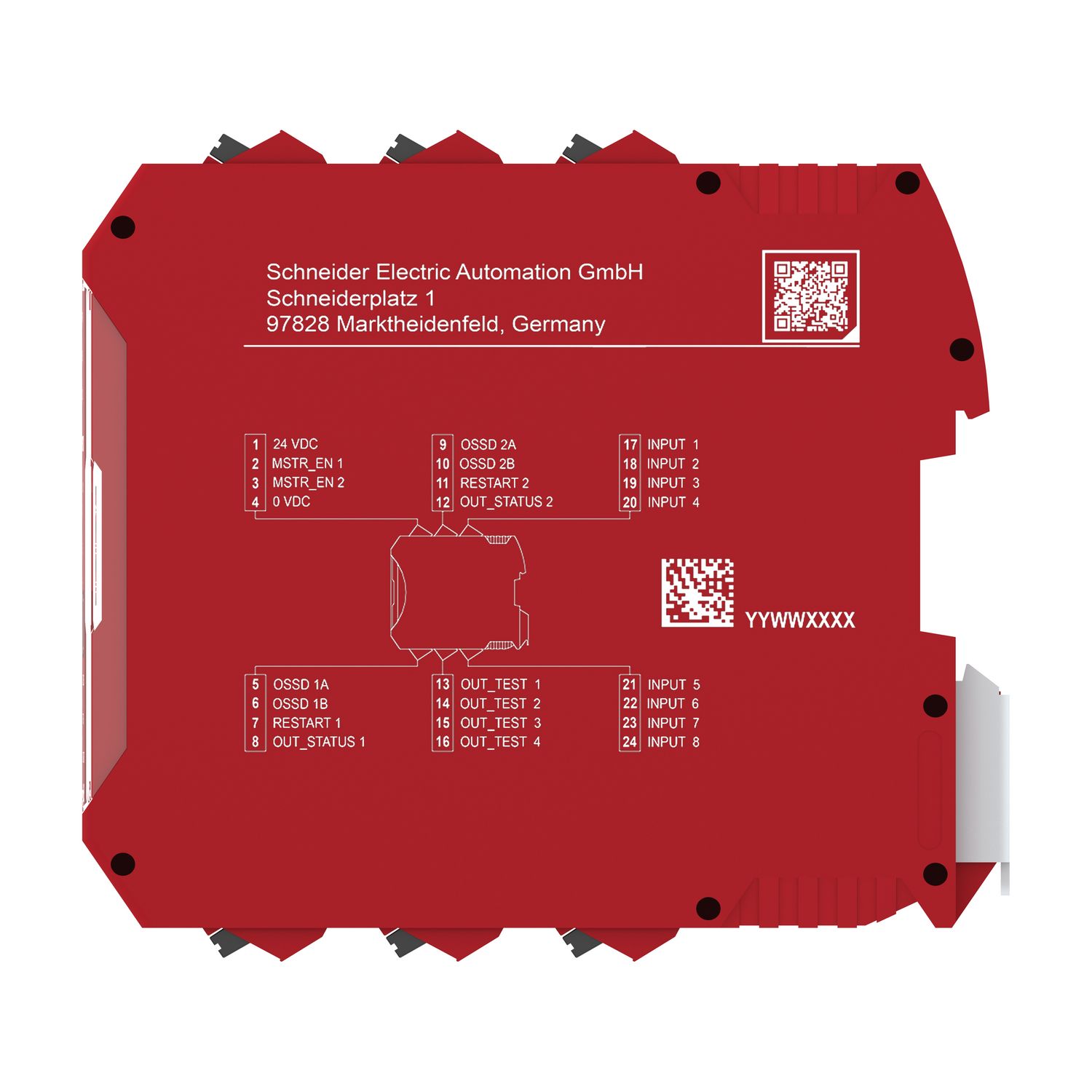

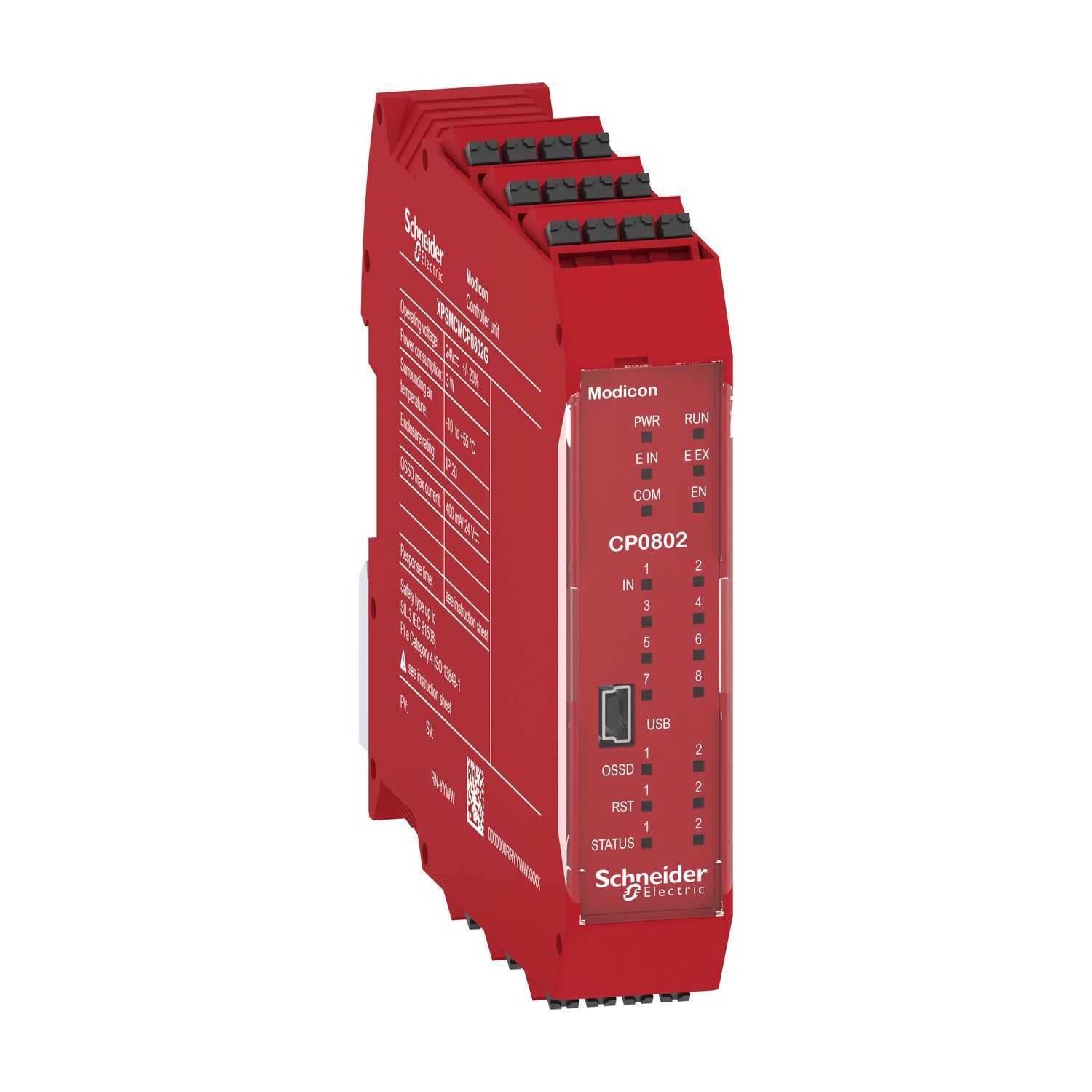

Picture of controller, Modicon MCM, 8 inputs 2 outputs, monitors expansion modules, spring
SKU:

XPSMCMCP0802G

controller, Modicon MCM, 8 inputs 2 outputs, monitors expansion modules, spring

Please Contact Sales to buy this Product. click here
Product Selector
controller, Modicon MCM, 8 inputs 2 outputs, monitors expansion modules, spring
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
Product environmental
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This Modicon MCM safety controller CPU is supplied with 24Vdc, has 8 safe digital inputs, 2 start/restart interlock inputs, 2 output OSSD pairs, 4 test outputs and 2 status outputs and is fitted with captive spring clamp terminals. It embeds a Mini USB 2.0 connector to receive the configuration done with the software EcoStruxure Machine Expert - HVAC. It is an appropriate solution for machines with a small number of safety functions requiring the configuration flexibility of a safety controller. It can be used as standalone or with fourteen expansion modules. The system is expandable up to 128 inputs, 16 outputs and up to 32 diagnostic status outputs, ideal for machines requiring multiple safety function monitoring. This safety controller CPU figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, communication, master enable, restart signal, output channels). It is a CPU with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with spring clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safety controller CPU instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute nameAttribute value
Main
Device short nameXPSMCM
Function of modulecounter functions, safety time delays, muting function of light curtains conforming to EN/IEC 61800-5-2, switch monitoring conforming to EN/IEC 61800-5-2, safety mat monitoring conforming to EN 61326-1, two-hand control conforming to EN/ISO 14119, switch monitoring conforming to EN 574, light curtain monitoring conforming to EN/ISO 14119, foot switch monitoring conforming to EN/IEC 60947-5-1, light curtain monitoring conforming to EN/IEC 61496-1, enabling switch monitoring conforming to EN/IEC 60947-5-1, guard monitoring conforming to EN/ISO 14119, emergency stop conforming to EN/ISO 13850
[Us] rated supply voltage24 V - 20...20 % DC
Number of inputs2 digital for interlock start/restart or external device monitoring, 8 digital for input connection
Range of productModicon Safety automation
Discrete input typePNP, safety input
Discrete output typePNP
Discrete output current400 mA

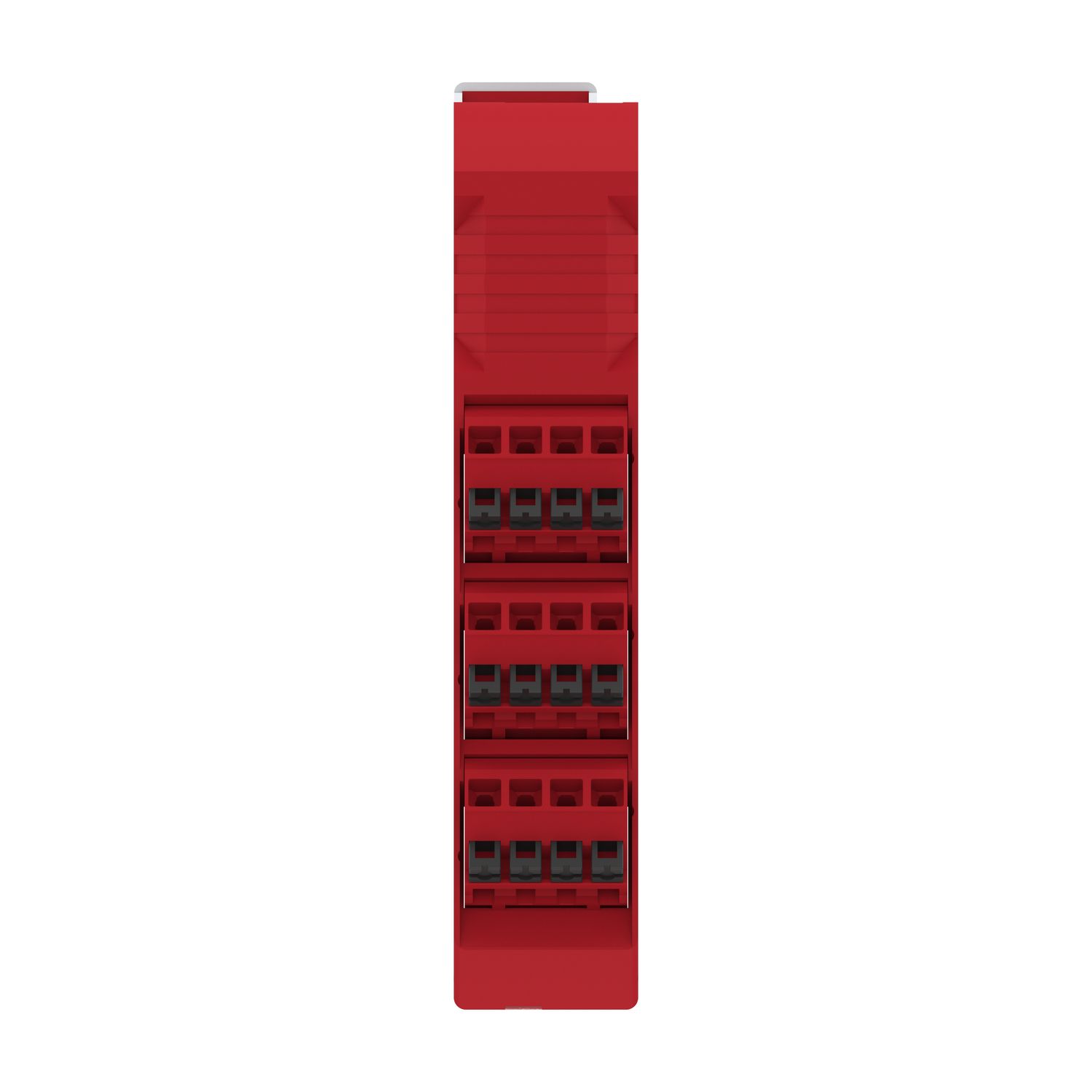

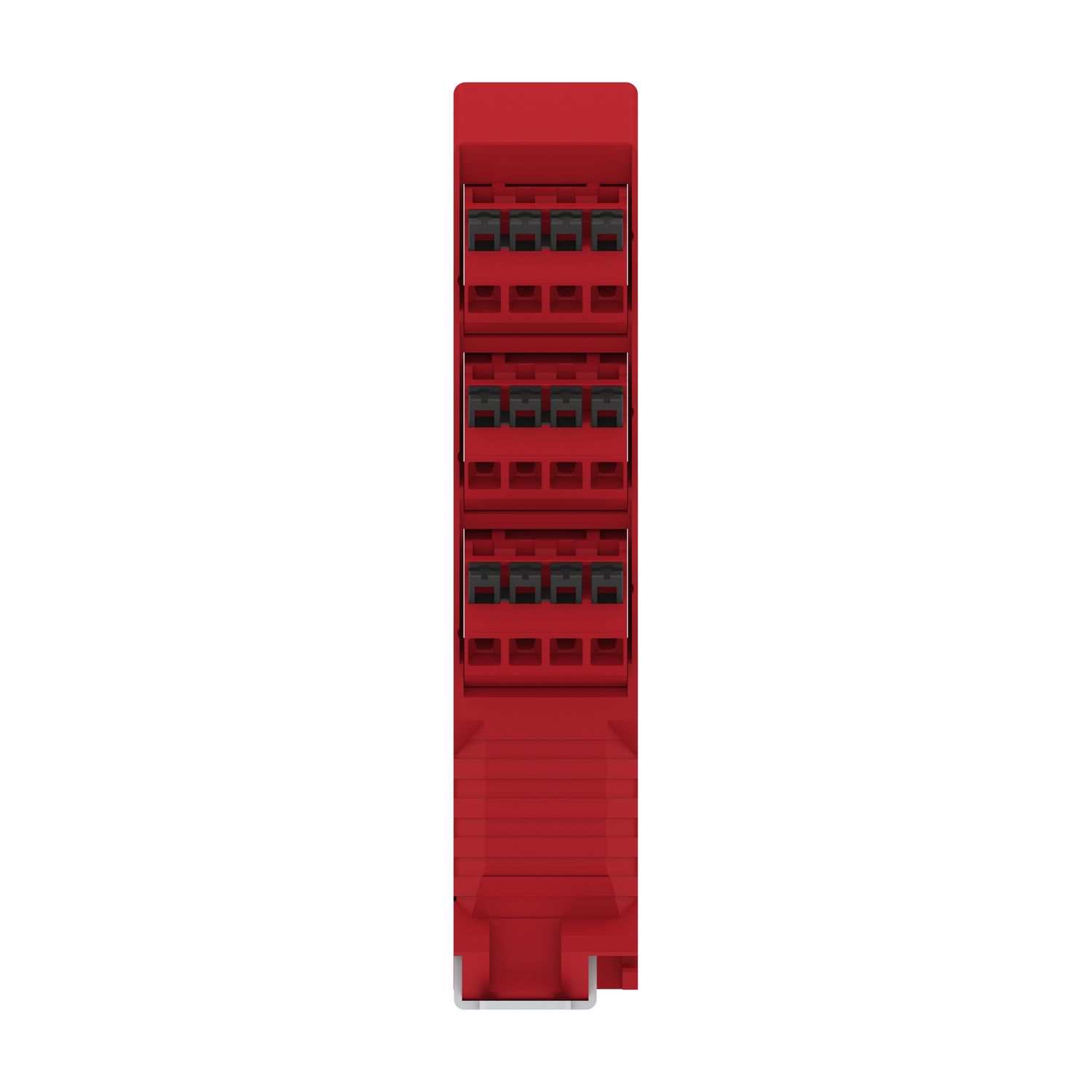

Electrical connectionspring terminal
Product or component typesafety controller CPU
Discrete input current400 mA
Number of outputs2 configurable for diagnostic connection, 4 test for line control outputs, 2 safety outputs OSSD for contactor/drive connection
Discrete input voltage24 V
Complementary
Data storage equipmentSD card (optional)
Synchronisation time between inputs< 0.5 ms
Load capacitance0.82 µF
Power dissipation in W3 W
Height99 mm
Connections - terminals2 spring terminals, removable terminal block, 1 spring terminals, removable terminal block
Safety levelSILCL 3 conforming to IEC 62061, type 4 conforming to EN/IEC 61496-1, can reach PL = e conforming to EN/ISO 13849-1, can reach category 4 conforming to EN/ISO 13849-1
Depth114.5 mm
Inductive load30 mH
Width22.5 mm
Mounting supportomega 35 mm DIN rail conforming to EN 50022
Quality labelsCE
Net weight0.25 kg
Maximum number of I/O expansion module14 with 16 discrete output(s) for output, 14 with 128 discrete output(s) for input

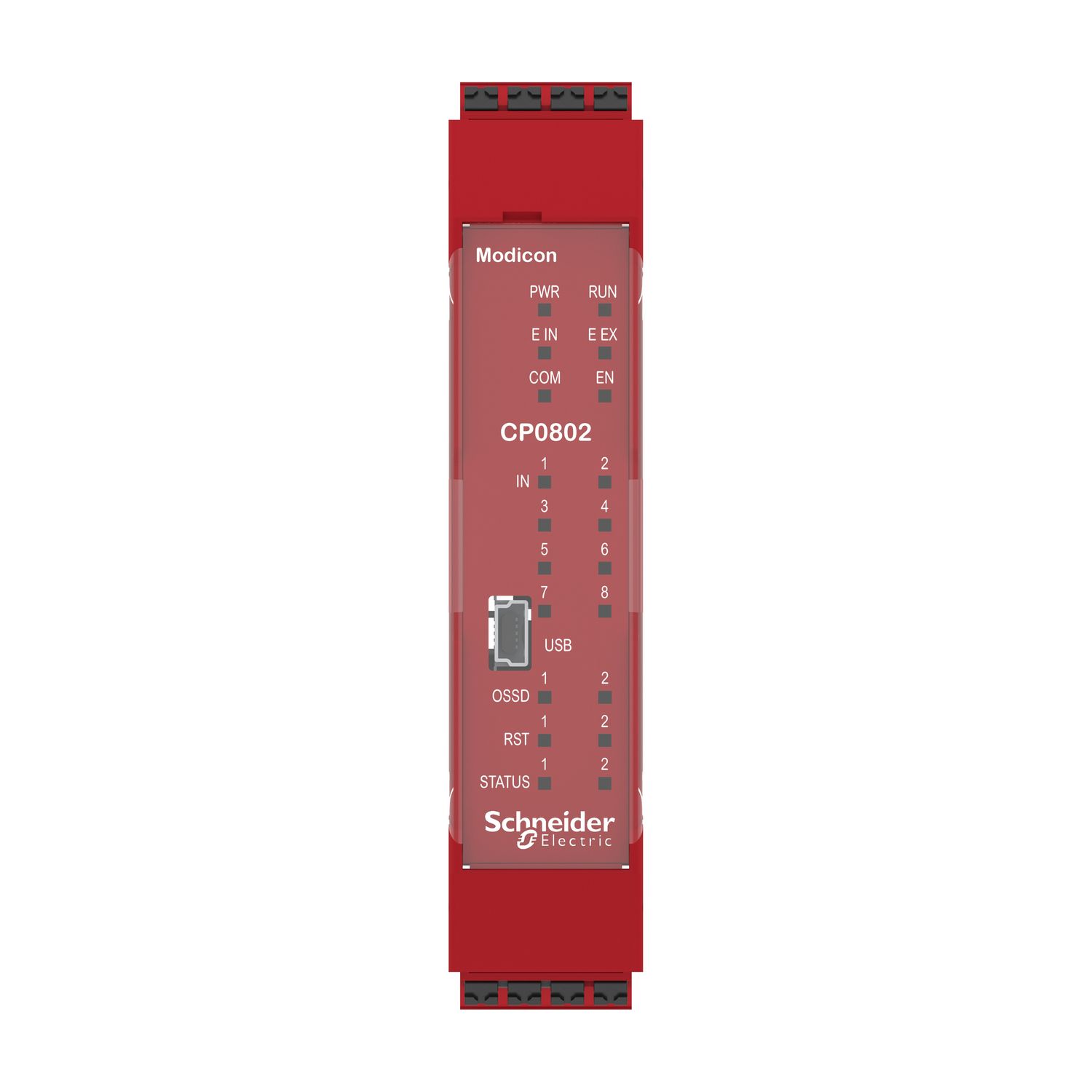

Local signalling2 LEDs yellow with STATUS marking for output channel, 2 LEDs yellow with RST marking for restart signal, 2 LEDs green/red with OUT marking for output status, 8 LEDs yellow with IN marking for input status, 1 LED blue with EN marking for master enable, 1 LED orange with COM marking for communication, 1 LED red with E EX marking for external error, 1 LED red with E IN marking for internal error, 1 LED green with RUN marking for RUN (status), 1 LED green with PWR marking for power ON
Cable cross section0.5-1 mm² - AWG 20...AWG 18 flexible cablewith cable end, with double bezel, 0.25-2.5 mm² - AWG 23...AWG 14 solid cablewithout cable end, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid cablewithout cable end, 0.25-2.5 mm² - AWG 23...AWG 14 flexible cablewith cable end, with bezel, 0.2-2.5 mm² - AWG 24...AWG 14 flexible cablewithout cable end
Integrated connection typeUSB 2.0 port, backplane expansion bus
Environment
Insulation250 V AC between power supply and housing conforming to EN/IEC 61800-5-1
Safety reliability dataMTTFd < 100 years high, DC > 99 %, PFHd = 6.06E-9 1/h
Service life20 year(s)
Ambient air temperature for storage-20-85 °C
Relative humidity10-95 %
IP degree of protectionIP20
Electromagnetic compatibilitysusceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2
Pollution degree2
Ambient air temperature for operation-10-55 °C
Overvoltage categoryII
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 61800-5-1
Vibration resistance+/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1
Shock resistance10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to EN/IEC 61496-1
StandardsEN/IEC 61508, EN/IEC 61496-1, EN/IEC 61800-5-1, IEC 62061, EN/ISO 13849-1
Product certificationscULus, TÜV, RCM
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.5 cm
Package 1 Width12.5 cm
Package 1 Length16.0 cm
Package 1 Weight244.0 g
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight1.728 kg
