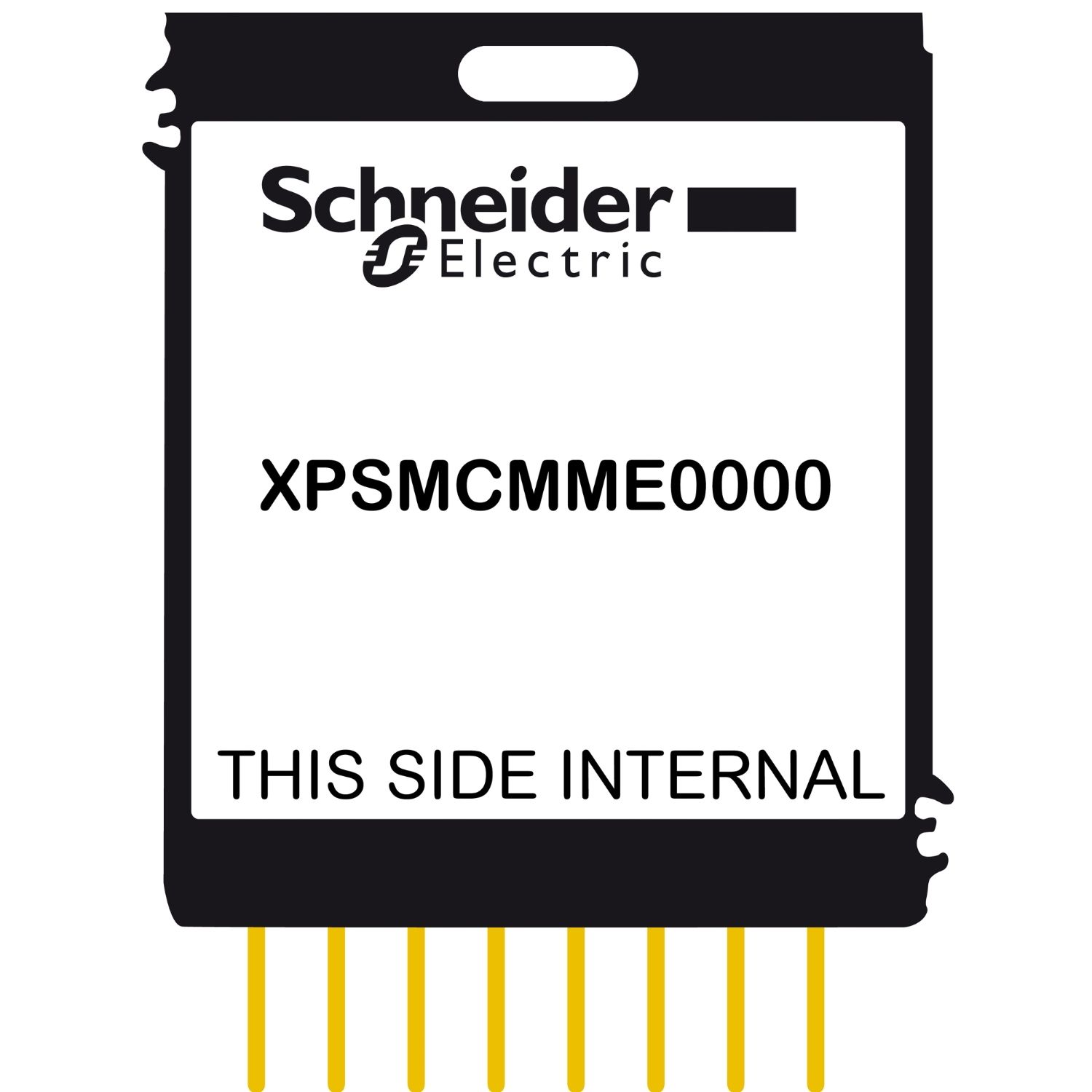

Picture of memory card, Modicon MCM, to save configuration data and transfer to a new device
SKU:

XPSMCMME0000

memory card, Modicon MCM, to save configuration data and transfer to a new device

Please Contact Sales to buy this Product. click here
memory card, Modicon MCM, to save configuration data and transfer to a new device
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This Modicon MCM memory card is used to save safety PLC configuration data for subsequent transfer to a new PLC without using a PC. It enables quick and easy restart of your safety controller after an incident, without using a PC or checking configuration parameters. Its capacity is 512MB. Its dimensions are 18mm (Depth), 21.5mm (Height), and 2mm (Width). It weighs 0.004kg. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. This memory card is compatible with the expansion modules and the safety controllers CPU. The memory card instals in the slot in the rear panel of the controller. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.

Products specifications

Attribute nameAttribute value
Main
Memory typeSDRAM
Memory usagesave and transfer configuration
Accessory / separate part typememory card
Product compatibilityXPSMCM
Memory capacity512 MB
Range of productPreventa Safety automation
Complementary
Depth18 mm
Width2 mm
Quantity per set1
Net weight0.004 kg
Accessory / separate part categoryseparate parts
Height21.5 mm
Environment
Relative humidity10-95 % without condensation
Ambient air temperature for storage-20-85 °C
Ambient air temperature for operation-10-55 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.6 cm
Package 1 Width10.0 cm
Package 1 Length5.2 cm
Package 1 Weight18.0 g
Unit Type of Package 22
Number of Units in Package 235
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight772.0 g
