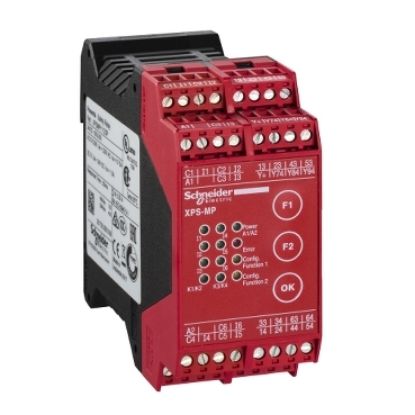

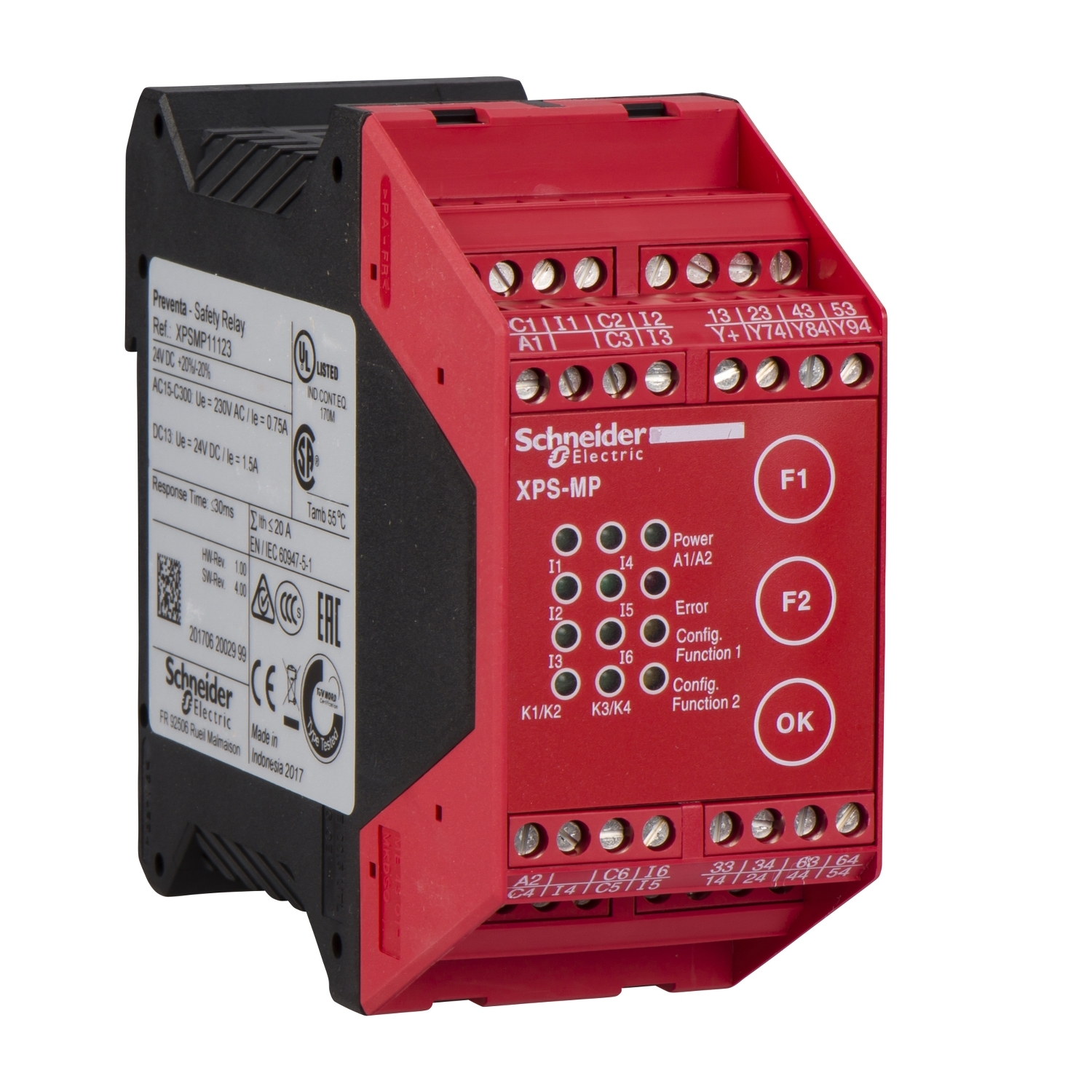

Picture of module XPS-MP - 2 independent functions - 24 V DC
SKU:

XPSMP11123

module XPS-MP - 2 independent functions - 24 V DC

Old price: $1,208.90 INC GST
$888.54 INC GST
Available for Shipping : 26-Jan-2026
Product Selector
module XPS-MP - 2 independent functions - 24 V DC
Be the first to review this product
Manufacturer: Telemecanique
Delivery date: 26-Jan-2026
Instruction sheet
CAD
Declaration of conformity
Circularity Profile
Catalog
Product Page Link
Product Data Sheet
This XPSMP safety contoller can handle 2 independent safety functions. This safety controller with pre-defined functions meets the requirements of PL e/Category 4 conforming EN ISO 13849-1 and SILCL 3 conforming to EN/IEC 61508 and EN/IEC 62061. It enables two independent safety functions (selected from a choice of 15 pre-defined configurations) to be performed using the same product. It complies with the most stringent functional safety requirements thanks to multiple configurable safety functions. It has additional solid-state output for communication with PLCs about safety status of your process.

Products specifications

Attribute name Attribute value
Main
Safety use category category 4 maximum conforming to EN/IEC 60954-1
Checks configuration (configuration 9), configuration (configuration 6), configuration (configuration 5), configuration (configuration 4), configuration (configuration 3), configuration (configuration 13), configuration (configuration 10)
Safety module application 2 independent functions
Connections - terminals captive screw clamp terminals flexible cable: 0.5...1.5 mm² with cable end, with double bezel, 2 wires, captive screw clamp terminals flexible cable: 0.25...2.5 mm² with cable end, without bezel, 1 wire, captive screw clamp terminals flexible cable: 0.25...1.5 mm² with cable end, with bezel, 1 wire, captive screw clamp terminals flexible cable: 0.25...1 mm² with cable end, without bezel, 2 wires, captive screw clamp terminals solid cable: 0.14...2.5 mm² without cable end, 1 wire, captive screw clamp terminals flexible cable: 0.14...2.5 mm² without cable end, 1 wire, captive screw clamp terminals solid cable: 0.14...0.75 mm² without cable end, 2 wires, captive screw clamp terminals flexible cable: 0.14...0.75 mm² without cable end, 2 wires
Safety module name XPSMP
Range of product Preventa Safety automation
[Us] rated supply voltage 24 V DC - 20...20 %
Type of start monitored (configuration 13), monitored (configuration 12), automatic or unmonitored (configuration 7), automatic or unmonitored (configuration 5), automatic or unmonitored (configuration 3), automatic or unmonitored (configuration 14), automatic or unmonitored (configuration 11), automatic or unmonitored (configuration 10), monitored (configuration 9), monitored (configuration 8), monitored (configuration 6), monitored (configuration 4), monitored (configuration 2), monitored (configuration 15), automatic or unmonitored (configuration 1)
Safety level can reach SIL 3 conforming to EN/IEC 62061, can reach PL e/category 4 conforming to EN/ISO 13849-1
Product or component type safety controller with pre-defined function
Standards DIN V VDE 801 + A1, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-1 + A11
Product certifications BIA, CSA, UL
Complementary
Maximum response time on input open 30 ms
Function of module configuration 2: emergency stop monitoring 1-channel wiring, category 2, configuration 15: coded magnetic switch monitoring, category 4, configuration 14: coded magnetic switch monitoring, category 4, configuration 13: relay output safety light curtain monitoring, category 4, configuration 12: sensing mat and edges monitoring, category 3, configuration 11: sensing mat and edges monitoring, category 3, configuration 10: enabling grip switch monitoring (3-position switch), category 4, configuration 1: emergency stop monitoring 1-channel wiring, category 2, configuration 9: guard monitoring for injection presses and blowing machines, category 4, configuration 8: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 7: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 6: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 5: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 4: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 3: emergency stop monitoring 2-channel wiring, or guard monitoring, category 4, configuration 0: functions disabled (factory setting)
[Uc] control circuit voltage 24 V
Input protection type internal, electronic
Maximum line resistance 100 Ohm <2000 m
Number of additional circuits 3 solid state outputs
Associated fuse rating 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200, 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Minimum output voltage 17 V for relay output
Output thermal current 6 A for 1 output and 2 A for the other 2 outputs for relay, 3.3 A for all 3 outputs relay simultaneously, 2 A for 1 output and 4 A for the other 2 outputs for relay
Height 99 mm
Breaking capacity 1800 VA inrush AC-15 C300 relay output, 180 VA holding AC-15 C300 relay output, 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output, 20 mA at 24 V for static output circuit
Synchronisation time between inputs unlimited (configuration 7), unlimited (configuration 4), unlimited (configuration 3), 1.5 s (configuration 9), 1.5 s (configuration 6), 1.5 s (configuration 5), 1.5 s (configuration 15), 1.5 s (configuration 14), unlimited (configuration 8), 0.5 s (configuration 13)
Depth 114 mm
Number of safety circuits 3 NO relays per function (6 NO total), volt-free
Width 45 mm
Local signalling 12 LEDs
[Ui] rated insulation voltage 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
Net weight 0.32 kg
[Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
[Ith] conventional free air thermal current 20 A
Minimum output current 10 mA for relay output
Power consumption in W 5 W
Mounting support 35 mm symmetrical DIN rail
Environment
Ambient air temperature for storage -25-85 °C
IP degree of protection IP40 (enclosure), IP20 (terminals)
Ambient air temperature for operation -10-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 12 cm
Package 1 Length 16 cm
Package 1 Weight 452 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 9.762 kg
