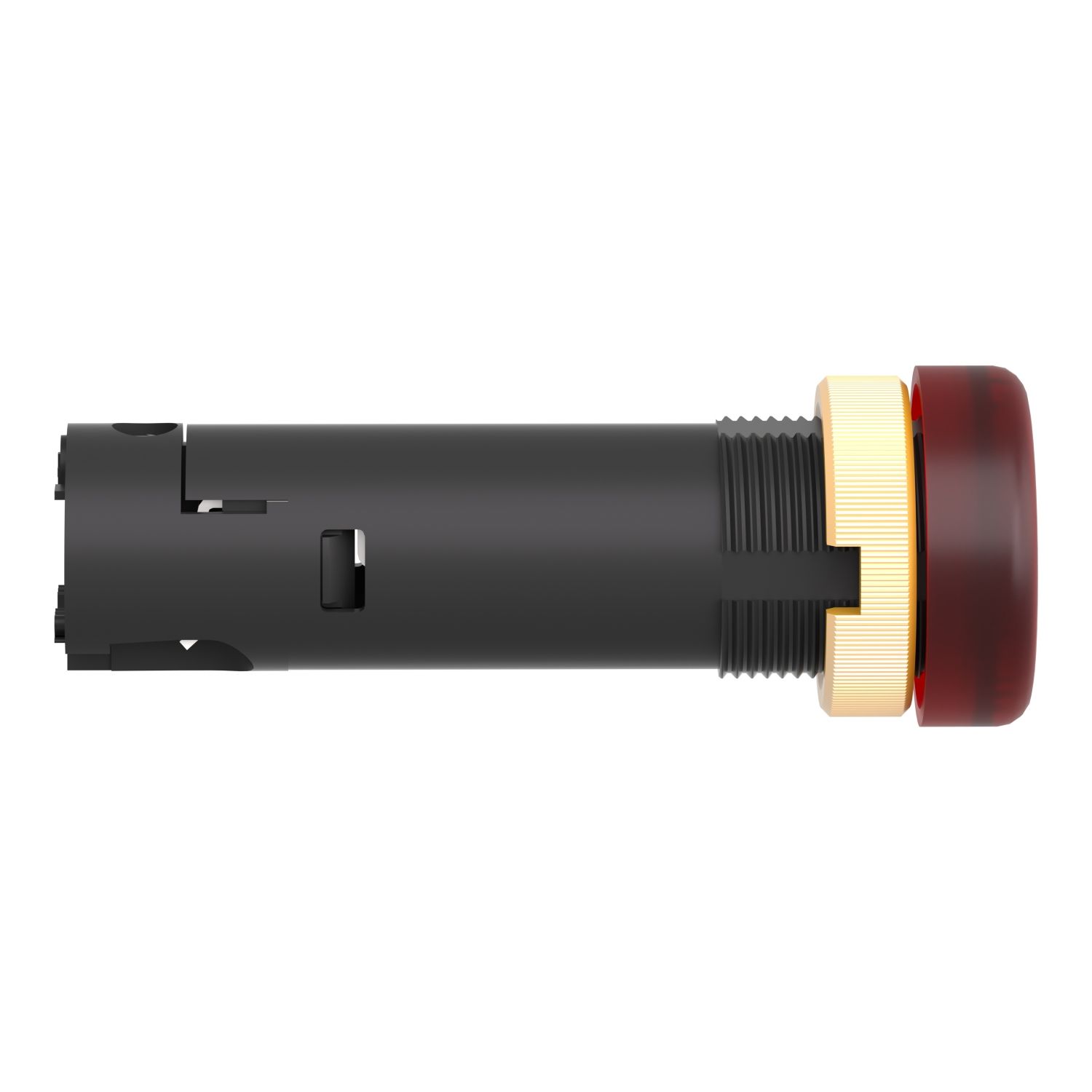

Picture of Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC

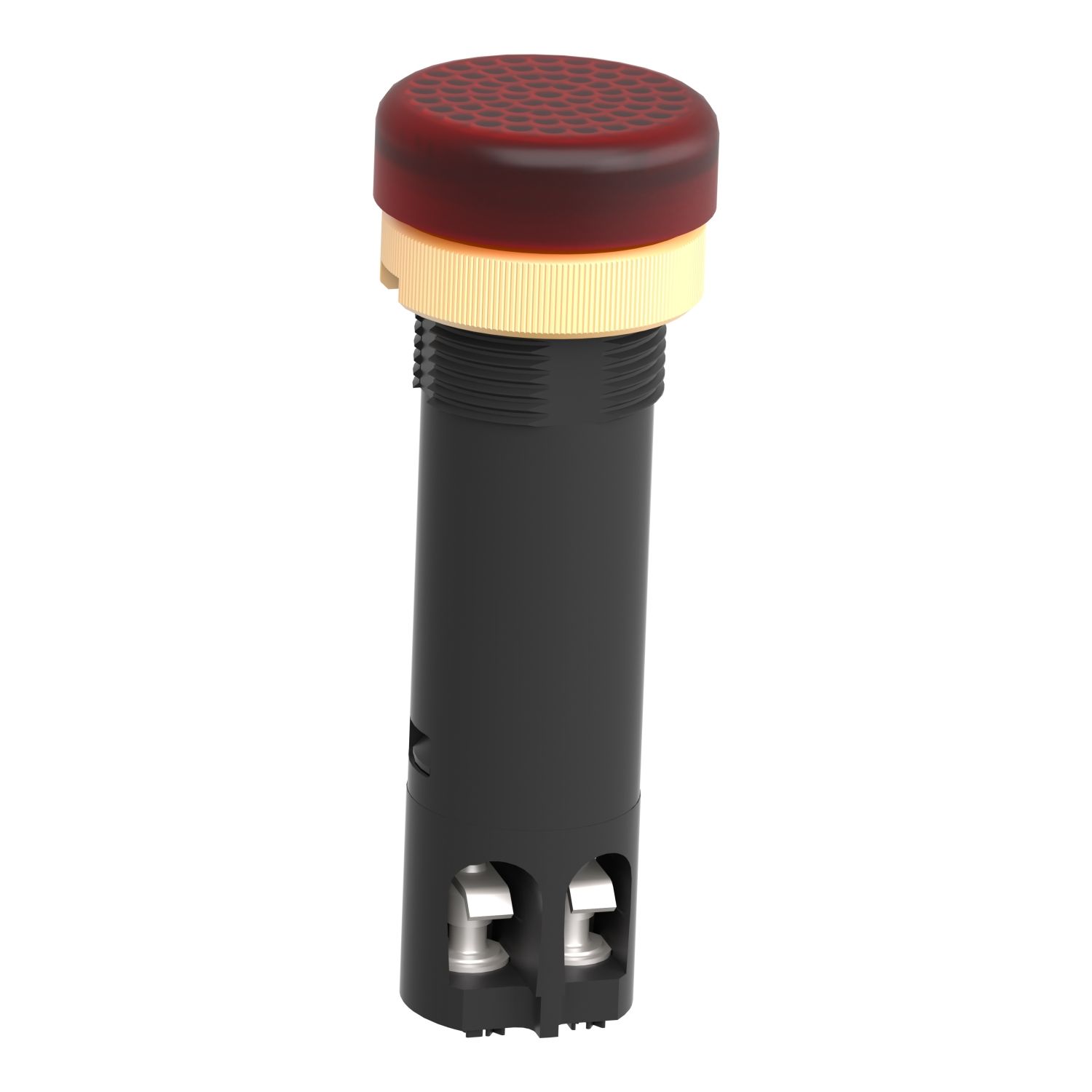

Picture of Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC
Picture of Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC
Picture of Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC

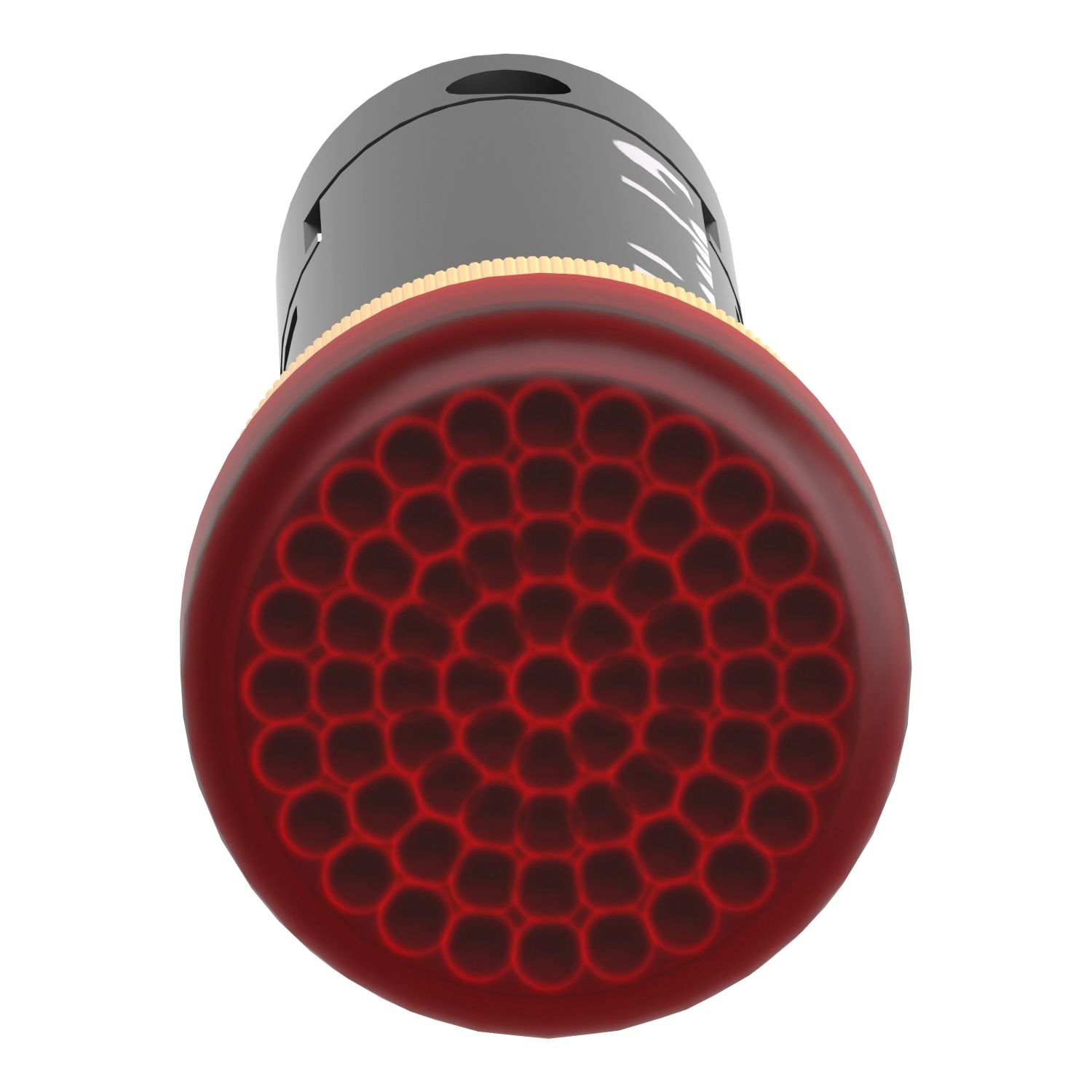

Picture of Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC
Picture of Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC
Picture of Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC

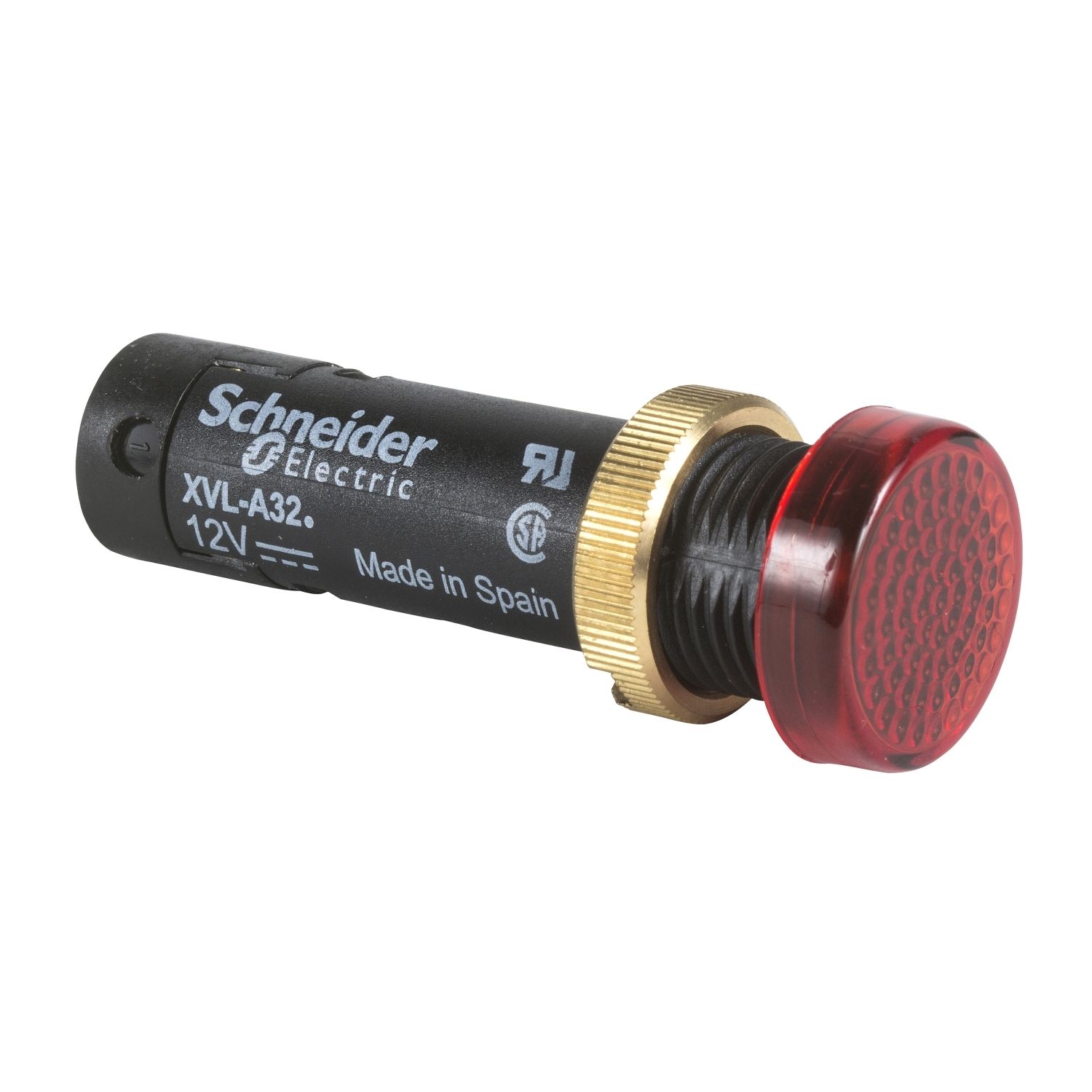

Picture of Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC
SKU:

XVLA324

Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC

$48.71
Available for Shipping : 10-Dec-2024
Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony XVLA324 is a red pilot light diameter 12mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 12V, lugs connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.

Products specifications

Attribute name Attribute value
Main
Light block colour red
Protection type integral ballast resistor, built-in by diode
[Us] rated supply voltage 12 V
IP degree of protection IP40 conforming to NF C 20-010, IP40 conforming to IEC 60529, IP65 (with seal XVLZ912) conforming to NF C 20-010, IP65 (with seal XVLZ912) conforming to IEC 60529
Range of product Harmony XVL
Component name XVL
Product or component type LED pilot light with integral lens cap
Mounting diameter 12 mm
Light source covered LED
Complementary
Nominal voltage limit 0.8...1.1 Un
Connections - terminals threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm²
Bulb lifespan 100000 h
Height 16 mm
Depth 51 mm
Width 16 mm
Supply circuit type DC
[Ui] rated insulation voltage 50 V conforming to IEC 60947-1
Current consumption 18 mA
Net weight 0.007 kg

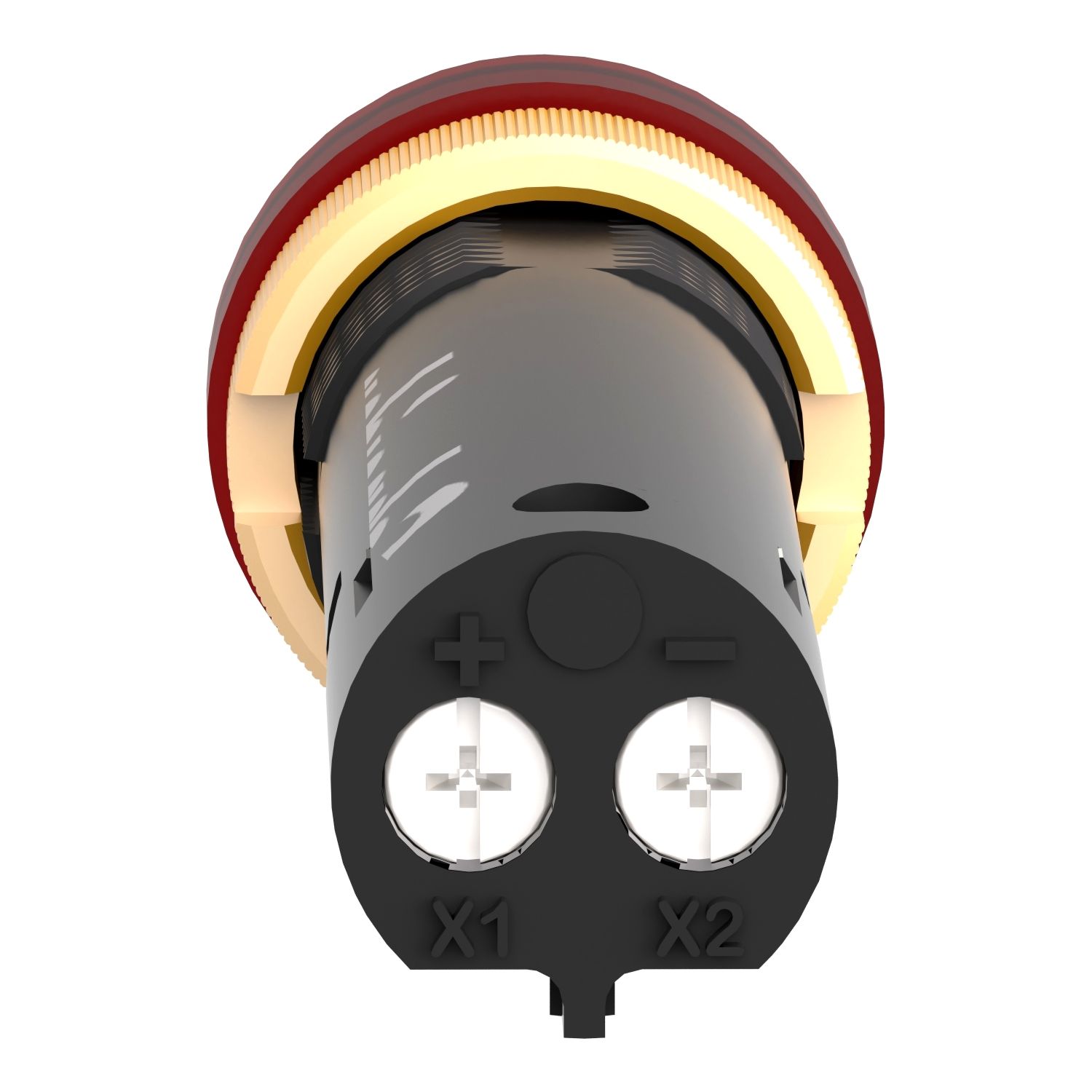

Terminals description ISO n°1 (X1-X2)PL
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Overvoltage category class 3 conforming to NF C 20-030, class 3 conforming to IEC 60536
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.5 cm
Package 1 Width 1.5 cm
Package 1 Length 5.0 cm
Package 1 Weight 7.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 3.0 cm
Package 2 Width 10.0 cm
Package 2 Length 13.0 cm
Package 2 Weight 75.0 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.0 cm
Package 3 Width 15.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 886.0 g
