SKU:

XVR3B03

Harmony XVR, Illuminated beacon without buzzer, orange, Ø100, integral LED, 12...24 V DC

$249.06
Available for Shipping : 06-Mar-2025

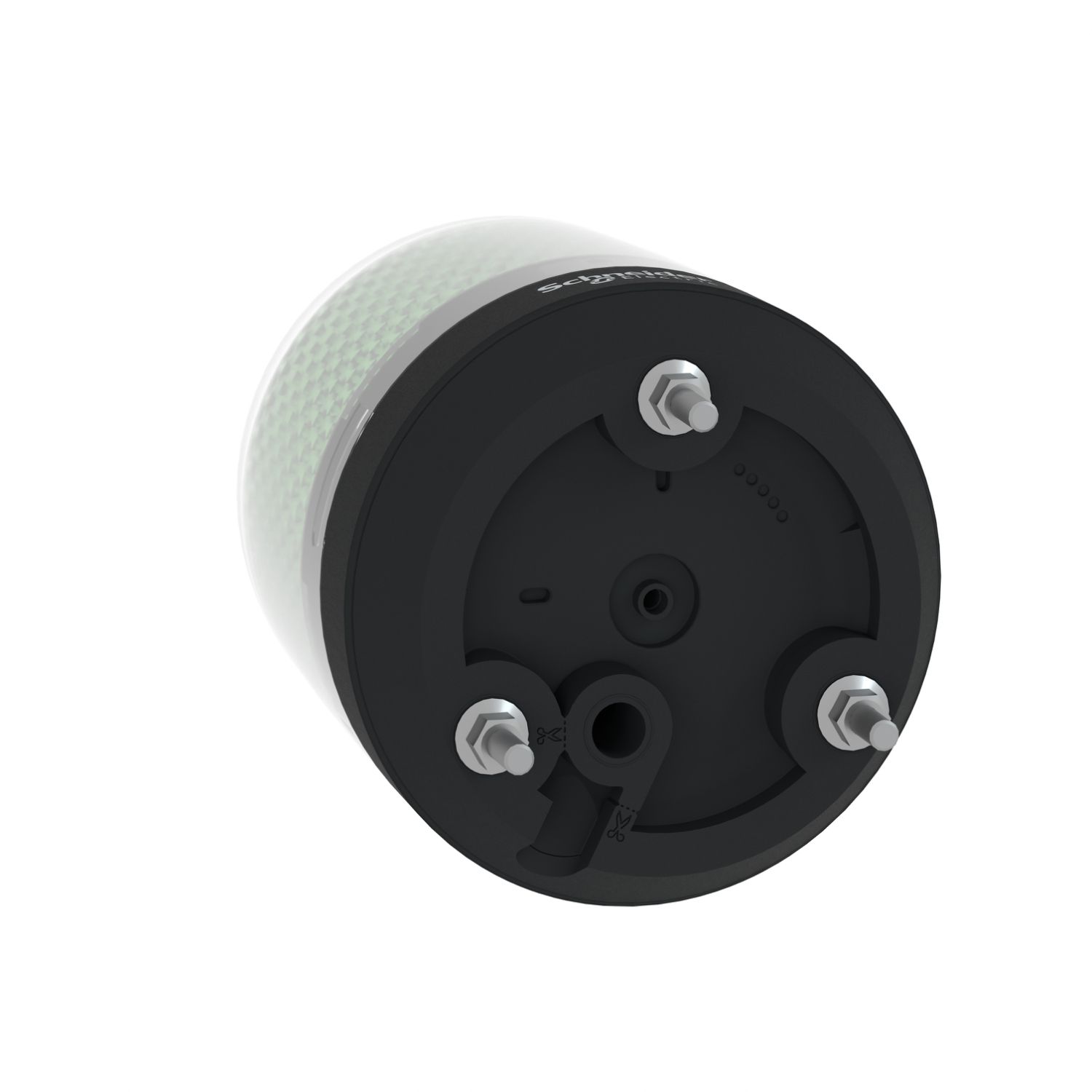

Harmony XVR, Illuminated beacon without buzzer, orange, Ø100, integral LED, 12...24 V DC
Manufacturer: Schneider Electric

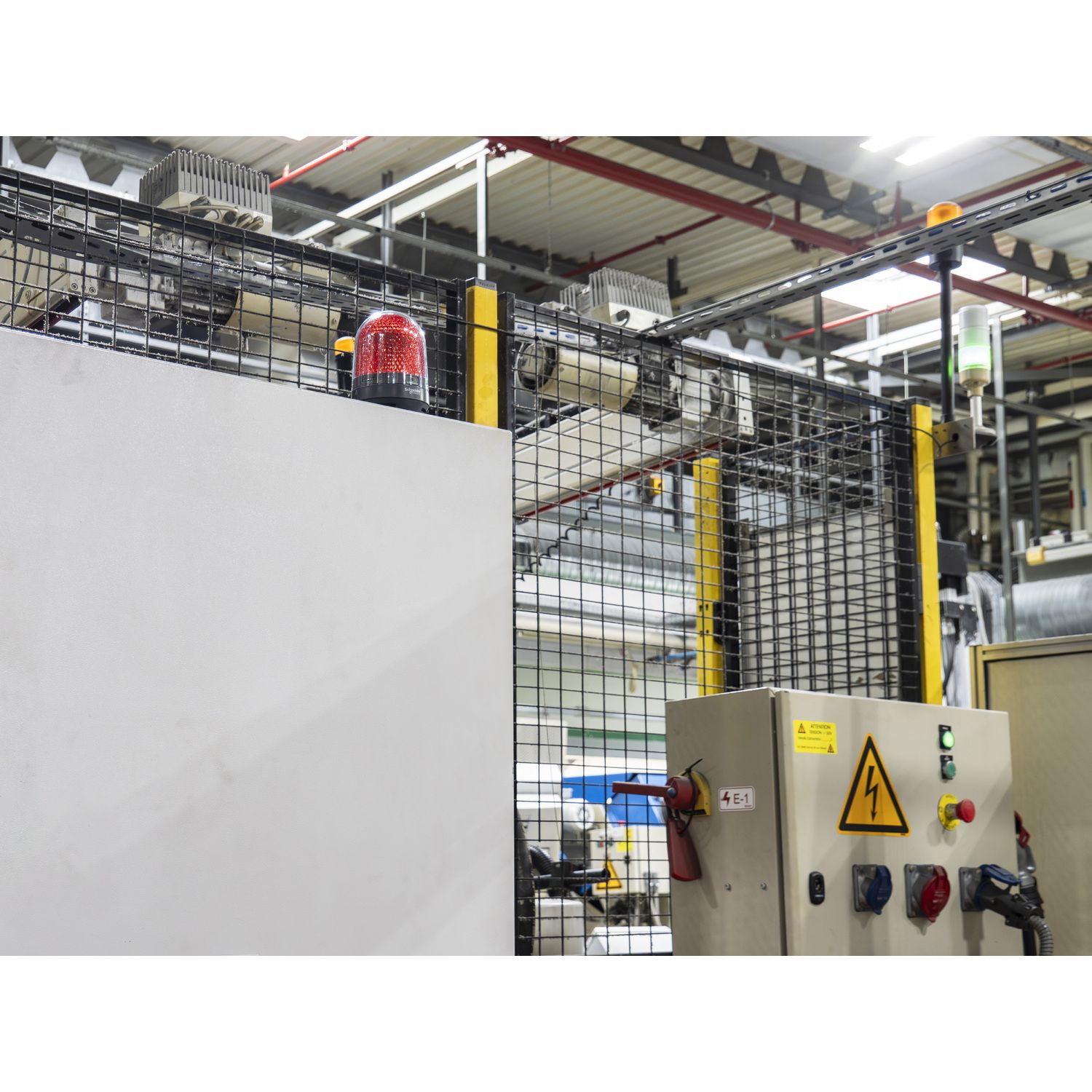

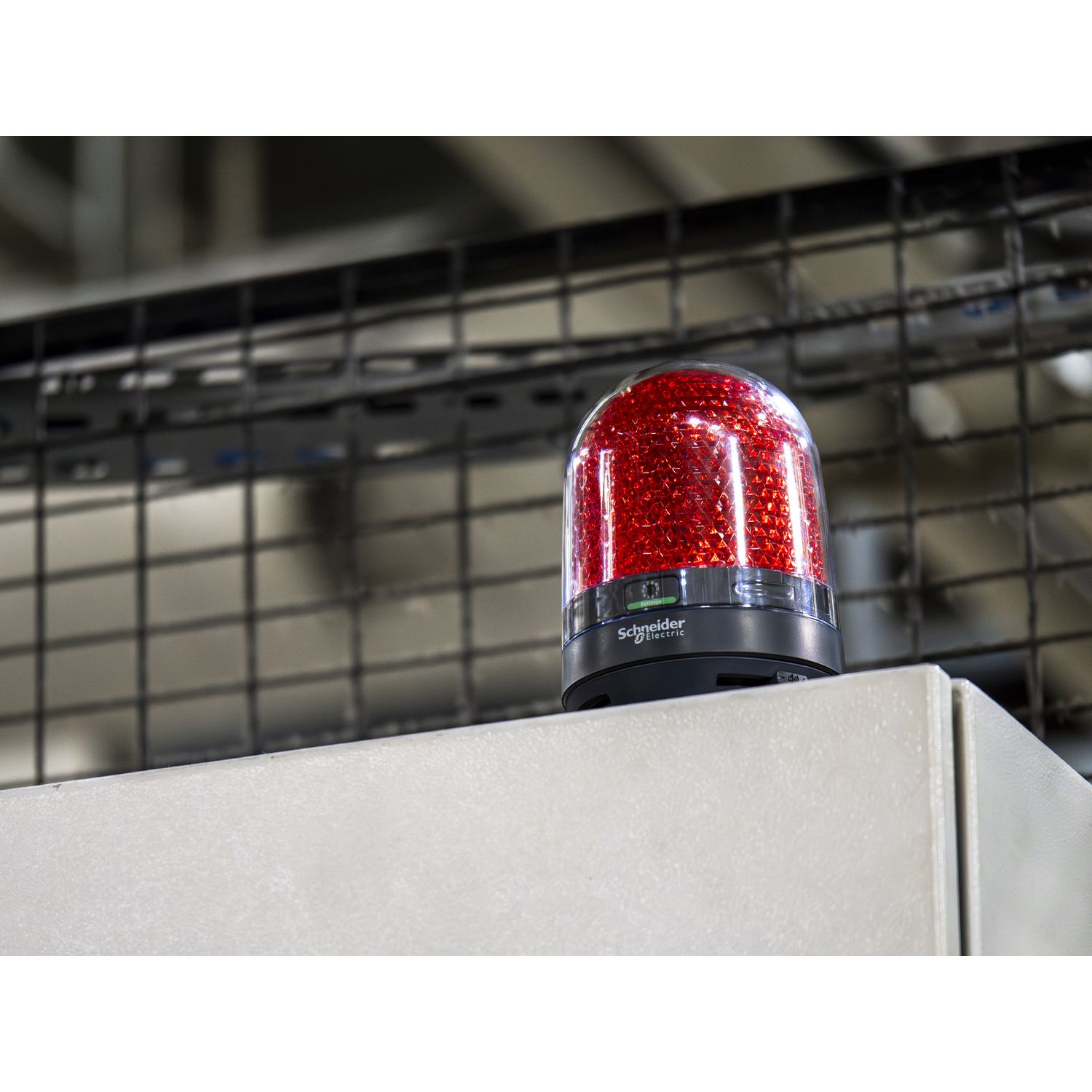

This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern, allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.

Products specifications

Attribute name Attribute value
Main
Device short name XVR3
Device application automated guided vehicle (AGV), bulldozer, forklift
Beacon or indicator bank unit type LED unit
Product or component type beacon
Light source LED, green
Mounting diameter 100 mm
Range of product Harmony XVR
Complementary
[Ue] rated operational voltage 10...30 V DC
Width 100 mm
Material EPDM (ethylene propylene diene monomer): base, PBT (polybutylene terephthalate) + PC (polycarbonate): body, PC (polycarbonate): lenses

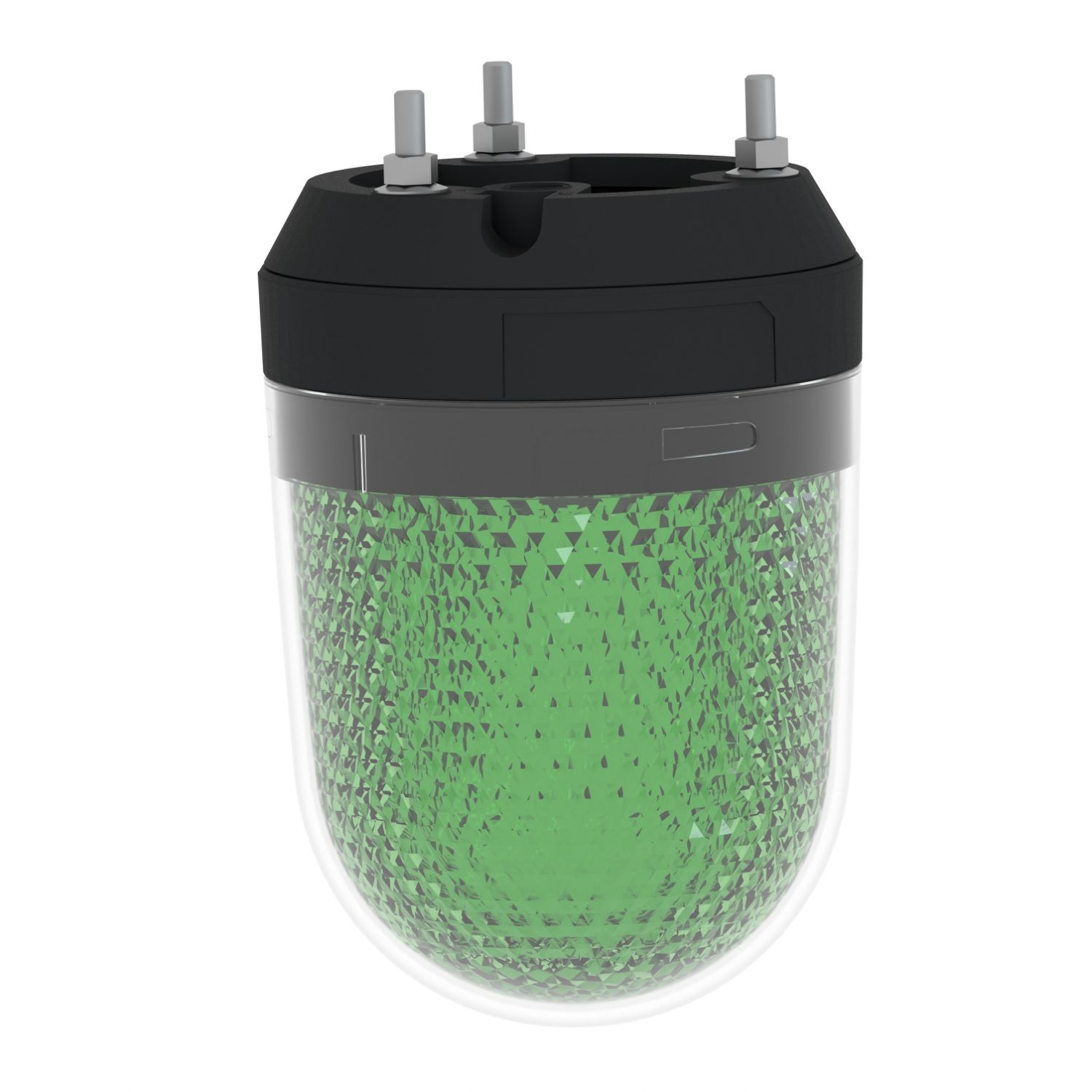

Installation direction upright outdoor, inverted indoor, sideways indoor, upright indoor
Assembly style ready assembled
Signalling type blinking, rotating, flashing
[Us] rated supply voltage 12...24 V DC
Electrical insulation class class II
Net weight 0.484 kg
Length 100 mm
Current consumption 3000 mA
Marking CE
Power consumption in W 2.8 W
Inrush current 3 A
Height 139 mm
Environment
Relative humidity 35-85 % without condensation
Ambient air temperature for storage -35-70 °C
Vibration resistance 7.1 gn (upright), 4.6 gn (inverted), 4.6 gn (sideways)
IP degree of protection IP23 (inverted), IP23 (sideways), IP65 (upright)
Ambient air temperature for operation -20-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.5 cm
Package 1 Width 14.3 cm
Package 1 Length 13.8 cm
Package 1 Weight 3.68 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 29.44 kg
