SKU:

XVR3B04

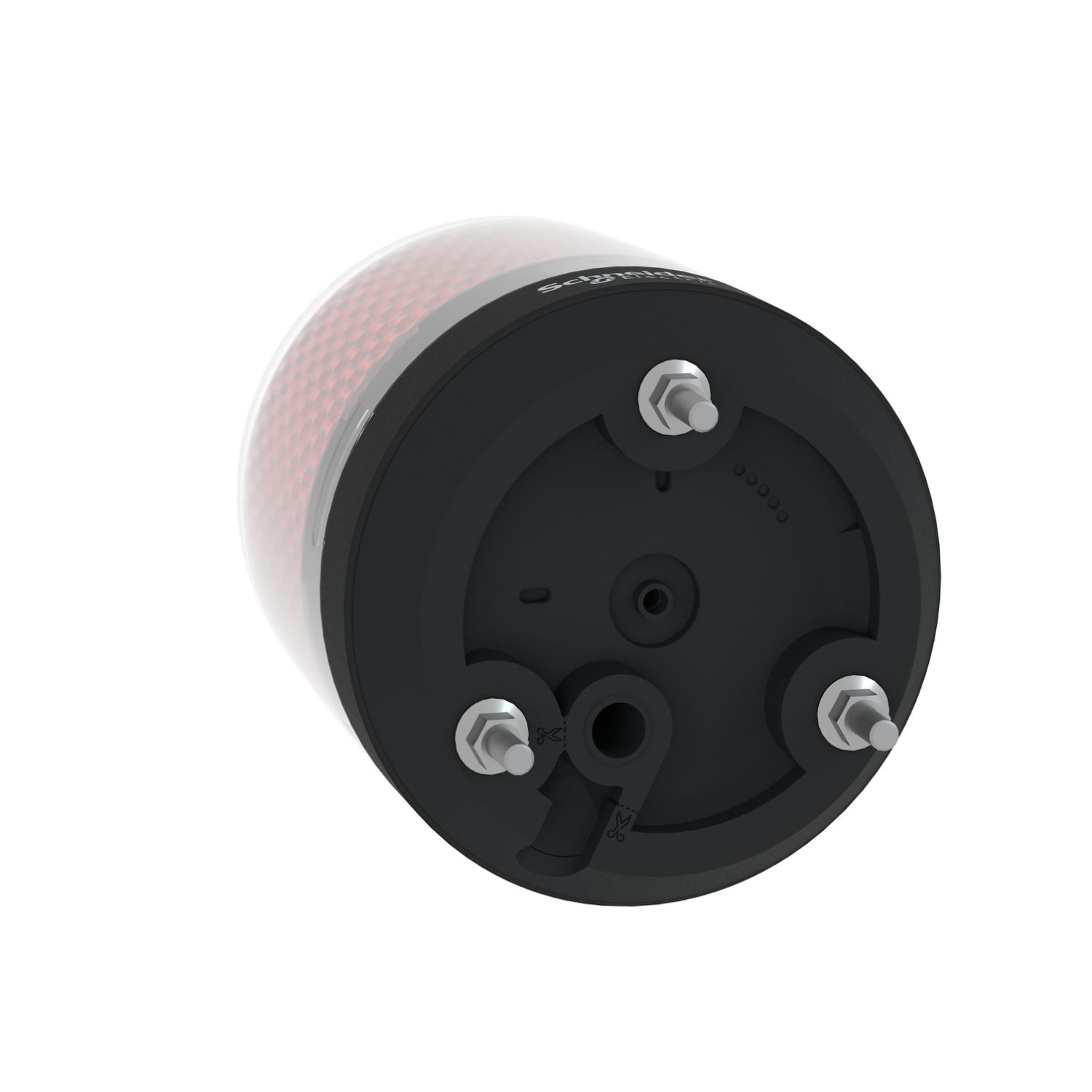

Harmony XVR, Illuminated beacon without buzzer, orange, Ø100, integral LED, 12...24 V DC

$286.68
Available for Shipping : 24-Nov-2024
Harmony XVR, Illuminated beacon without buzzer, orange, Ø100, integral LED, 12...24 V DC
Manufacturer: Schneider Electric

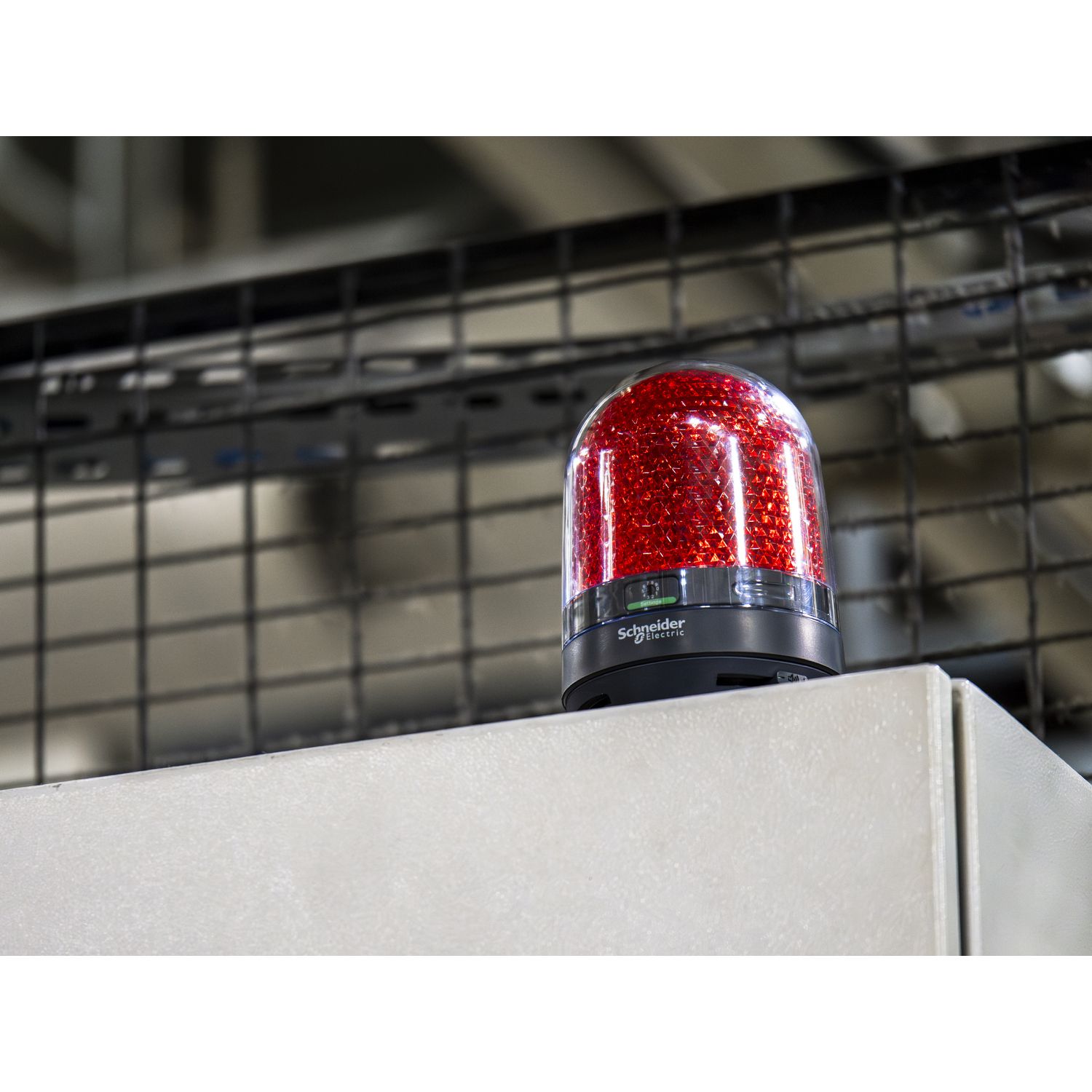

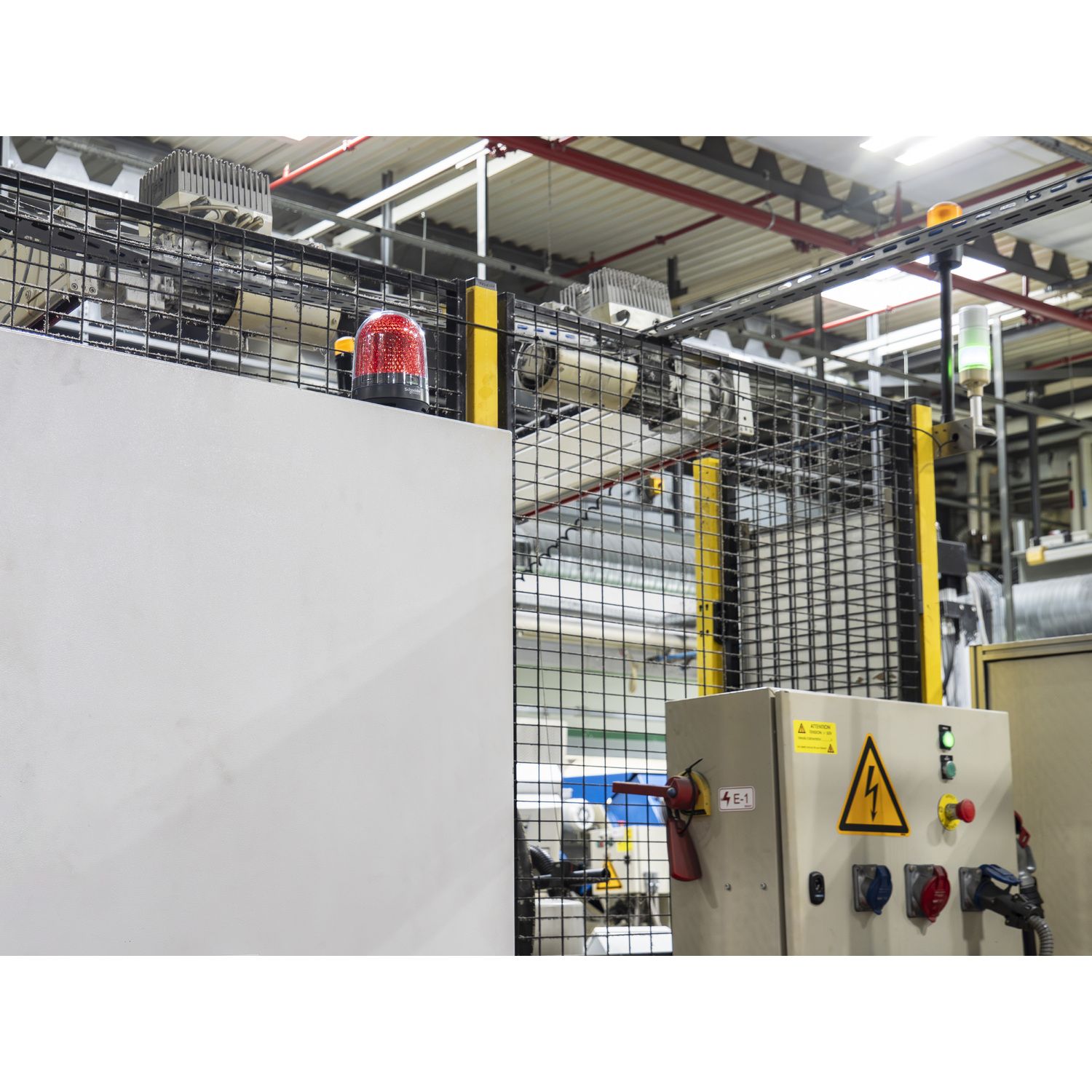

This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern, allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.

Products specifications

Attribute name Attribute value
Main
Device short name XVR3
Device application bulldozer, automated guided vehicle (AGV), forklift
Beacon or indicator bank unit type LED unit
Light source LED, red
Range of product Harmony XVR
Product or component type beacon
Mounting diameter 100 mm
Complementary

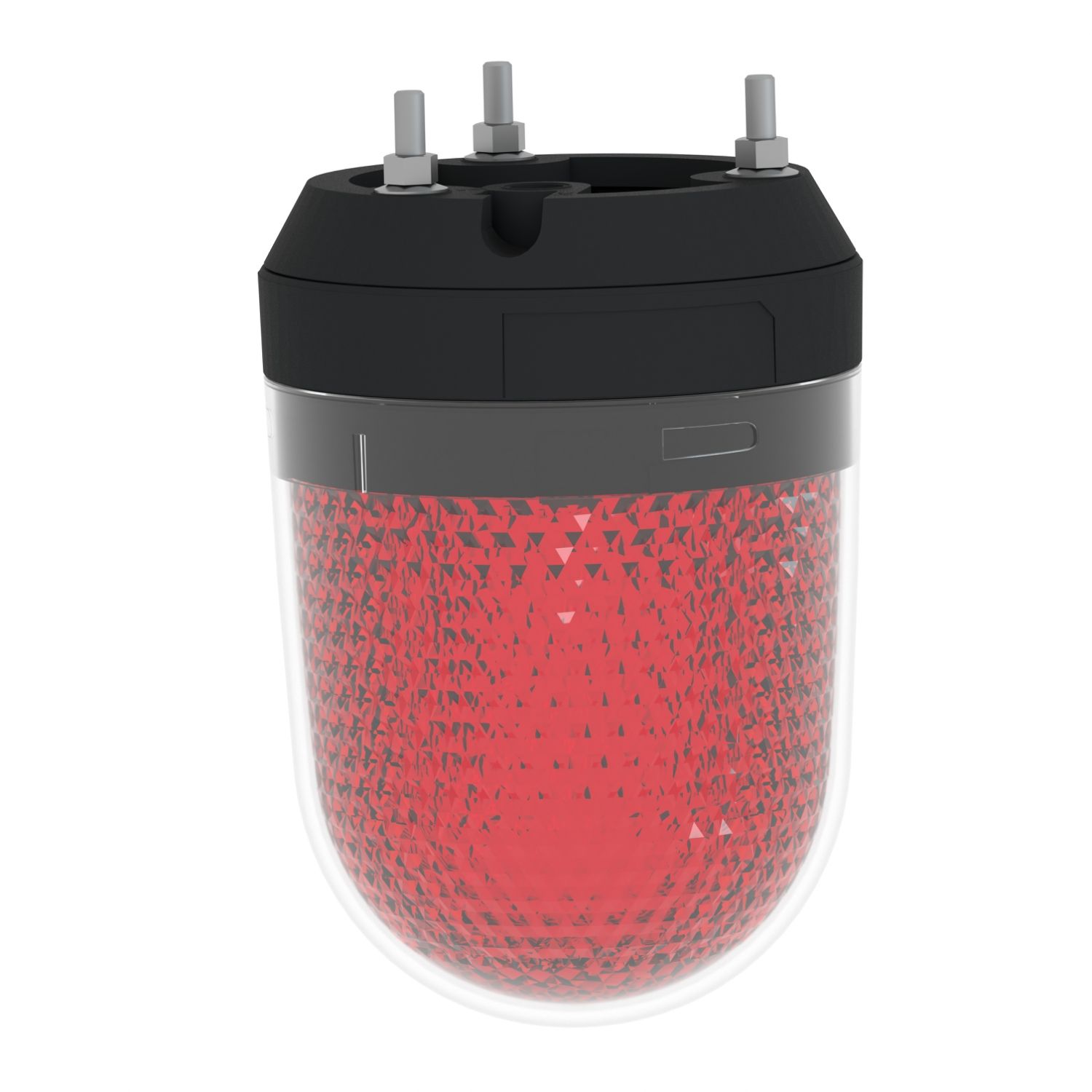

Installation direction upright outdoor, inverted indoor, sideways indoor, upright indoor
Assembly style ready assembled
[Us] rated supply voltage 12...24 V DC
Electrical insulation class class II
Marking CE
Power consumption in W 2.8 W
Height 139 mm
[Ue] rated operational voltage 10...30 V DC
Width 100 mm
Material EPDM (ethylene propylene diene monomer): base, PBT (polybutylene terephthalate) + PC (polycarbonate): body, PC (polycarbonate): lenses
Signalling type flashing, rotating, blinking
Net weight 0.484 kg
Length 100 mm
Current consumption 3000 mA
Inrush current 3 A
Environment
Relative humidity 35-85 % without condensation
Ambient air temperature for storage -35-70 °C
IP degree of protection IP23 (inverted), IP23 (sideways), IP65 (upright)
Ambient air temperature for operation -20-50 °C
Vibration resistance 7.1 gn (upright), 4.6 gn (inverted), 4.6 gn (sideways)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.5 cm
Package 1 Width 13.85 cm
Package 1 Length 18.5 cm
Package 1 Weight 640 g
