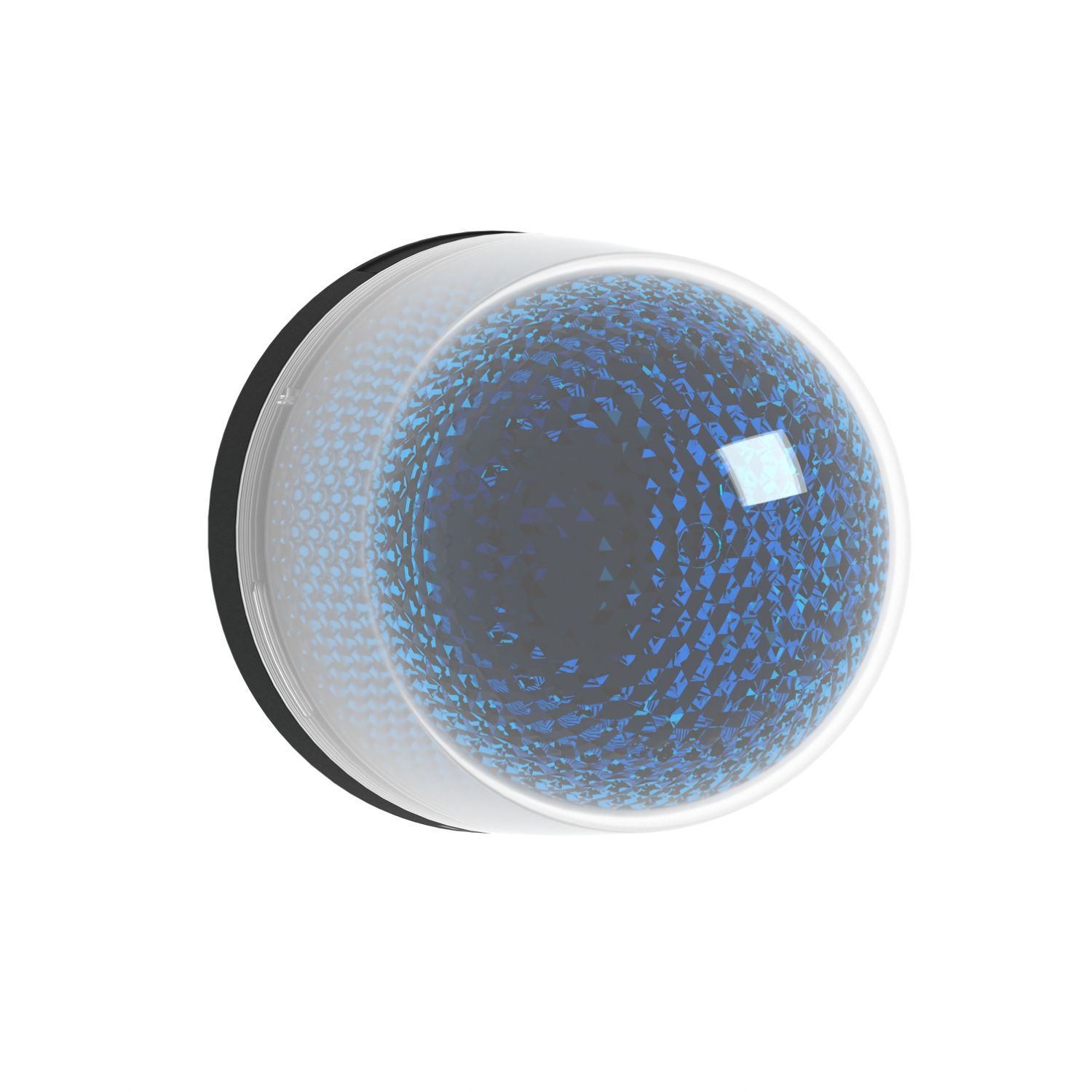

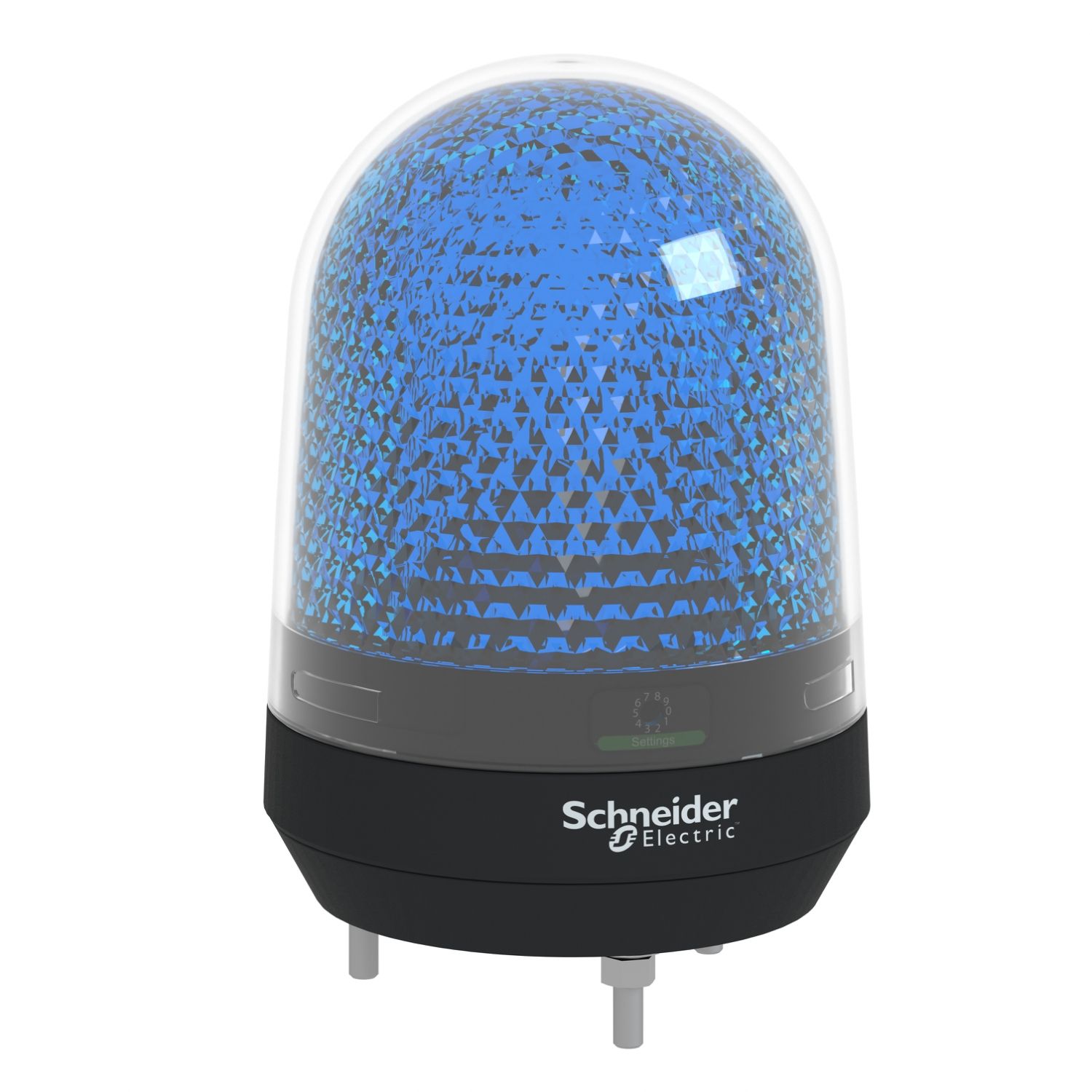

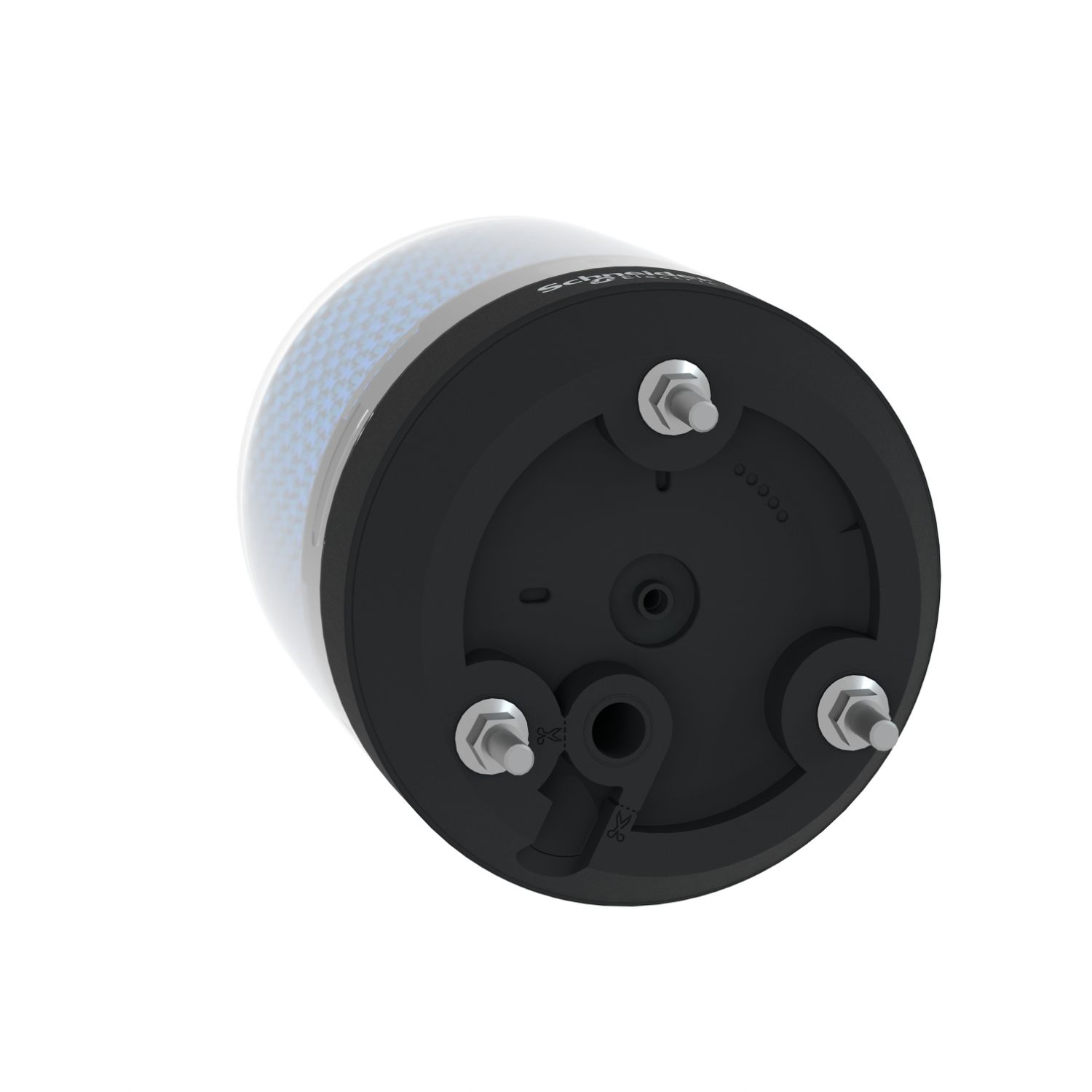

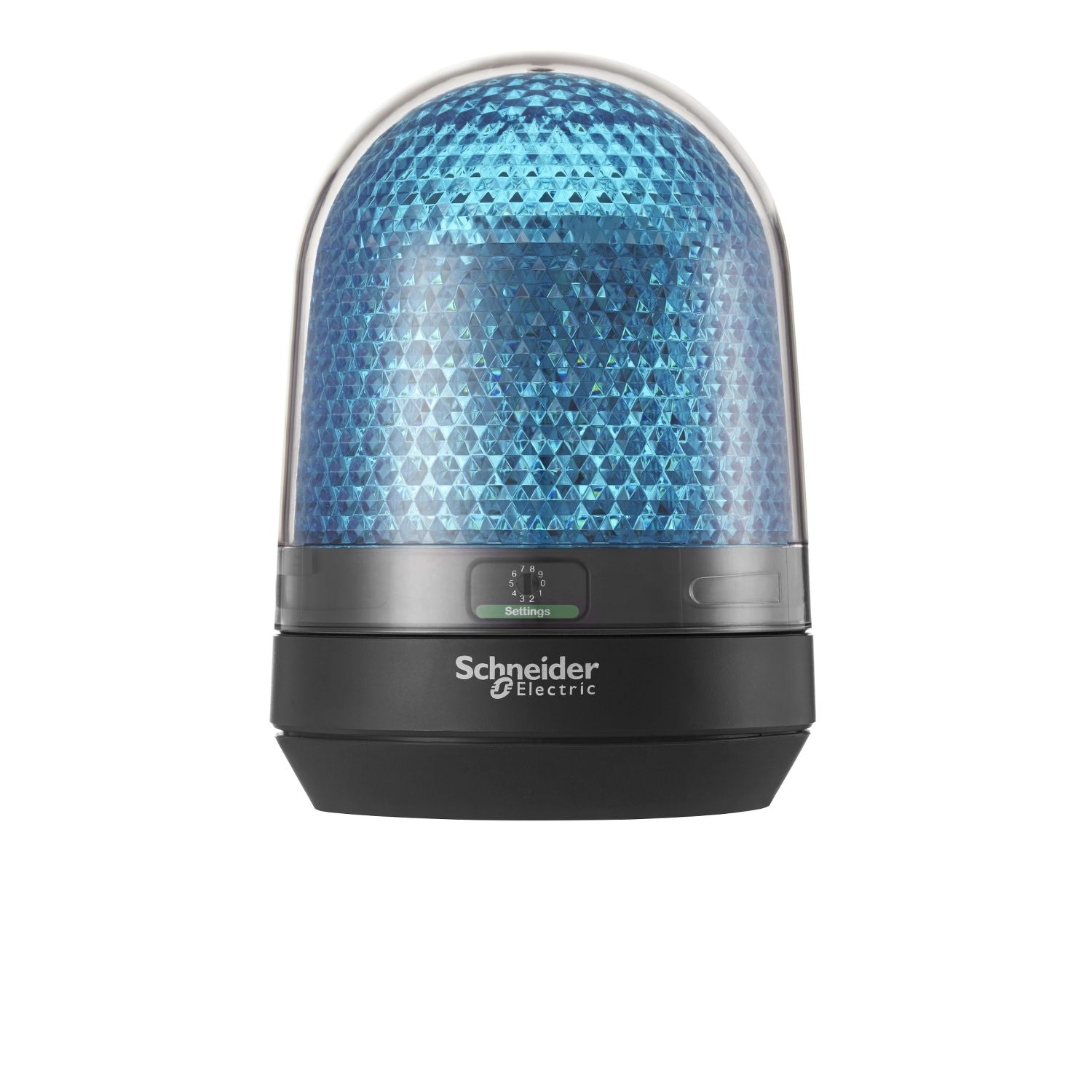

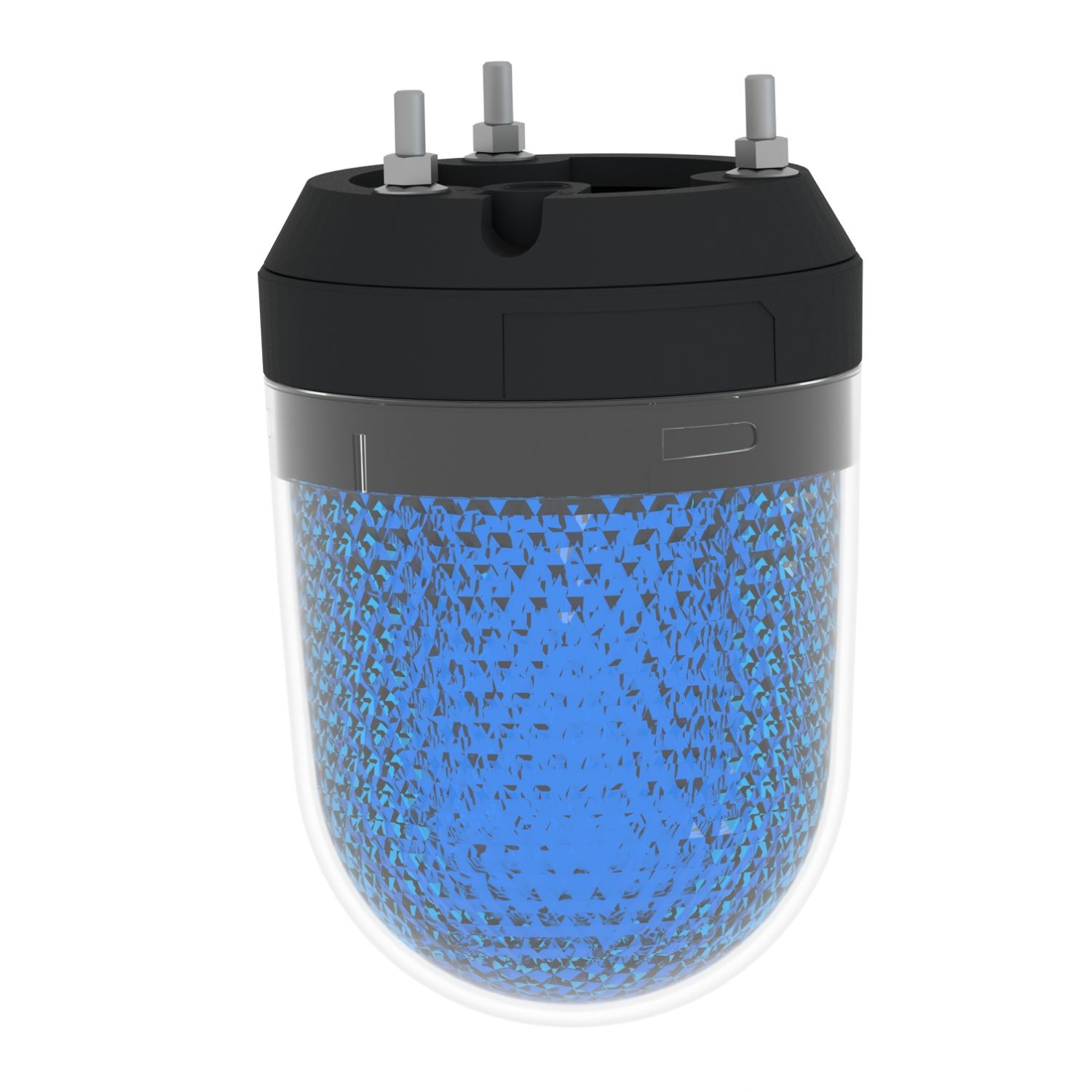

Picture of Harmony XVR, Illuminated beacon without buzzer, blue, 100mm, integral LED, 48V DC
SKU:

XVR3E06

Harmony XVR, Illuminated beacon without buzzer, blue, 100mm, integral LED, 48V DC

$287.86
Available for Shipping : 18-Mar-2025
Harmony XVR, Illuminated beacon without buzzer, blue, 100mm, integral LED, 48V DC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
Instruction sheet
Declaration of conformity
End of life manual
Brochure
Product Page Link
Product Data Sheet
This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern, allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.

Products specifications

Attribute name Attribute value
Main
Device short name XVR3
Device application bulldozer, automated guided vehicle (AGV), forklift
Beacon or indicator bank unit type LED unit
Product or component type beacon
Light source LED, blue
Mounting diameter 100 mm
Range of product Harmony XVR
Complementary
[Ue] rated operational voltage 35...60 V DC
Width 100 mm
Material EPDM (ethylene propylene diene monomer): base, PBT (polybutylene terephthalate) + PC (polycarbonate): body, PC (polycarbonate): lenses
Installation direction upright outdoor, inverted indoor, sideways indoor, upright indoor
Assembly style ready assembled
Signalling type blinking, flashing, rotating
[Us] rated supply voltage 48 V DC
Electrical insulation class class II
Net weight 0.484 kg
Length 100 mm
Current consumption 1000 mA
Marking CE
Power consumption in W 3 W
Inrush current 1 A
Height 139 mm
Environment
Relative humidity 35-85 % without condensation
Ambient air temperature for storage -35-70 °C
Vibration resistance 7.1 gn (upright), 4.6 gn (inverted), 4.6 gn (sideways)
IP degree of protection IP23 (inverted), IP23 (sideways), IP65 (upright)
Ambient air temperature for operation -20-50 °C
Product certifications CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.2 cm
Package 1 Width 15.6 cm
Package 1 Length 10.2 cm
Package 1 Weight 546.0 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 10.2 cm
Package 2 Width 15.6 cm
Package 2 Length 10.2 cm
Package 2 Weight 4.368 kg
