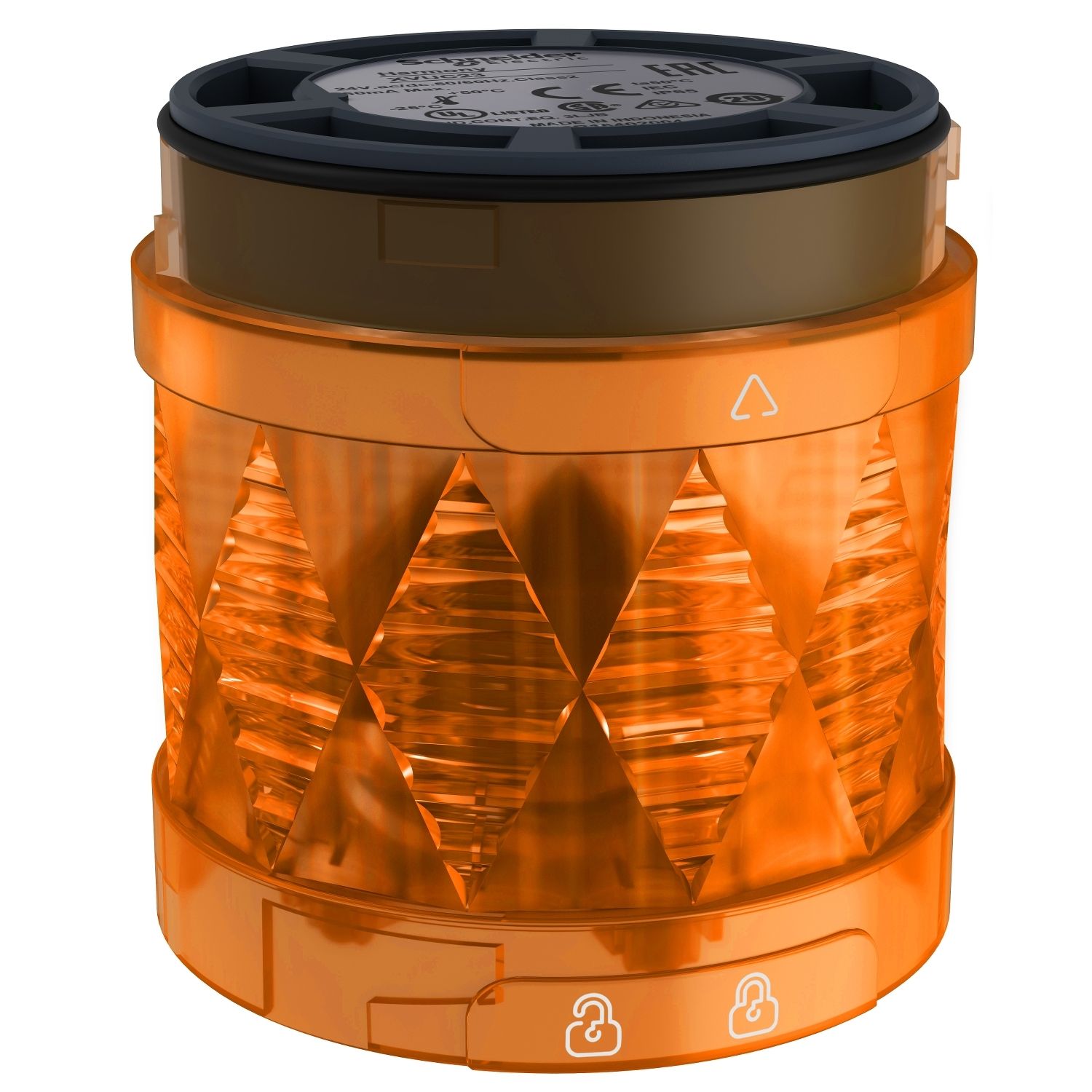

Picture of Harmony XVU, Illuminated LED unit for modular tower lights, orange, Ø60, steady, IP65, 24 V AC/DC
SKU:

XVUC25

Harmony XVU, Illuminated LED unit for modular tower lights, orange, Ø60, steady, IP65, 24 V AC/DC

$81.24
Available for Shipping : 09-Dec-2024
Product Selector
Harmony XVU, Illuminated LED unit for modular tower lights, orange, Ø60, steady, IP65, 24 V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
CAD
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This orange illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device application automotive, machine tools, packaging machine
Beacon or indicator bank unit type LED unit
Light source LED, orange
Range of product Harmony XVU
Component name XVU
Product or component type modular tower light
Mounting diameter 60 mm
Complementary
Assembly style up to 4 units with buzzer, customer assembly, up to 5 units
Maximum power dissipation in W 2 W
Signalling type steady
Net weight 0.064 kg
Length 50 mm
Current consumption <= 40 mA
Material PC (polycarbonate) V-0 conforming to UL 94, PC (polycarbonate) V-2 conforming to UL 94
[Us] rated supply voltage 24 V AC/DC
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65
Ambient air temperature for operation -25-50 °C
Vibration resistance 2 gn
Product certifications CE, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9 cm
Package 1 Width 13.3 cm
Package 1 Length 9.1 cm
Package 1 Weight 145 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.68 kg
Unit Type of Package 3 3
Number of Units in Package 3 192
Package 3 Height 60 cm
Package 3 Width 80 cm
Package 3 Length 70 cm
Package 3 Weight 35.84 kg
