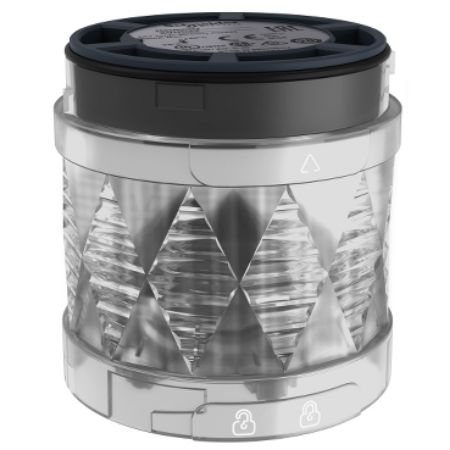

Picture of Harmony XVU, Illuminated LED unit for modular tower lights, white, Ø60, steady, IP65, 24 V AC/DC
SKU:

XVUC27

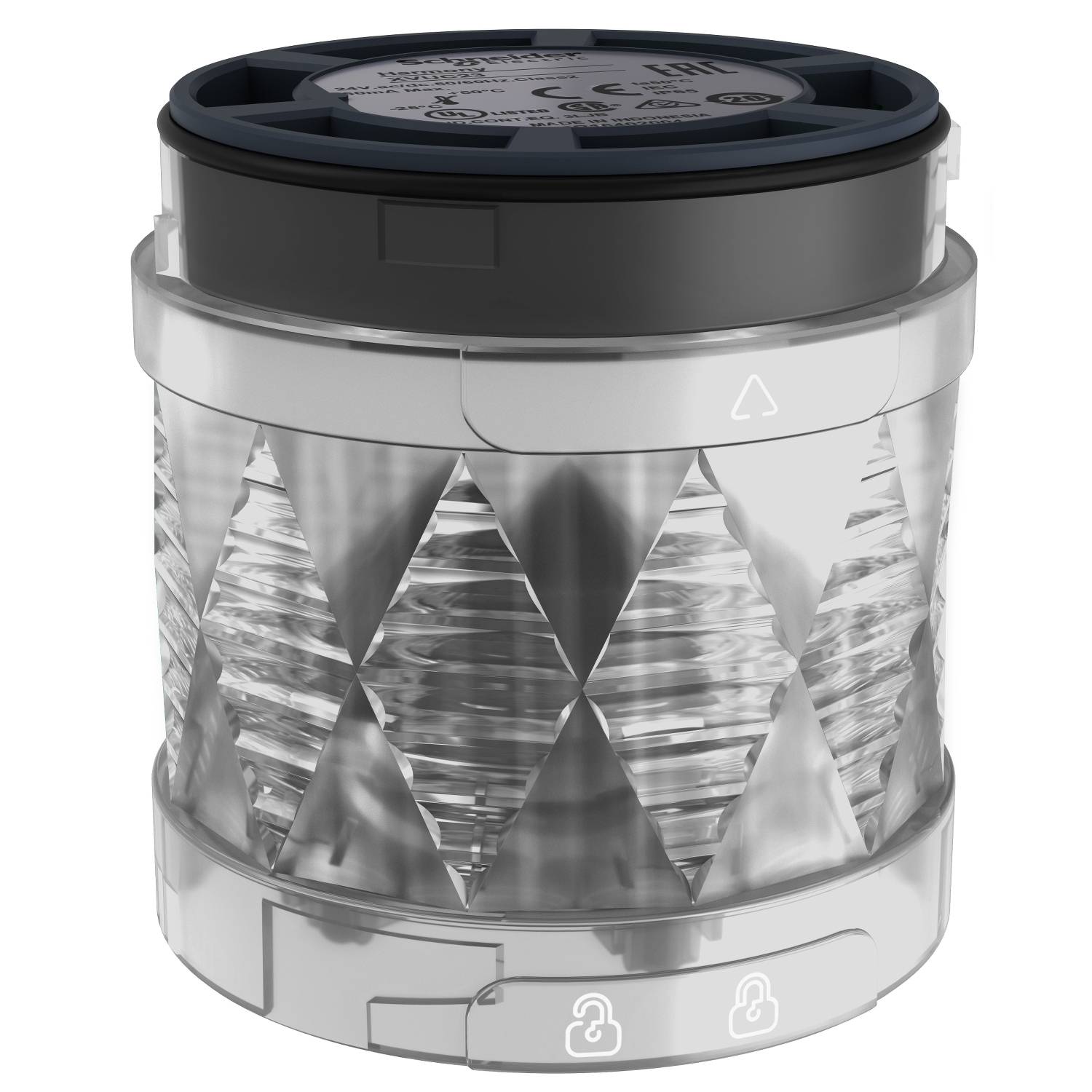

Harmony XVU, Illuminated LED unit for modular tower lights, white, Ø60, steady, IP65, 24 V AC/DC

$86.48
Product Selector
Harmony XVU, Illuminated LED unit for modular tower lights, white, Ø60, steady, IP65, 24 V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 24-Oct-2024
Product environmental
Instruction sheet
Catalogue
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
This white illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Products specifications

Attribute nameAttribute value
Main
Device applicationmachine tools, automotive, packaging machine
Beacon or indicator bank unit typeLED unit
Light sourceLED, white
Range of productHarmony XVU
Component nameXVU
Product or component typemodular tower light
Mounting diameter60 mm
Complementary
Assembly styleup to 4 units with buzzer, customer assembly, up to 5 units
Maximum power dissipation in W2.5 W
Signalling typesteady
Net weight0.064 kg
Length50 mm
Current consumption<= 50 mA
MaterialPC (polycarbonate) V-0 conforming to UL 94, PC (polycarbonate) V-2 conforming to UL 94
[Us] rated supply voltage24 V AC/DC
Environment
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP65
Ambient air temperature for operation-25-50 °C
Vibration resistance2 gn
Product certificationsCE, CSA, UL
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.1 cm
Package 1 Width13.3 cm
Package 1 Length9 cm
Package 1 Weight145 g
Unit Type of Package 22
Number of Units in Package 224
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight4.475 kg
Unit Type of Package 33
Number of Units in Package 3192
Package 3 Height60 cm
Package 3 Width80 cm
Package 3 Length70 cm
Package 3 Weight35.84 kg
