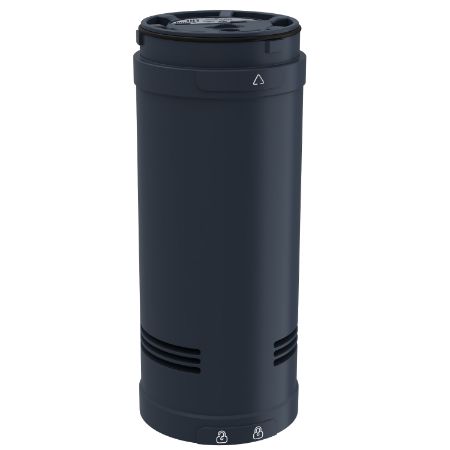

Picture of audible unit for modular tower light, Harmony XVU, black, 60mm, sound, 24V AC/DC
Picture of audible unit for modular tower light, Harmony XVU, black, 60mm, sound, 24V AC/DC
Picture of audible unit for modular tower light, Harmony XVU, black, 60mm, sound, 24V AC/DC
Picture of audible unit for modular tower light, Harmony XVU, black, 60mm, sound, 24V AC/DC
Picture of audible unit for modular tower light, Harmony XVU, black, 60mm, sound, 24V AC/DC
Picture of audible unit for modular tower light, Harmony XVU, black, 60mm, sound, 24V AC/DC
SKU:

XVUC9V

audible unit for modular tower light, Harmony XVU, black, 60mm, sound, 24V AC/DC

Old price: $320.10 INC GST
$249.68 INC GST
Available for Shipping : 17-Feb-2026
Product Selector
audible unit for modular tower light, Harmony XVU, black, 60mm, sound, 24V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 17-Feb-2026
Image of product in real life situation
Instruction sheet
Circularity Profile
Declaration of conformity
Catalog
Environmental Disclosure
CAD
Product Page Link
Product Data Sheet
This Harmony XVU audible buzzer unit is supplied with 24V AC/DC. It has a diameter of 60mm. This indicating bank buzzer is an accessory designed as an audible and signalling unit for modular tower light for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection. 86 dB loud buzzer allows for clear alerting on critical machine statuses even from long distance. It complies with international standards and certifications (CSA, UL, RoHS, EAC, CE standards and IP65).

Products specifications

Attribute name Attribute value
Main
Beacon or indicator bank unit type sound unit
Range of product Harmony XVU
Housing colour black
Component name XVU
Product or component type modular tower light
Mounting diameter 60 mm
Complementary
Assembly style customer assembly
Sound frequency 20 Hz...20 KHz
Maximum power dissipation in W 5.55 W
[Us] rated supply voltage 24 V AC/DC
Acoustic level 86 dB at 1 m
Localisation on device AC/DC adapter
Signalling type adjustable vocal sound
Current consumption <= 135 mA at 100...240 V AC, <= 400 mA at 24 V AC/DC
Net weight 0.219 kg
Length 155 mm
Material ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94, PBT (polybutylene terephthalate) V-0 conforming to UL 94
Environment
IP degree of protection IP54
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -20-50 °C
Product certifications CE, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 9.500 cm
Package 1 Length 26.500 cm
Package 1 Weight 373.000 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 10.084 kg
