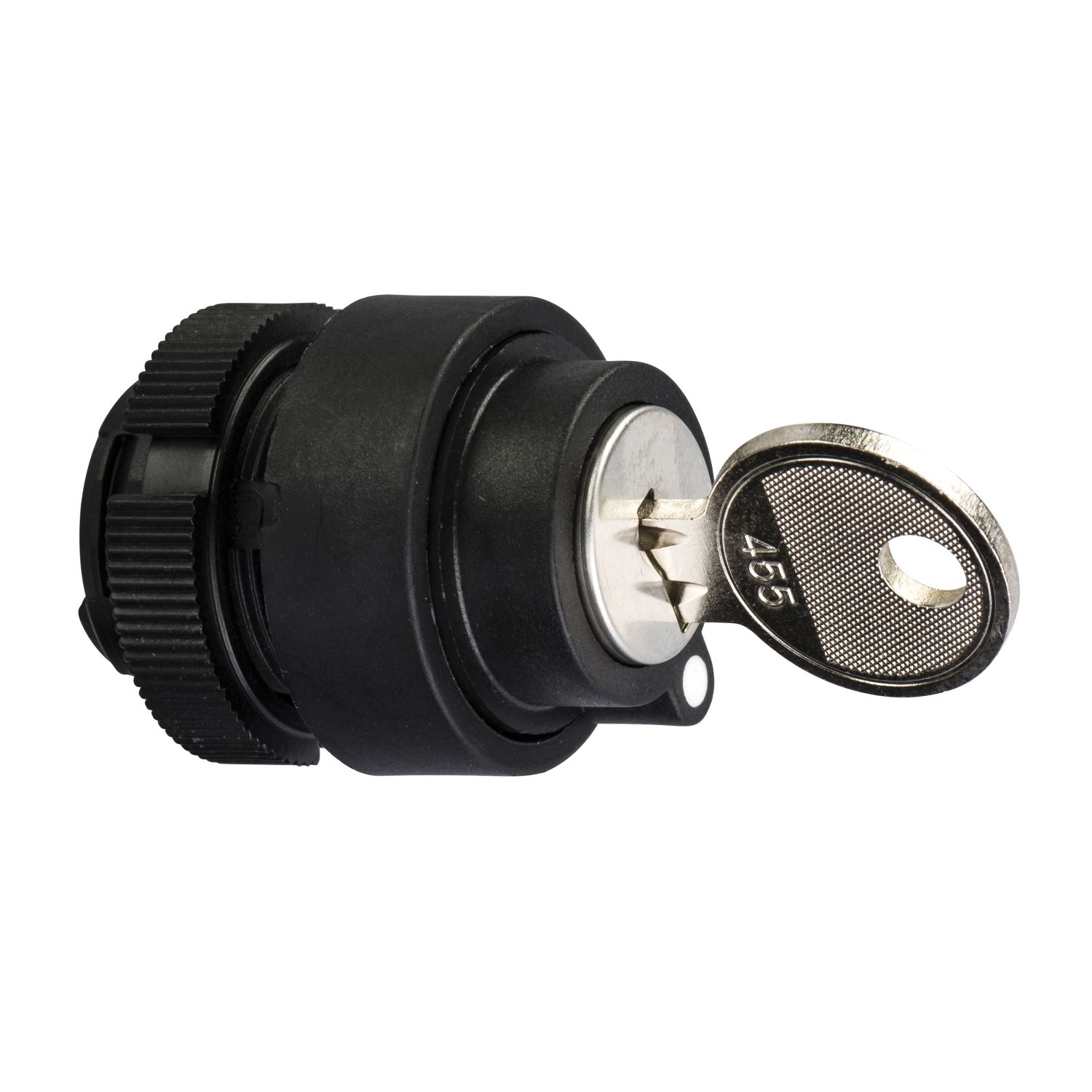

Picture of Selector switch, Harmony XAC, plastic, black, 2 positions, left/right withdrawal position, stay put
SKU:

ZA2BG4

Selector switch, Harmony XAC, plastic, black, 2 positions, left/right withdrawal position, stay put

Old price: $162.80 INC GST
$126.98 INC GST
Available for Shipping : 24-Mar-2026
Selector switch, Harmony XAC, plastic, black, 2 positions, left/right withdrawal position, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 24-Mar-2026
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This head for selector switch is a separate component of the range of pendant control stations Harmony XAC. It has a dark grey plastic bezel. It is supplied with key operated knob (key n° 455). It features 2 positions maintained, at 90°. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XAC pendant control stations in diameter 22.5mm cut-out. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 20g. It is IEC 60947-5-1, UL 508 and CSA C22.2 n° 14 compliant.

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA
Component name ZA2
Product or component type selector switch
Range of product Harmony XAC
Complementary
Sale per indivisible quantity 1
Mounting location front of enclosure, base of enclosure
Net weight 0.042 kg
Cap/operator or lens colour black
Marking unmarked
Environment
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 100 gn conforming to IEC 60068-2-27
Standards IEC 60204-32, UL 508, CSA C22.2 No 14, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 3.000 cm
Package 1 Length 6.000 cm
Package 1 Weight 49.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 6.000 cm
Package 2 Width 24.000 cm
Package 2 Length 18.000 cm
Package 2 Weight 500.000 g
Unit Type of Package 3 3
Number of Units in Package 3 50
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.788 kg
