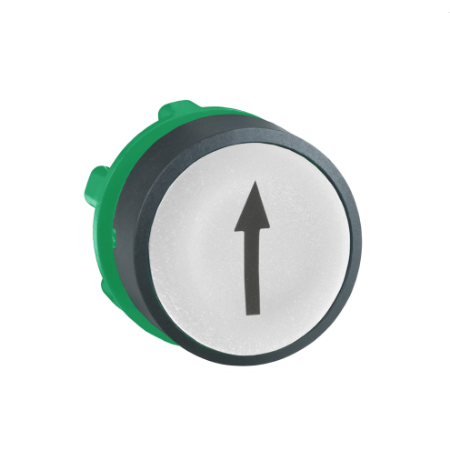

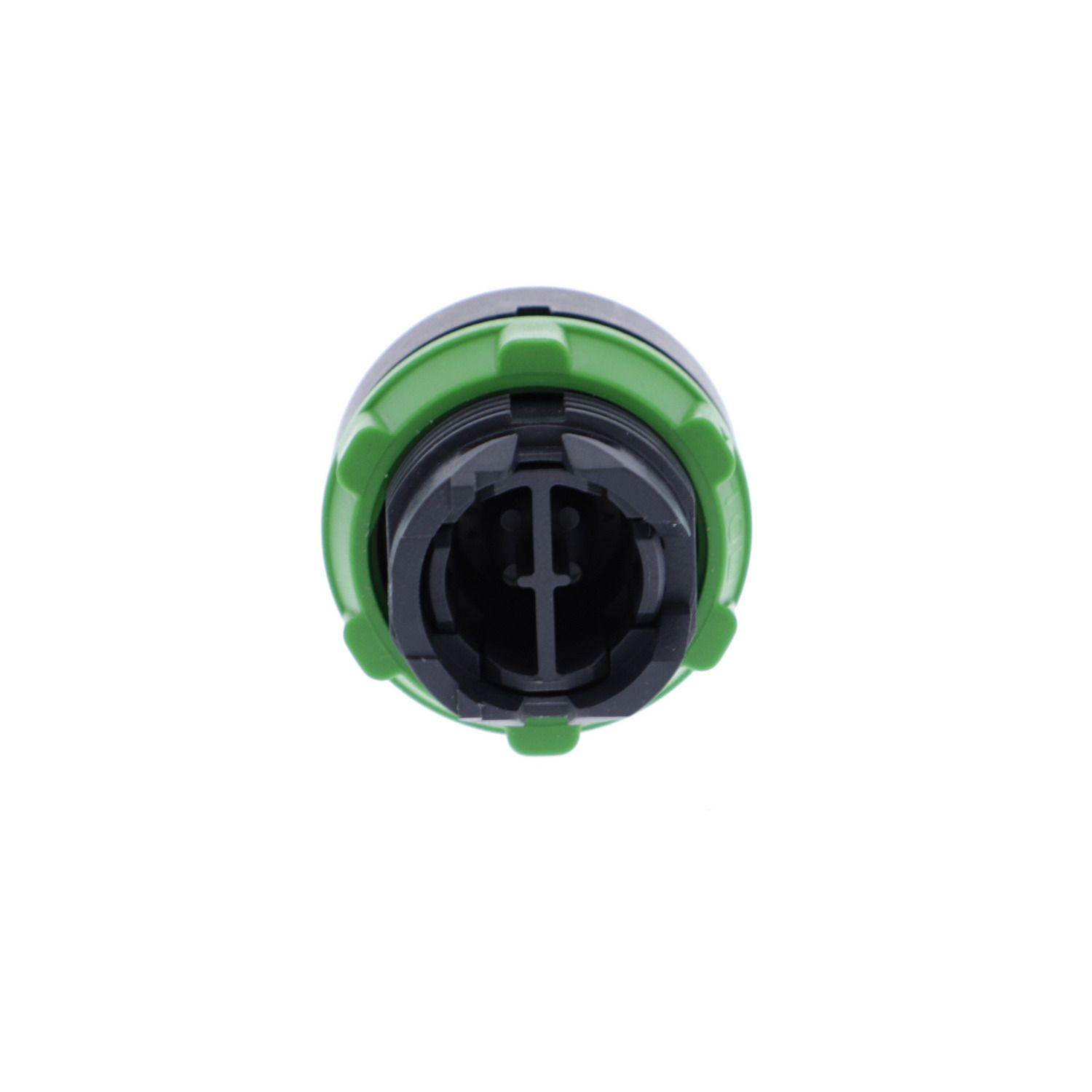

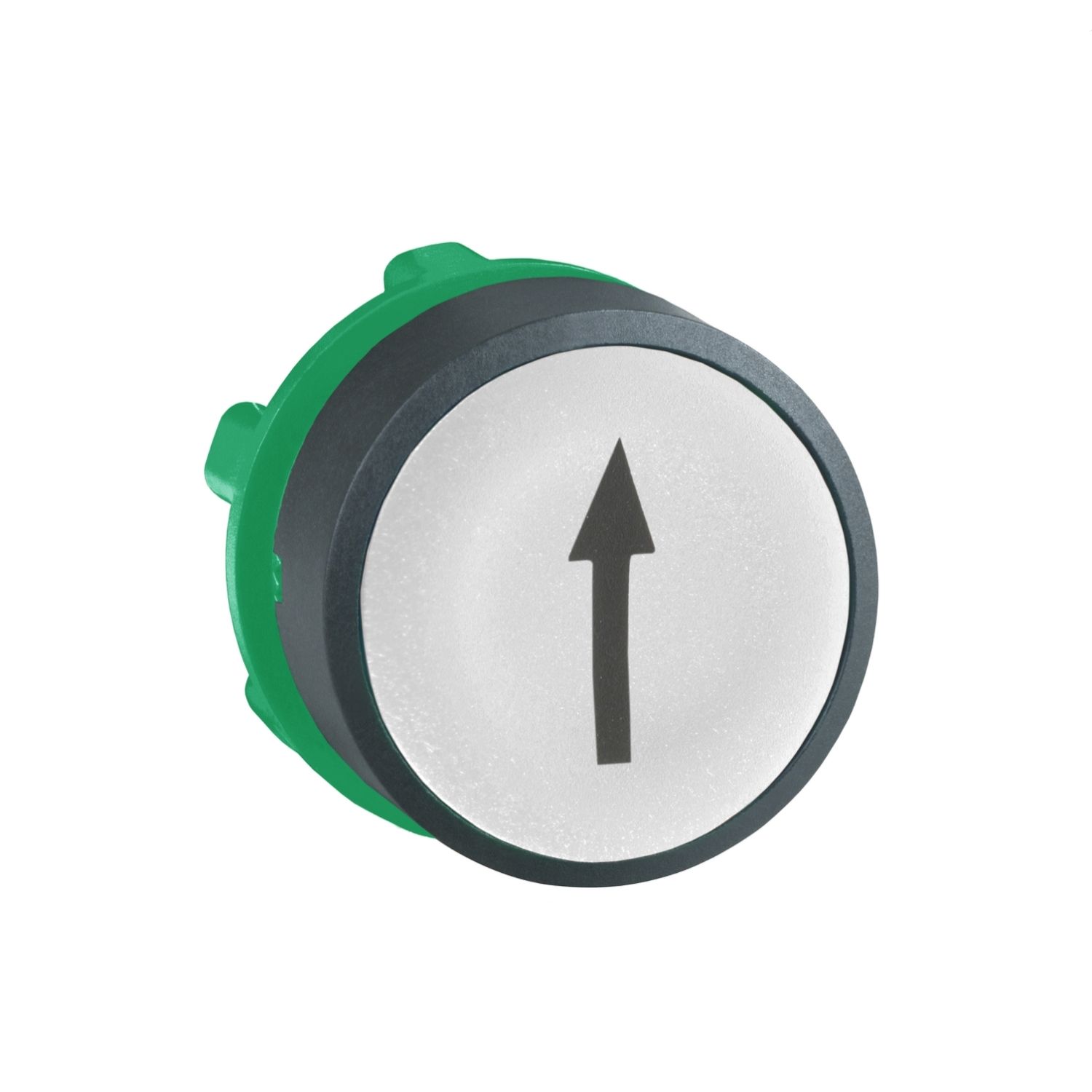

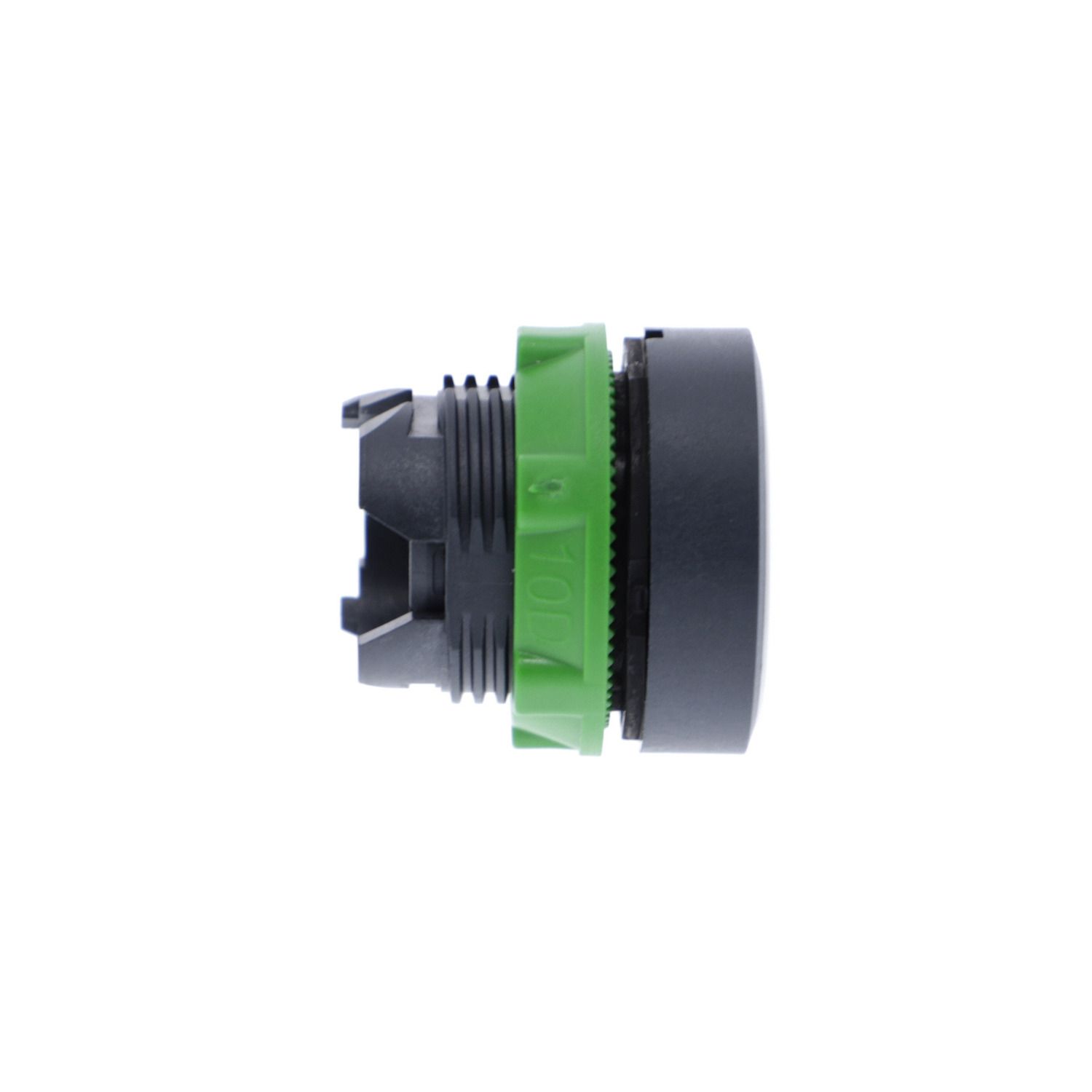

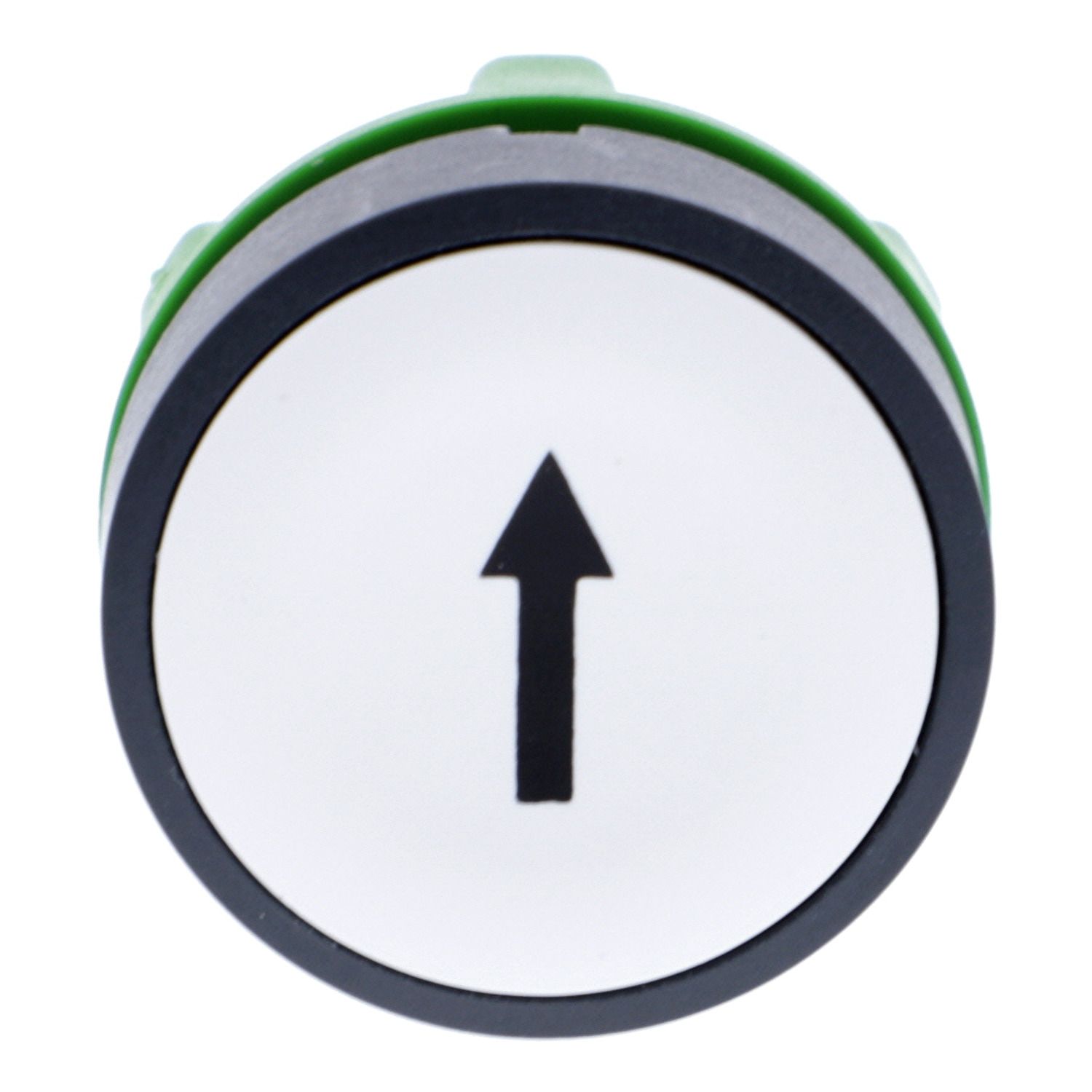

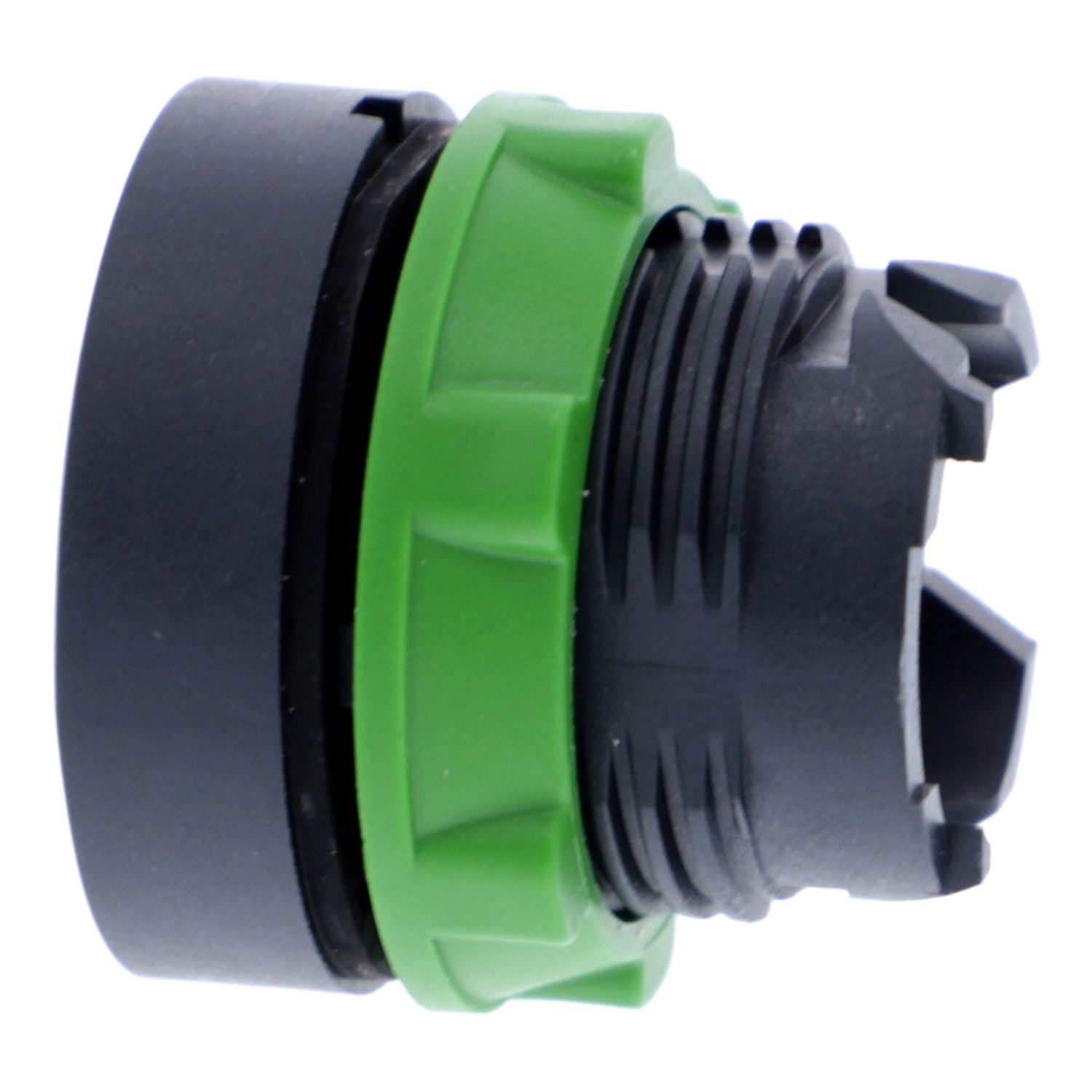

Picture of Harmony XB5, Push button head, plastic, flush, white, 22mm, spring return, marked UP ARROW
SKU:

ZB5AA334

Harmony XB5, Push button head, plastic, flush, white, 22mm, spring return, marked UP ARROW

$19.08
Product Selector
Harmony XB5, Push button head, plastic, flush, white, 22mm, spring return, marked UP ARROW
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Catalogue
Declaration of conformity
Technical illustration
End of life manual
CAD
Product environmental
Product Page Link
Product Data Sheet
This Harmony XB5, flush white button head operates with a spring return mechanism. It is marked with a "Up arrow" symbol. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute nameAttribute value
Main
Device short nameZB5
Sale per indivisible quantity1
Head typestandard
Type of operatorspring return
Range of productHarmony XALF, Harmony XB5
Operator profilewhite flush, up arrow (black)
Bezel materialdark grey plastic
Shape of signaling unit headround
Product or component typehead for non-illuminated push-button
Mounting diameter22 mm
Complementary
Group of productflush push with marking
Station nameXALK 2...5 cut-outs, XALD 1...5 cut-outs
Compatibility codeZB5
Mechanical durability10000000 cycles
Device presentationbasic element
CAD overall height29 mm
Customizable0, no
Colour of markingblack
Electrical composition codeSR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main grouppush-button
CAD overall depth28 mm
CAD overall width29 mm
Markingup arrow
Cap/operator or lens colourwhite
Net weight0.018 kg
Environment
Protective treatmentTH
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP69K, IP69, IP67, IP66 conforming to IEC 60529
StandardsJIS C8201-1, UL 508, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1
Ambient air temperature for operation-40-70 °C
IK degree of protectionIK03 conforming to IEC 50102
NEMA degree of protectionNEMA 4X, NEMA 13
Overvoltage categoryclass II conforming to IEC 60536
Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Product certificationsUL listed, GL, DNV, CSA, LROS (Lloyds register of shipping), BV
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.500 cm
Package 1 Width3.400 cm
Package 1 Length5.400 cm
Package 1 Weight16.800 g
Unit Type of Package 22
Number of Units in Package 25
Package 2 Height4.500 cm
Package 2 Width3.400 cm
Package 2 Length26.500 cm
Package 2 Weight84.000 g
Unit Type of Package 33
Number of Units in Package 3300
Package 3 Height30.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight5.613 kg
Unit Type of Package 44
Number of Units in Package 42400
Package 4 Height75.000 cm
Package 4 Width60.000 cm
Package 4 Length80.000 cm
Package 4 Weight55.268 kg
