ZB5AA335

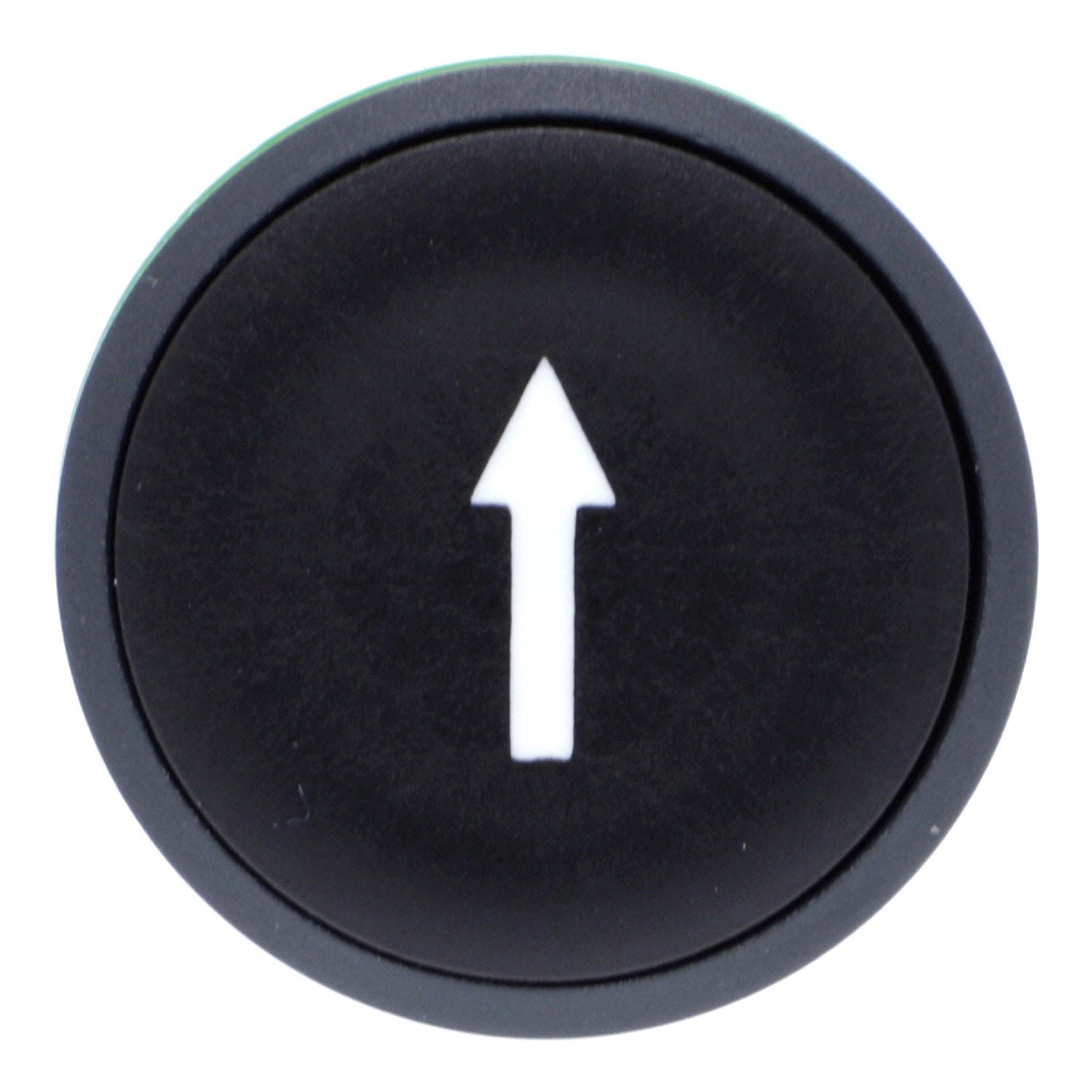

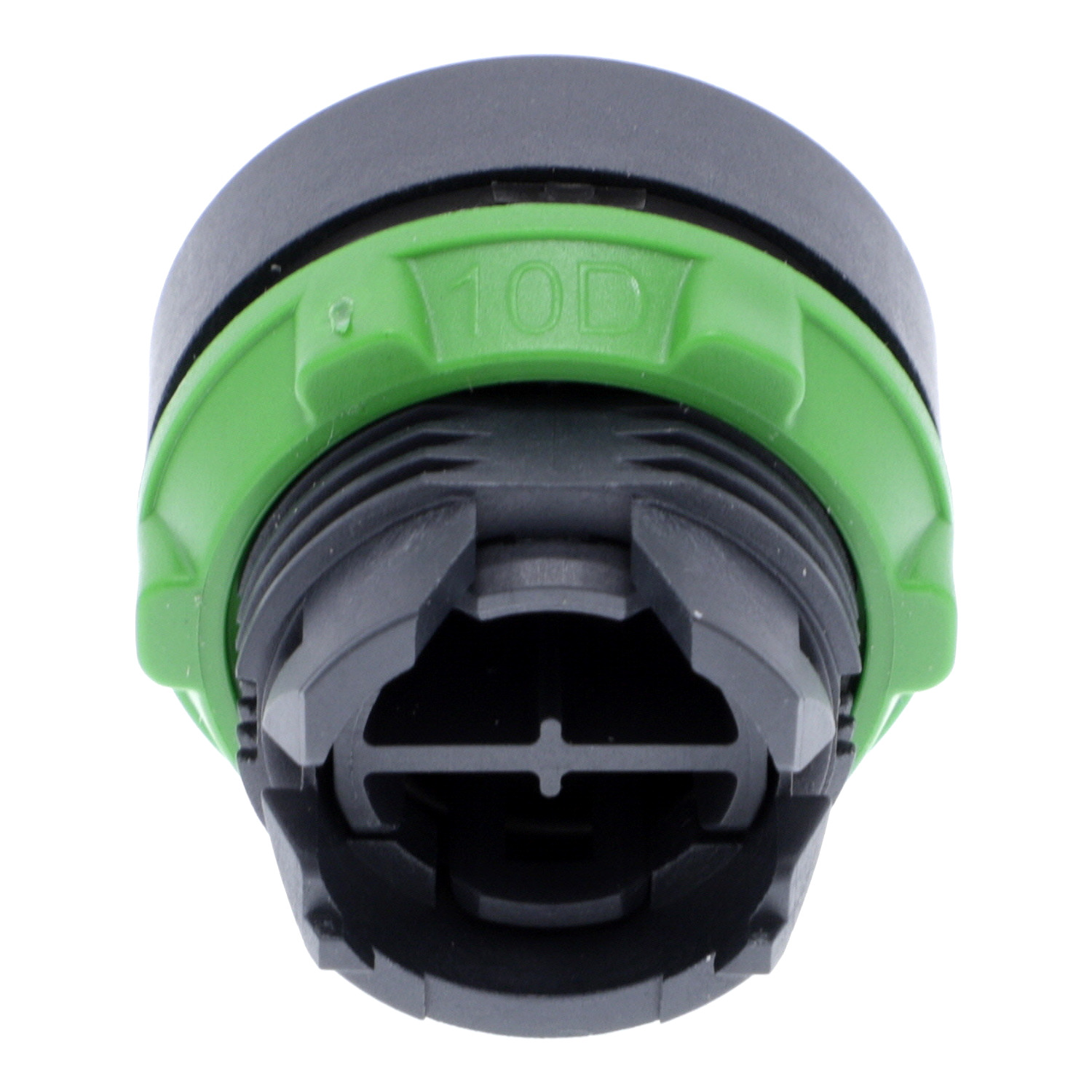

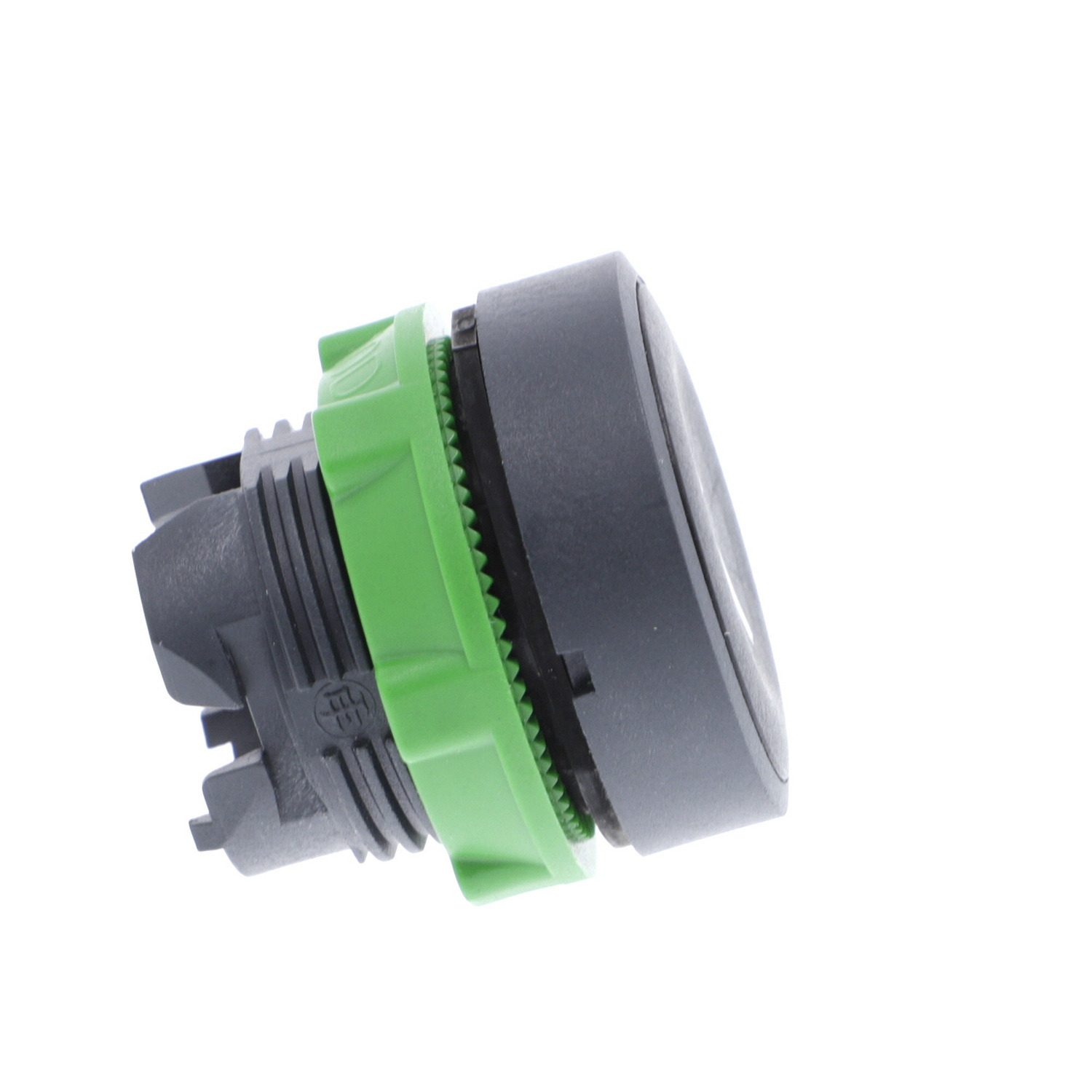

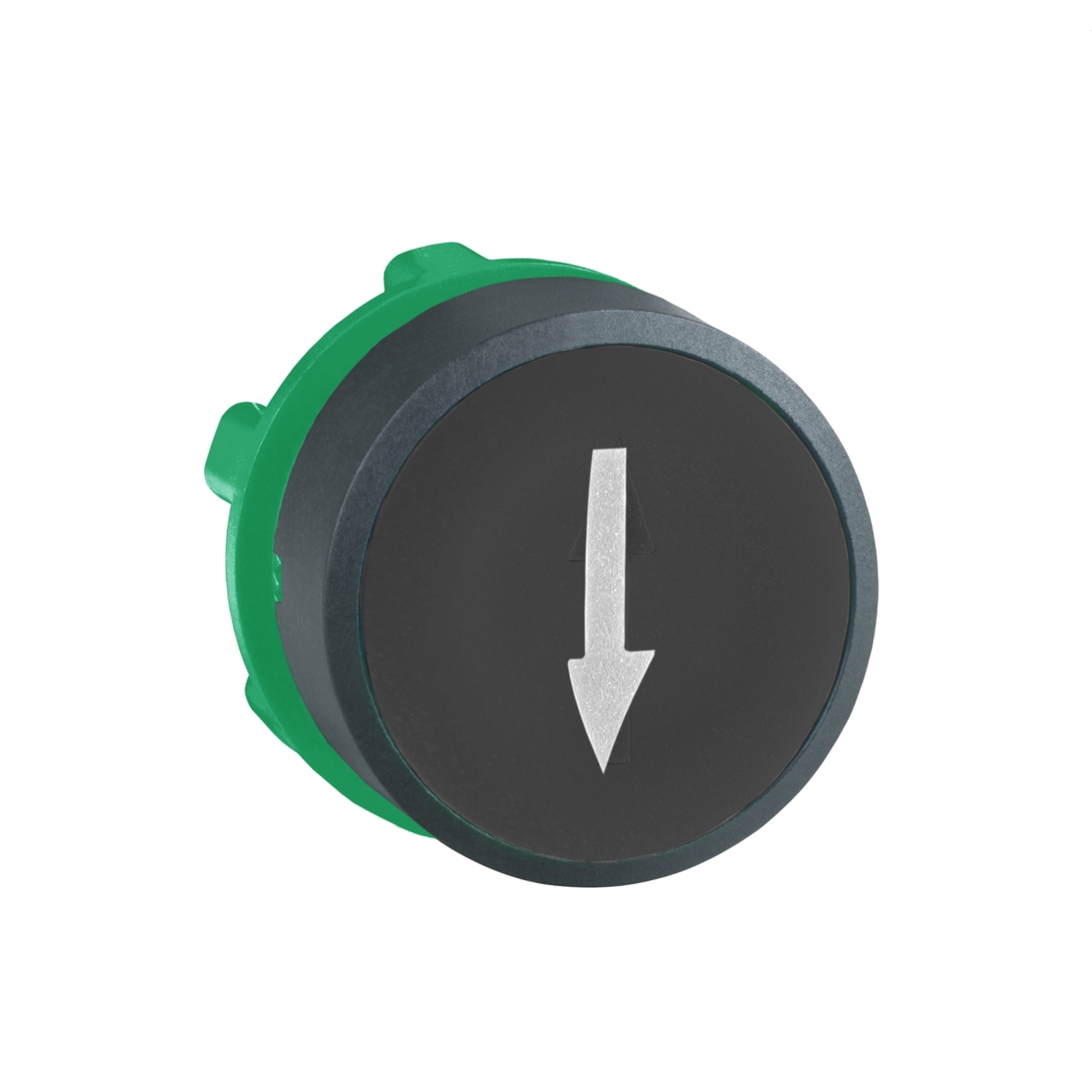

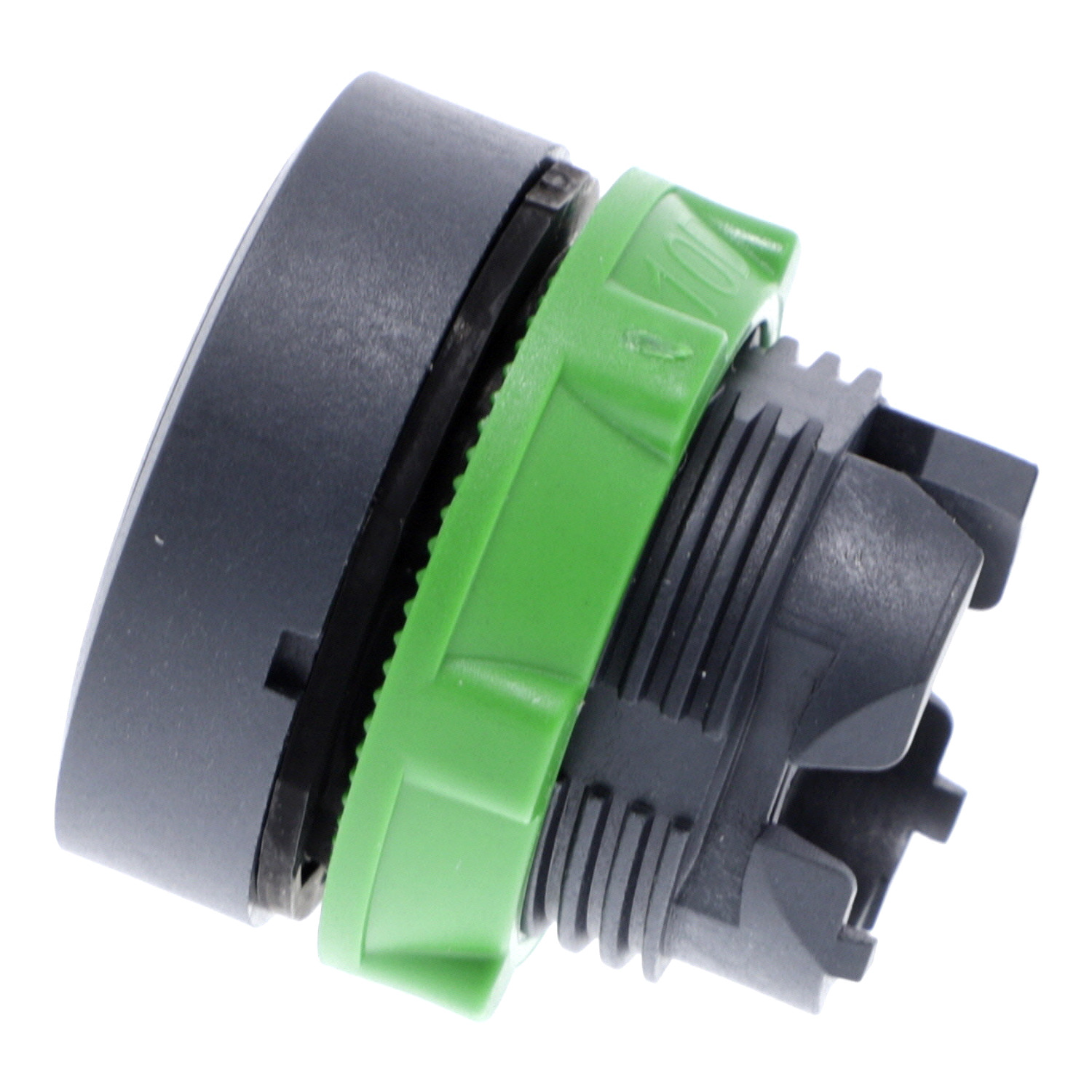

Harmony XB5, Push button head, plastic, flush, black, 22mm, spring return, marked DOWN ARROW

$19.08
Available for Shipping : 24-Nov-2024
Harmony XB5, Push button head, plastic, flush, black, 22mm, spring return, marked DOWN ARROW
Manufacturer: Schneider Electric
This Harmony XB5, flush black button head operates with a spring return mechanism. It is marked with a "Down arrow" symbol. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Sale per indivisible quantity 1
Head type standard
Type of operator spring return
Range of product Harmony XB5, Harmony XALF
Operator profile black flush, down arrow (white)
Bezel material dark grey plastic
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 22 mm
Complementary
Group of product flush push with marking
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Compatibility code ZB5
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 29 mm
Customizable 0, no
Colour of marking white
Electrical composition code SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group push-button
CAD overall depth 28 mm
CAD overall width 29 mm
Marking down arrow
Cap/operator or lens colour black
Net weight 0.018 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Standards JIS C8201-1, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Product certifications LROS (Lloyds register of shipping), DNV, GL, BV, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 3.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 16.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.500 cm
Package 2 Width 3.400 cm
Package 2 Length 26.500 cm
Package 2 Weight 84.000 g
Unit Type of Package 3 3
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.518 kg
Unit Type of Package 4 4
Number of Units in Package 4 2400
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 54.524 kg
