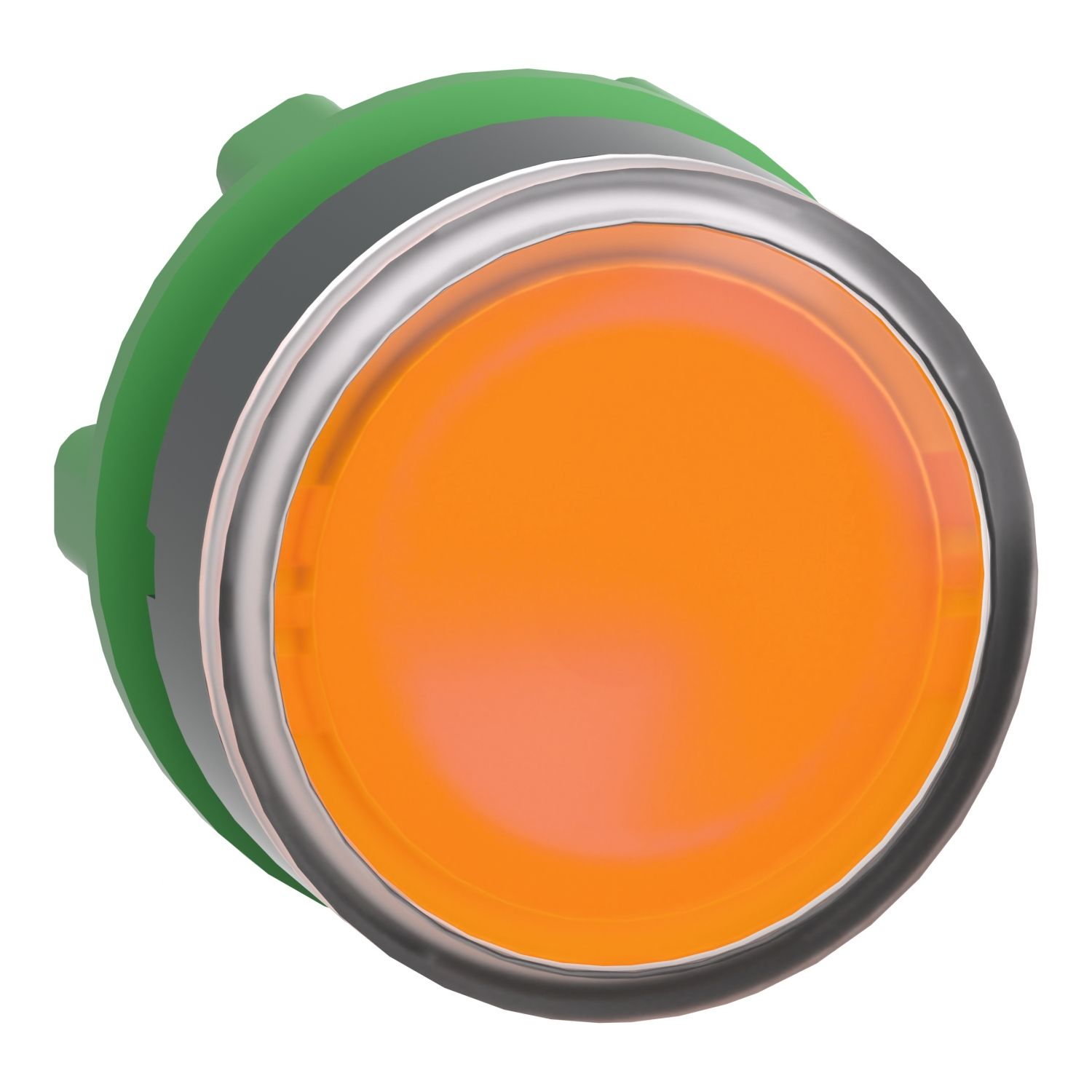

Picture of Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,

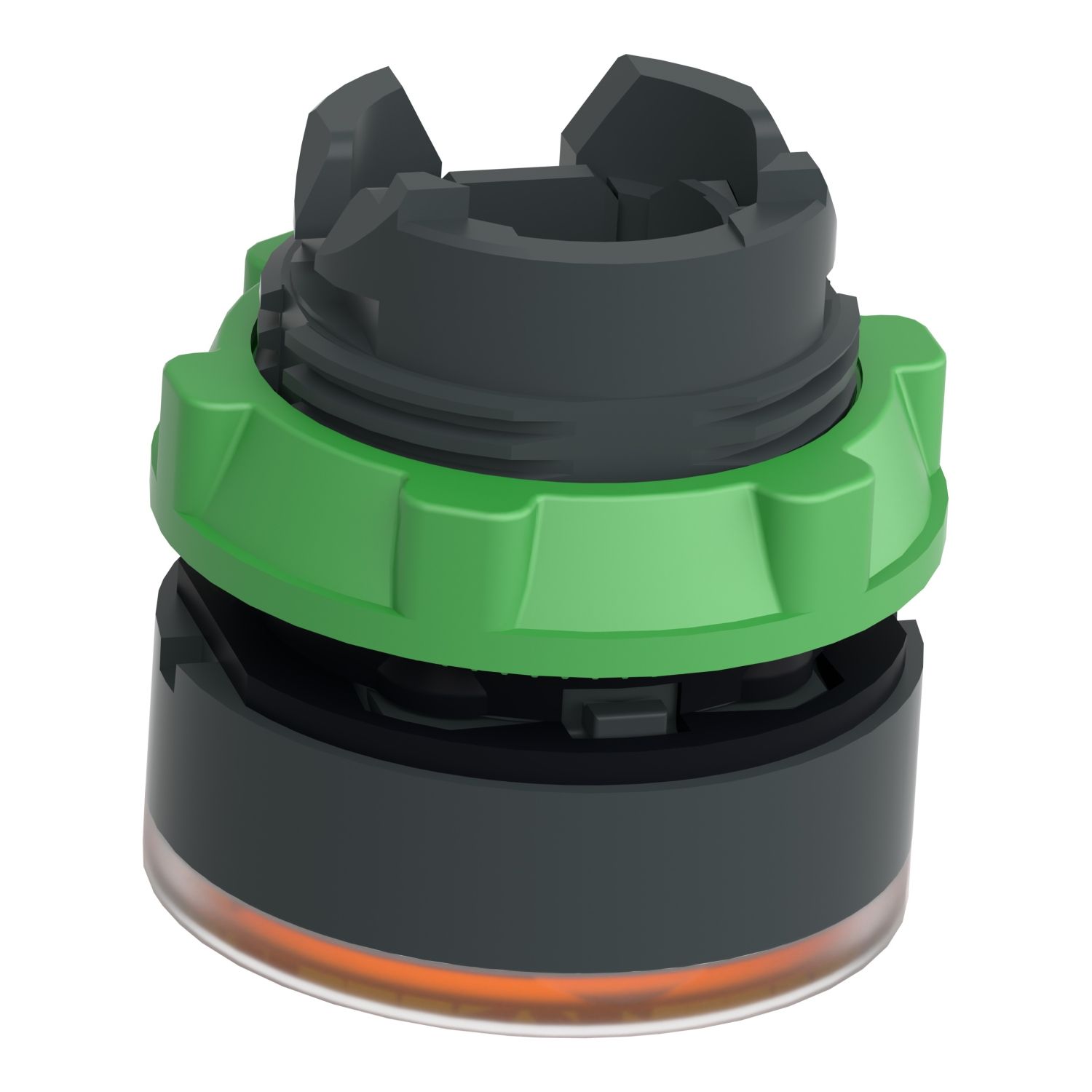

Picture of Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,

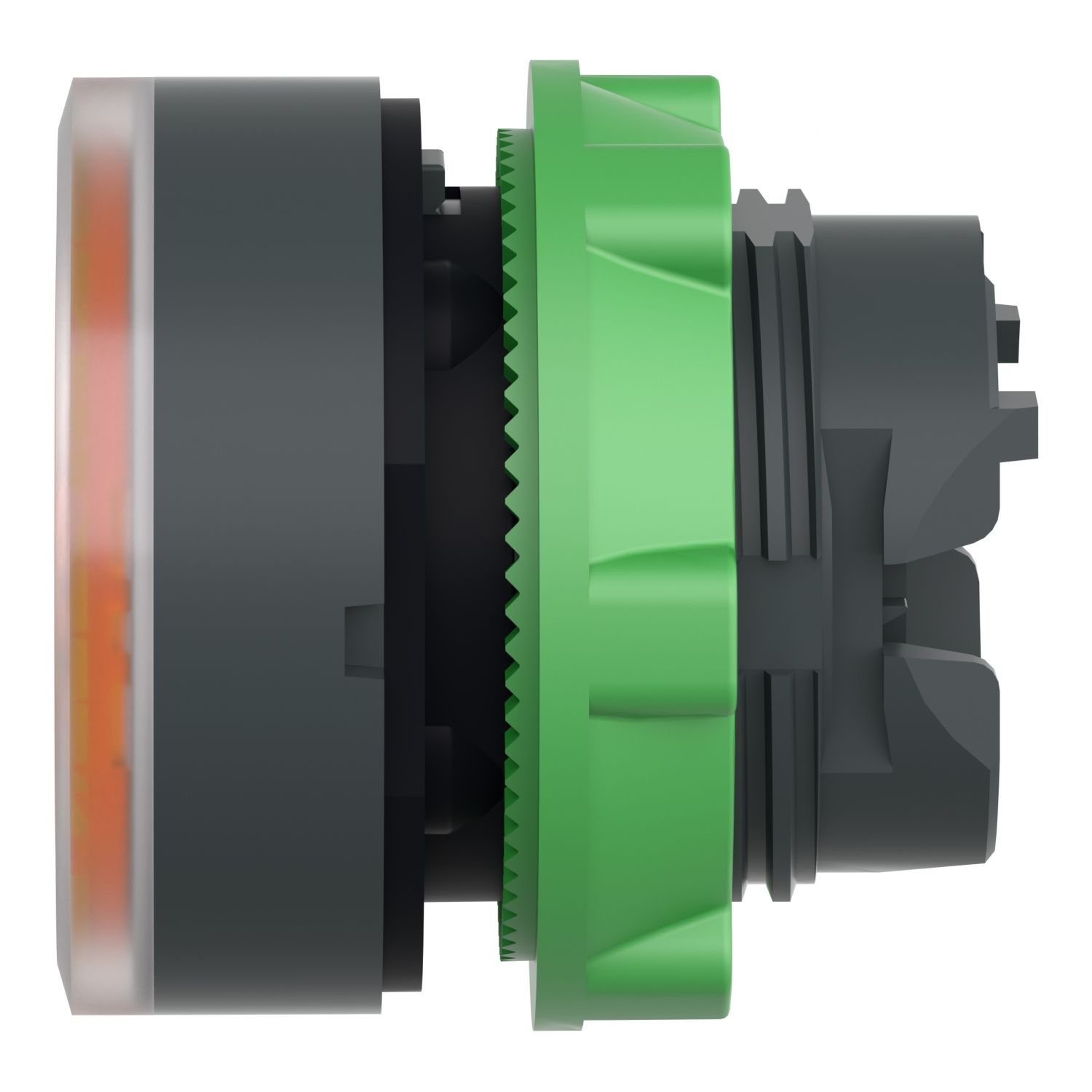

Picture of Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,

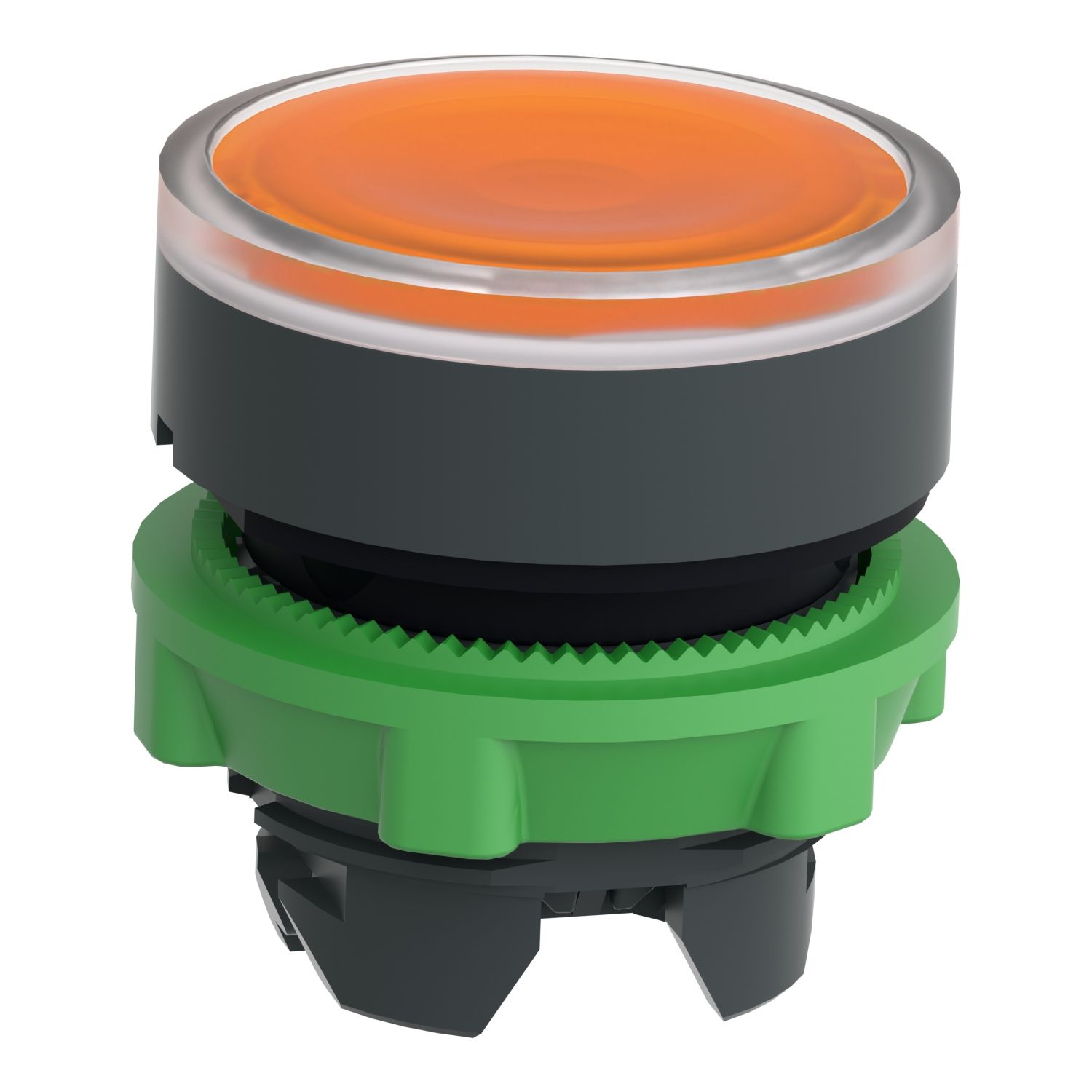

Picture of Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,

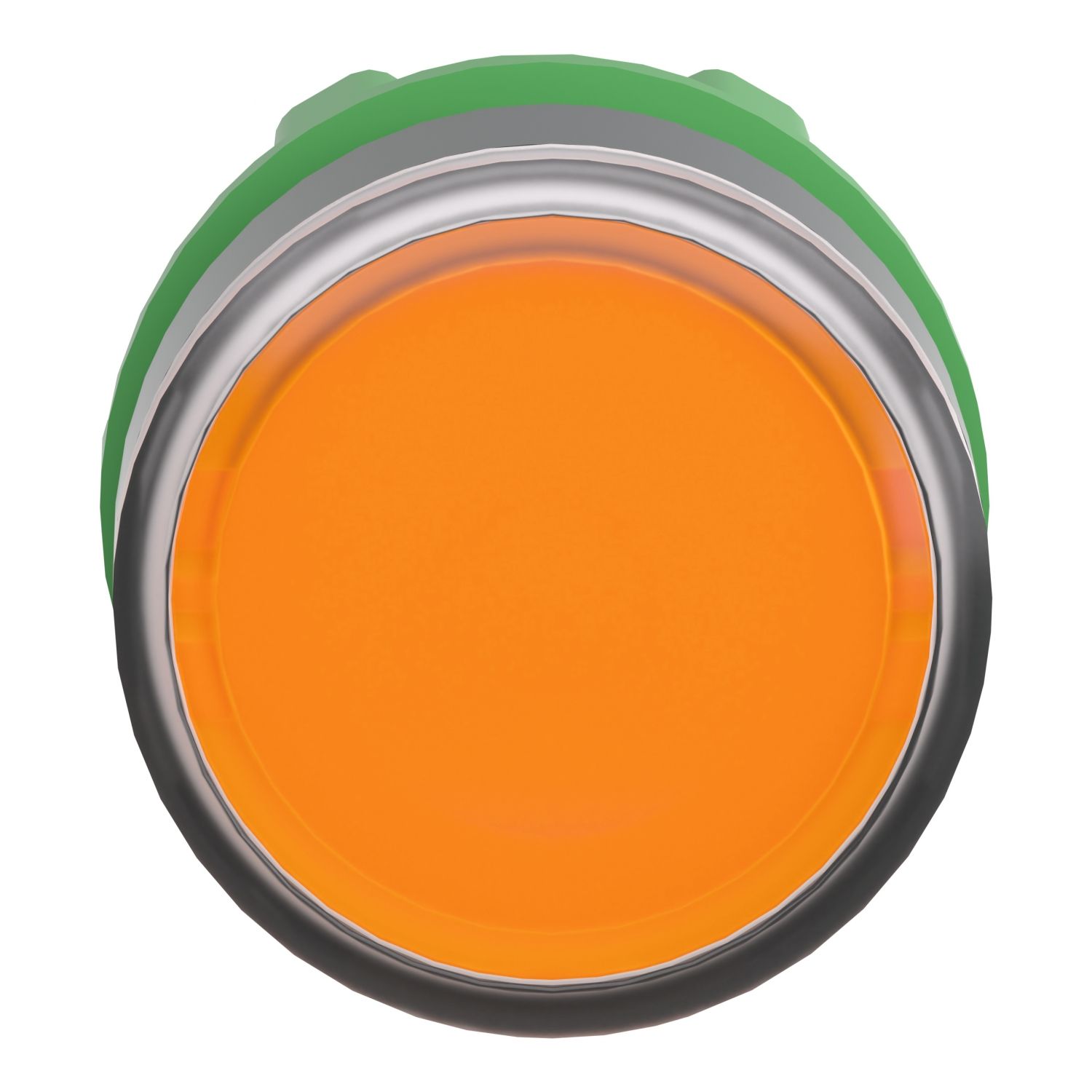

Picture of Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,

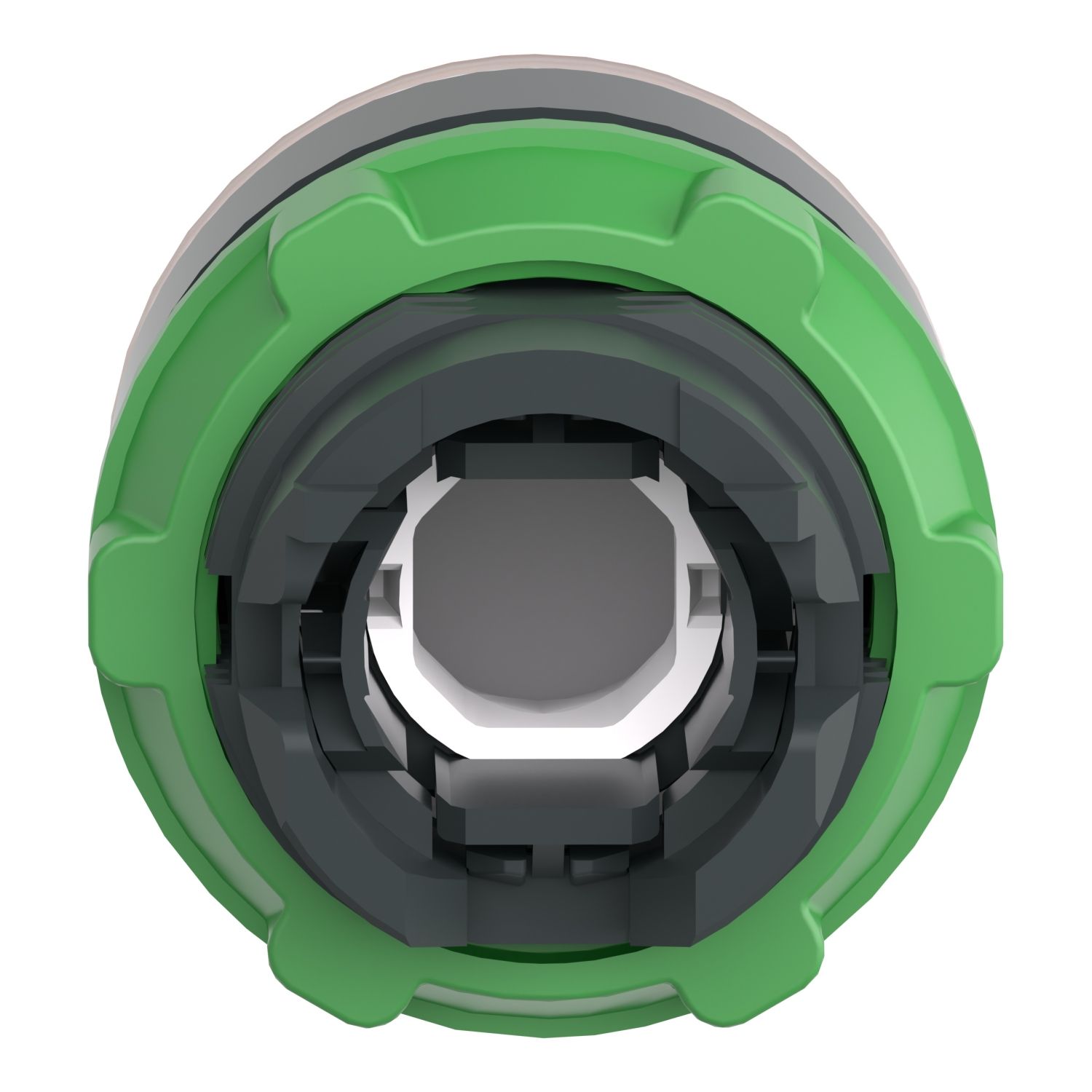

Picture of Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,

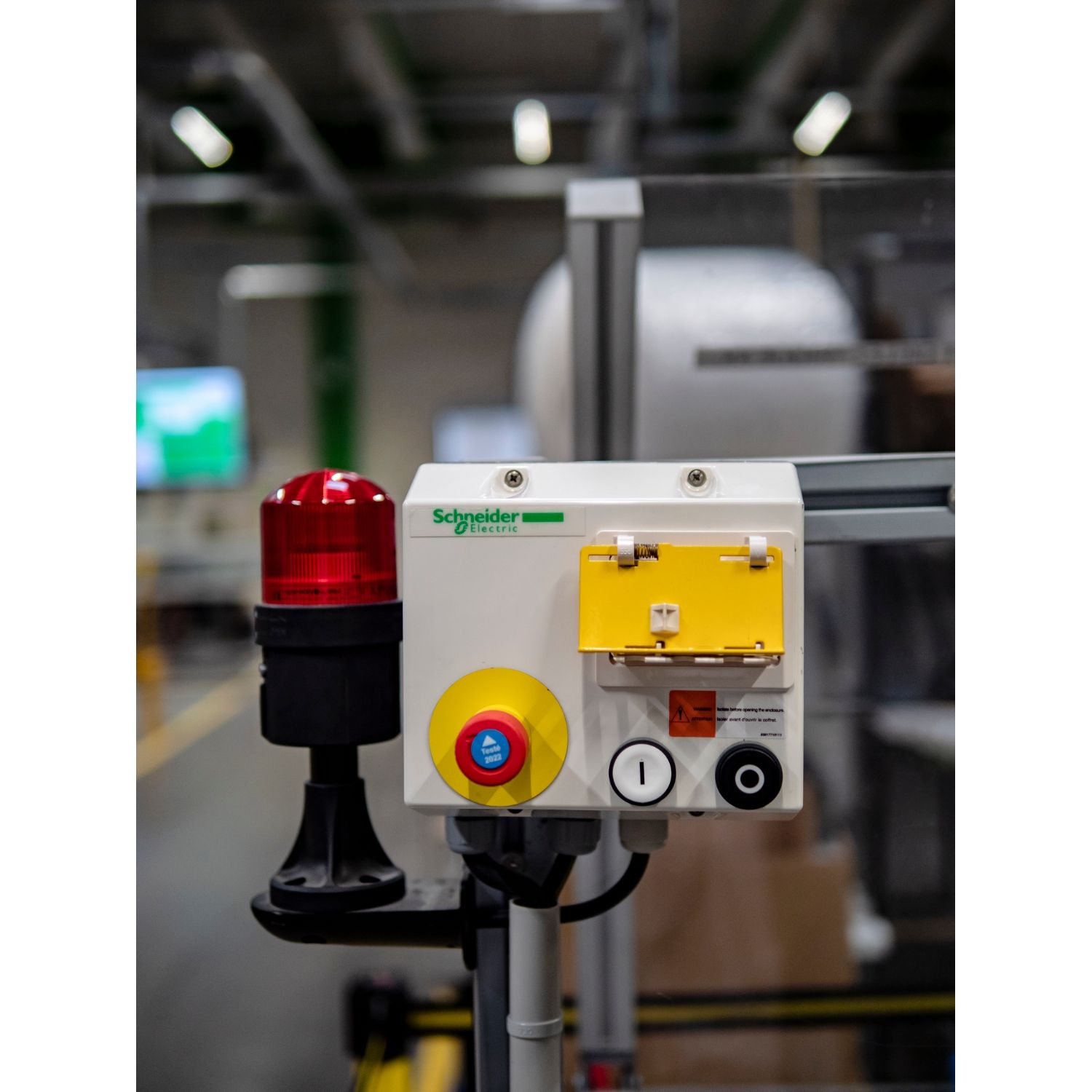

Picture of Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,

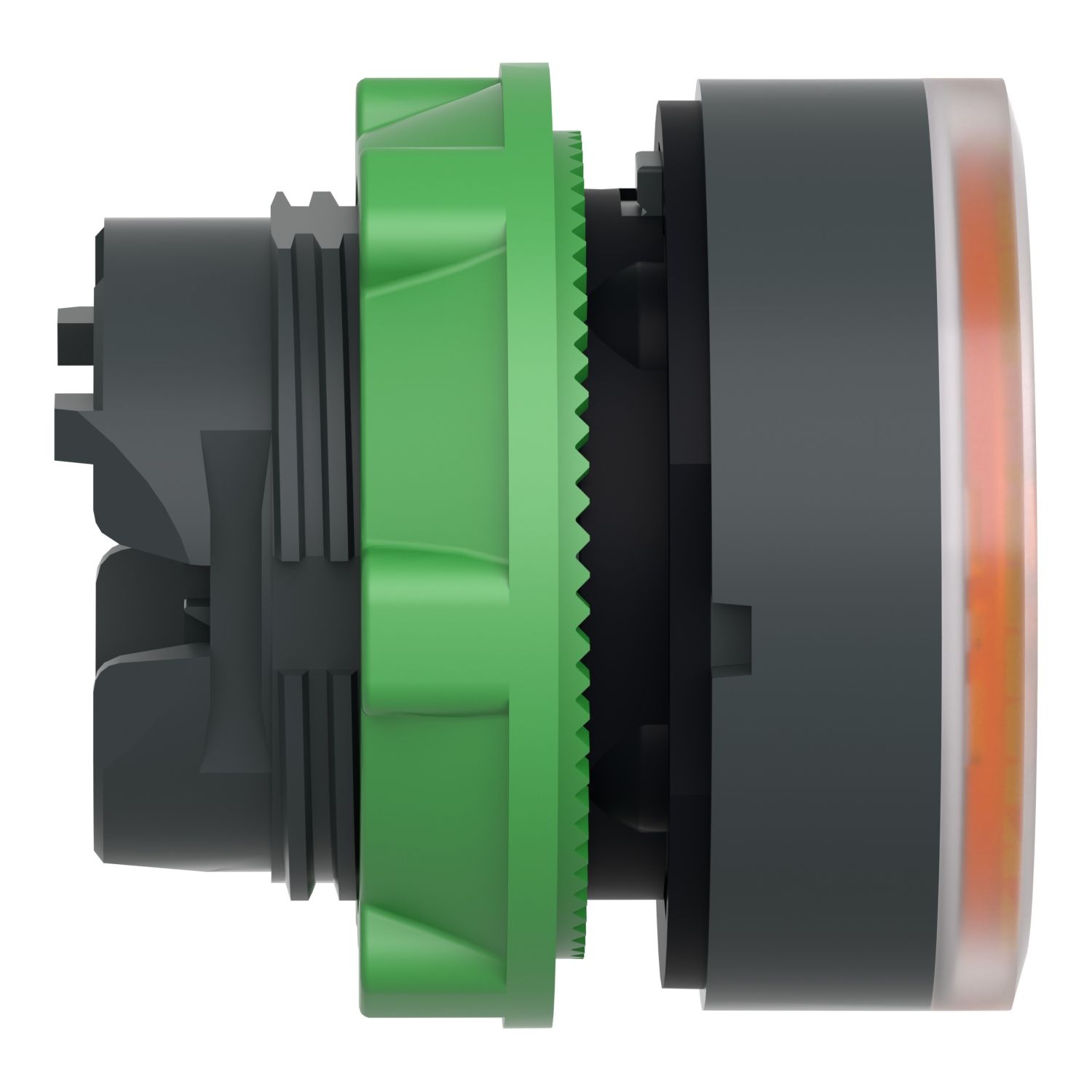

Picture of Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,
SKU:

ZB5AA58

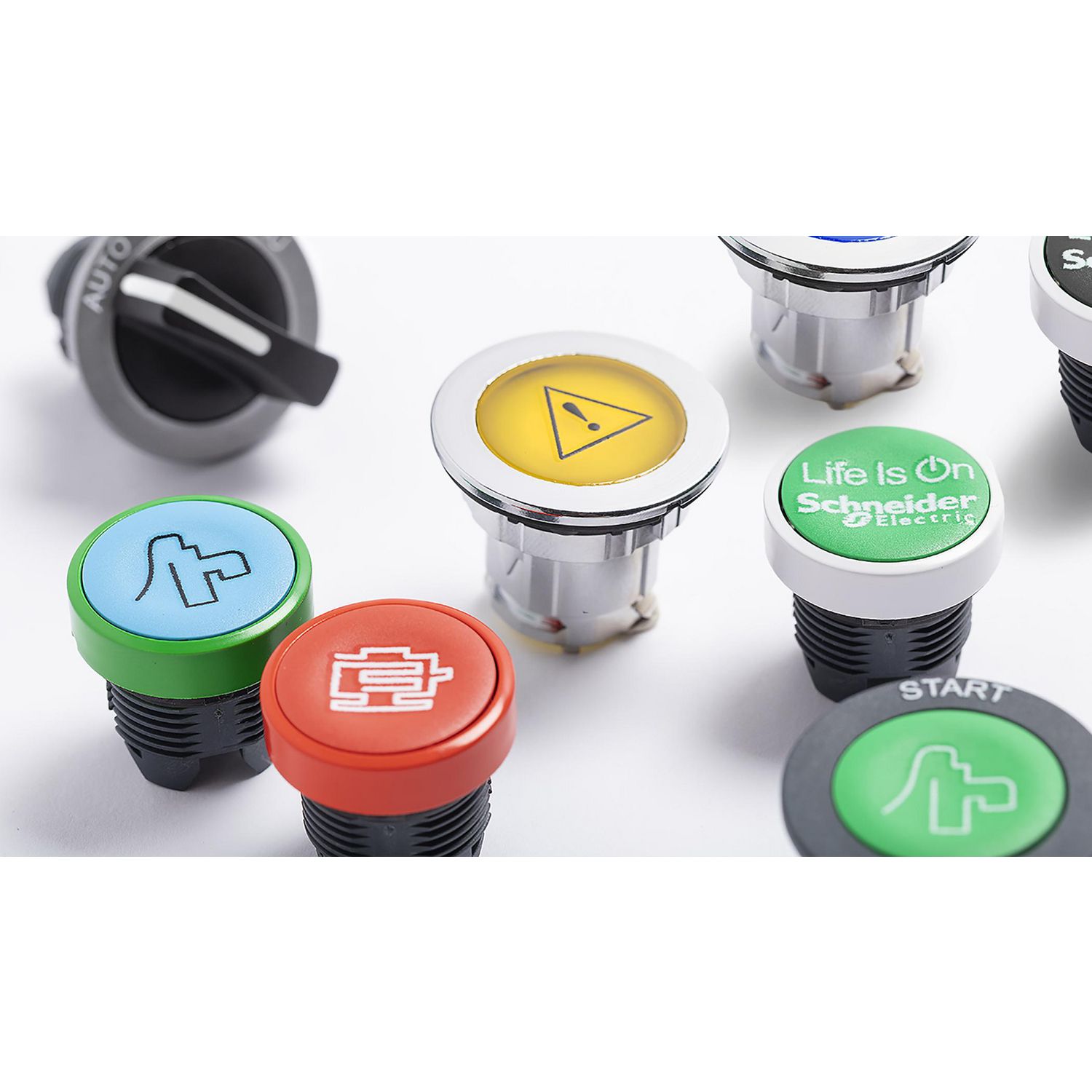

Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,

$26.05 INC GST
Available for Shipping : 29-May-2025
Product Selector
Head for illuminated push button, Harmony XB5, Harmony XALF, plastic, orange flush, 22mm, universal LED,
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Technical illustration
CAD
End of life manual
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This yellow flush button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Operator profile orange flush, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head round
Product or component type head for illuminated push-button
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XALF, Harmony XB5
Operator additional information for insertion of legend
Complementary
Group of product flush push with inser of legend
CAD overall depth 30 mm
CAD overall width 29 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Mechanical durability 10000000 cycles
Cap/operator or lens colour orange
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation basic element
CAD overall height 29 mm
Net weight 0.018 kg
Electrical composition code SR2 for <2 contacts using single blocks in rear mounting, SF2 for <2 contacts using single blocks in front mounting, C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting, MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED
Main group illum push-button
Environment
Protective treatment TC
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, GB 14048.5, EN/IEC 60947-5-4, EN/IEC 60947-5-1, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to EN 50102
Product certifications UL listed, CSA, BV, GL, LROS (Lloyds register of shipping), DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.700 cm
Package 1 Width 5.500 cm
Package 1 Length 9.200 cm
Package 1 Weight 20.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 8.800 cm
Package 2 Width 3.400 cm
Package 2 Length 26.500 cm
Package 2 Weight 104.000 g
Unit Type of Package 3 3
Number of Units in Package 3 150
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.597 kg
