SKU:

ZBE101

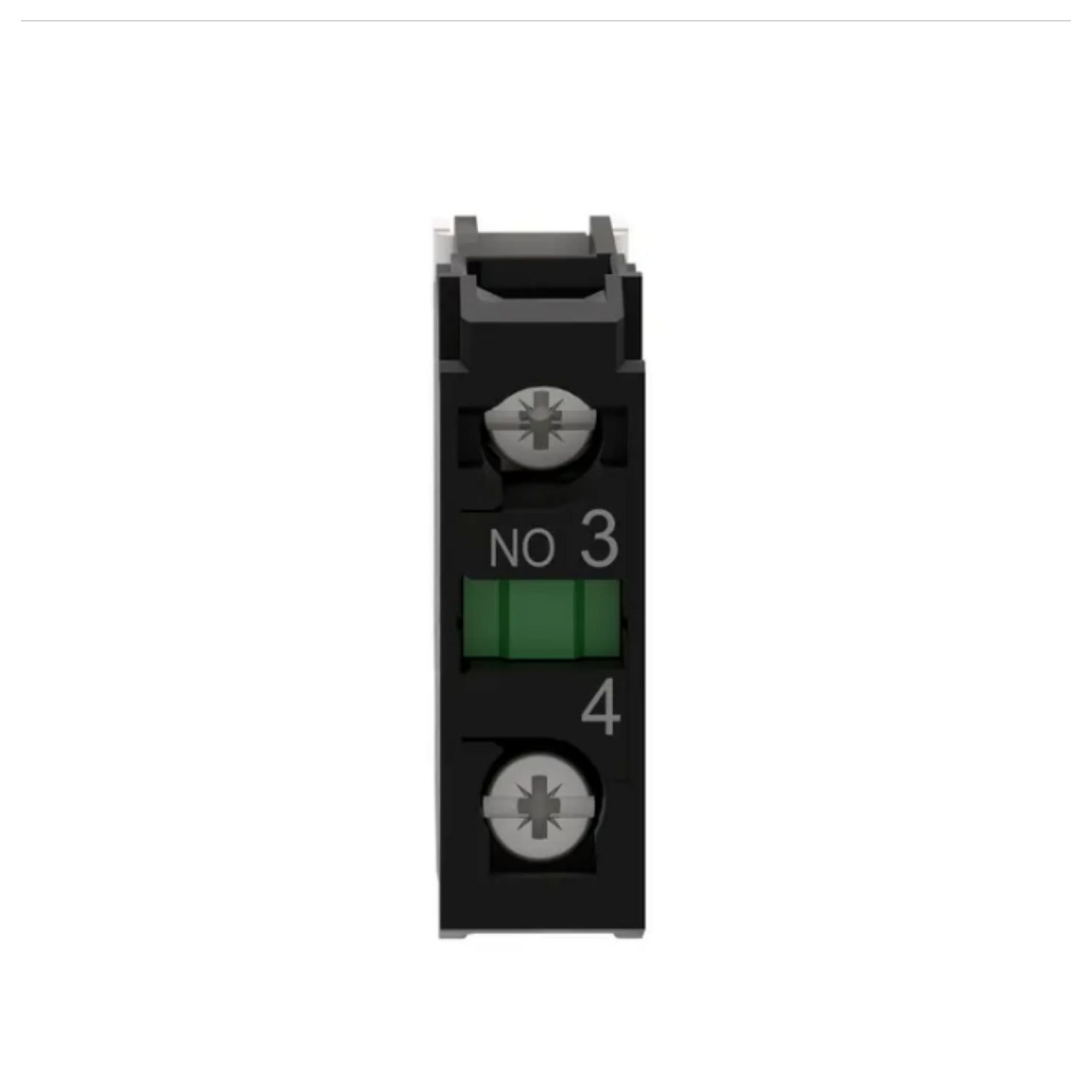

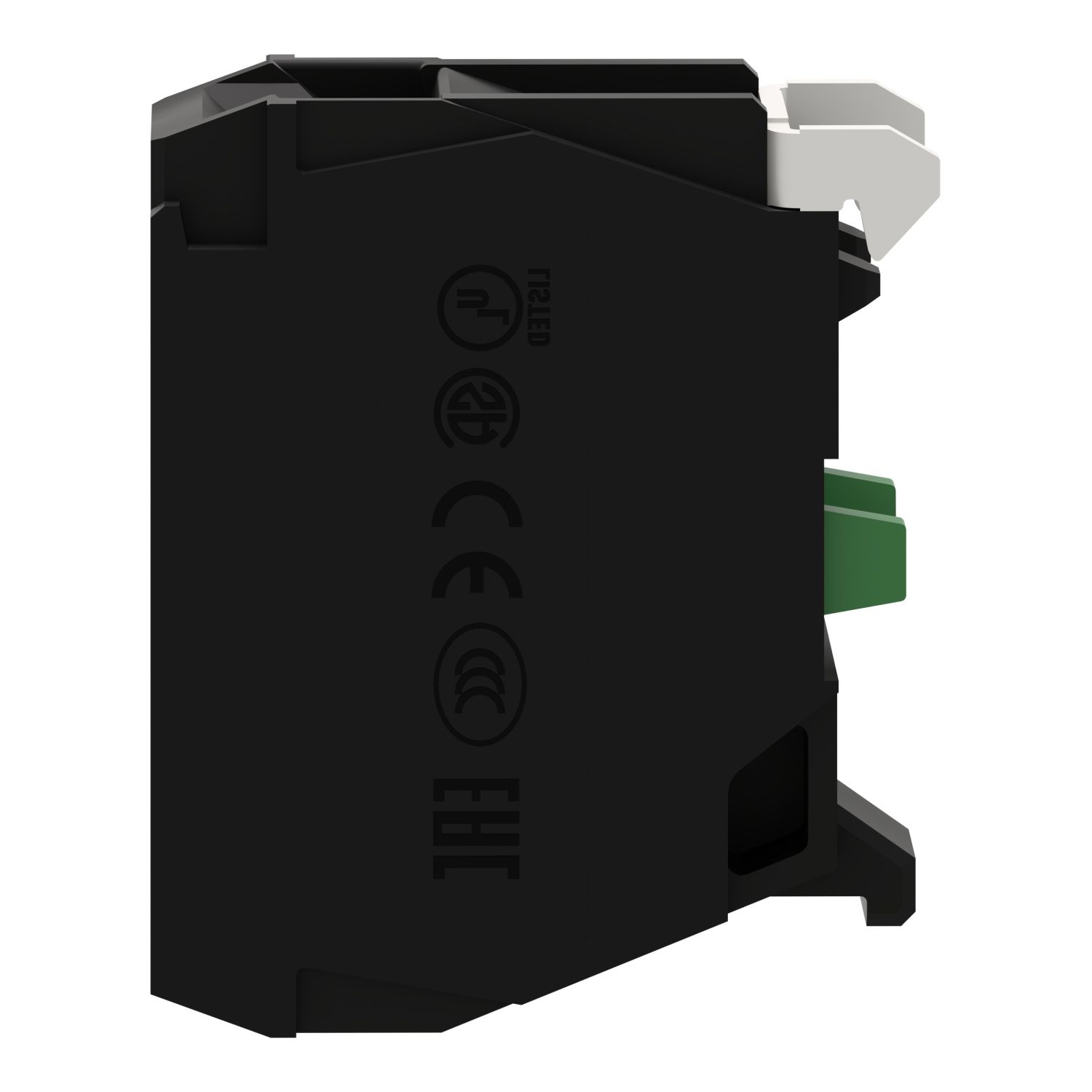

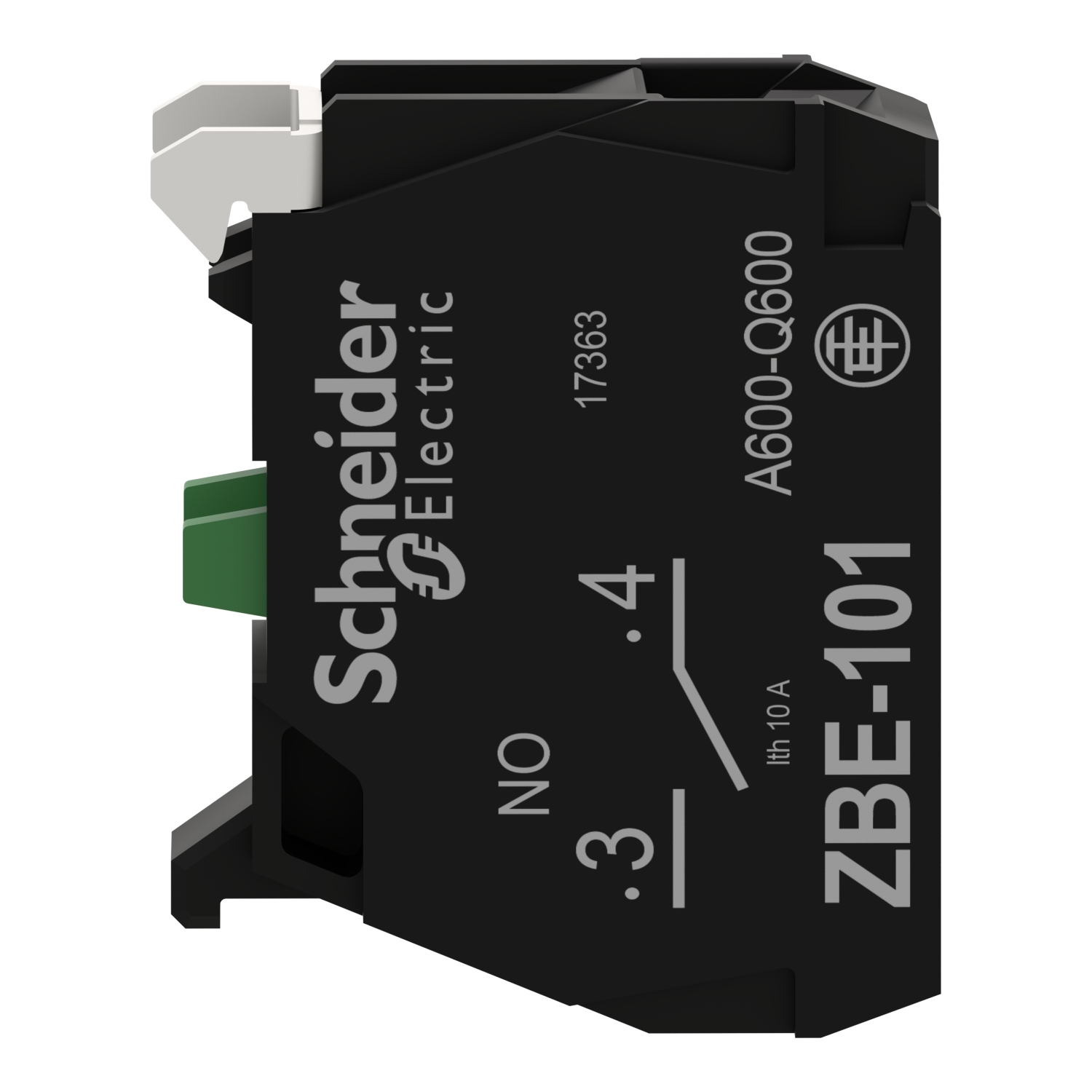

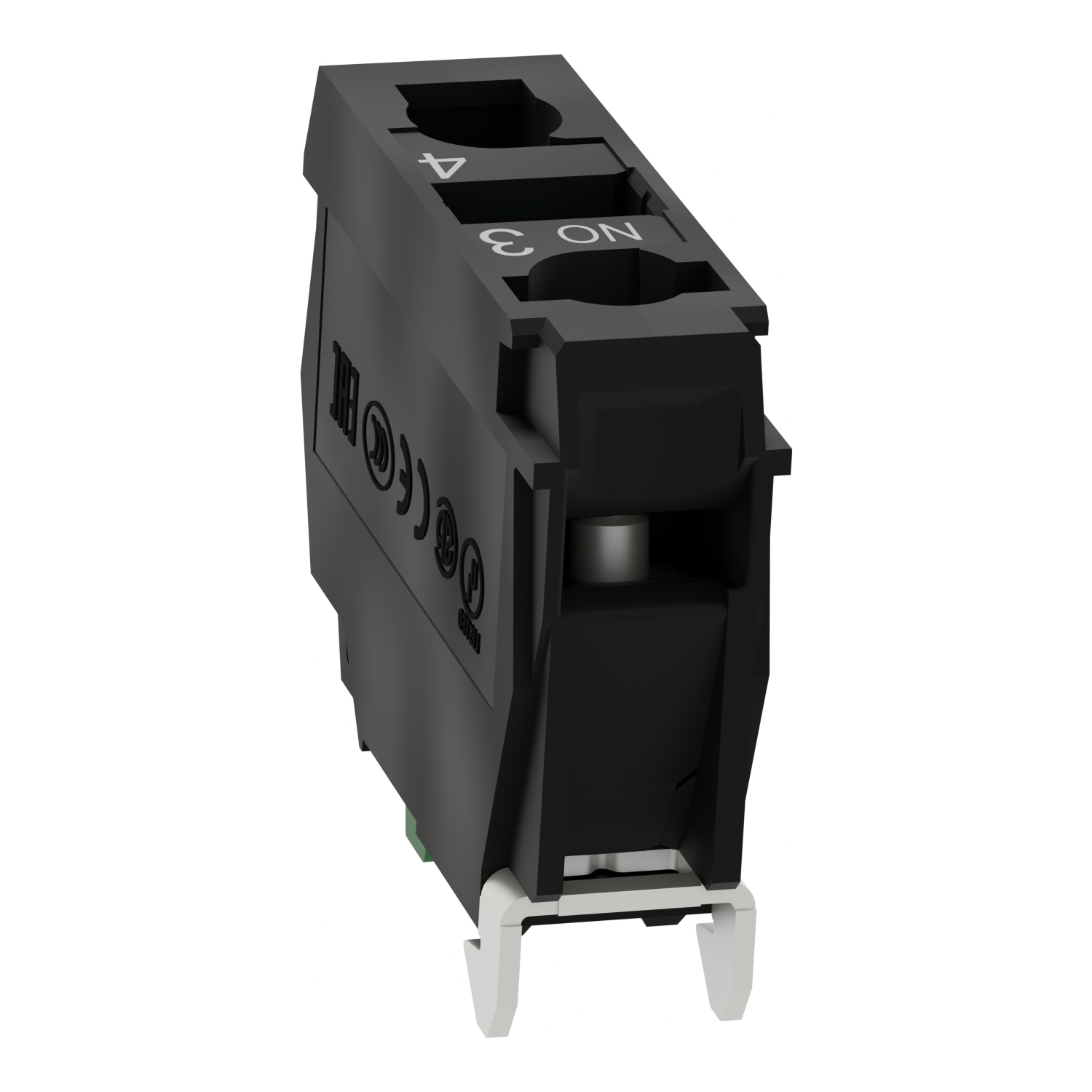

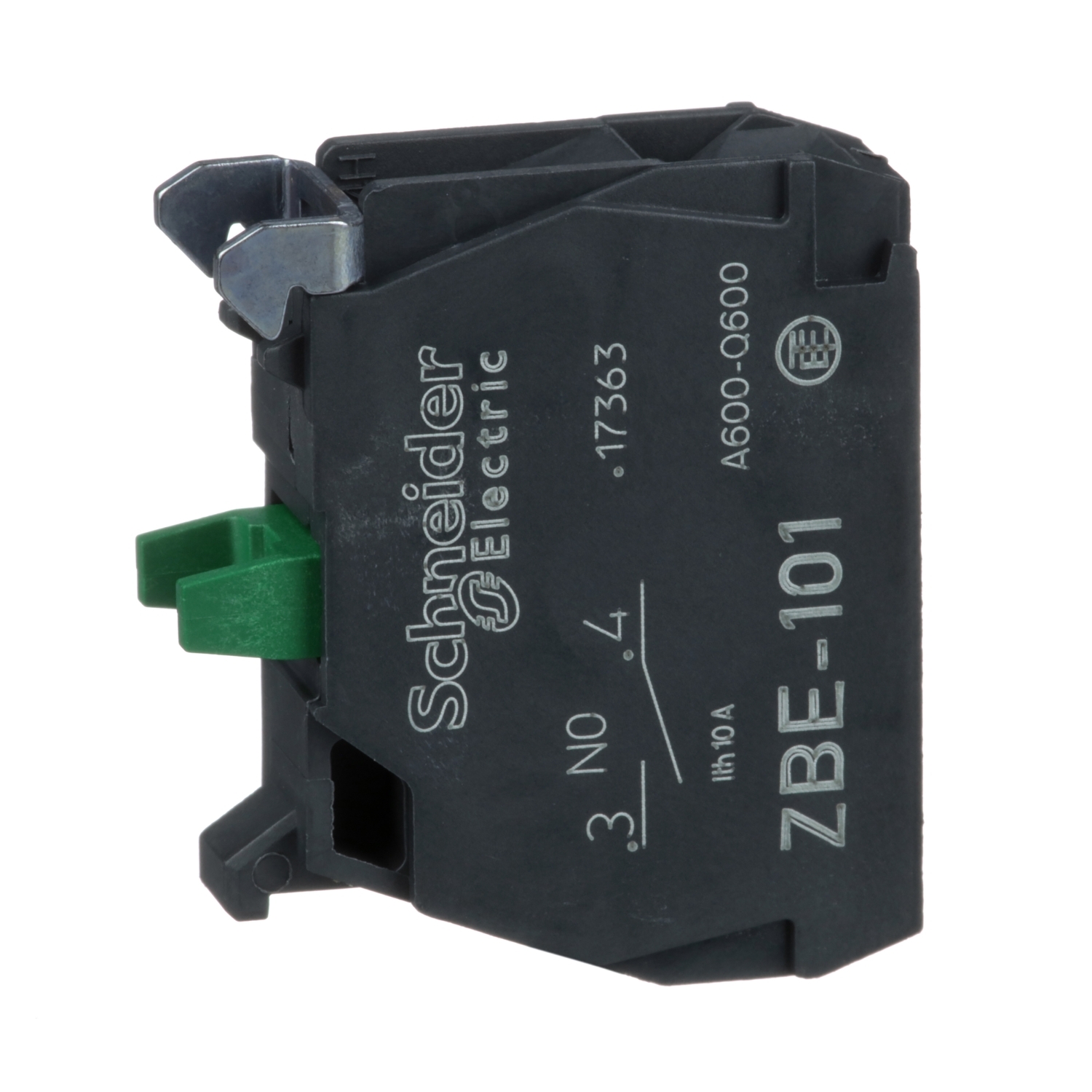

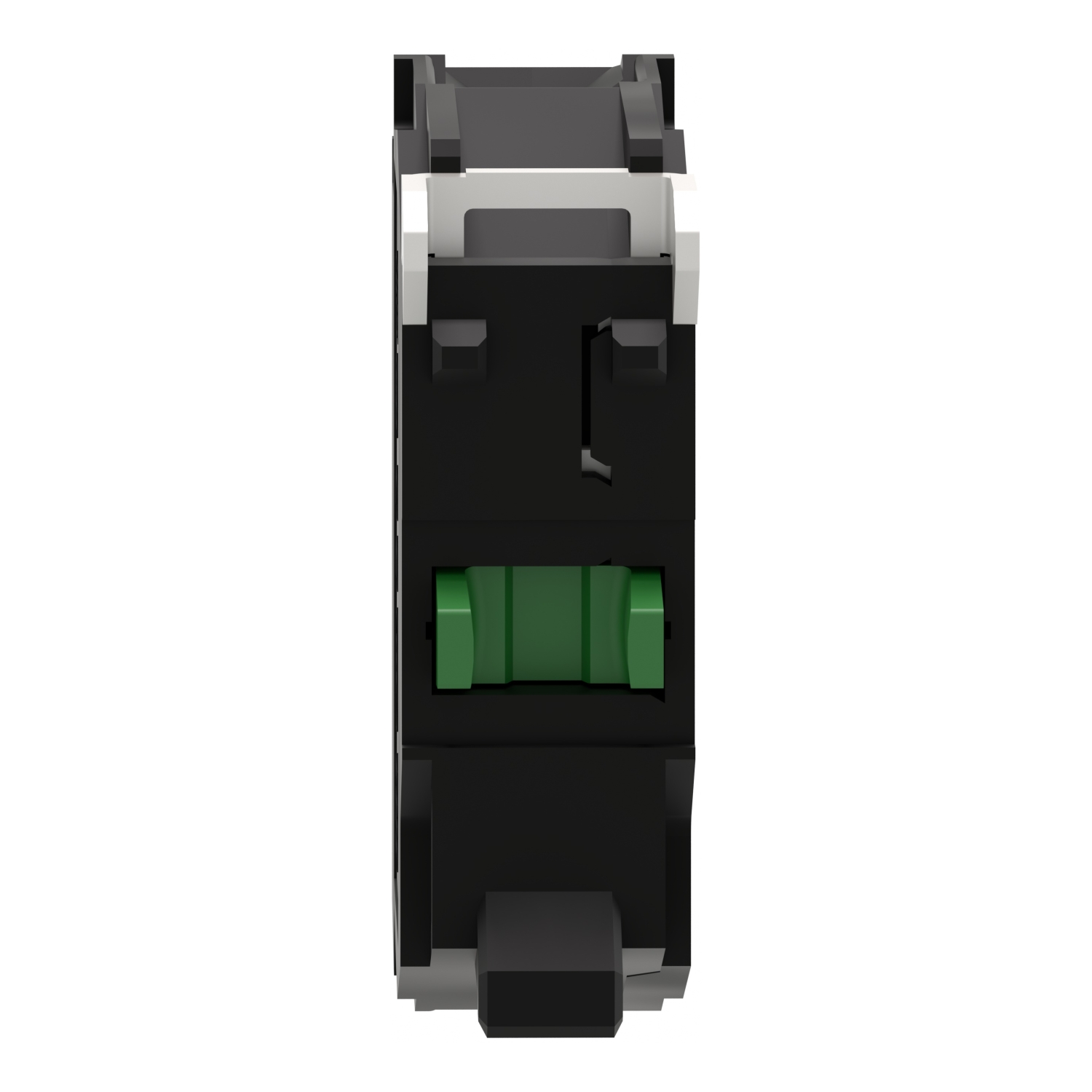

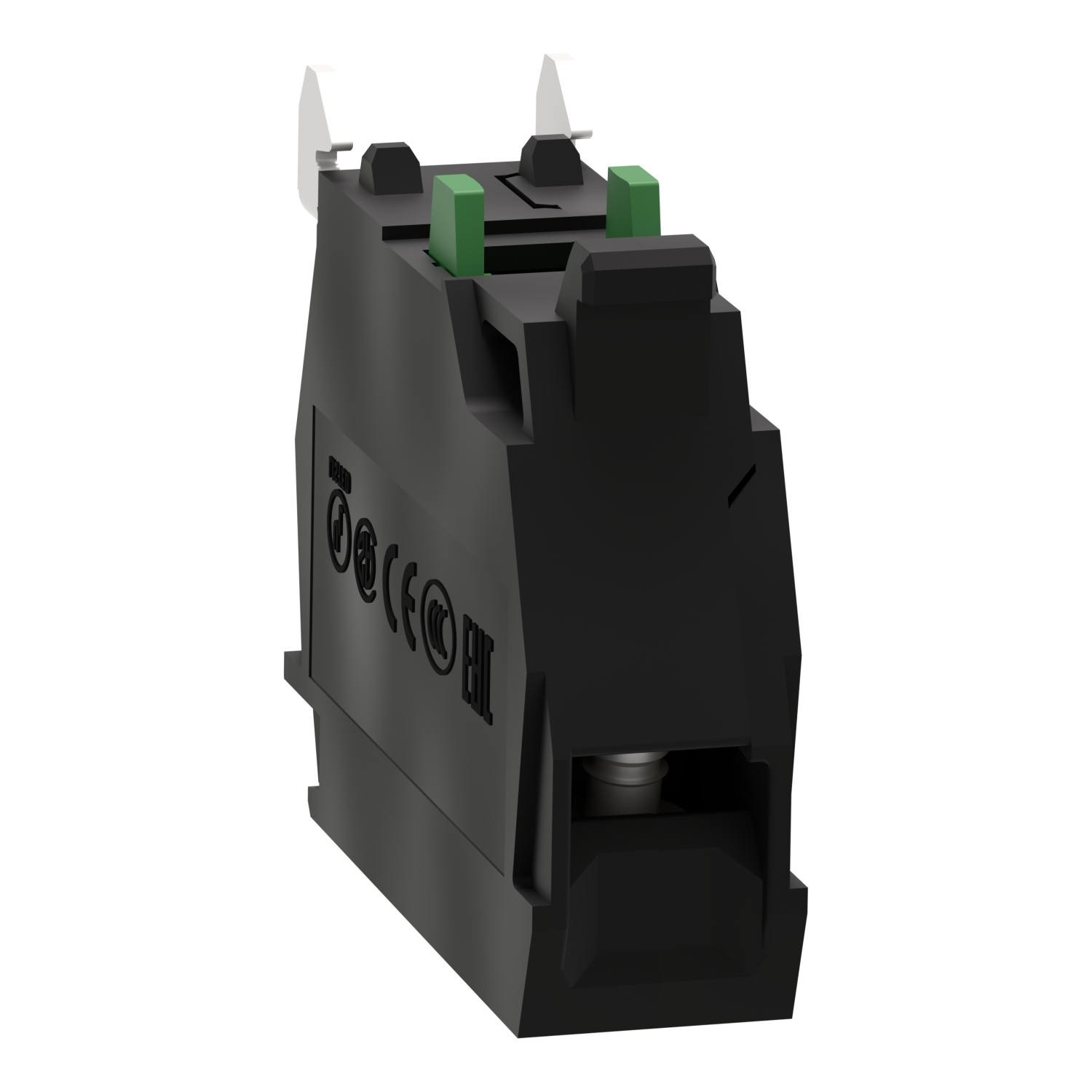

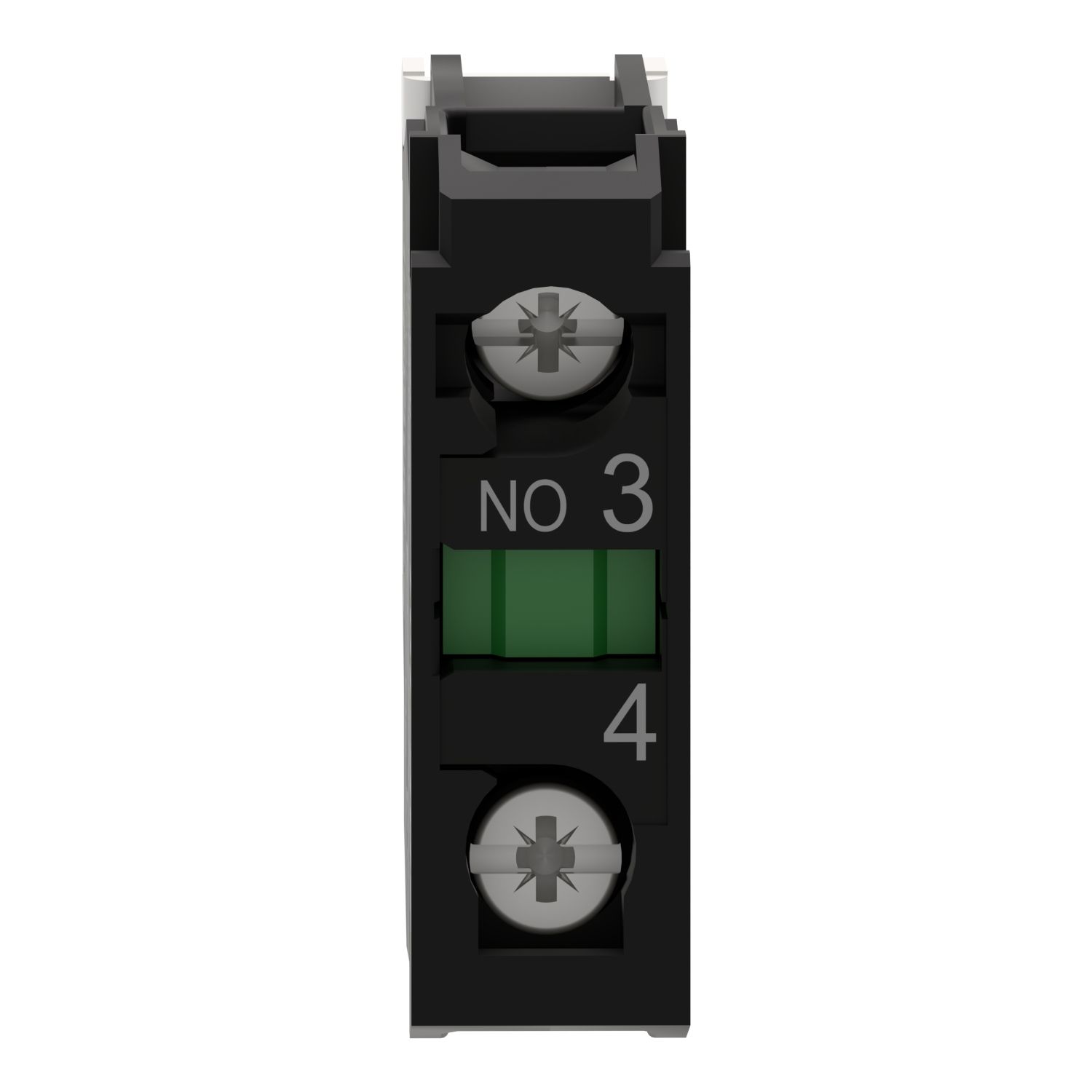

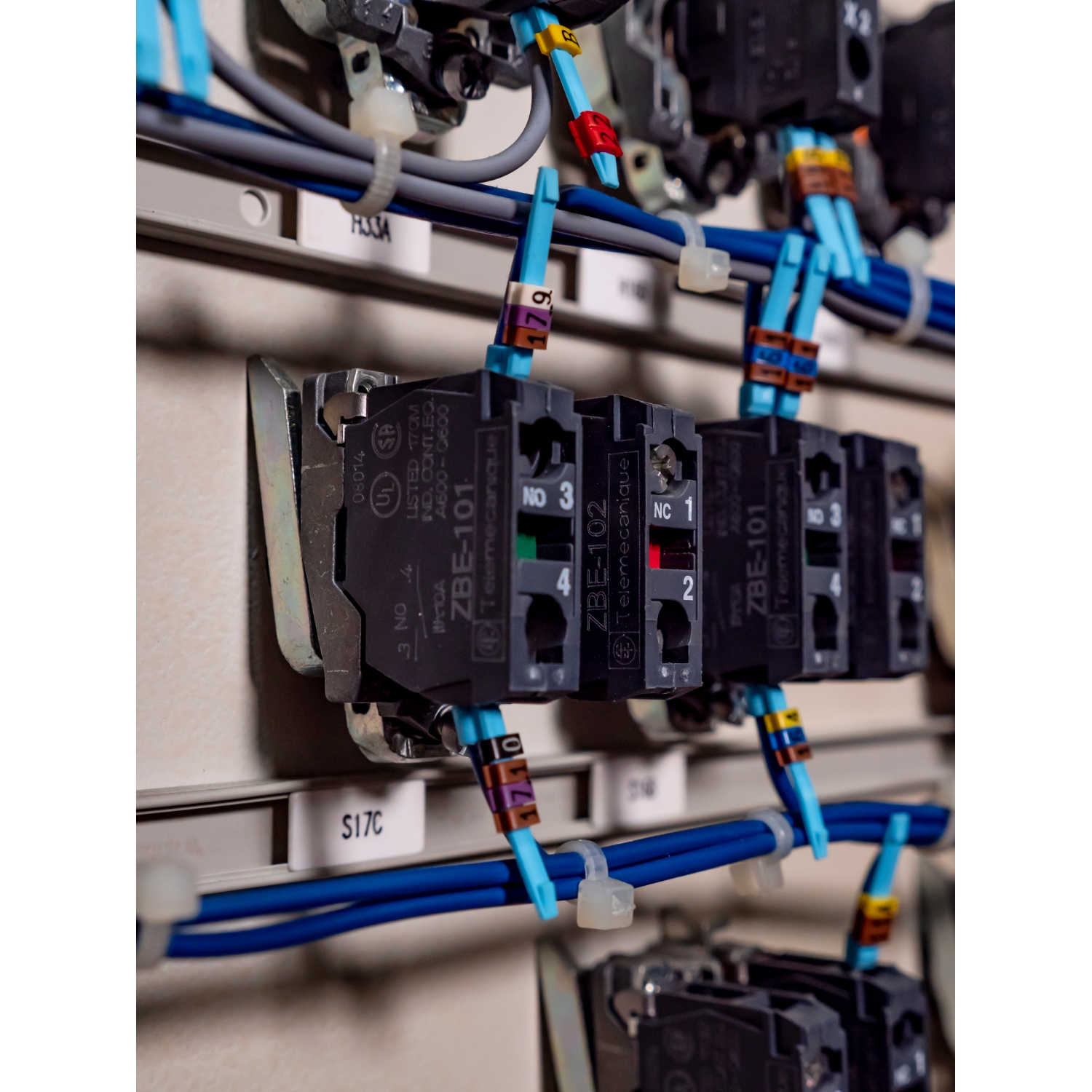

Harmony XB4, Single contact block,Harmony XB4, silver alloy, screw clamp terminal, 1NO

$14.47 incl tax
Available for Shipping : 12-Jan-2025
Product Selector
Harmony XB4, Single contact block,Harmony XB4, silver alloy, screw clamp terminal, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
CAD
Catalogue
Technical illustration
System user guide
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony ZB, single contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 or XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Products specifications

Attribute name Attribute value
Main
Device short name ZBE
Contact operation slow-break
Sale per indivisible quantity 5
IP degree of protection IP20 conforming to IEC 60529
Contact block type single
Range of product Harmony XB4, Harmony XB5
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Product or component type contact block
Contacts usage standard contacts
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code ZBE
Mechanical durability 10000000 cycles
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation basic element
Electrical composition code C13 (quantity <= 1 ), M4 (quantity <= 2 ), C10 (quantity <= 2 ), MF2 (quantity <= 2 ), MF1 (quantity <= 2 ), SF2 (quantity <= 2 ), SF1 (quantity <= 3 ), M9 (quantity <= 2 ), M8 (quantity <= 4 ), M7 (quantity <= 6 ), M6 (quantity <= 2 ), M5 (quantity <= 2 ), M3 (quantity <= 4 ), M2 (quantity <= 4 ), M1 (quantity <= 6 ), C12 (quantity <= 6 ), C9 (quantity <= 3 ), C8 (quantity <= 2 ), C7 (quantity <= 4 ), C6 (quantity <= 3 ), C5 (quantity <= 5 ), C4 (quantity <= 4 ), C3 (quantity <= 6 ), C2 (quantity <= 7 ), C1 (quantity <= 9 )
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state)
Operating force 2.3 N NO changing electrical state
Contacts type and composition 1 NO
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.011 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening without
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Mounting of block front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -40-70 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14
Product certifications CSA, BV, LROS (Lloyds register of shipping), GOST, GL, DNV, UL, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 2.500 cm
Package 1 Length 3.000 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.500 cm
Package 2 Width 5.500 cm
Package 2 Length 5.500 cm
Package 2 Weight 52.000 g
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.783 kg
Unit Type of Package 4 4
Number of Units in Package 4 6400
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 78.264 kg

Customers who bought this item also bought

Picture of Harmony XB4, Body/fixing collar for electrical block, metal

Harmony XB4, Body/fixing collar for electrical block, metal

ZB4BZ009
$8.58 incl tax
View Detail
Picture of Harmony XB4, Head for non illuminated pushbutton, mushroom 40mm, metal, green, 22mm, spring return

Harmony XB4, Head for non illuminated pushbutton, mushroom 40mm, metal, green, 22mm, spring return

ZB4BC3
$46.60 incl tax
View Detail

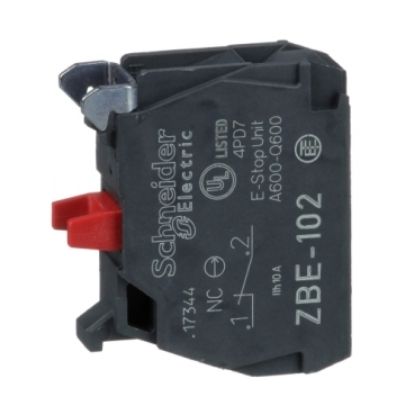

Harmony XB4, Single contact block, silver alloy, screw clamp terminal, 1NC
