SKU:

ZBRA3

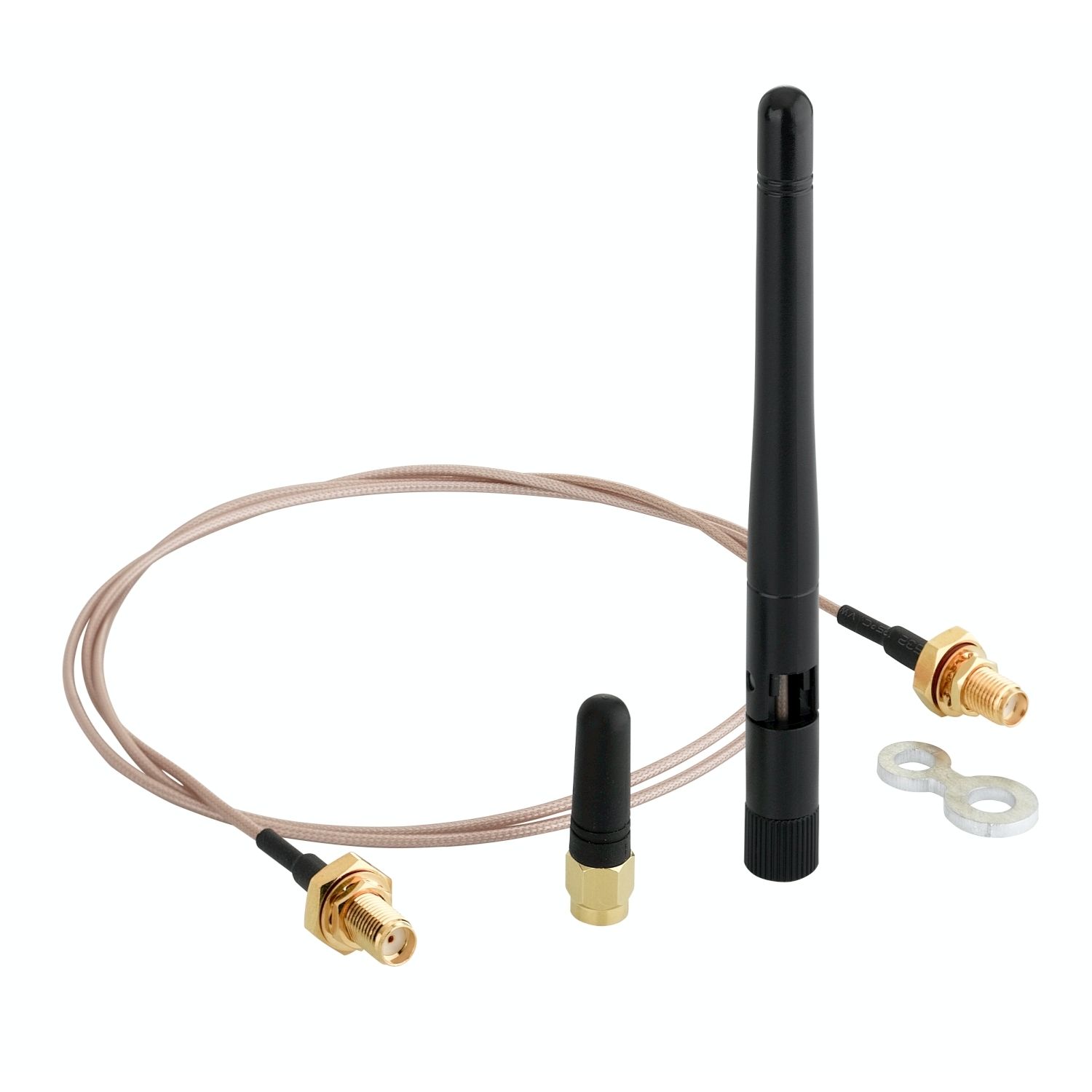

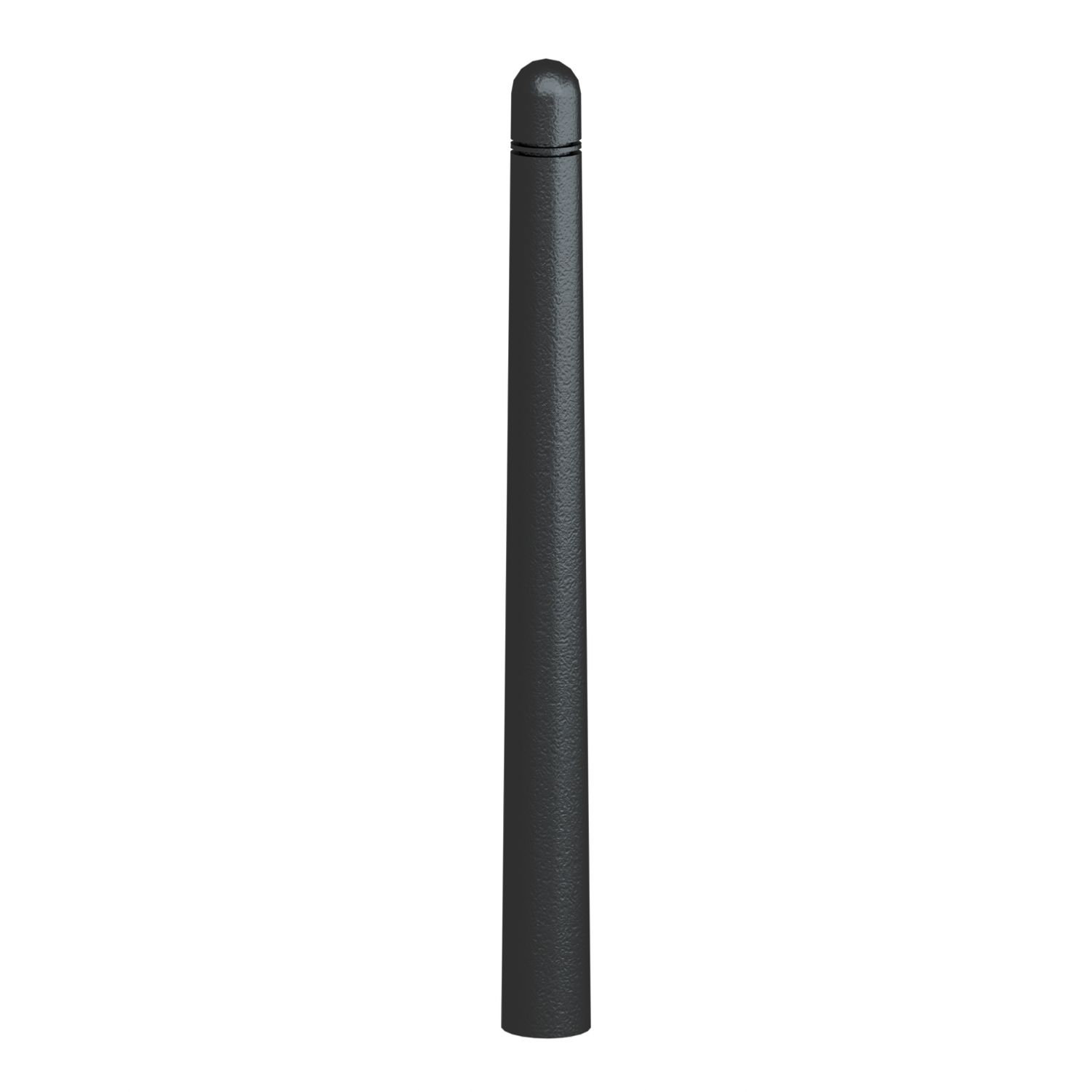

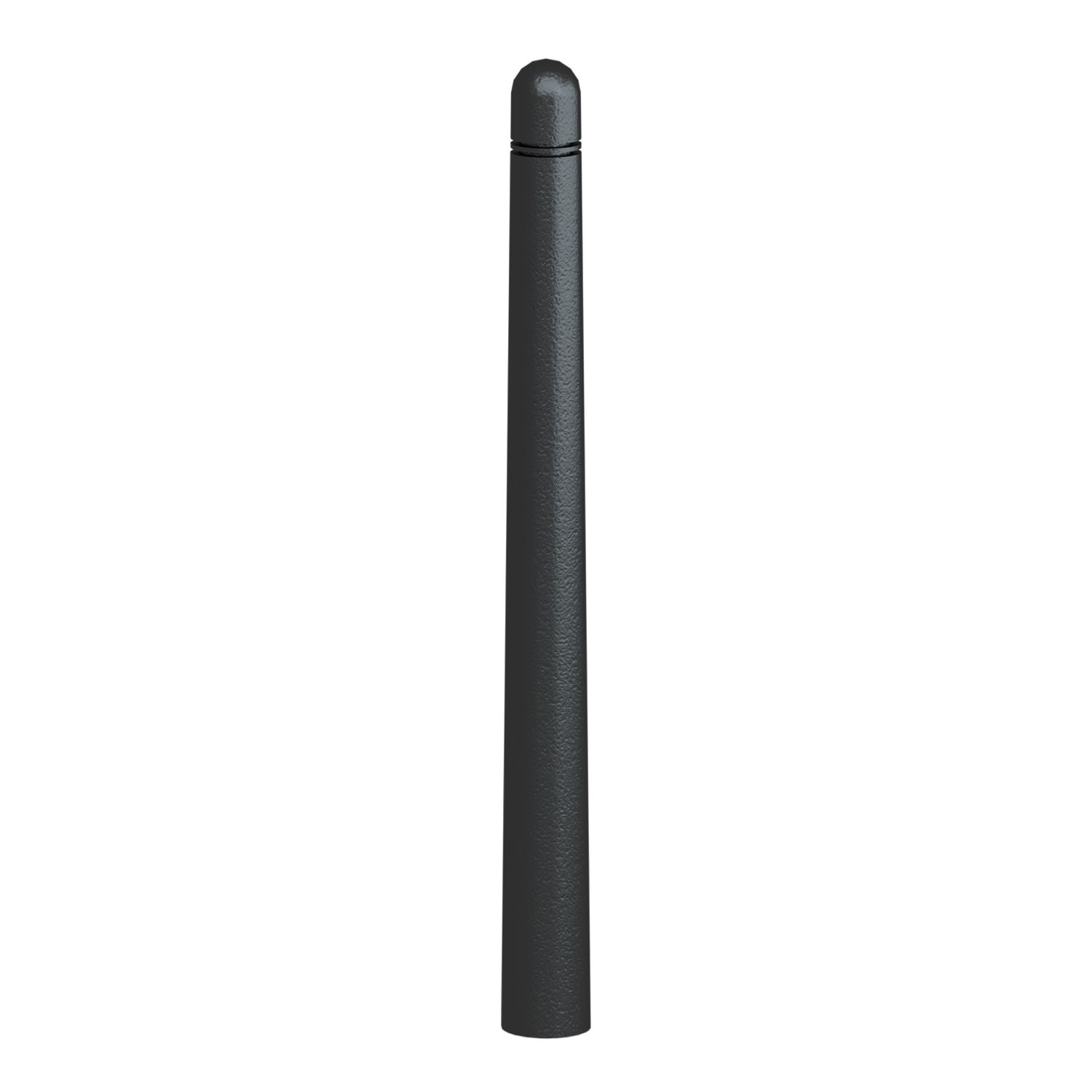

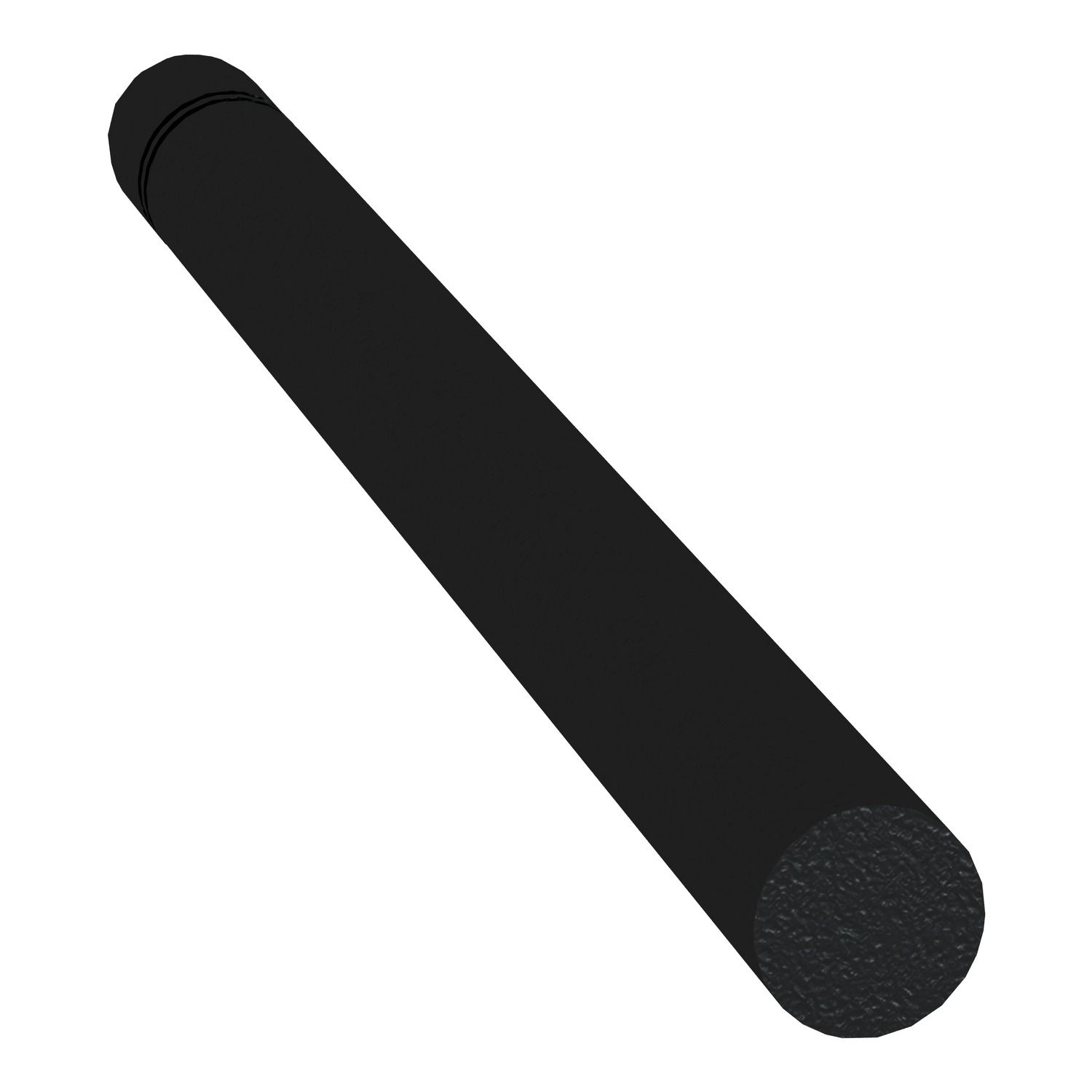

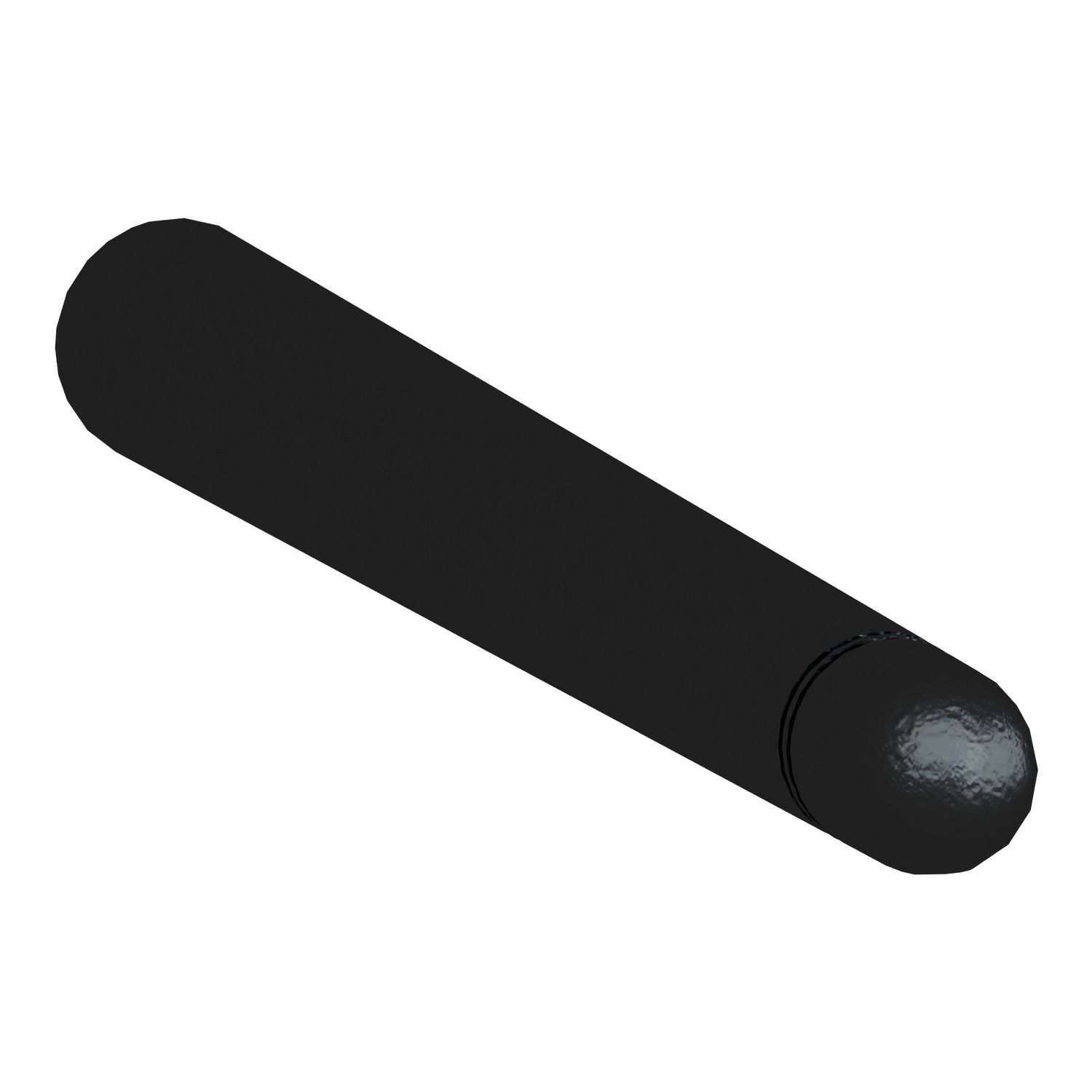

Wireless and batteryless range, Harmony XB5R, passive antenna to pass through a wall, cable 0.9m, connector SMA female

$137.32
Available for Shipping : 10-Dec-2024
Wireless and batteryless range, Harmony XB5R, passive antenna to pass through a wall, cable 0.9m, connector SMA female
Manufacturer: Schneider Electric
This wireless and batteyless transceiver provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly

Products specifications

Attribute name Attribute value
Main
Device short name ZBRA
Product or component type wireless and batteryless range
Colour of base of enclosure black (RAL 9011)
Range of product Harmony XB5R
Product destination for XB5R and XB4R Ø 22 mm control units
Antenna type omnidirectional
Complementary
Kit composition antenna with cable 0.9 m
CAD overall depth 1200 mm
CAD overall width 13 mm
Input impedance 50 Ohm
Maximum sensing distance 10 m transmitters, receivers and relay-antenna
Connector type SMA female
CAD overall height 110 mm
Net weight 0.035 kg
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Antenna gain 3 dBi at 83-100 Hz
Electrical connection cable 2.3-2.3 mm² - flexible - 0.9 m
Environment
Electrical shock protection class class II conforming to IEC 61140
Relative humidity 90-90 % at -40-70 °C, without condensation conforming to ETSI EN 300 440-1
IP degree of protection IP65 conforming to IEC 60529
Standards IEC 60947-1, IEC 62262
Product certifications CE, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 14.0 cm
Package 1 Length 22.0 cm
Package 1 Weight 100.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.955 kg
