Harmony XB5R, Wireless and batteryless transmitter, mushroom head 40mm, plastic, black, 22mm, spring return

$157.60
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Harmony XB5R, Wireless and batteryless transmitter, mushroom head 40mm, plastic, black, 22mm, spring return
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Instruction sheet
Declaration of conformity
User guide
Technical illustration
Product environmental
Brochure
Product Page Link
Product Data Sheet

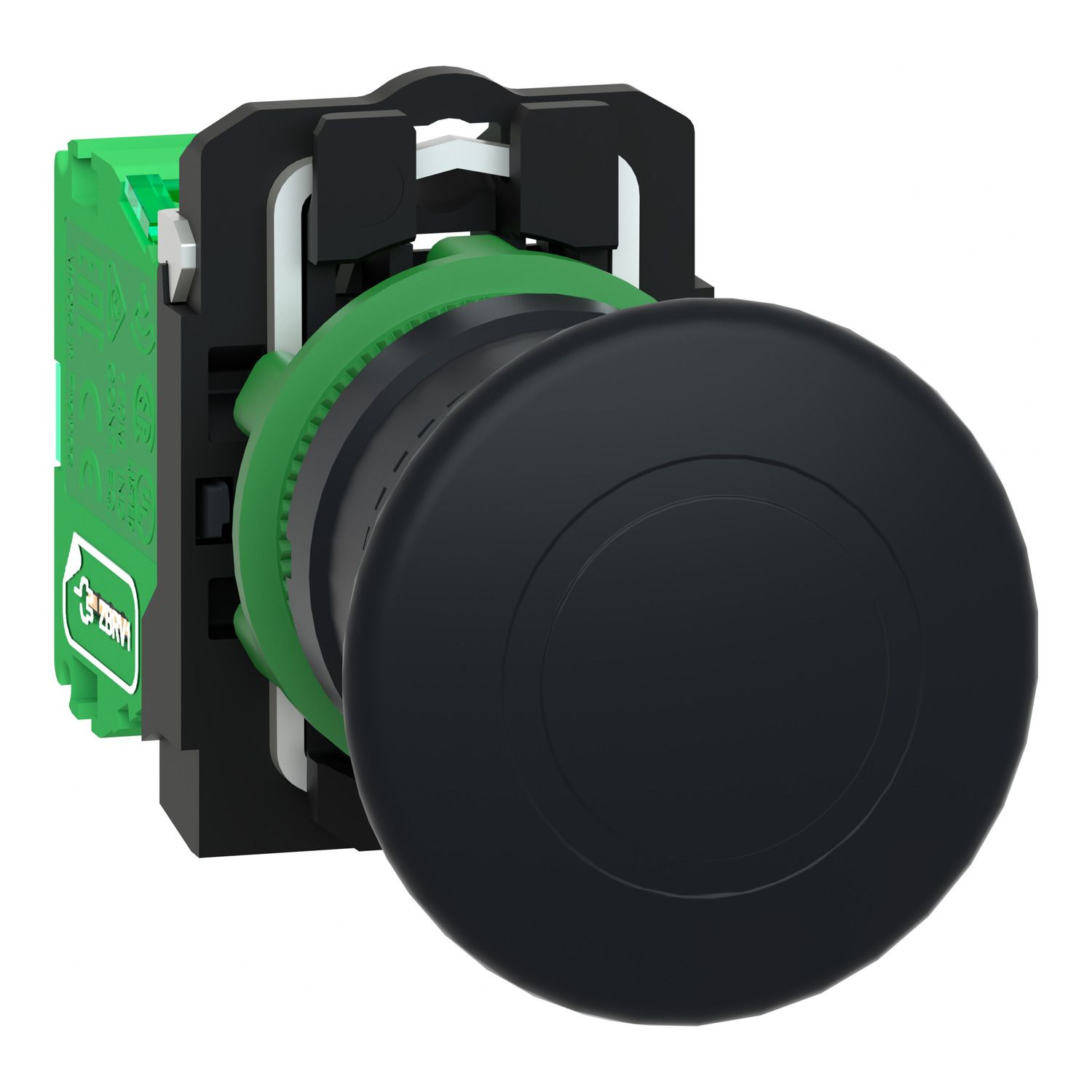

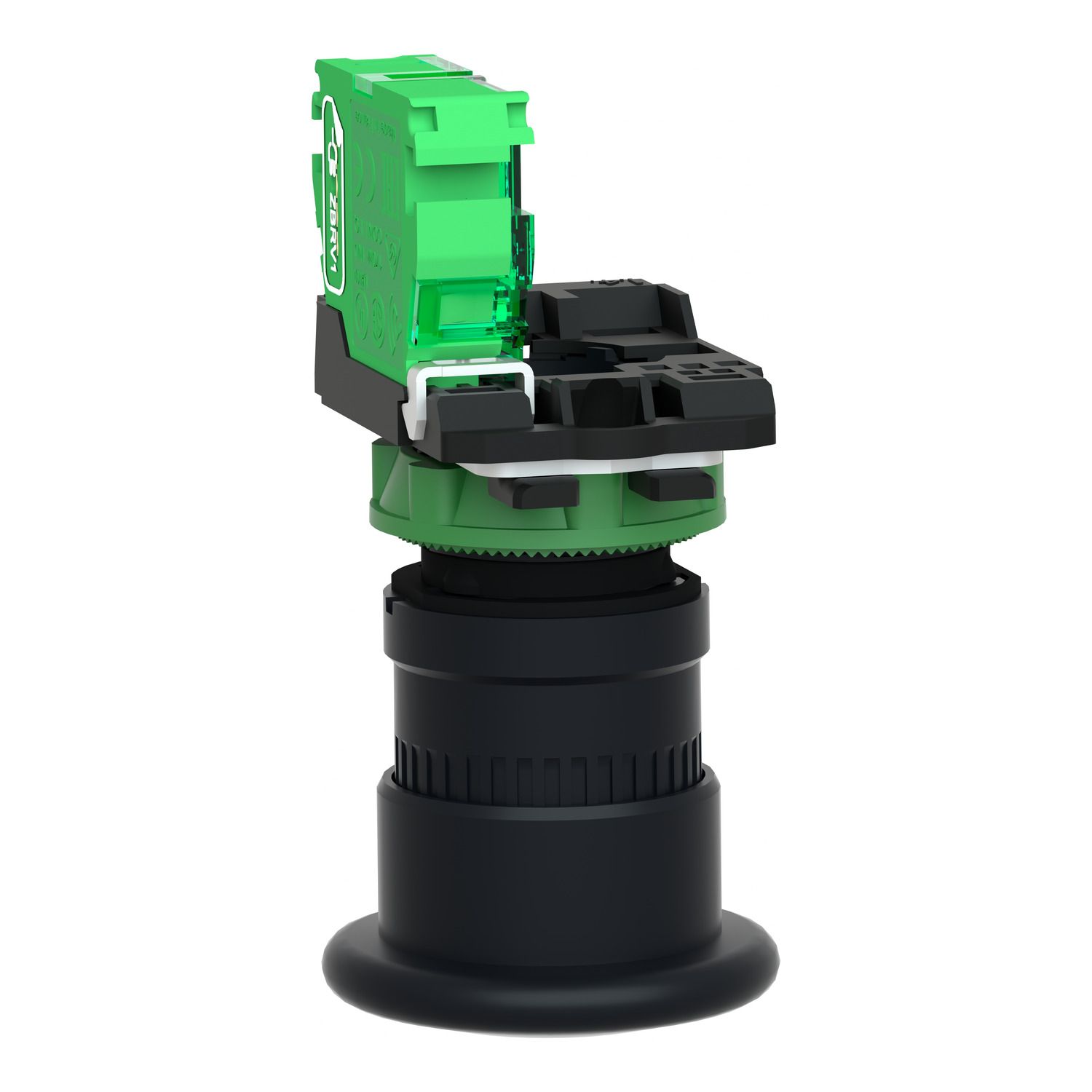

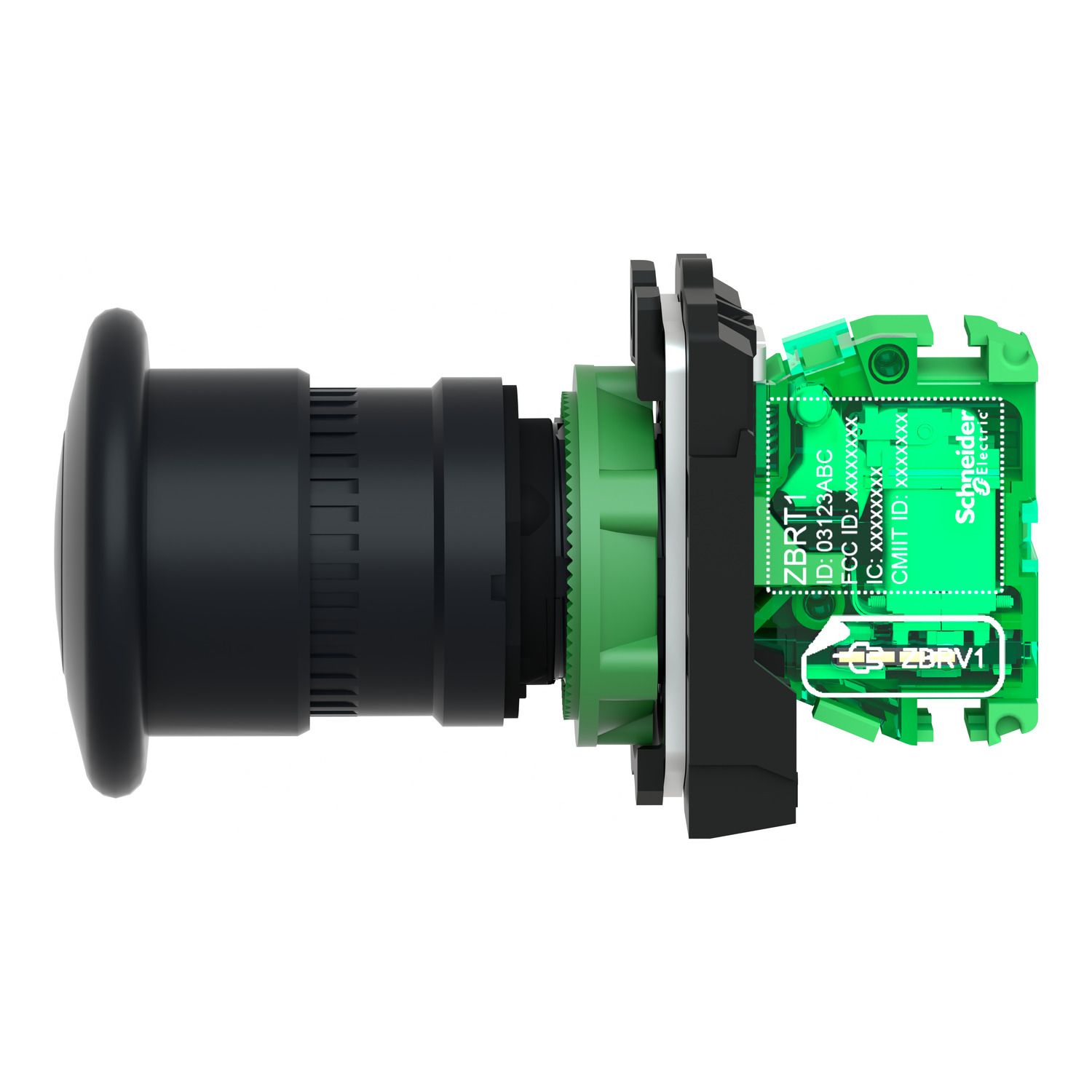

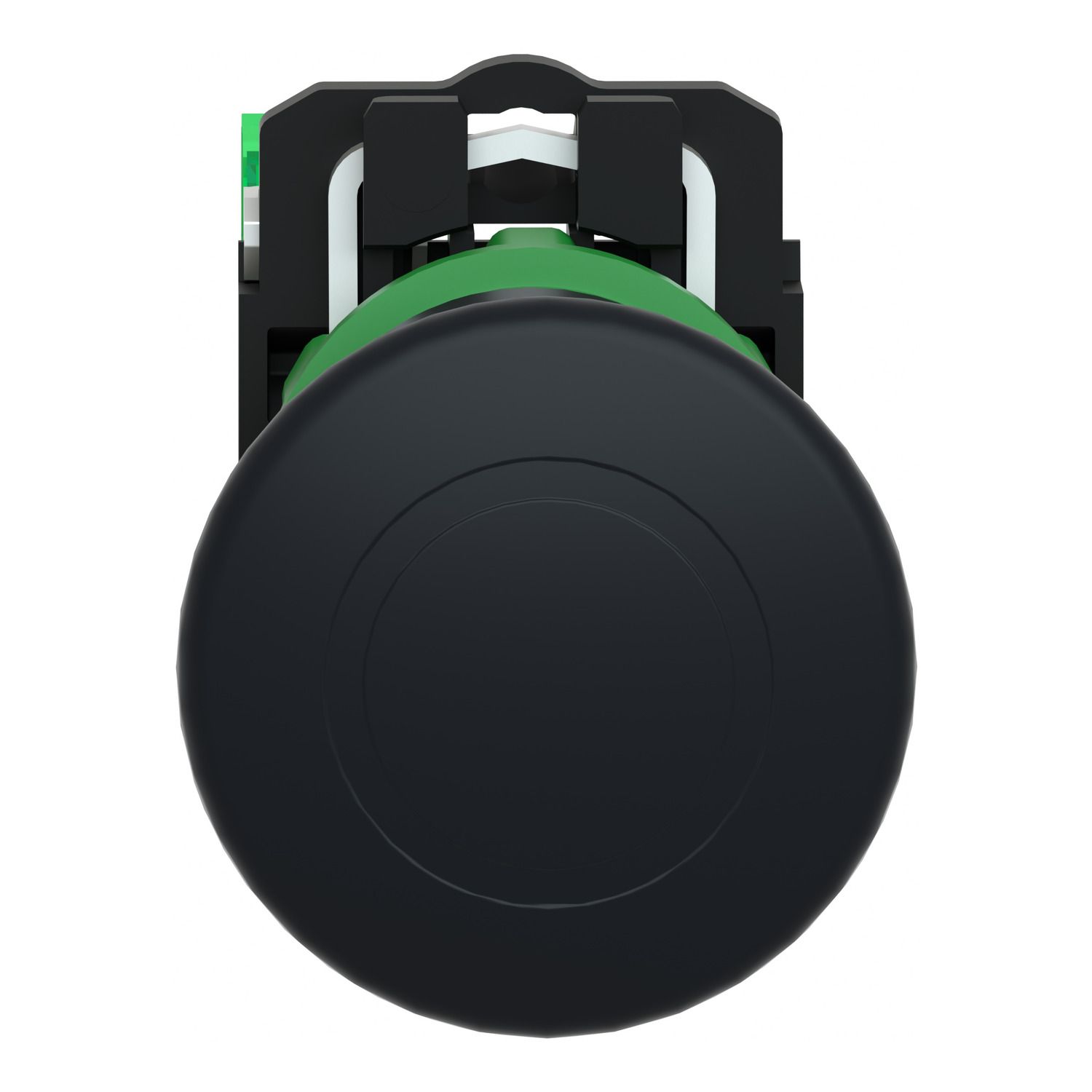

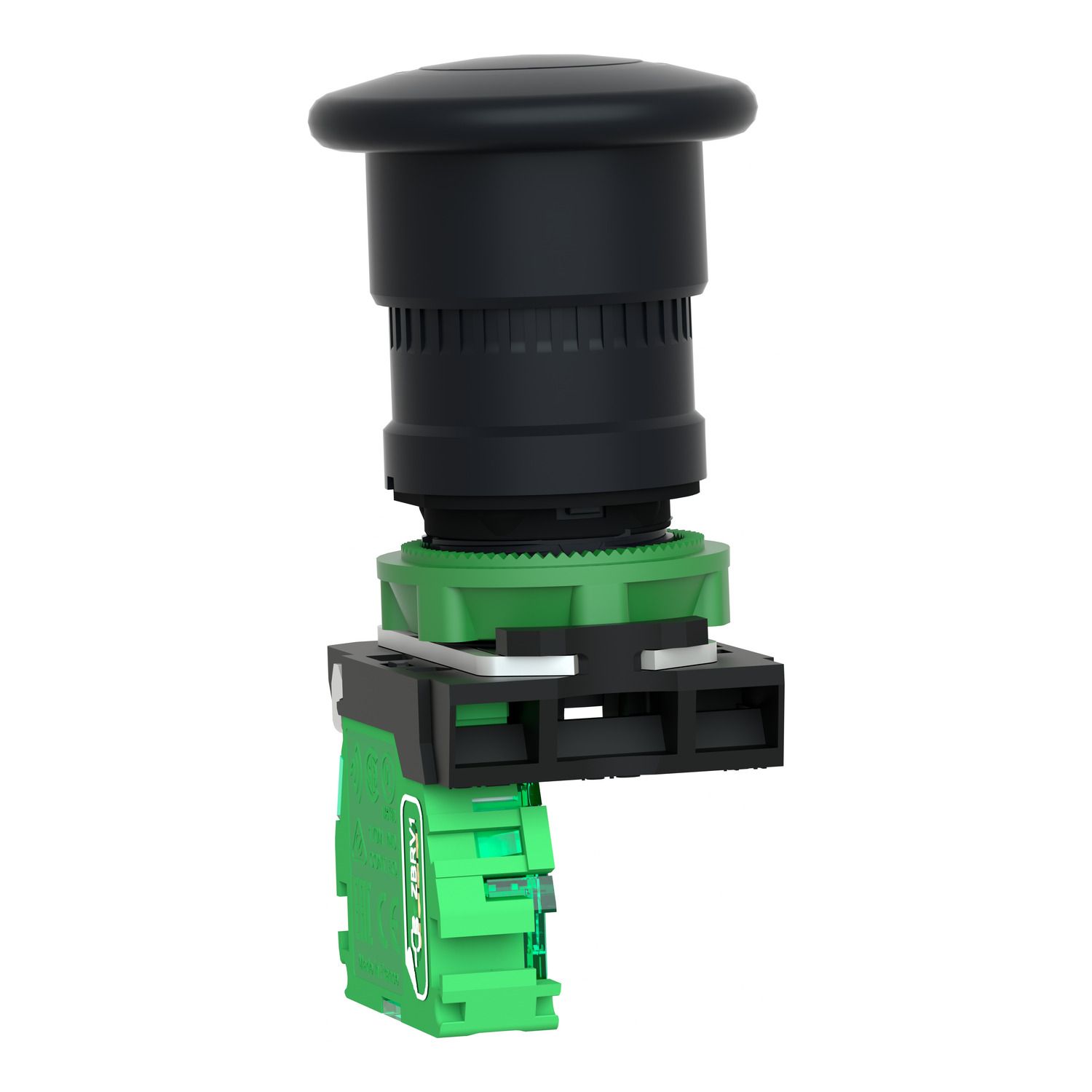

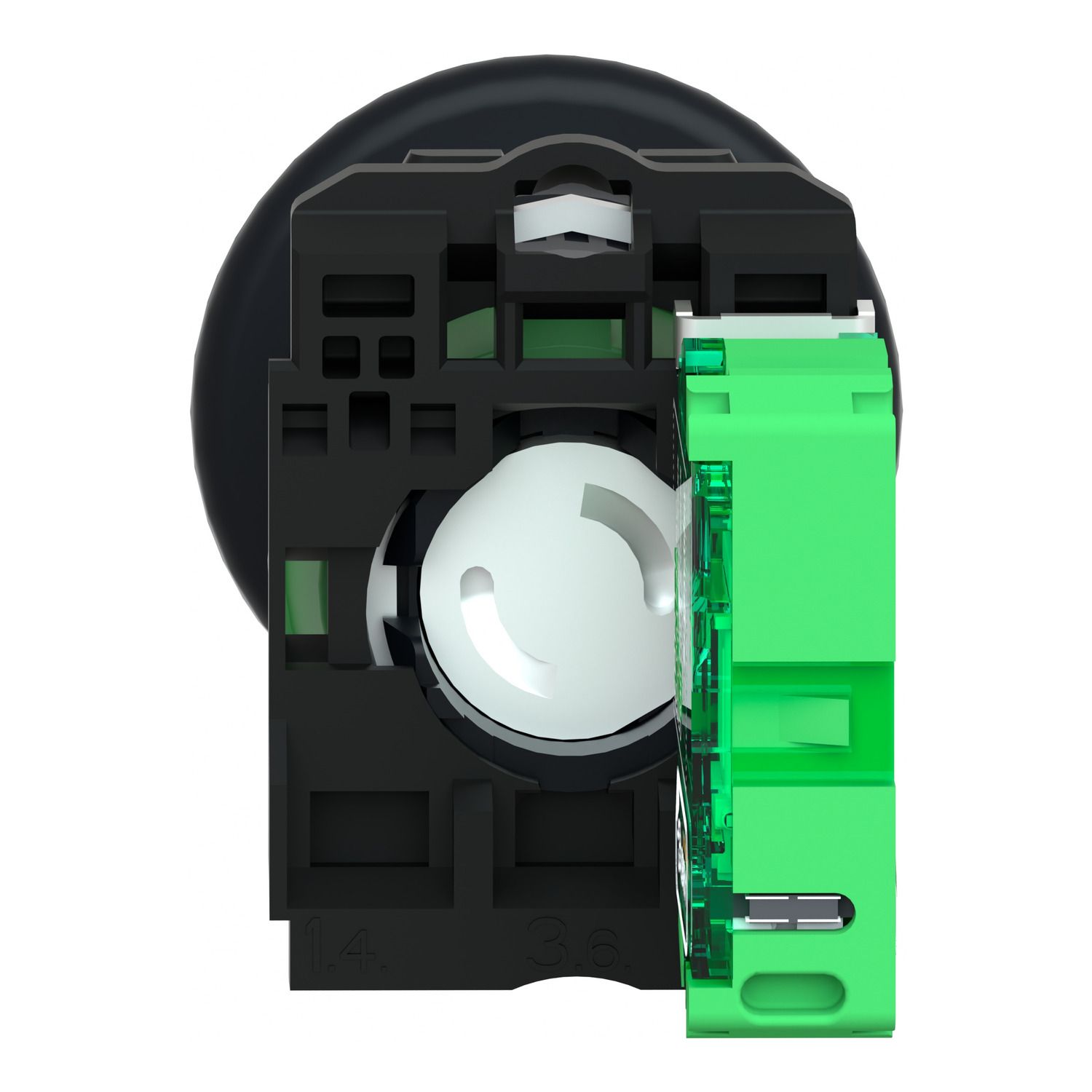

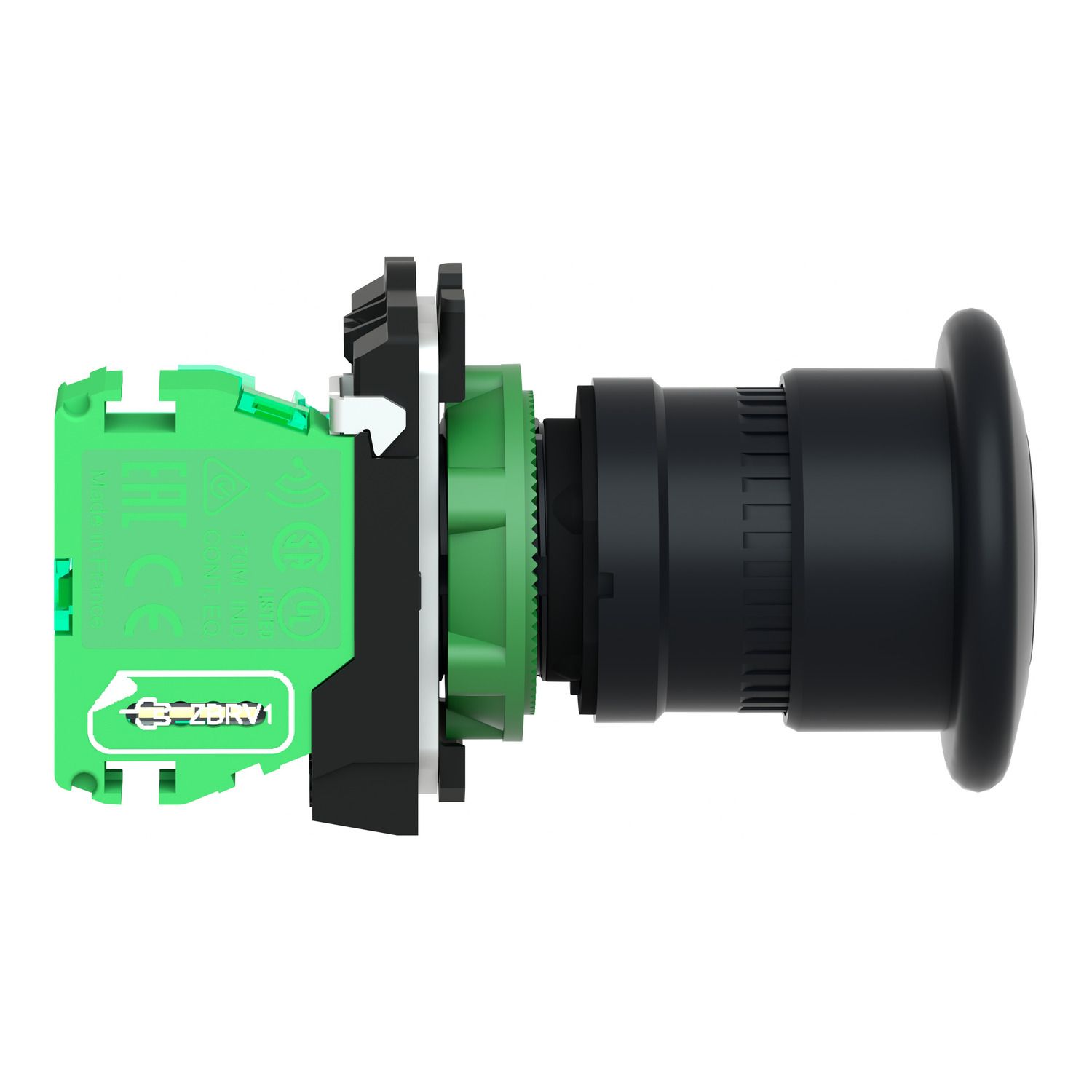

This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return black mushroom head, diameter 40mm. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 55g.

Products specifications

Attribute name Attribute value
Main
Device short name XB5R
Bezel material dark grey plastic
Level or class 5M00G7W
Fixing collar material plastic
Product or component type wireless and batteryless transmitter
Mounting diameter 40 mm
Transmission frequency 2405 MHz
Range of product Harmony XB5
Antenna type omnidirectional
Complementary
Bandwidth 5-5 MHz
CAD overall depth 28.8 mm
Emission power 3 mW
Device composition ZBRT1, ZB5RZC2
CAD overall width 27.8 mm
Radio agreement RSS, ICASA, FCC, ARIB T66, ANATEL
Customizable no, 0
Number of channels 16
Max power consumption in W 1 mW
Maximum sensing distance 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field
CAD overall height 42.75 mm
Antenna gain 0 dBi
Response time < 2 ms
Shape of signaling unit head round
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Type of operator spring return push-button with transmitter
Acquisition time 2 ms
Fixing mode fixing nut beneath head: 2-2.4 N.m
Operating travel 4.3 mm (total travel)
Embedding depth 43 mm
Standards UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14
Modulation Technique O-QPSK
Operating force 10 N C/O changing electrical state
Mechanical robustness free fall resistance 1000 mm conforming to EN/IEC 60068-2-32
Environment
Mechanical durability 1000000 cycles
Relative humidity 95-95 % at -40-70 °C without condensation
Ambient air temperature for storage -40-70 °C
Directives 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
IP degree of protection IP69K (front face) conforming to IEC 60529, IP69 (front face) conforming to IEC 60529, IP67 (front face) conforming to IEC 60529, IP66 (front face) conforming to IEC 60529
Vibration resistance +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications C-Tick, UL, GOST, CSA, CCC, BT 2006/95/EC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4 cm
Package 1 Width 5.2 cm
Package 1 Length 12.4 cm
Package 1 Weight 68 g
Unit Type of Package 2 2
Number of Units in Package 2 42
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.333 kg
