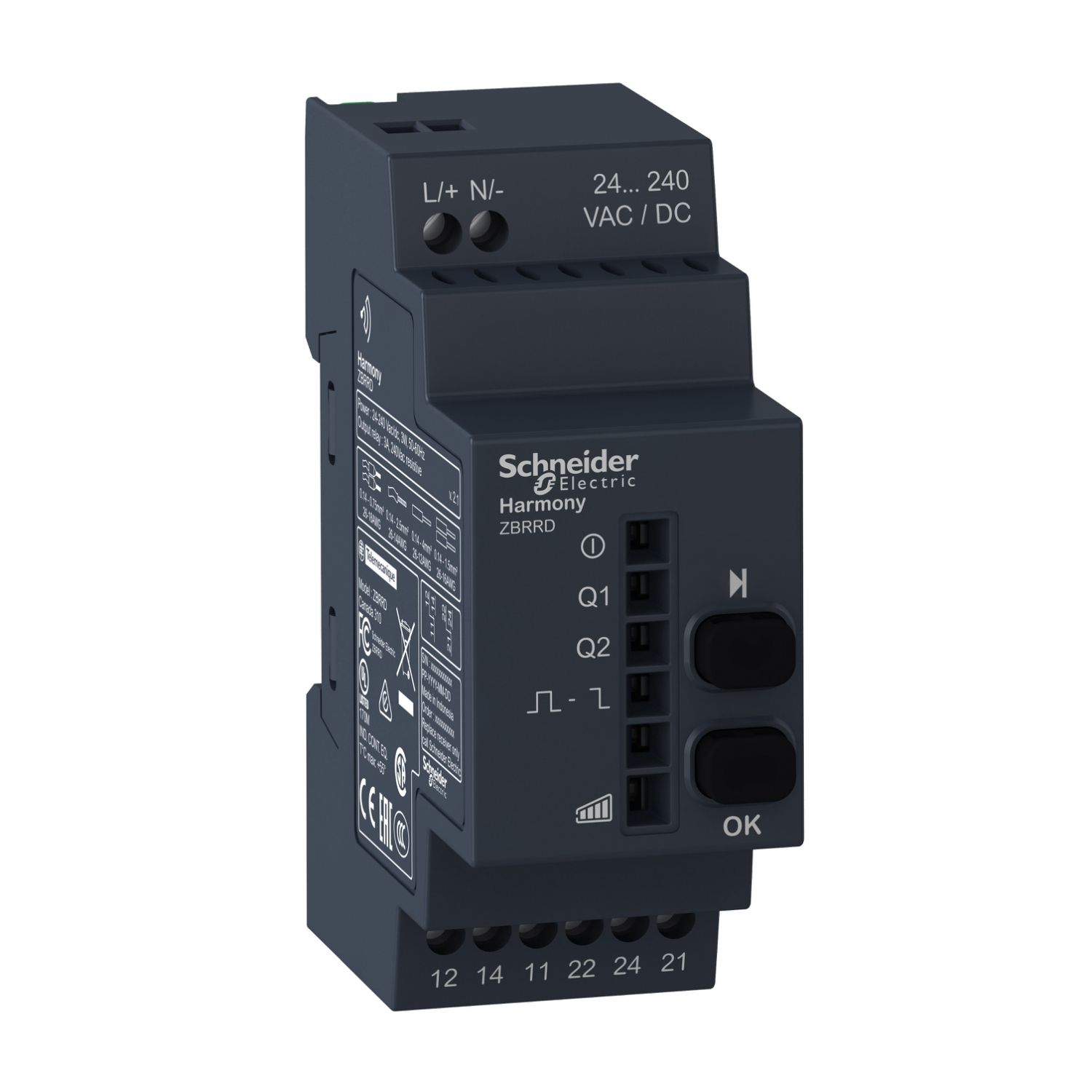

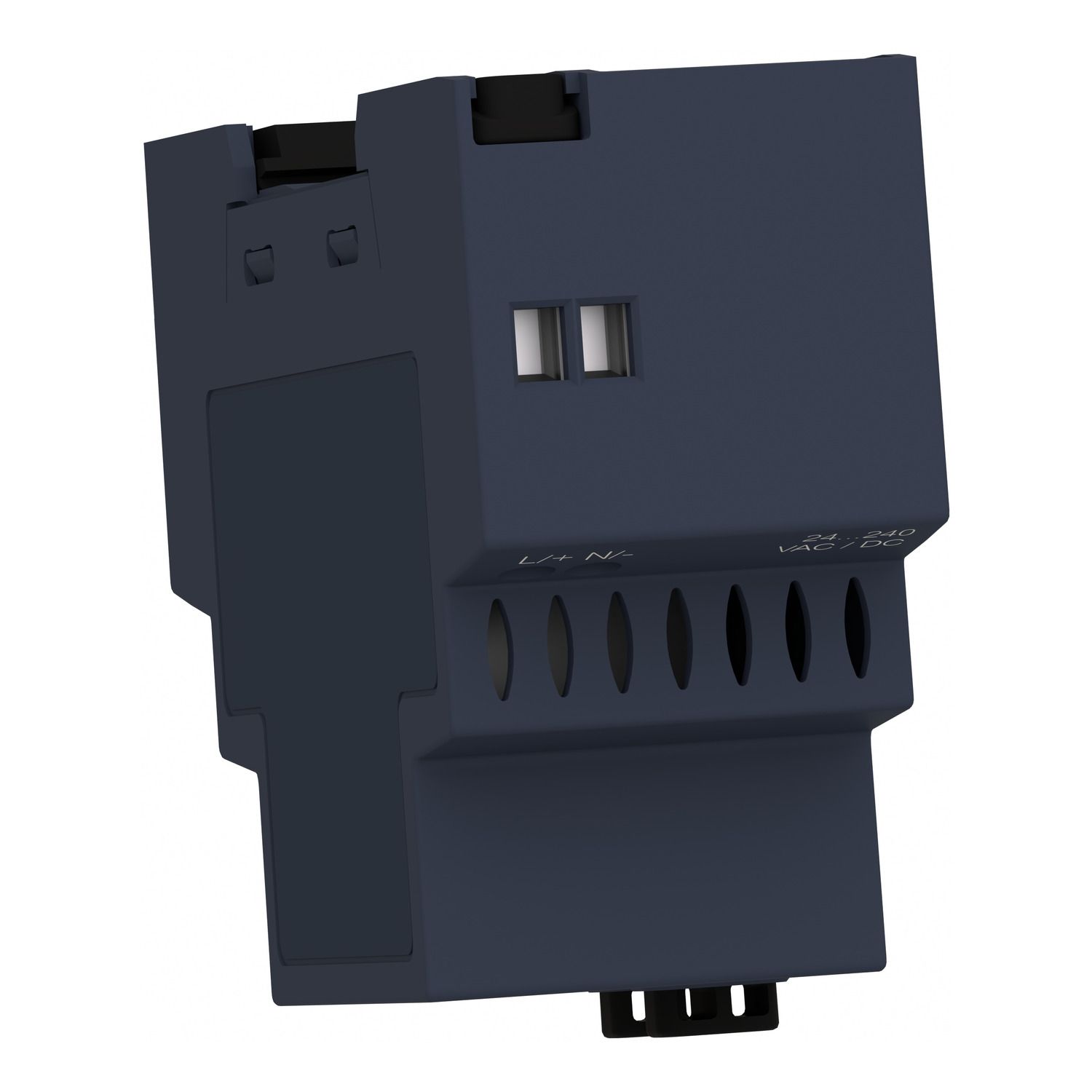

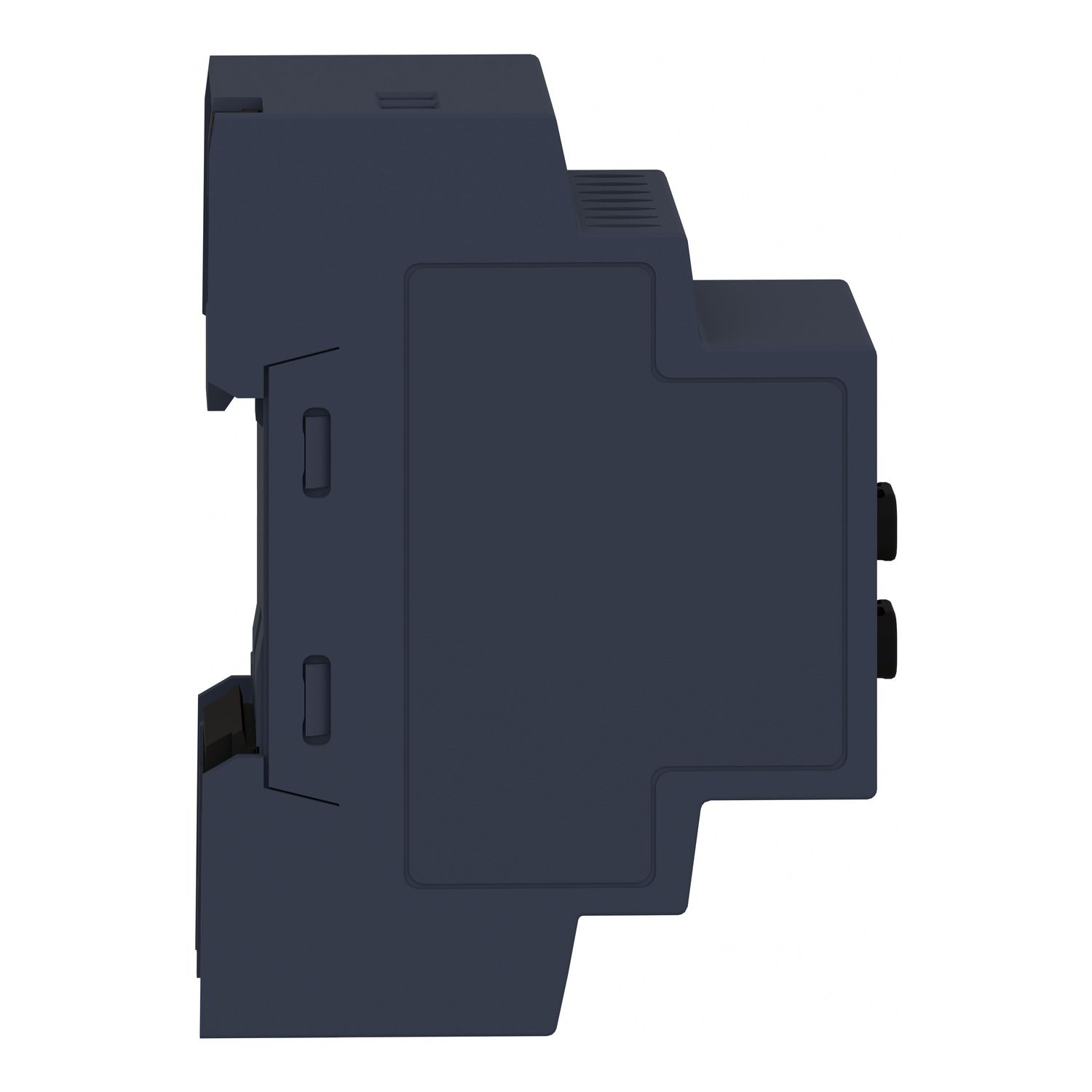

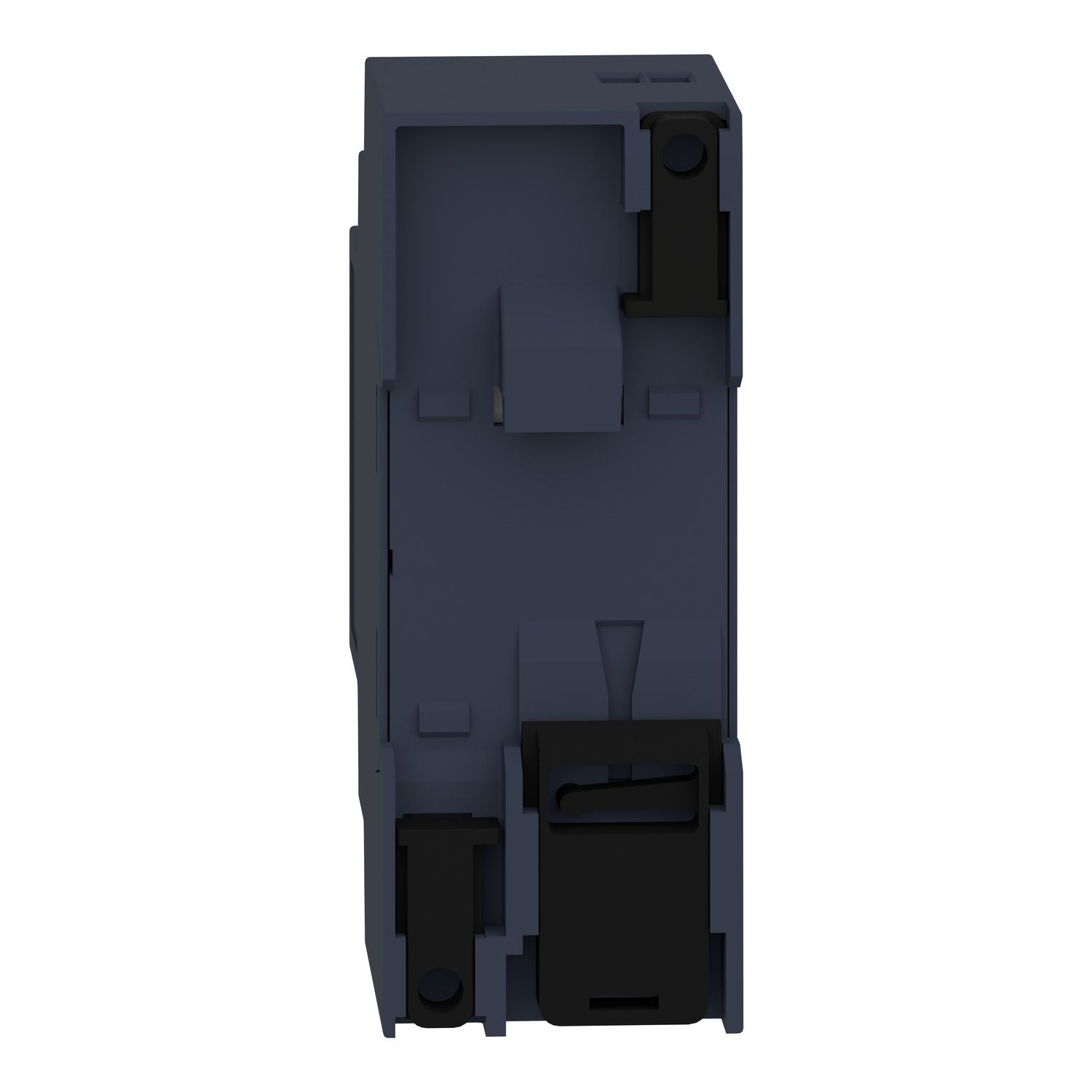

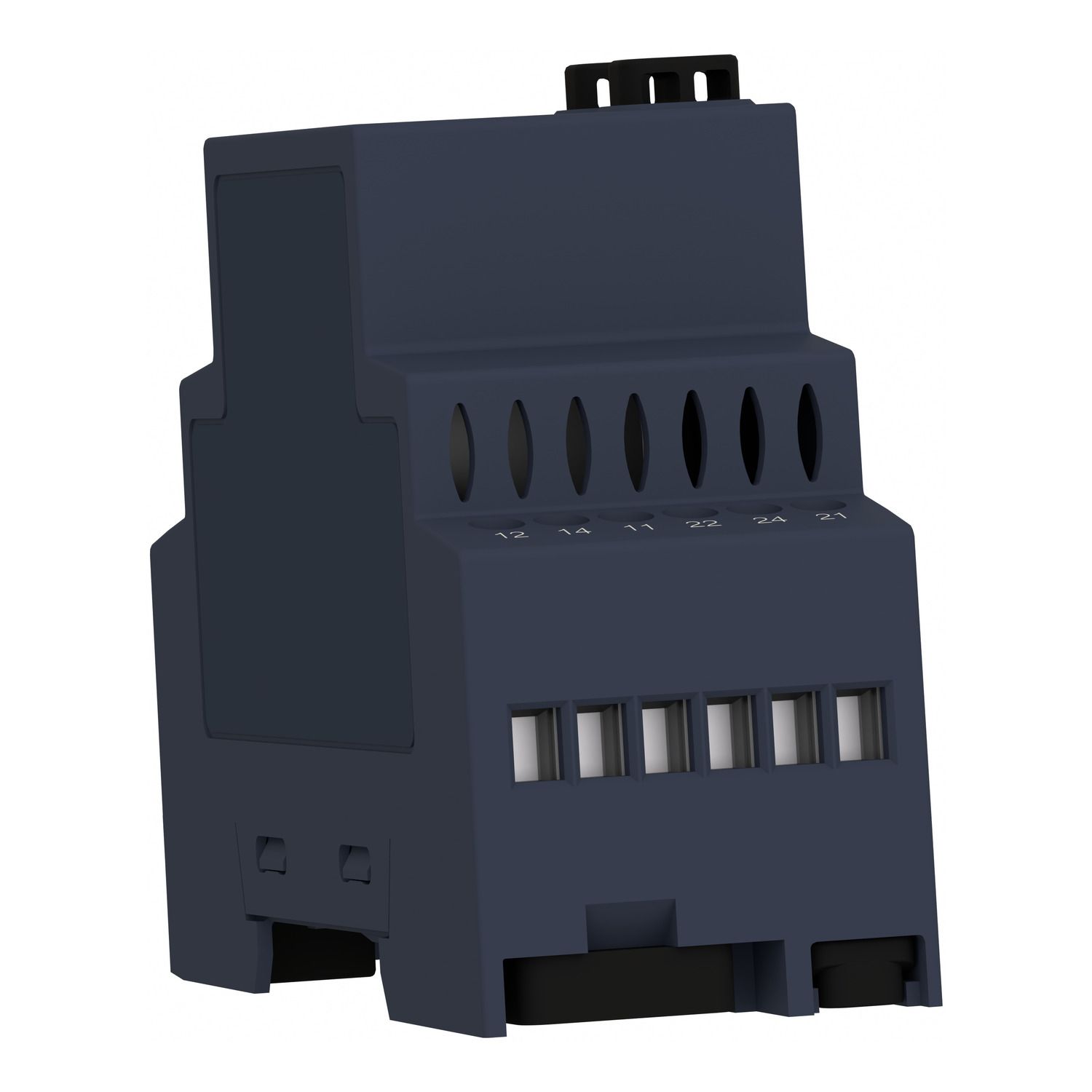

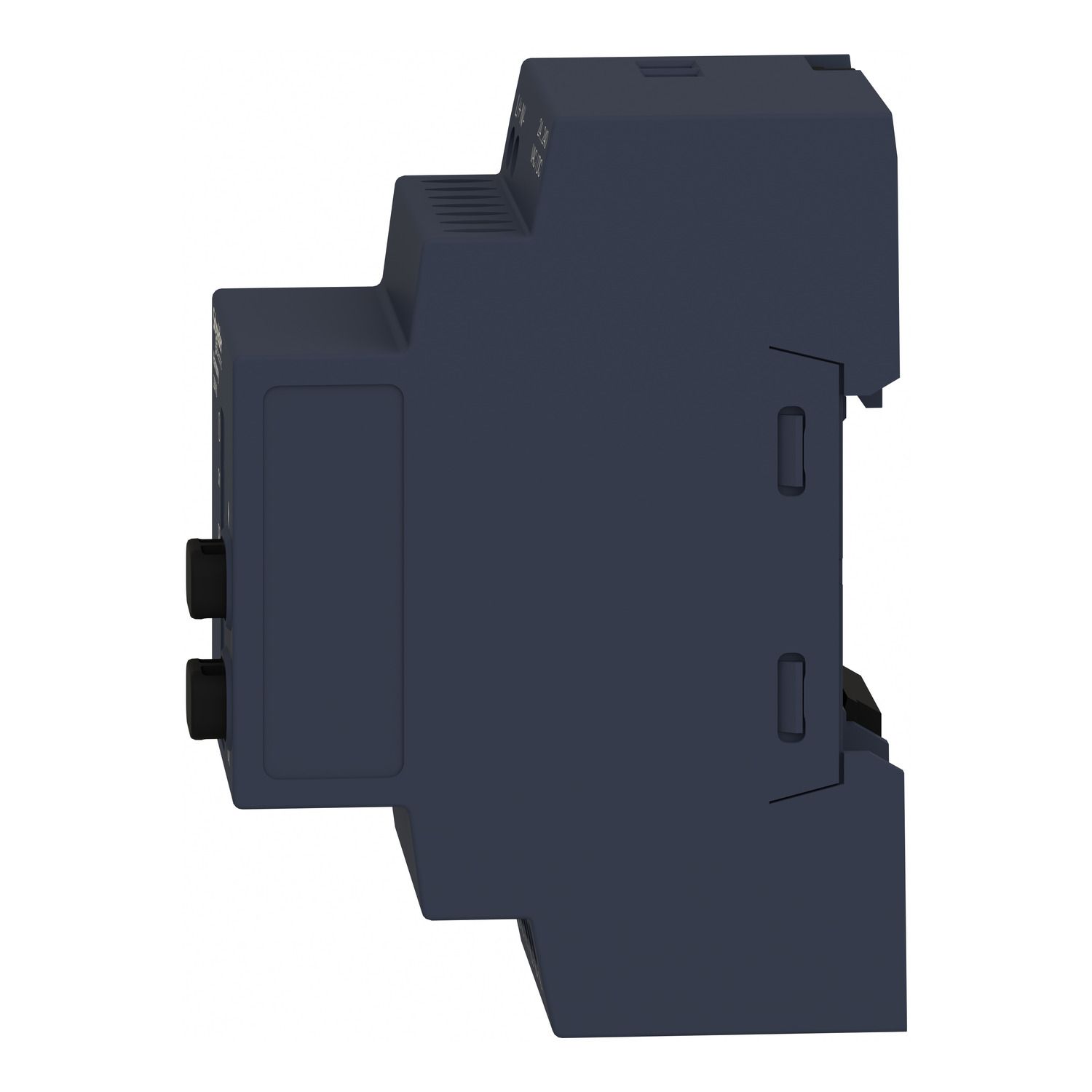

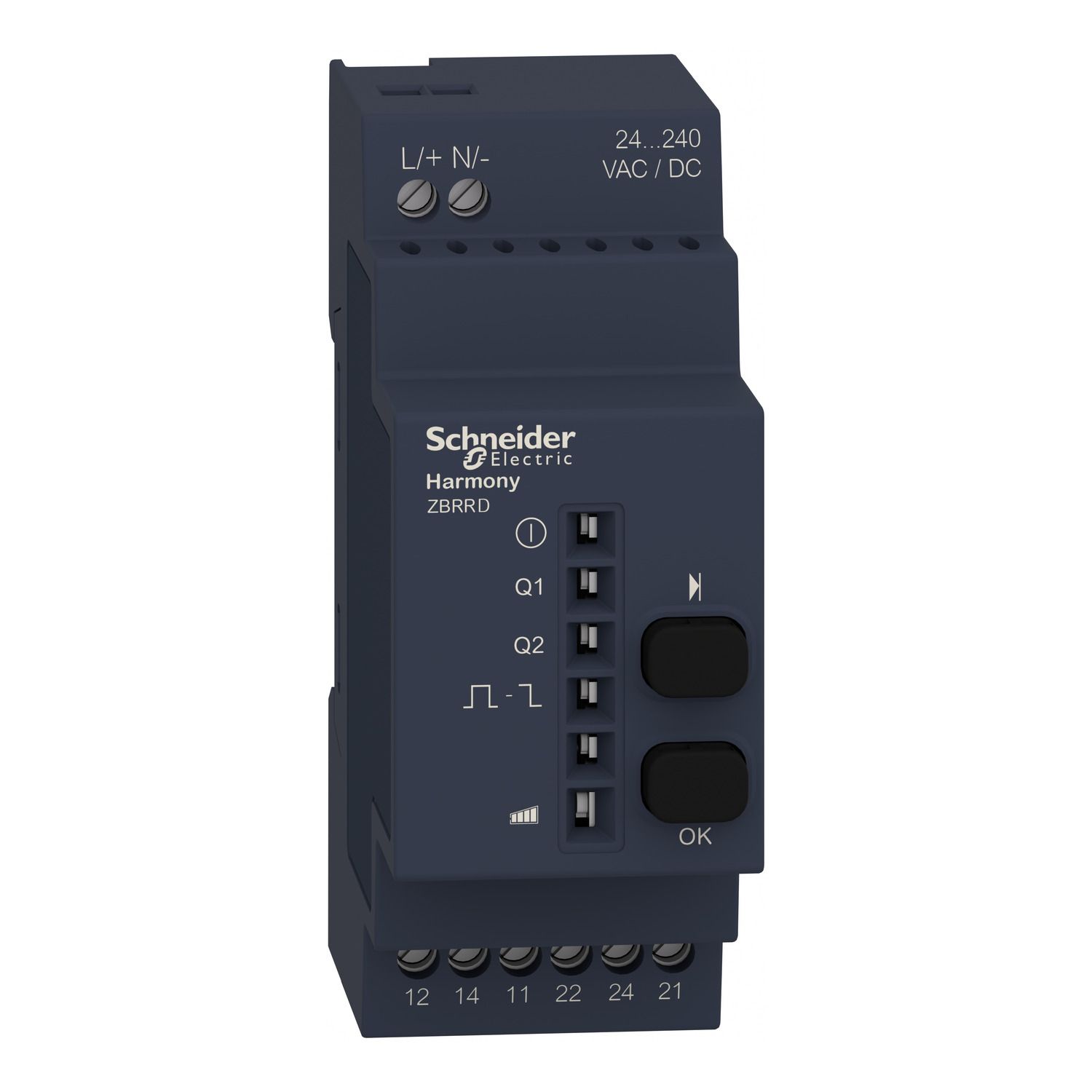

Picture of Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs
SKU:

ZBRRD

Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs

$430.80
Available for Shipping : 24-Nov-2024
Product Selector
Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Catalogue
Instruction sheet
Declaration of conformity
User guide
Product environmental
Technical illustration
End of life manual
Product Page Link
Product Data Sheet
This programmable receiver is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a configurable receiver equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It is supplied set to monostable output function and can be configured to bistable and stop/start functions. Its supply voltage is 24V to 240V AC/DC.

Products specifications

Attribute name Attribute value
Main
Device short name ZBRRD
Function of module monostable, bi-stable
Product specific application interface to actuators
Level or class 5M00G7W
Reset time 2 ms time delay
Product or component type programmable receiver
Transmission frequency 2405 MHz
Range of product Harmony
Antenna type omnidirectional
Complementary
Bandwidth 5-5 MHz
Maximum power consumption in W 4 W AC/DC
Tightening torque 0.5-1 N.m conforming to IEC 60947-1
Depth 75 mm
Output type 2 relays
Width 36 mm
Control circuit frequency 50...60 Hz +/- 10 %
Breaking capacity 750 VA, 15 W
Housing material self-extinguishing plastic
Mounting support mounting plate, 35 mm symmetrical DIN rail conforming to IEC 60715
Number of channels 1
Max power consumption in W 1 mW
Maximum sensing distance 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field
Rated short-duration power frequency withstand voltage 1.5 kV 50 Hz conforming to IEC 60947-5-1
Surge withstand 2 kV common mode conforming to IEC 61000-4-5, 1 kV differential mode conforming to IEC 61000-4-5
Input output isolation galvanic isolation
Nominal output current 3 A at 240 V AC conforming to CSA C22.2 No 14, 3 A at 24 V DC conforming to CSA C22.2 No 14, 3 A at 240 V AC conforming to UL 508, 3 A at 120 V AC conforming to IEC 60947-5-1, 1.5 A at 240 V AC conforming to IEC 60947-5-1, 3 A at 24 V DC conforming to UL 508, 0.3 A at 48 V DC conforming to IEC 60947-5-1
Time delay range 0.5 s (tolerance: - 15...15 %)
Maximum switching voltage 250 V AC/DC
Net weight 0.13 kg
Utilisation category DC-12 conforming to IEC 60947-5-1, AC-15 : B300 conforming to IEC 60947-5-1
Antenna gain 0 dBi
Operating position any position without derating
Response time < 30 ms after transmitter clicks
Switching capacity in VA 1250 VA
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Output contacts 2 C/O
Status LED 1 LED green and yellow for reception signal, 2 LEDs green for function mode, 2 LEDs green for relay ON, 1 LED green for power ON
[Uimp] rated impulse withstand voltage 4 kV
Modulation Technique O-QPSK
Short-circuit protection 0.4 A fuse type fast blow
Maximum switching current 5 mA AC/DC
Height 108 mm
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz - 10...10 %, 24...240 V
Electrical connection 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1, 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1
Environment
[Ui] rated insulation voltage 250 V conforming to IEC 60664-1
Electrical durability 100000 cycles
Radio agreement ICASA, FCC, ARIB T66, ANATEL, SRRC, RSS
Mechanical durability 1000000 cycles
Relative humidity 90-90 % at -20-55 °C, without condensation conforming to ETSI EN 300 440-1
Overvoltage category II conforming to IEC 60664-1
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 (terminals), IP20 (casing) conforming to IEC 60529
Insulation resistance > 500 MOhm at 500 V DC conforming to NF C 20-030
Vibration resistance 2 gn (f= 8-150 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6
Marking CE
Shock resistance 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27
Electromagnetic compatibility radiated emission conforming to ETSI EN 300 440-2, conducted emission conforming to ETSI EN 300 489-3, conducted emission conforming to EN 300-489-1, radiated emission conforming to ETSI EN 300 440-1, immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, conducted and radiated emissions class B conforming to CISPR 22, immunity for industrial environments conforming to IEC 61000-6-2
Standards IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14
Product certifications C-Tick, CSA, GOST, UL, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 7.9 cm
Package 1 Length 9.7 cm
Package 1 Weight 138.0 g
Unit Type of Package 2 2
Number of Units in Package 2 64
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.541 kg

Related products

Picture of Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, red, 22mm, spring return

Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, red, 22mm, spring return

ZB5RTA4
$140.96
View Detail
Picture of Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, green, 22mm, spring return

Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, green, 22mm, spring return

ZB5RTA3
$140.96
View Detail

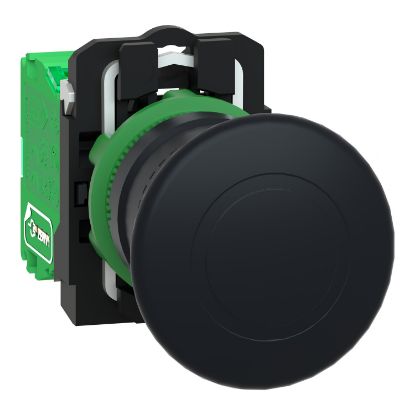

Picture of Harmony XB5R, Wireless and batteryless transmitter, mushroom head 40mm, plastic, black, 22mm, spring return

Harmony XB5R, Wireless and batteryless transmitter, mushroom head 40mm, plastic, black, 22mm, spring return

ZB5RTC2
$157.60
View Detail
Picture of Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, yellow, 22mm, spring return

Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, yellow, 22mm, spring return

ZB5RTA5
$140.96
View Detail

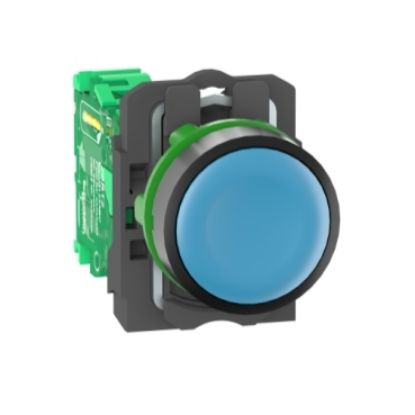

Picture of Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, blue, 22mm, spring return
