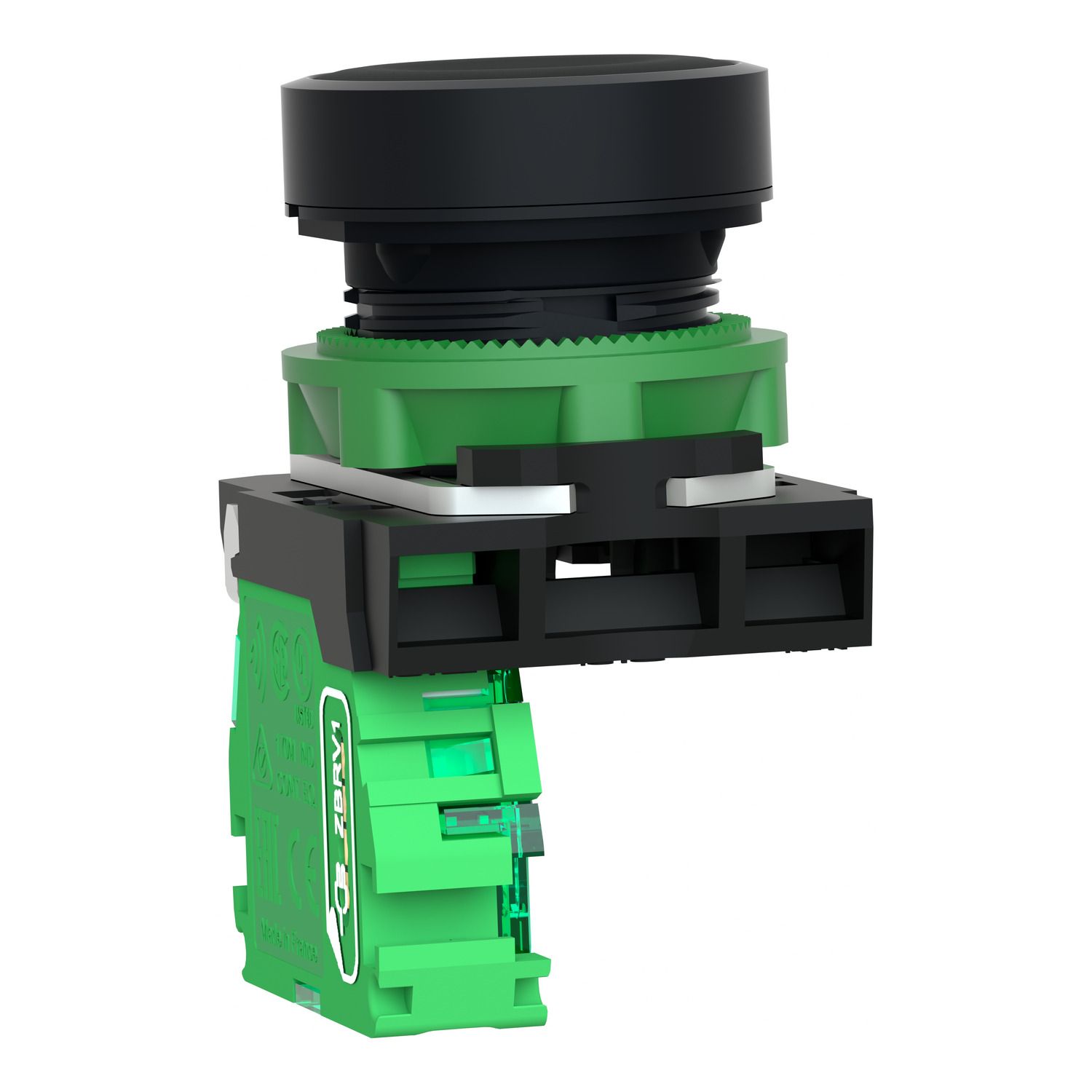

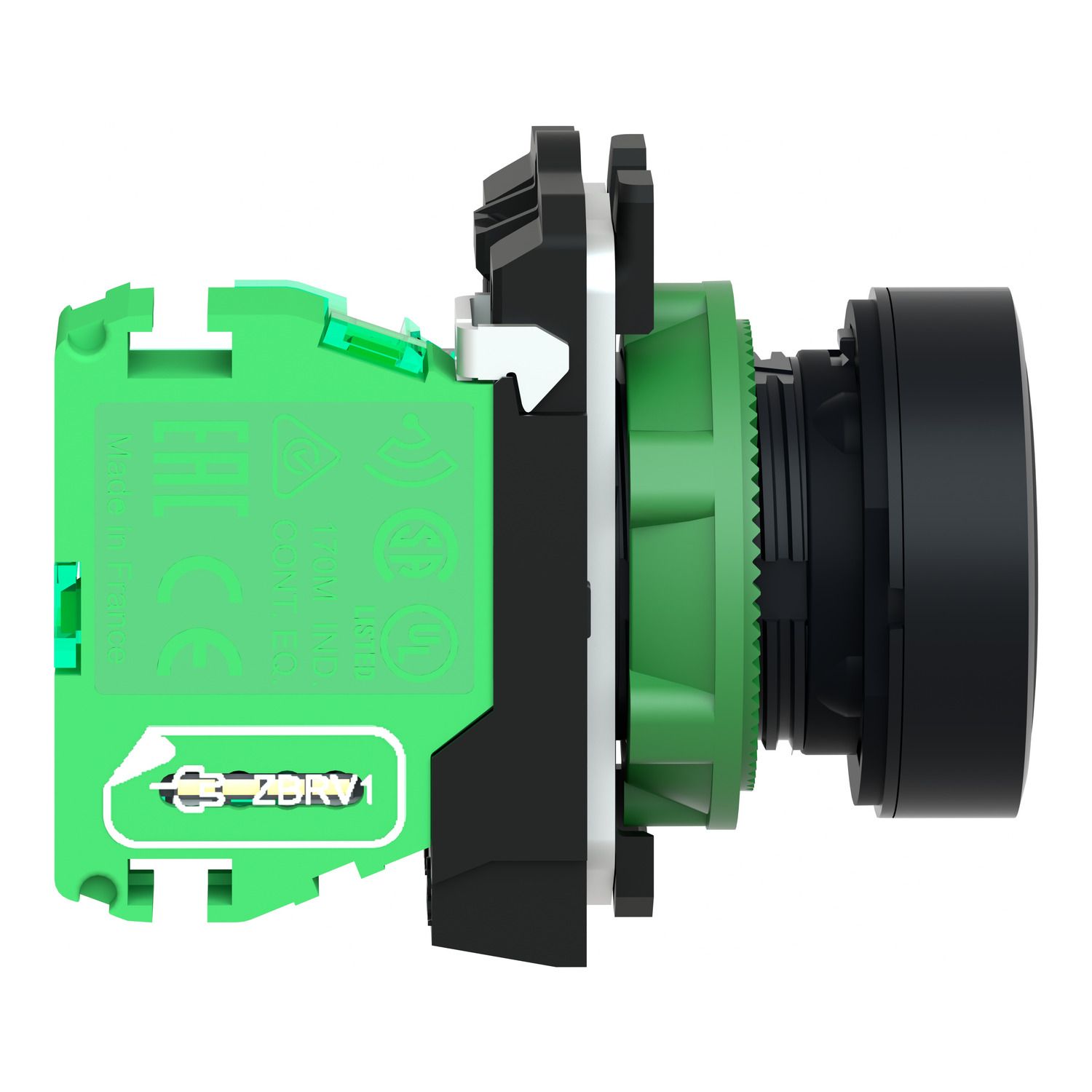

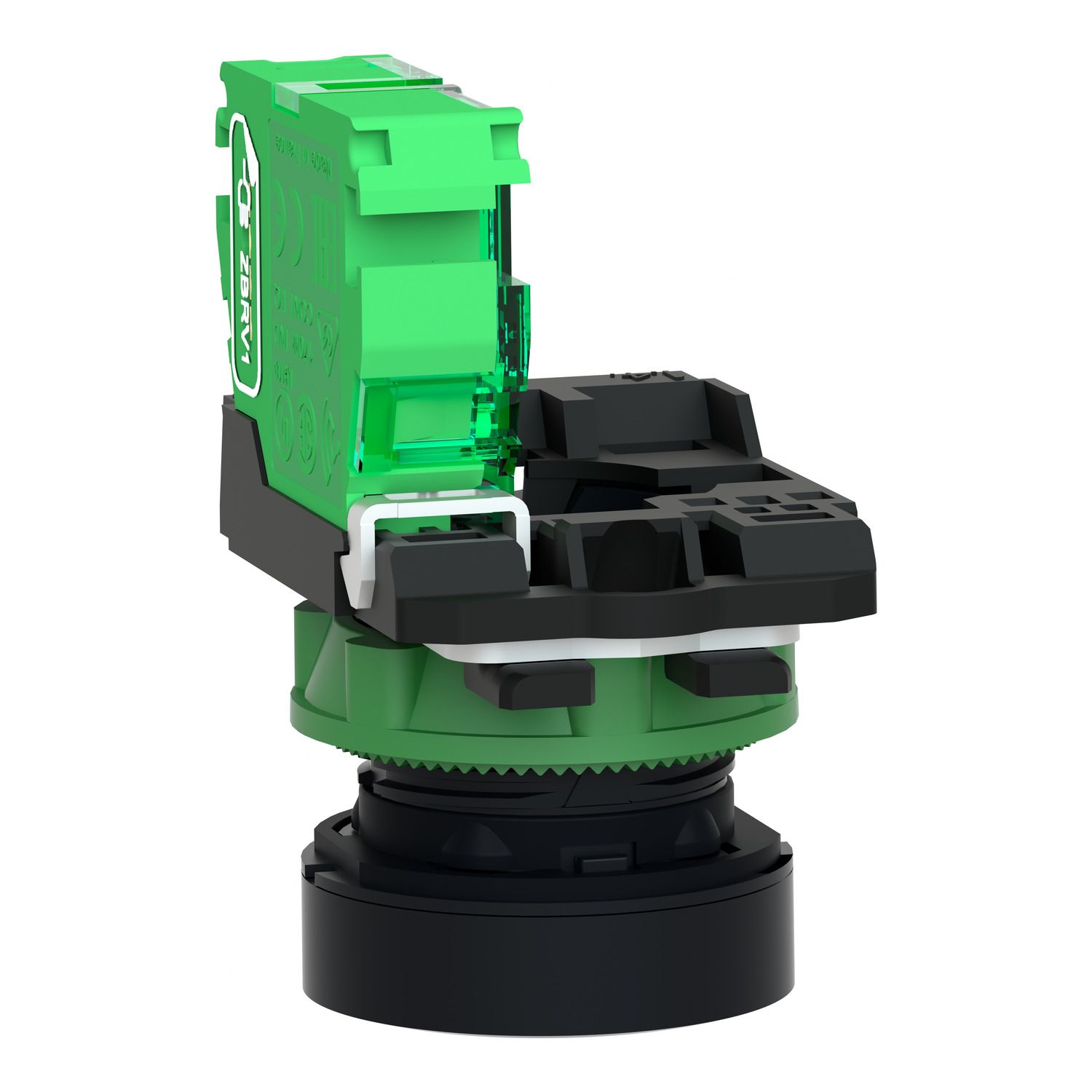

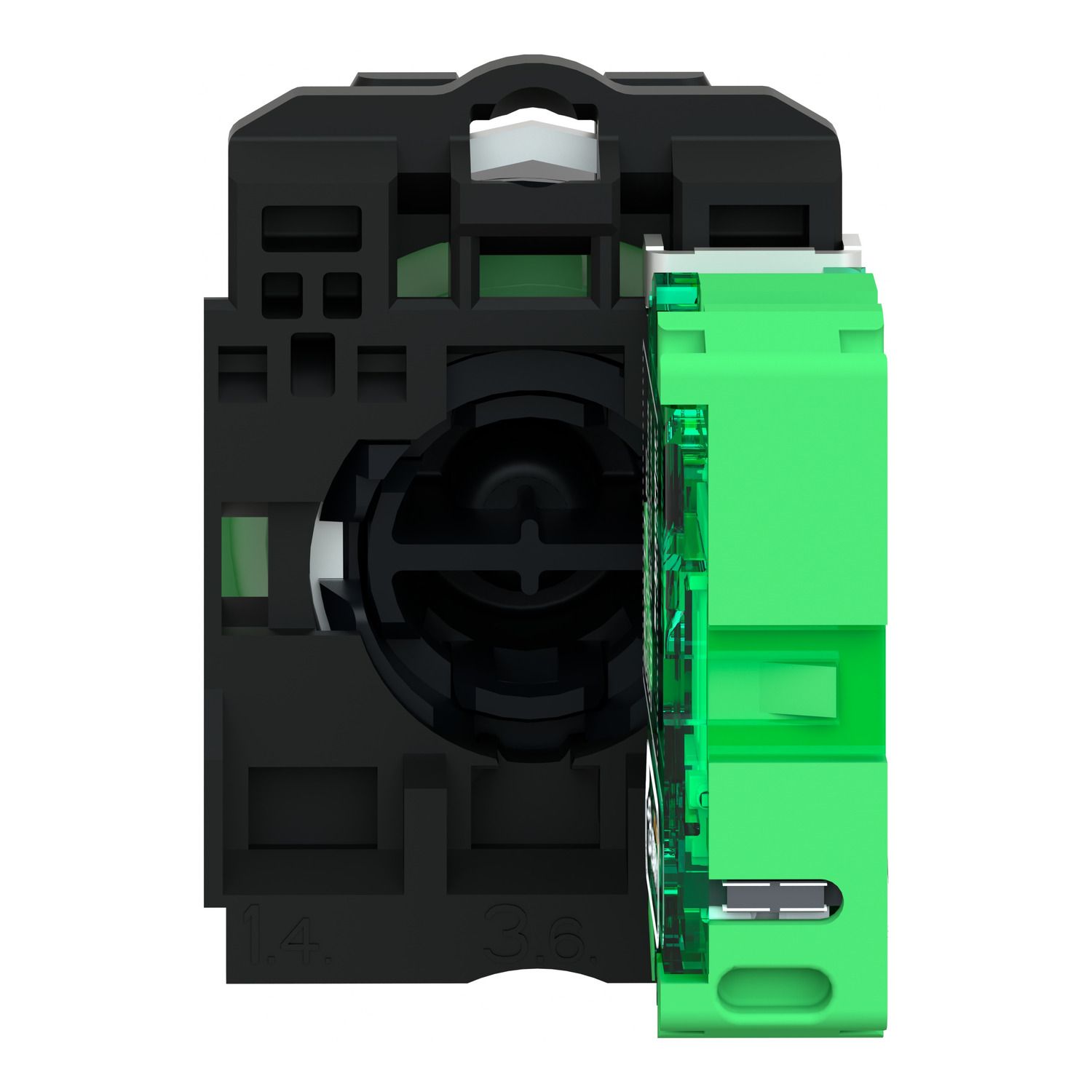

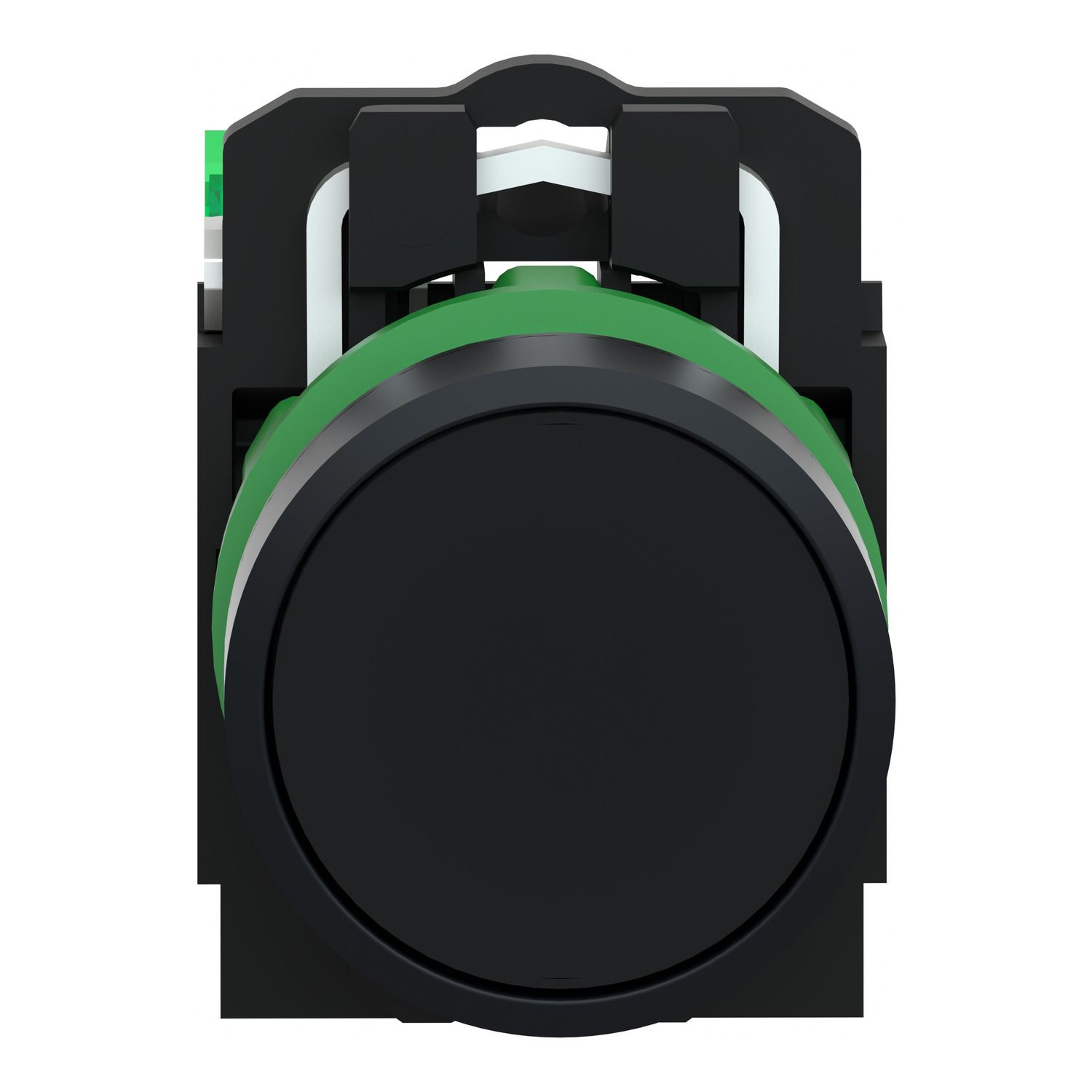

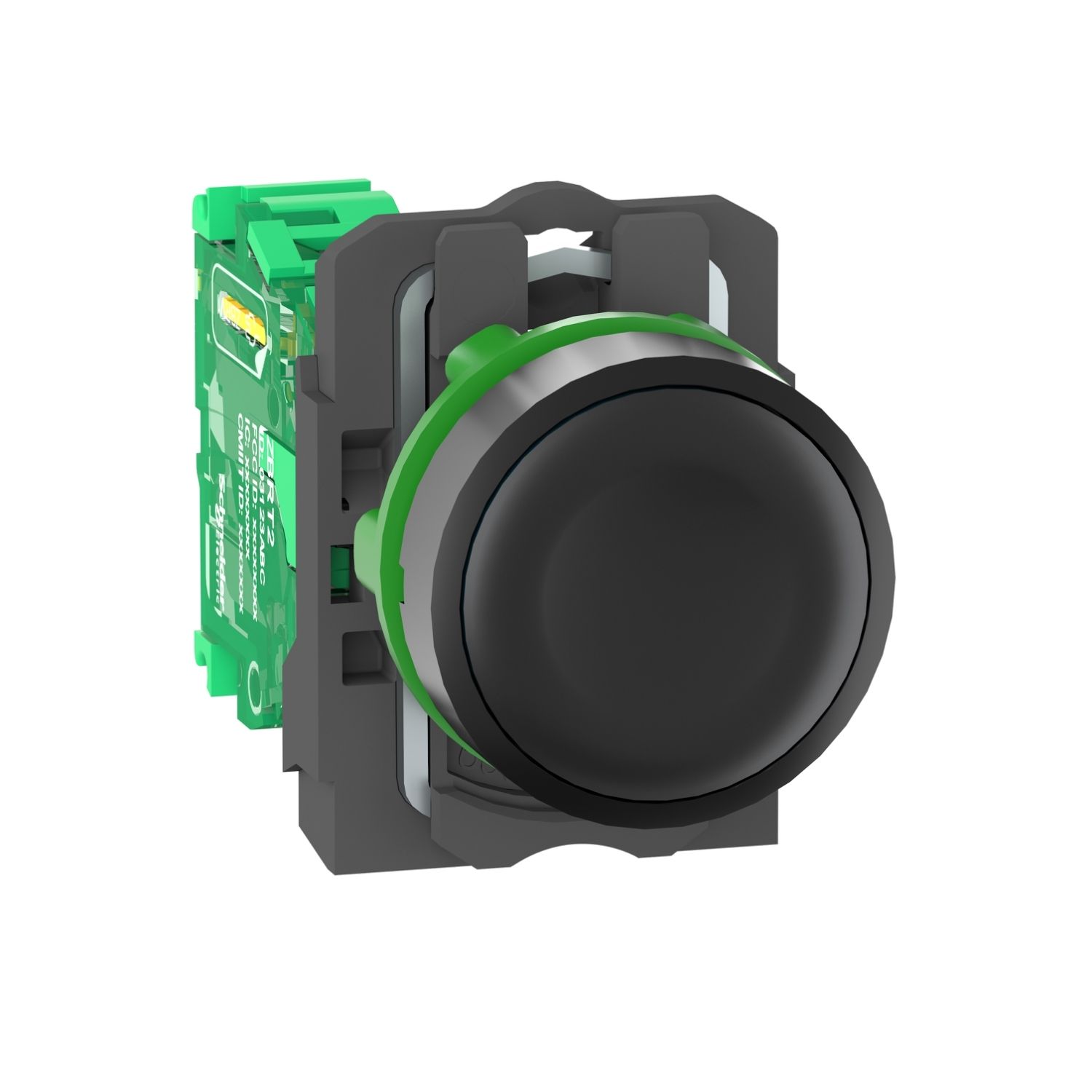

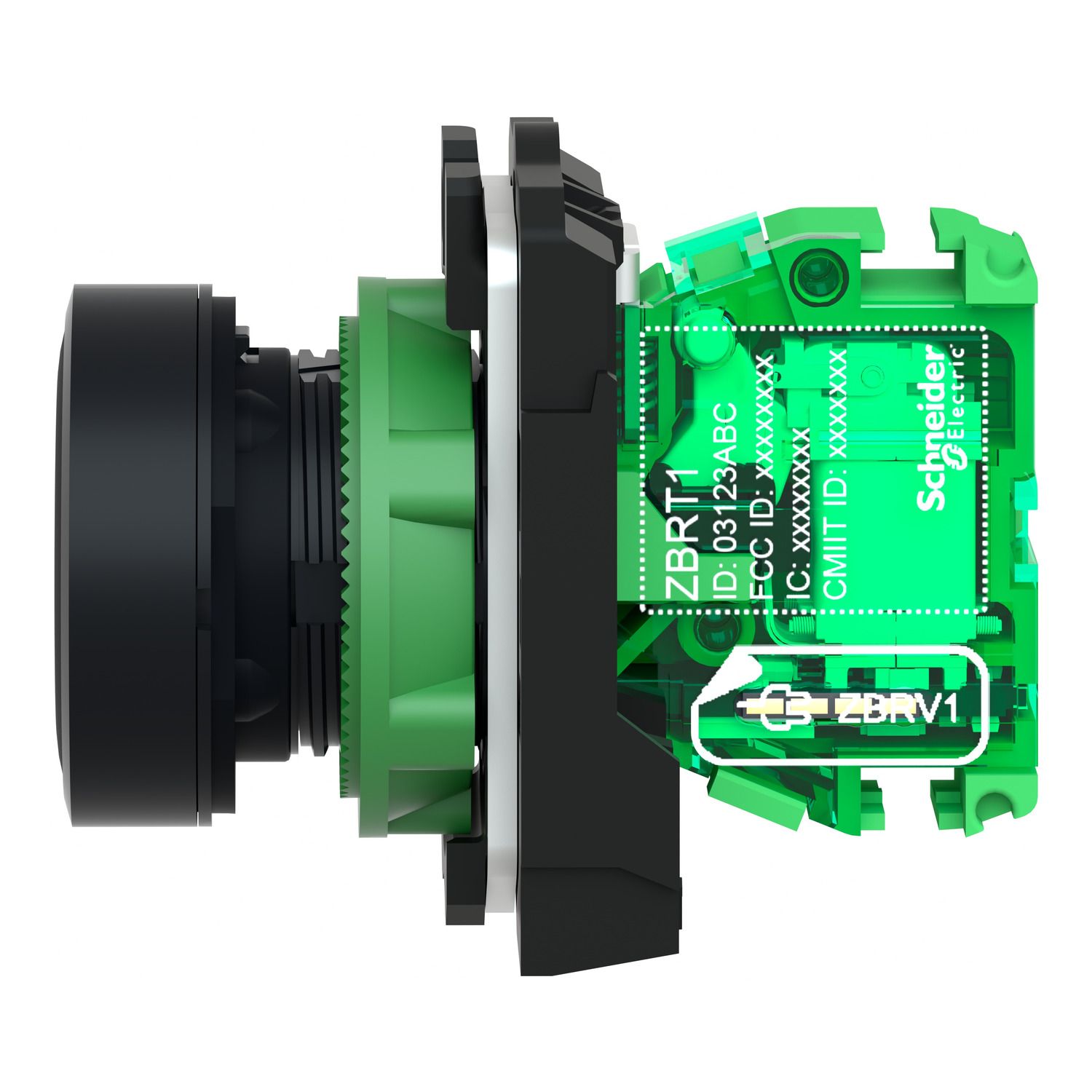

Picture of Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, black, 22mm, spring return
SKU:

ZB5RTA2

Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, black, 22mm, spring return

$140.96
Available for Shipping : 03-Dec-2024
Product Selector
Harmony XB5R, Wireless and batteryless transmitter, push button, plastic, black, 22mm, spring return
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Declaration of conformity
Catalogue
Instruction sheet
Technical illustration
User guide
Product environmental
Brochure
Product Page Link
Product Data Sheet
This wireless and batteryless push button is part of the range Harmony XB5R plastic and XB4R metal. It features a transmitter fitted with a fixing collar and a spring return flush push button head with black clipped-in cap.

Products specifications

Attribute name Attribute value
Main
Device short name XB5R
Bezel material dark grey plastic
Level or class 5M00G7W
Fixing collar material plastic
Product or component type wireless and batteryless transmitter
Mounting diameter 22 mm
Transmission frequency 2405 MHz
Range of product Harmony XB5
Antenna type omnidirectional
Complementary
Group of product flush push wireless
Bandwidth 5-5 MHz
CAD overall depth 43 mm
Emission power 3 mW
CAD overall width 30 mm
Radio agreement RSS, ICASA, FCC, ARIB T66, ANATEL
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 0
Marking unmarked
Operator profile black flush
Number of channels 16
Max power consumption in W 1 mW
Maximum sensing distance 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field
Cap/operator or lens colour black
CAD overall height 41.5 mm
Net weight 0.045 kg
Antenna gain 0 dBi
Response time < 2 ms
Shape of signaling unit head round
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Type of operator spring return push-button with transmitter
Electrical composition code PW1
Acquisition time 2 ms
Fixing mode fixing nut beneath head: 2-2.4 N.m
Operating travel 4.3 mm (total travel)
Main group wireless push-button
Embedding depth 42 mm
Standards UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, CSA C22.2 No 14
Modulation Technique O-QPSK
Operating force 10 N C/O changing electrical state
Mechanical robustness free fall resistance 1000 mm conforming to EN/IEC 60068-2-32
Environment
Mechanical durability 1000000 cycles
Relative humidity 95-95 % at -40-70 °C without condensation
Ambient air temperature for storage -40-70 °C
Directives 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
IP degree of protection IP69K (front face) conforming to IEC 60529, IP69 (front face) conforming to IEC 60529, IP67 (front face) conforming to IEC 60529, IP66 (front face) conforming to IEC 60529
Vibration resistance +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, 5 gn (f= 11-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications GOST, UL, CSA, C-Tick, BT 2006/95/EC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.4 cm
Package 1 Width 5.3 cm
Package 1 Length 8.7 cm
Package 1 Weight 38.0 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.154 kg

Related products

Picture of Harmony XB5R, Harmony Hub wireless serial line gateway, Zigbee green power gateway, wireless to modbus, 24...240V AC DC

Harmony XB5R, Harmony Hub wireless serial line gateway, Zigbee green power gateway, wireless to modbus, 24...240V AC DC

ZBRN2
$712.64
View Detail
Picture of Harmony XB5R, Harmony Hub wireless ethernet gateway, Zigbee green power gateway, wireless to modbus TCP, 24...240V AC DC

Harmony XB5R, Harmony Hub wireless ethernet gateway, Zigbee green power gateway, wireless to modbus TCP, 24...240V AC DC

ZBRN1
$546.34
View Detail
Picture of Harmony XB5R, Programmable receiver, 2 relays, 24..240 V AC/DC, 2 pusbuttons, 6 LEDs

Harmony XB5R, Programmable receiver, 2 relays, 24..240 V AC/DC, 2 pusbuttons, 6 LEDs

ZBRRA
$455.35
View Detail
Picture of Harmony XB5R, Configurable receiver, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC

Harmony XB5R, Configurable receiver, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC

ZBRRC
$285.48
View Detail
Picture of Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs

Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs

ZBRRD
$430.80
View Detail
Picture of Harmony XB5R, Modbus TCP communication module for ZBRN1, 2 Ethernet RJ45 connectors

Harmony XB5R, Modbus TCP communication module for ZBRN1, 2 Ethernet RJ45 connectors

ZBRCETH
$217.78
View Detail
Picture of Wireless and batteryless range, Harmony XB5R, passive antenna to pass through a wall, cable 0.9m, connector SMA female

Wireless and batteryless range, Harmony XB5R, passive antenna to pass through a wall, cable 0.9m, connector SMA female

ZBRA3
$137.32
View Detail
Picture of Harmony XB5R, Relay Antenna, AC/DC, 5m cable output

Harmony XB5R, Relay Antenna, AC/DC, 5m cable output

ZBRA1
$169.07
View Detail
