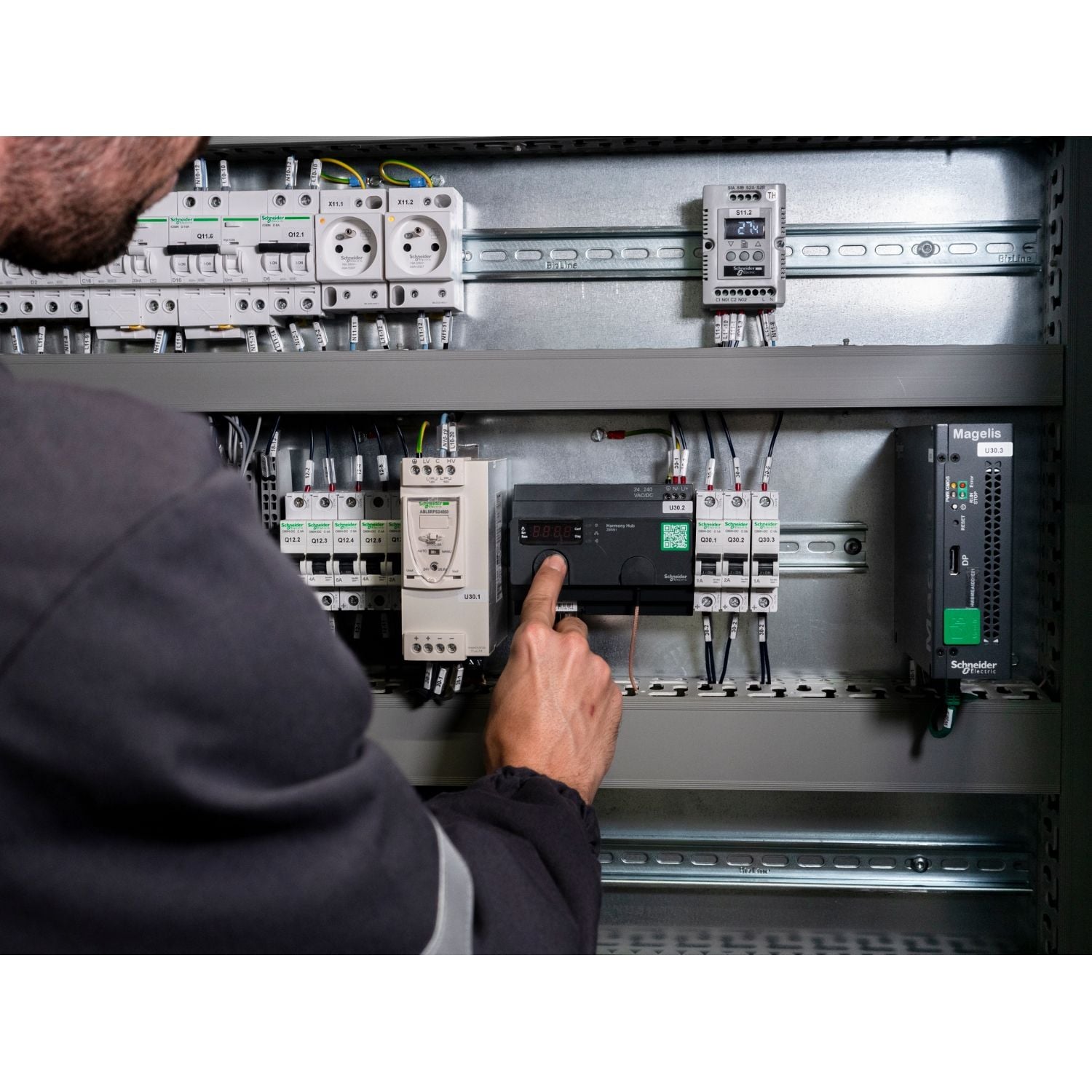

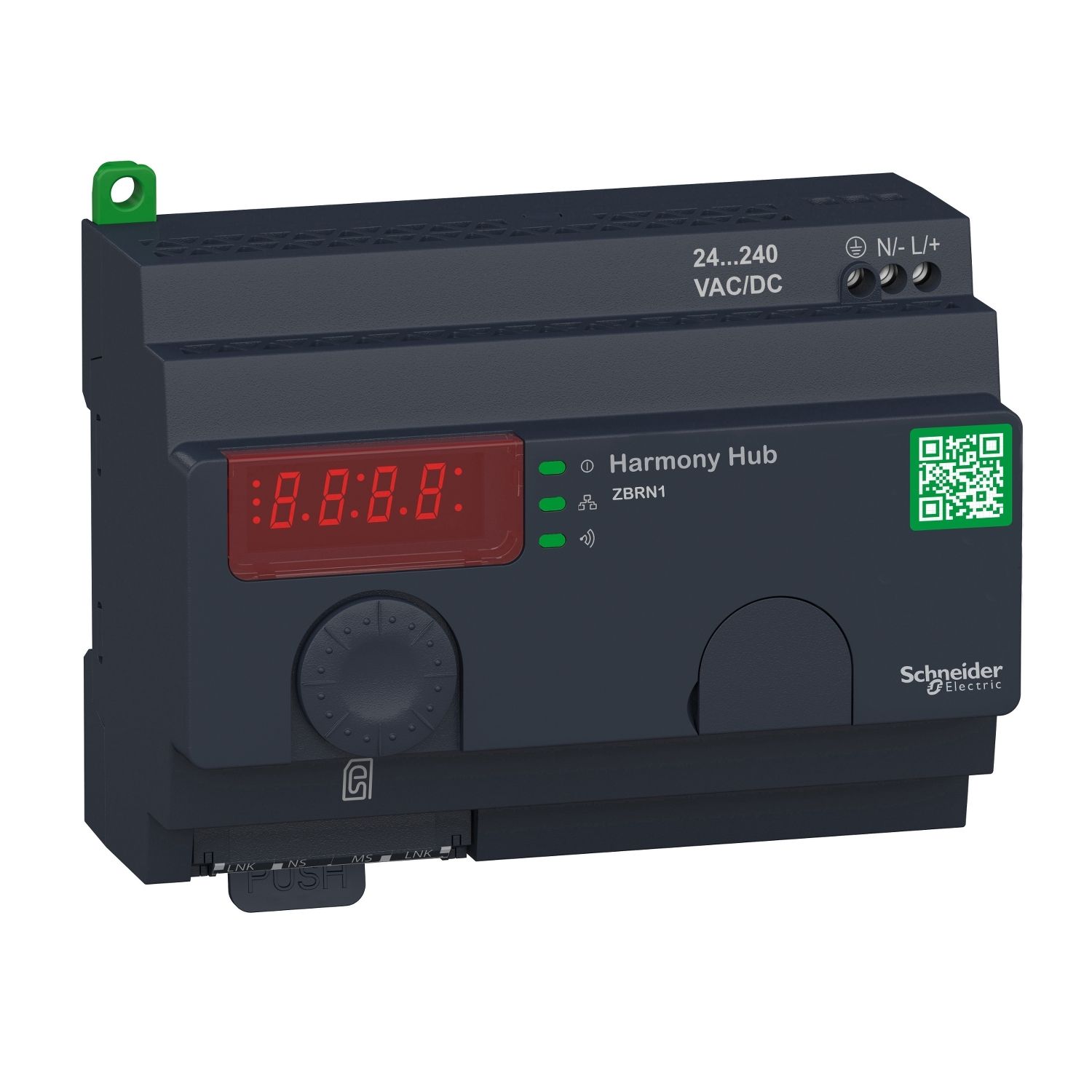

Picture of Harmony XB5R, Harmony Hub wireless ethernet gateway, Zigbee green power gateway, wireless to modbus TCP, 24...240V AC DC
SKU:

ZBRN1

Harmony XB5R, Harmony Hub wireless ethernet gateway, Zigbee green power gateway, wireless to modbus TCP, 24...240V AC DC

$546.34
Available for Shipping : 24-Nov-2024
Product Selector
Harmony XB5R, Harmony Hub wireless ethernet gateway, Zigbee green power gateway, wireless to modbus TCP, 24...240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
User guide
Catalogue
Instruction sheet
Technical illustration
Product environmental
Technical illustration
End of life manual
Brochure
Product Page Link
Product Data Sheet
This configurable harmony Hub is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It provides network connectivity openness by operating as an intermediate equipment between the wireless devices and PLCs (Programmable Logic Controller) or industrial PCs (IT/OT box) that support Modbus/TCP protocols. It is equiped with 7 segment display, jog dial, 8 indicating LEDs (Power On, functions mode, communication status, signal strength) external antenna connector and protective plug. It features 1 slot for communication module ZBRCETH (should be ordered separately). It weighs 270g.

Products specifications

Attribute name Attribute value
Main
Transmission frequency 2405-2480 MHz
Device short name ZBRN1
Function of module Zigbee green power gateway
Product specific application Wireless Schneider Electric devices ecosystem
Communication port protocol Modbus/TCP client application, with ZBRCETH module
Product or component type Harmony Hub Wireless/Ethernet gateway
Range of product Harmony
Antenna type integrated
Complementary
Data storage equipment SD card
Maximum cable distance between devices 1000 m
Maximum power consumption in W 4 W AC/DC
Tightening torque 3.09-3.54 lbf.in conforming to EN/IEC 60947-1, 0.35-0.4 N.m conforming to EN/IEC 60947-1
Depth 60 mm
Width 122 mm
Port Ethernet 10BASE-T/100BASE-T
Control circuit frequency 50...60 Hz +/- 10 %
Housing material self-extinguishing plastic
Mounting support mounting plate, 35 mm symmetrical DIN rail conforming to EN/IEC 60715
Maximum sensing distance 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure, 60 m if an external antenna is connected to Harmony Hub, 250 m if a relay antenna is located between the transmitter and Harmony Hub, 100 m in free field
Rated short-duration power frequency withstand voltage 1.5 kV 50 Hz conforming to EN/IEC 60947-5-1
Surge withstand 2 kV common mode conforming to IEC 61000-4-5, 1 kV differential mode conforming to IEC 61000-4-5
Topology devices linked by daisy-chaining or tap junctions
Net weight 0.26 kg
Antenna gain 0 dBi
Operating position any position
Response time < 30 ms
Immunity to microbreaks 10 ms
Channels utilisation <= 60 devices
Status LED 1 LED green and yellow for reception signal, 5 LEDs red for function mode, 1 LED yellow for communication network, 1 LED green for power ON
Integrated connection type Ethernet Modbus TCP/IP RJ45 Modbus TCP network, 10/100 Mbit/s, 2 twisted pairs
[Uimp] rated impulse withstand voltage 4 kV
Short-circuit protection 16 A GB2 circuit breaker
Height 90 mm
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz - 10...10 %
Electrical connection 2 conductors cable 0.2-2.5 mm² - AWG 24...AWG 18 - flexible - with cable end conforming to IEC 60947-1, 1 conductor cable 0.2-0.75 mm² - AWG 24...AWG 14 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.2-1.5 mm² - AWG 24...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.2-4 mm² - AWG 24...AWG 12 - solid - without cable end conforming to IEC 60947-1
Environment
Dielectric strength 2150 V between input and ground DC, 1500 V between input and ground AC, 4250 V between input and output DC, 3000 V between input and output AC
Operating altitude 0...2000 m
Radio agreement SRRC, RSS, category 1 conforming to ETSI EN 300 440-1, ICASA, FCC, category 2 conforming to ETSI EN 300 440-1, ANATEL, type III conforming to ETSI EN 301 489-3
Relative humidity 90-90 % at -25-55 °C, without condensation conforming to ETSI EN 300 440-1
Ambient air temperature for storage -40-70 °C
Directives 2006/95/EC - low voltage directive, 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 (terminals), IP20 (casing) conforming to IEC 60529
Vibration resistance 2 gn (f = 8-150 Hz) on DIN rail conforming to IEC 60068-2-6, 1 gn (f = 5-150 Hz) on panel mounting conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-14 Hz) conforming to IEC 60068-2-6
Shock resistance 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27
Electromagnetic compatibility immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5
Storage altitude 0-3000 m
Standards EN 62311, EN/IEC 60950-1, UL 508, ETSI EN 300 440-2, CSA C22.2 No 14, EN/IEC 61131-2, ETSI EN 300 328
Product certifications CE, UL, GOST, CSA, CCC, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.300 cm
Package 1 Width 9.600 cm
Package 1 Length 13.000 cm
Package 1 Weight 310.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.524 kg
