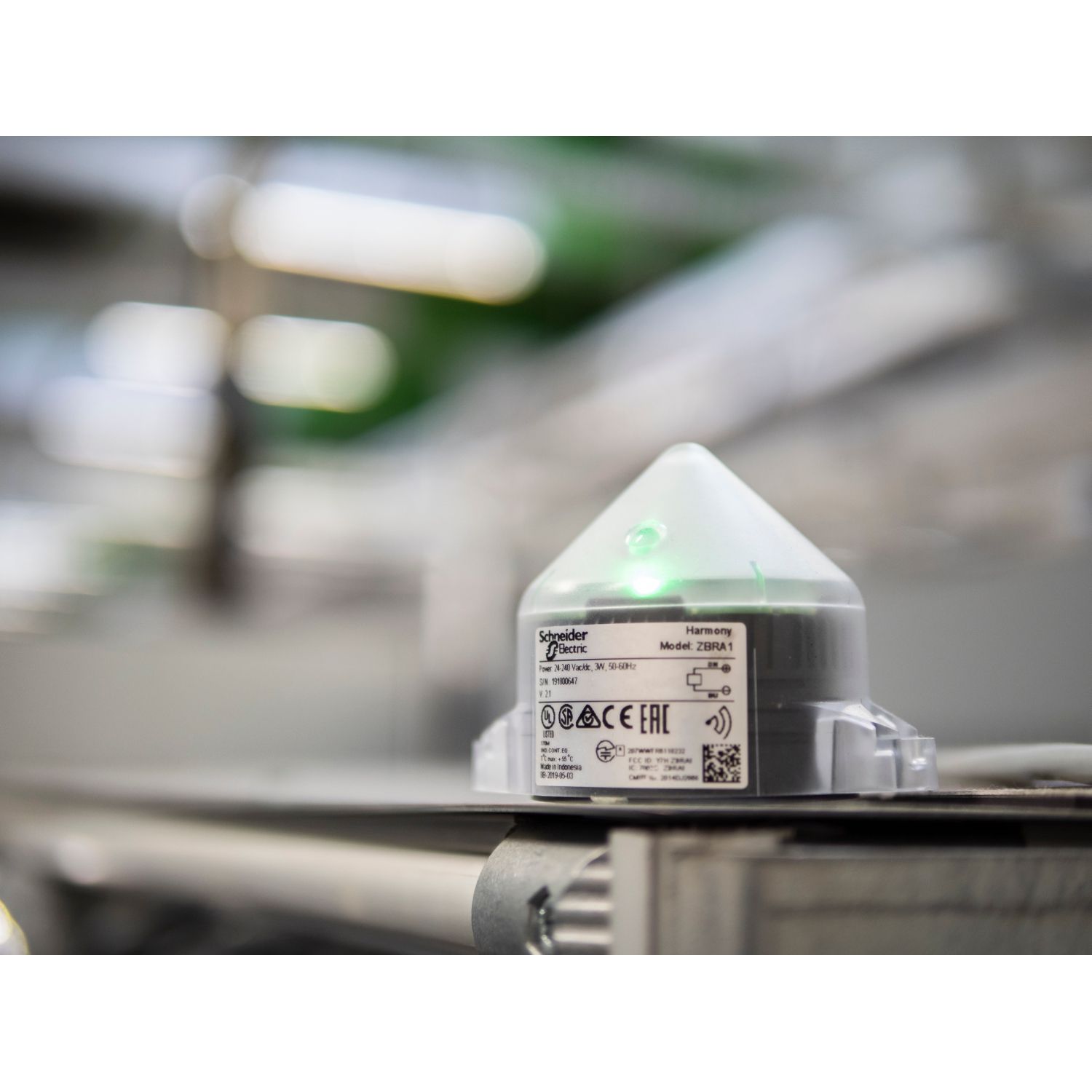

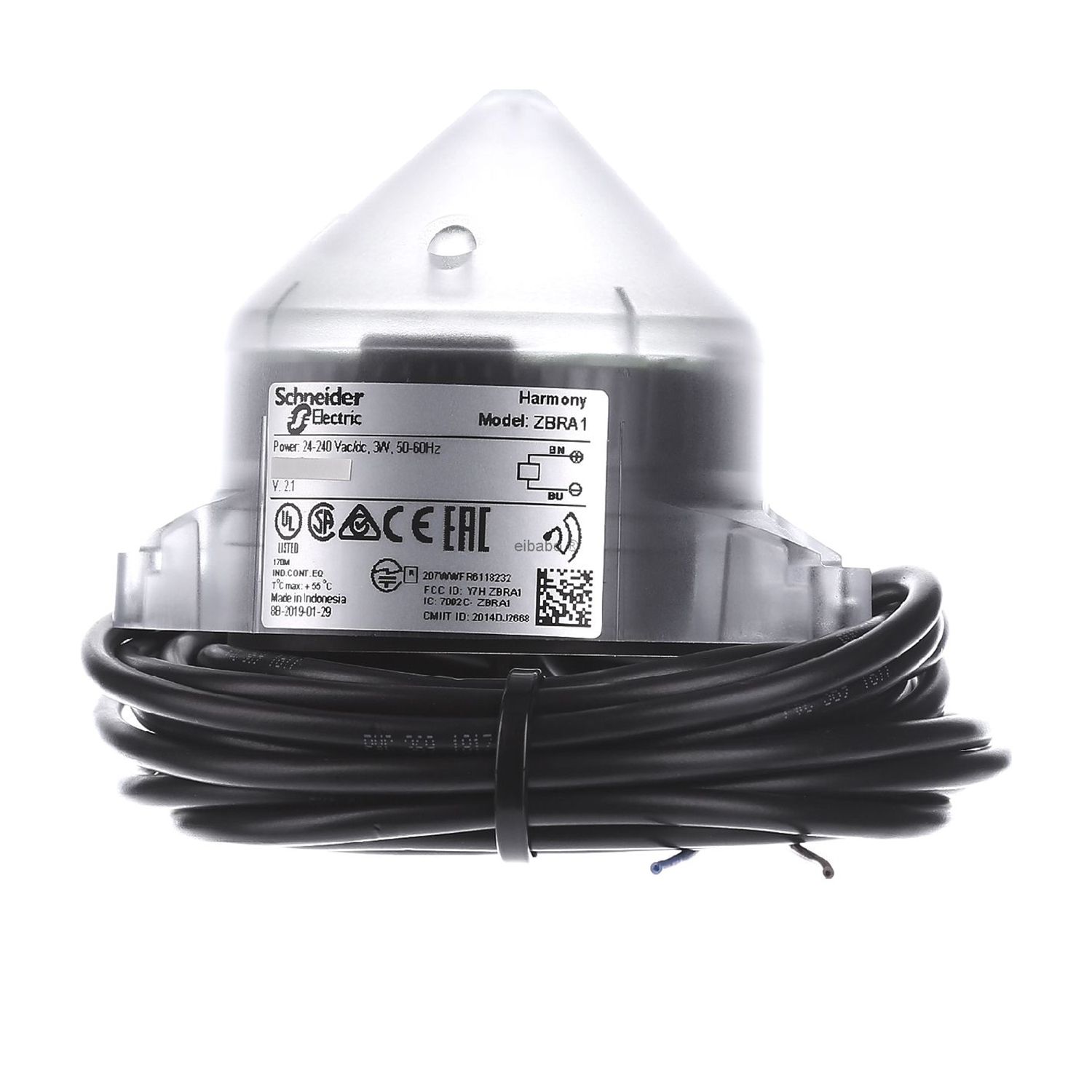

Picture of Harmony XB5R, Relay Antenna, AC/DC, 5m cable output
SKU:

ZBRA1

Harmony XB5R, Relay Antenna, AC/DC, 5m cable output

$169.07
Available for Shipping : 24-Nov-2024
Product Selector
Harmony XB5R, Relay Antenna, AC/DC, 5m cable output
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Instruction sheet
End of life manual
User guide
Technical illustration
Product environmental
Technical illustration
Product Page Link
Product Data Sheet
This relay antenna is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. Installed between transmitter and receiver it is used to increase the range and/or get round obstacles. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Transmission frequency 2405 MHz for receiver, 2405 MHz for transmitter
Device short name ZBRA
Level or class 5M00G7W
Colour of cover transparent
Material polycarbonate
Product or component type wireless and batteryless range
Colour of base of enclosure black (RAL 9011)
Range of product Harmony XB5R
Product destination Wireless Schneider Electric ecosystem devices
Control station application transceiver (emission and reception)
Antenna type omnidirectional
Complementary
Bandwidth 5-5 MHz
CAD overall width 93 mm
Maximum power consumption in W 4 W AC/DC
Tightening torque 0.6-0.6 N.m conforming to IEC 60947-1
Operating position vertical
Housing material self-extinguishing plastic
Number of channels 1
Max power consumption in W 1 mW
Maximum sensing distance 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Rated short-duration power frequency withstand voltage 4 kV 50 Hz conforming to IEC 60947-5-1
Overvoltage category III conforming to IEC 60664-1
CAD overall height 67 mm
Net weight 0.2 kg
Emission power 3 mW
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Antenna gain 0 dBi
Status LED 1 LED green for emission signal, 1 LED green for power ON
[Uimp] rated impulse withstand voltage 4 kV
Modulation Technique O-QPSK
Short-circuit protection 0.4 A fuse type fast blow
Electrical connection 2 conductors cable 0.34-0.34 mm² - flexible - 5 m conforming to IEC 60947-1
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz - 10...10 %
Environment
Radio agreement ICASA, category 1 conforming to ETSI EN 300 440-1, FCC, category 2 conforming to ETSI EN 300 440-1, ARIB T66, class 2 conforming to ETSI EN 301 489-3, ANATEL, type III conforming to ETSI EN 301 489-3, SRRC, RSS
Electrical shock protection class class II conforming to IEC 61140
Relative humidity 90-90 % at -20-55 °C, without condensation conforming to ETSI EN 300 440-1
Ambient air temperature for storage -40-70 °C
[Ui] rated insulation voltage 250 V conforming to IEC 60664-1
Directives 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
Pollution degree 3 conforming to IEC 60664-1
Insulation resistance > 500 MOhm at 500 V DC conforming to NF C 20030
Vibration resistance 6 gn (f= 55-150 Hz) conforming to IEC 60068-2-6, +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27
Electromagnetic compatibility radiated emission conforming to ETSI EN 300 440-2, conducted emission conforming to ETSI EN 300 489-3, conducted emission conforming to EN 300-489-1, radiated emission conforming to ETSI EN 300 440-1, immunity to microbreaks and voltage drops conforming to IEC 61000-4-11, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 2 kV conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, conducted and radiated emissions class B conforming to CISPR 22, immunity for industrial environments conforming to IEC 61000-6-2
IP degree of protection IP65 conforming to IEC 60529 55 °C 0.1 m
IK degree of protection IK03 conforming to IEC 62262
Product certifications C-Tick, CE, CSA, GOST, UL, BT 2006/95/EC, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 8.000 cm
Package 1 Length 18.700 cm
Package 1 Weight 267.000 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.293 kg
