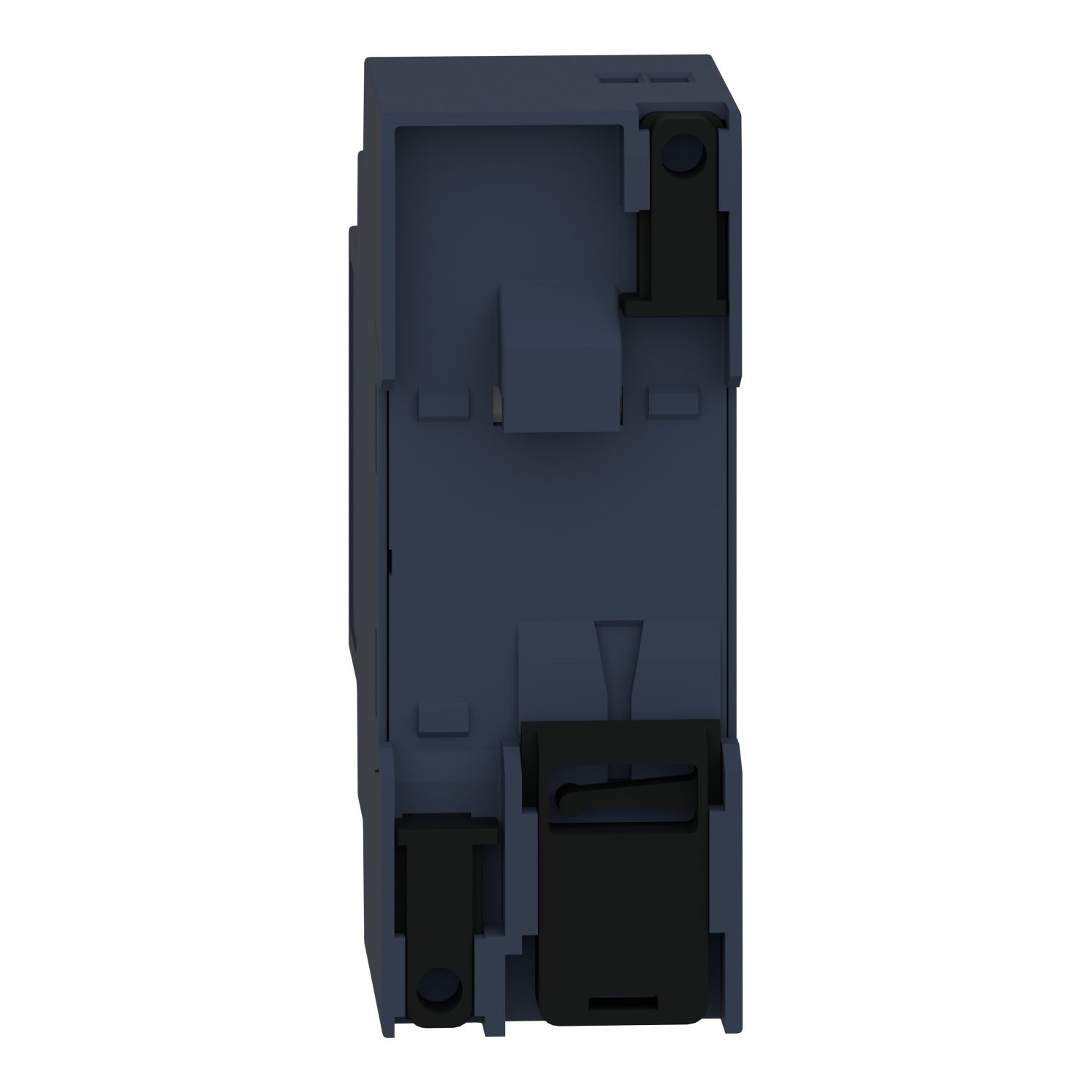

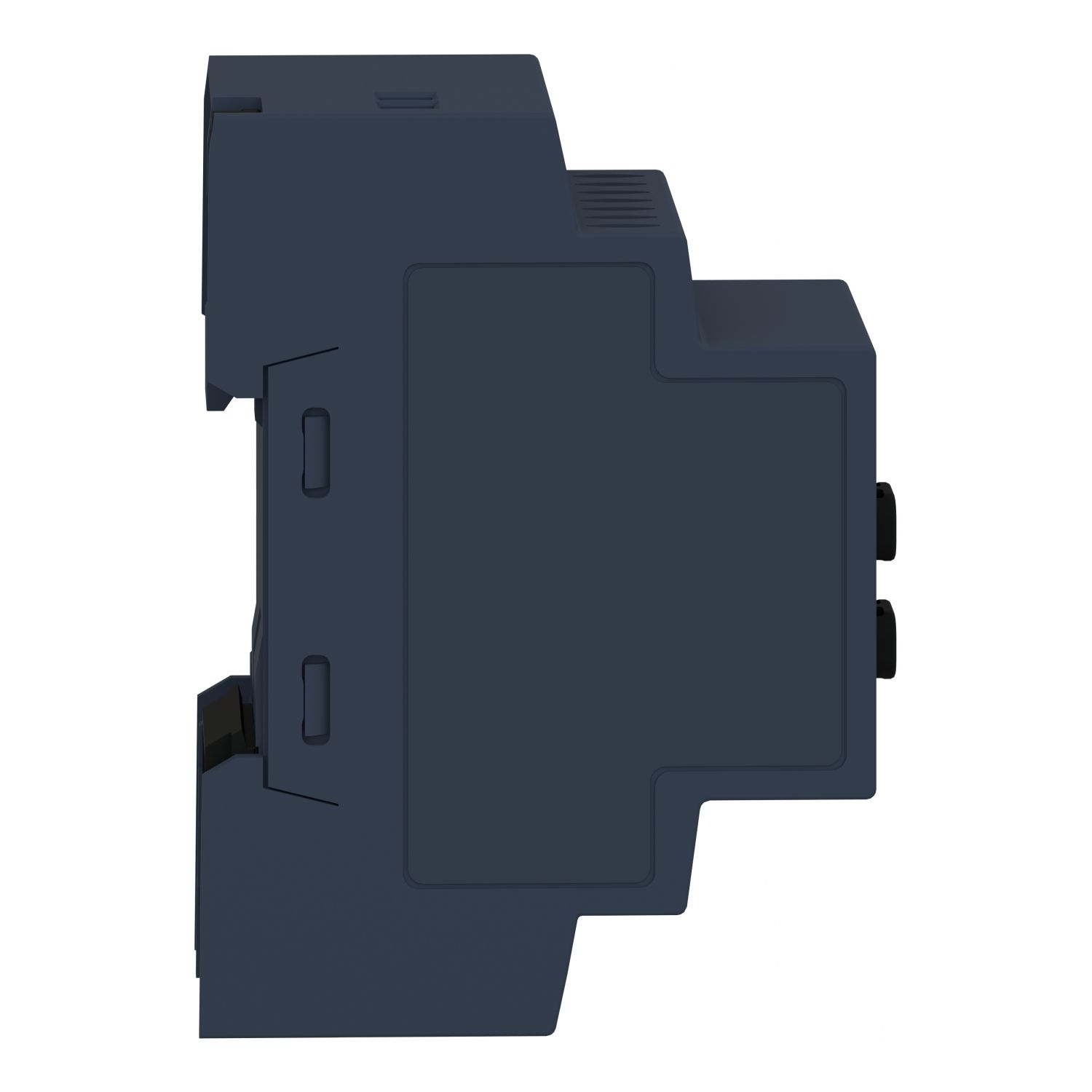

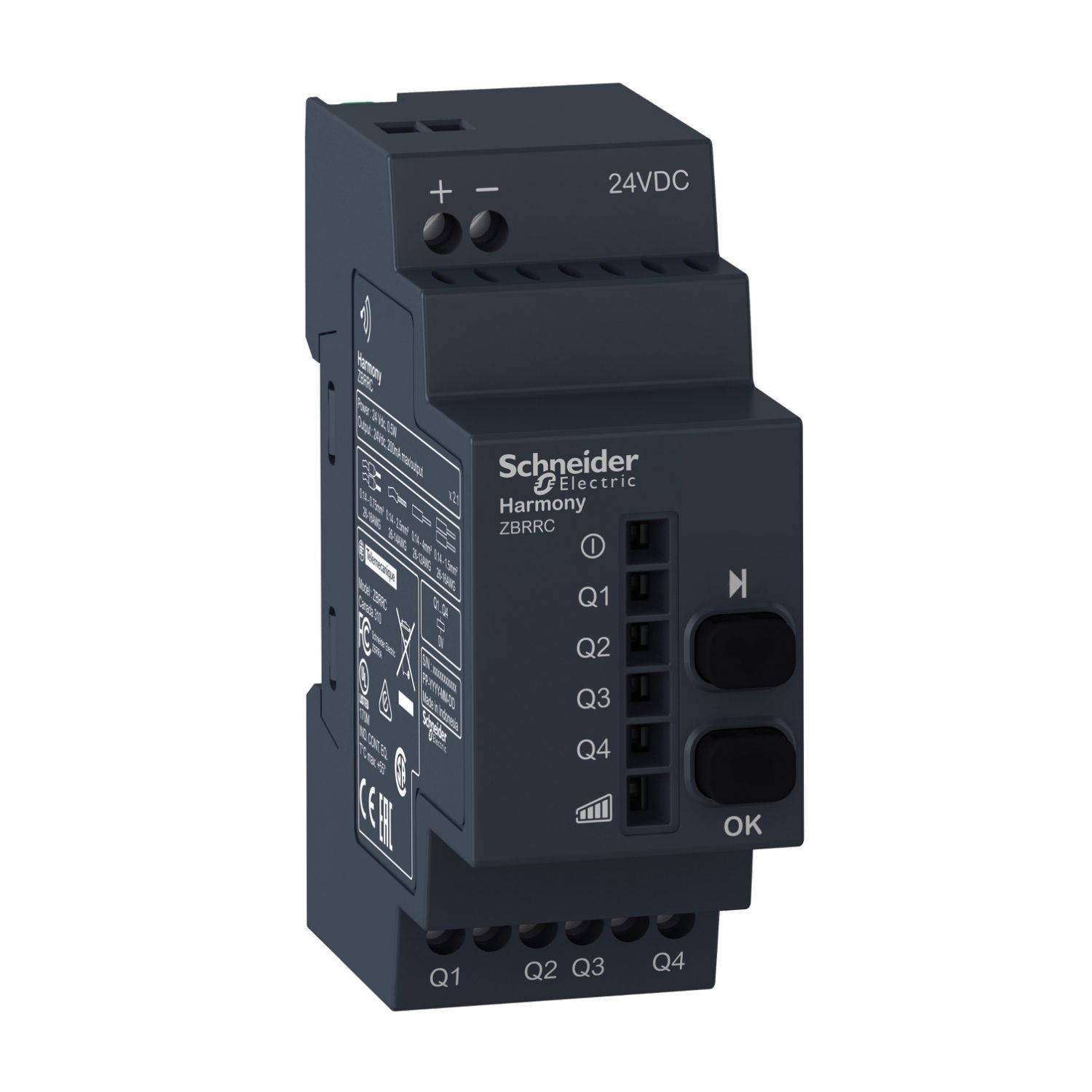

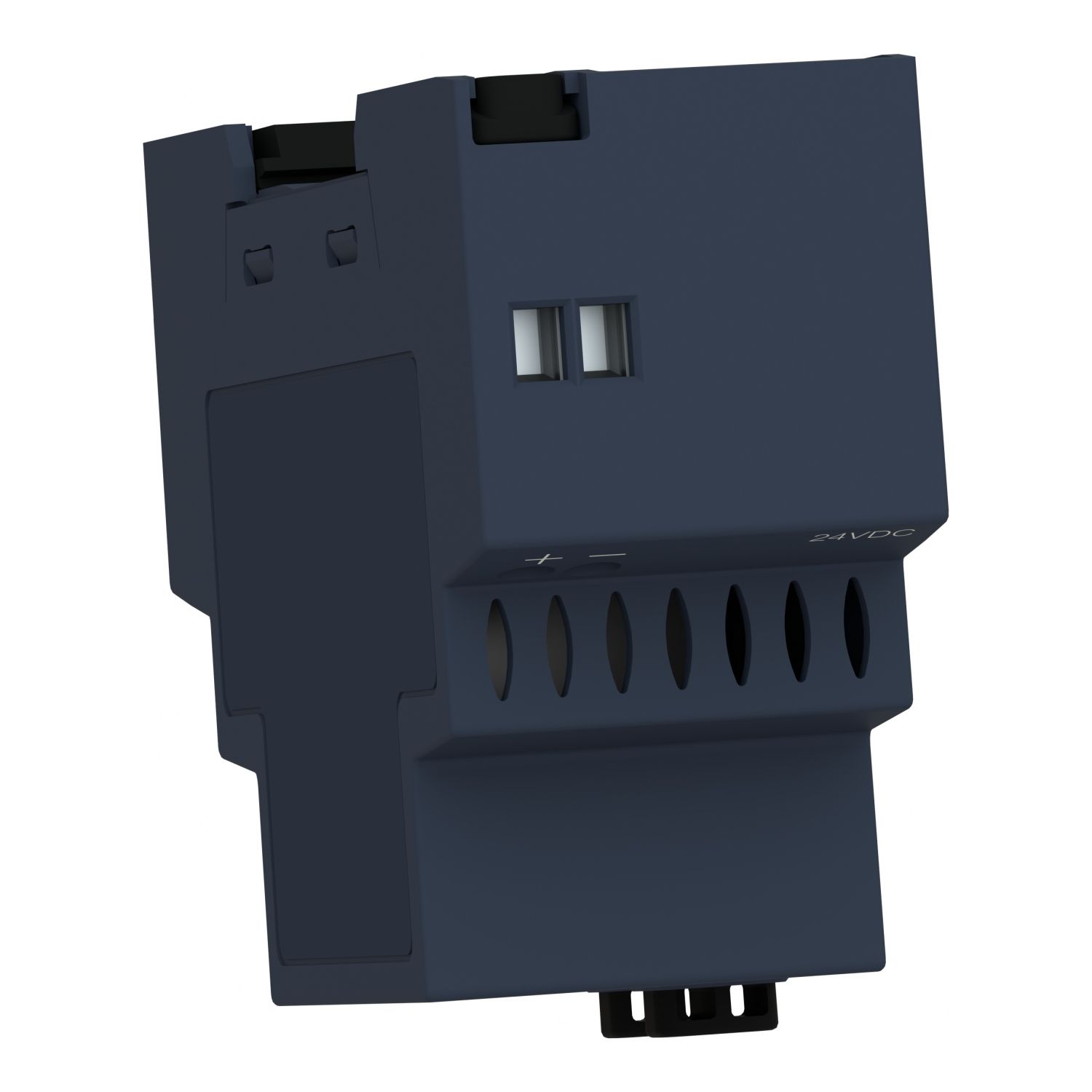

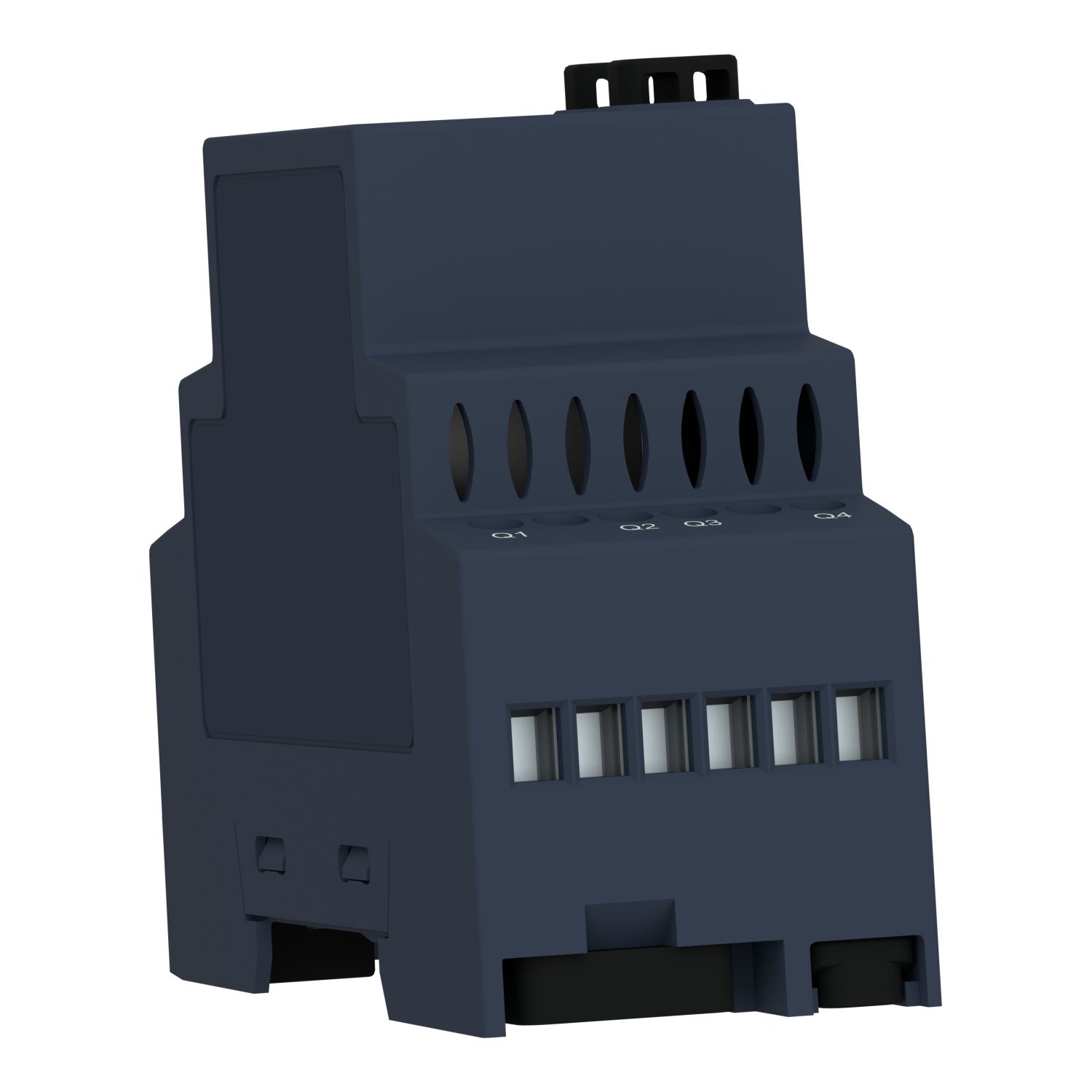

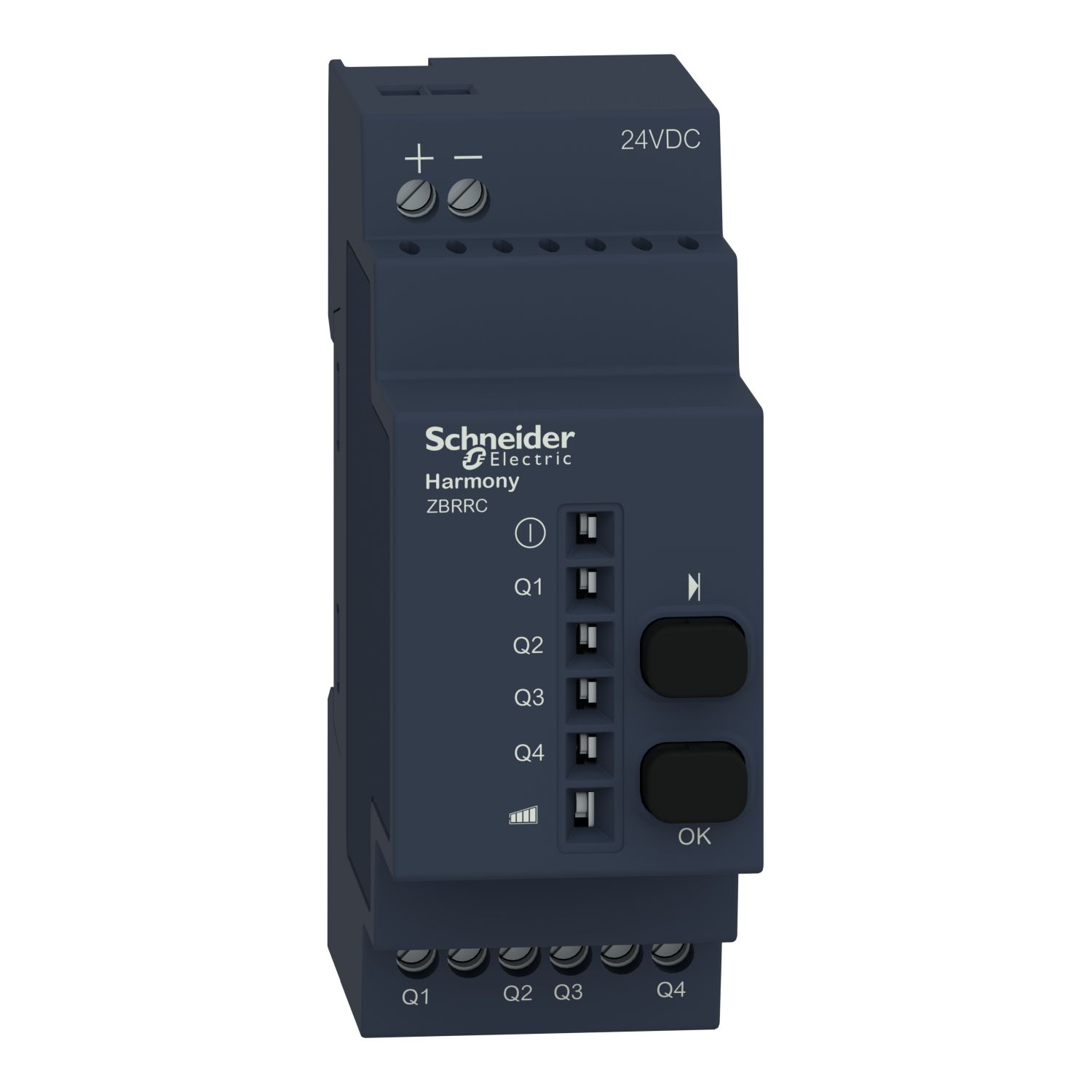

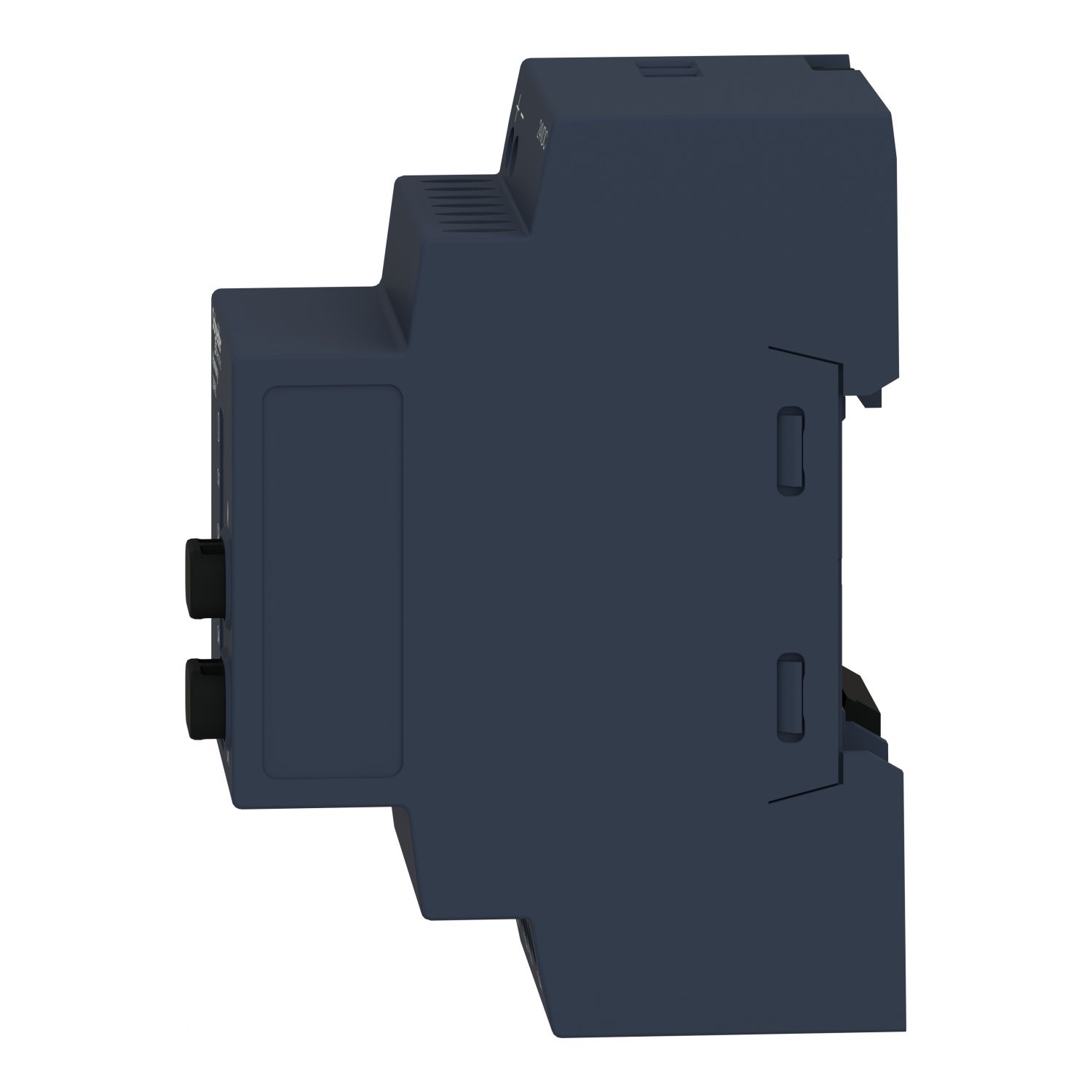

Picture of Harmony XB5R, Configurable receiver, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC
SKU:

ZBRRC

Harmony XB5R, Configurable receiver, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC

$285.48
Available for Shipping : 17-Nov-2024
Product Selector
Harmony XB5R, Configurable receiver, 4 PNP, 2 buttons, 6 indicating LEDs, monostable, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
System user guide
Catalogue
Instruction sheet
User guide
Product environmental
Declaration of conformity
Technical illustration
End of life manual
Technical illustration
Product Page Link
Product Data Sheet
This configurable receiver is part of the ranges Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It is equipped with 2 buttons (teach and parameter setting), 6 indicating LEDs (power ON, function modes, output status, signal strength). It features 4 PNP outputs, 200 mA /24 V and it can be supplied with 24V DC. It is easily combined with wireless and batteryless pushbuttons XB4R/XB5R and limit switches XCKW/XCMW. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. Its protection index is IP20. It weighs 130g and its dimensions are, 36mm wide, 108mm high, 75mm deep.

Products specifications

Attribute name Attribute value
Main
Device short name ZBRRC
Function of module monostable
Product specific application interface to PLC
Level or class 5M00G7W
Reset time 2 ms time delay
Product or component type programmable receiver
Transmission frequency 2405 MHz
Range of product Harmony
Antenna type omnidirectional
Complementary
Bandwidth 5-5 MHz
Maximum power consumption in VA 20 VA DC
Maximum power consumption in W 20 W DC
Tightening torque 0.5-1 N.m conforming to IEC 60947-1
Depth 75 mm
Output type transistor PNP
Width 36 mm
Housing material self-extinguishing plastic
Mounting support mounting plate, 35 mm symmetrical DIN rail conforming to IEC 60715
Breaking capacity 4.8 W (per output)
Number of channels 1
Max power consumption in W 1 mW
Maximum sensing distance 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field
Rated short-duration power frequency withstand voltage 1 kV 50 Hz conforming to IEC 60947-5-1
Minimum switching current 10 mA at 5 V DC
Surge withstand 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Time delay range 0.5 s (tolerance: - 15...15 %)
Net weight 0.13 kg
Utilisation category DC-13 conforming to IEC 60947-5-1
Antenna gain 0 dBi
Operating position any position without derating
Response time < 30 ms after transmitter clicks
Maximum voltage drop <2 V DC at 2 A
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Output contacts 4 PNP
Status LED 4 LEDs green for relay ON, 1 LED green and yellow for reception signal, 1 LED green for power ON
[Uimp] rated impulse withstand voltage 0.8 kV
Modulation Technique O-QPSK
Short-circuit protection 0.4 A fuse type fast blow
Maximum switching current 0.2 mA DC
Height 108 mm
[Us] rated supply voltage 24 V DC - 15...20 %, 24 V
Electrical connection 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1, 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1
Environment
[Ui] rated insulation voltage 60 V conforming to IEC 60664-1
Radio agreement ICASA, FCC, ARIB T66, ANATEL, SRRC, RSS
Relative humidity 90-90 % at -20-55 °C, without condensation conforming to ETSI EN 300 440-1
Overvoltage category III conforming to IEC 60664-1
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 (terminals), IP20 (casing) conforming to IEC 60529
Insulation resistance > 500 MOhm at 500 V DC conforming to NF C 20-030
Vibration resistance 2 gn (f= 8-150 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6
Marking CE
Shock resistance 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27
Electromagnetic compatibility immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11, 1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-4, radiated emission conforming to ETSI EN 300 440-2, conducted emission conforming to ETSI EN 300 489-3, conducted emission conforming to EN 300-489-1, radiated emission conforming to ETSI EN 300 440-1, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, conducted and radiated emissions class B conforming to CISPR 22, immunity for industrial environments conforming to IEC 61000-6-2
Standards IEC 60947-5-1
Product certifications UL, C-Tick, GOST, CSA, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.6 cm
Package 1 Width 7.9 cm
Package 1 Length 9.6 cm
Package 1 Weight 122.0 g
Unit Type of Package 2 2
Number of Units in Package 2 64
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.498 kg
