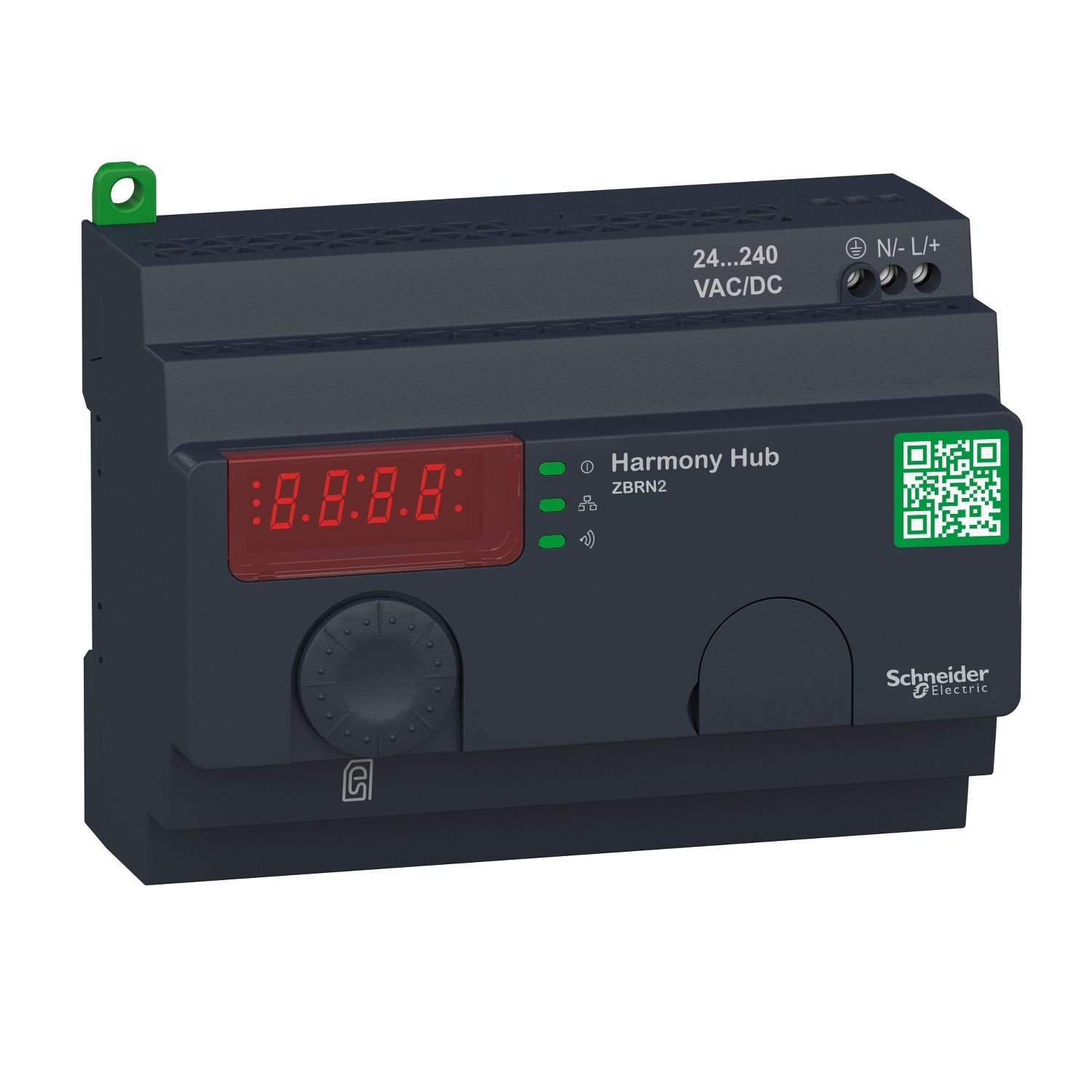

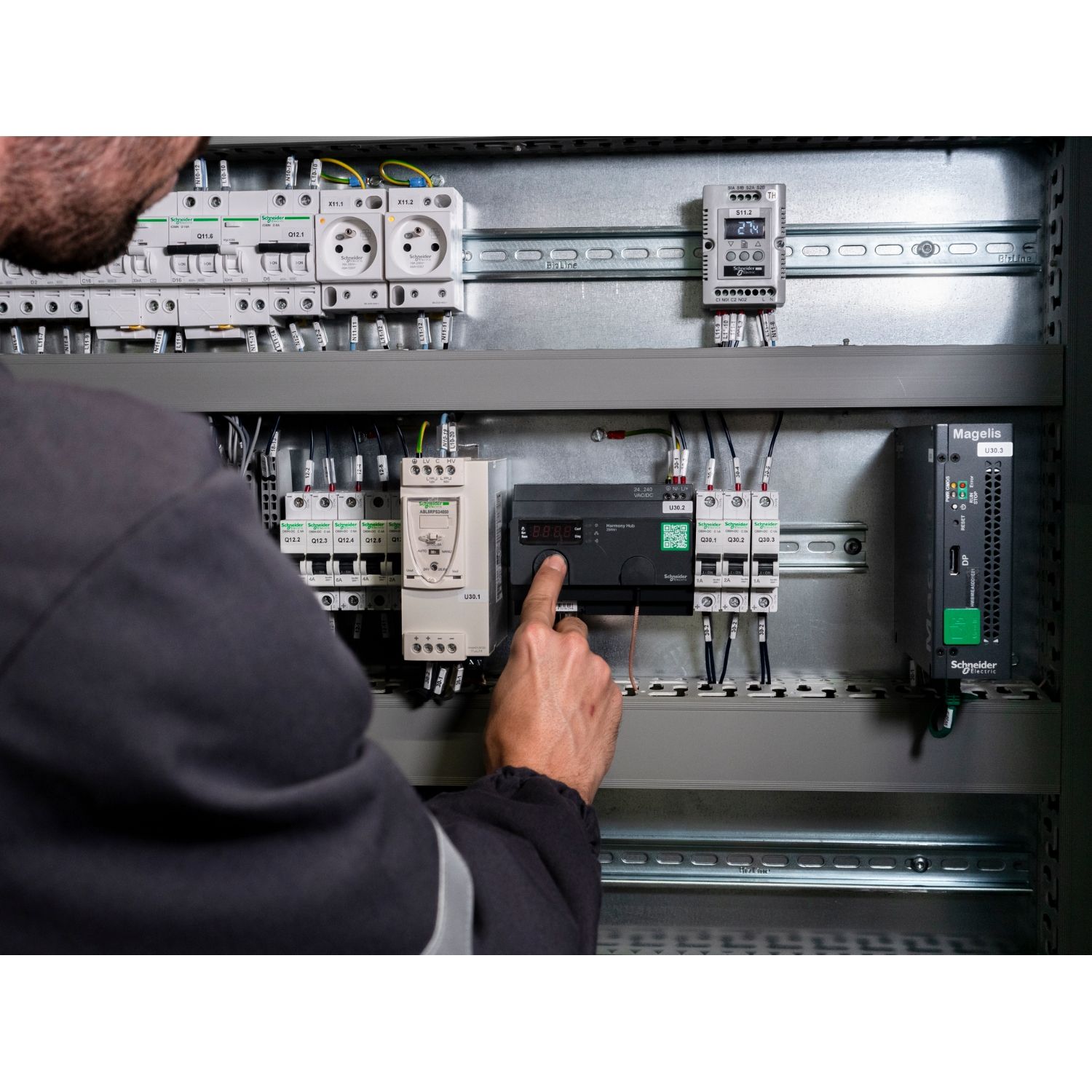

Picture of Harmony XB5R, Harmony Hub wireless serial line gateway, Zigbee green power gateway, wireless to modbus, 24...240V AC DC
SKU:

ZBRN2

Harmony XB5R, Harmony Hub wireless serial line gateway, Zigbee green power gateway, wireless to modbus, 24...240V AC DC

$712.64
Available for Shipping : 05-Jan-2025
Product Selector
Harmony XB5R, Harmony Hub wireless serial line gateway, Zigbee green power gateway, wireless to modbus, 24...240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Technical illustration
Declaration of conformity
User guide
Technical illustration
Catalogue
Instruction sheet
Product environmental
Brochure
Product Page Link
Product Data Sheet
This harmony hub wireless/serial line gateway provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant and vibration resistant thanks to its IP20, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications (IP65)

Products specifications

Attribute name Attribute value
Main
Transmission frequency 2405-2480 MHz
Device short name ZBRN2
Function of module Zigbee green power concentrator
Product specific application Wireless Schneider Electric devices ecosystem
Communication port protocol Modbus client application
Product or component type Harmony Hub wireless/Serial Line gateway
Range of product Harmony
Antenna type integrated
Complementary
Data storage equipment SD card
Parity odd, even, no
Maximum power consumption in W 4 W AC/DC
Tightening torque 3.09-3.54 lbf.in conforming to EN/IEC 60947-1, 0.35-0.4 N.m conforming to EN/IEC 60947-1
Depth 60 mm
Width 122 mm
Control circuit frequency 50...60 Hz +/- 10 %
Breaking capacity 750 VA, 15 W
Housing material self-extinguishing plastic
Mounting support mounting plate, 35 mm symmetrical DIN rail conforming to EN/IEC 60715
Maximum sensing distance 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure, 60 m if an external antenna is connected to Harmony Hub, 250 m if a relay antenna is located between the transmitter and Harmony Hub, 100 m in free field
Rated short-duration power frequency withstand voltage 1.5 kV 50 Hz conforming to EN/IEC 60947-5-1
Surge withstand 2 kV common mode conforming to IEC 61000-4-5, 1 kV differential mode conforming to IEC 61000-4-5
Topology devices linked by daisy-chaining or tap junctions
Net weight 0.27 kg
Antenna gain 0 dBi
Operating position any position
Data format 7 or 8 bits, 1 or 2 stop bits
Response time < 30 ms
Immunity to microbreaks 10 ms
Channels utilisation <= 60 devices
Status LED 1 LED green and yellow for reception signal, 5 LEDs red for function mode, 1 LED yellow for communication network, 1 LED green for power ON
Integrated connection type 1 isolated serial link 2 x RJ45 in parallel Modbus Serial line slave Modbus slave RTU asynchronous in baseband RS485, half duplex, 1.2...115.2 kbauds, 2 twisted shielded pairs
[Uimp] rated impulse withstand voltage 4 kV
Short-circuit protection 16 A GB2 circuit breaker
Height 90 mm
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz - 10...10 %
Electrical connection 2 conductors cable 0.2-2.5 mm² - AWG 24...AWG 18 - flexible - with cable end conforming to IEC 60947-1, 1 conductor cable 0.2-0.75 mm² - AWG 24...AWG 14 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.2-1.5 mm² - AWG 24...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.2-4 mm² - AWG 24...AWG 12 - solid - without cable end conforming to IEC 60947-1
Environment
Dielectric strength 2150 V between input and ground DC, 1500 V between input and ground AC, 4250 V between input and output DC, 3000 V between input and output AC
Operating altitude 0...2000 m
Radio agreement SRRC, RSS, category 1 conforming to ETSI EN 300 440-1, ICASA, FCC, category 2 conforming to ETSI EN 300 440-1, ANATEL, type III conforming to ETSI EN 301 489-3
Relative humidity 90-90 % at -25-55 °C, without condensation conforming to ETSI EN 300 440-1
Ambient air temperature for storage -40-70 °C
Directives 1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 (terminals), IP20 (casing) conforming to IEC 60529
Vibration resistance 2 gn (f = 8-150 Hz) on DIN rail conforming to IEC 60068-2-6, 1 gn (f = 5-150 Hz) on panel mounting conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-14 Hz) conforming to IEC 60068-2-6
Shock resistance 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27
Electromagnetic compatibility immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5
Storage altitude 0-3000 m
Standards UL 508, EN/IEC 60950-1, ETSI EN 300 328, ETSI EN 300 440-2, EN/IEC 61131-2, EN 62311, CSA C22.2 No 14
Product certifications CCC, CSA, C-Tick, UL, CE, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.3 cm
Package 1 Width 9.6 cm
Package 1 Length 13 cm
Package 1 Weight 308 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.519 kg
