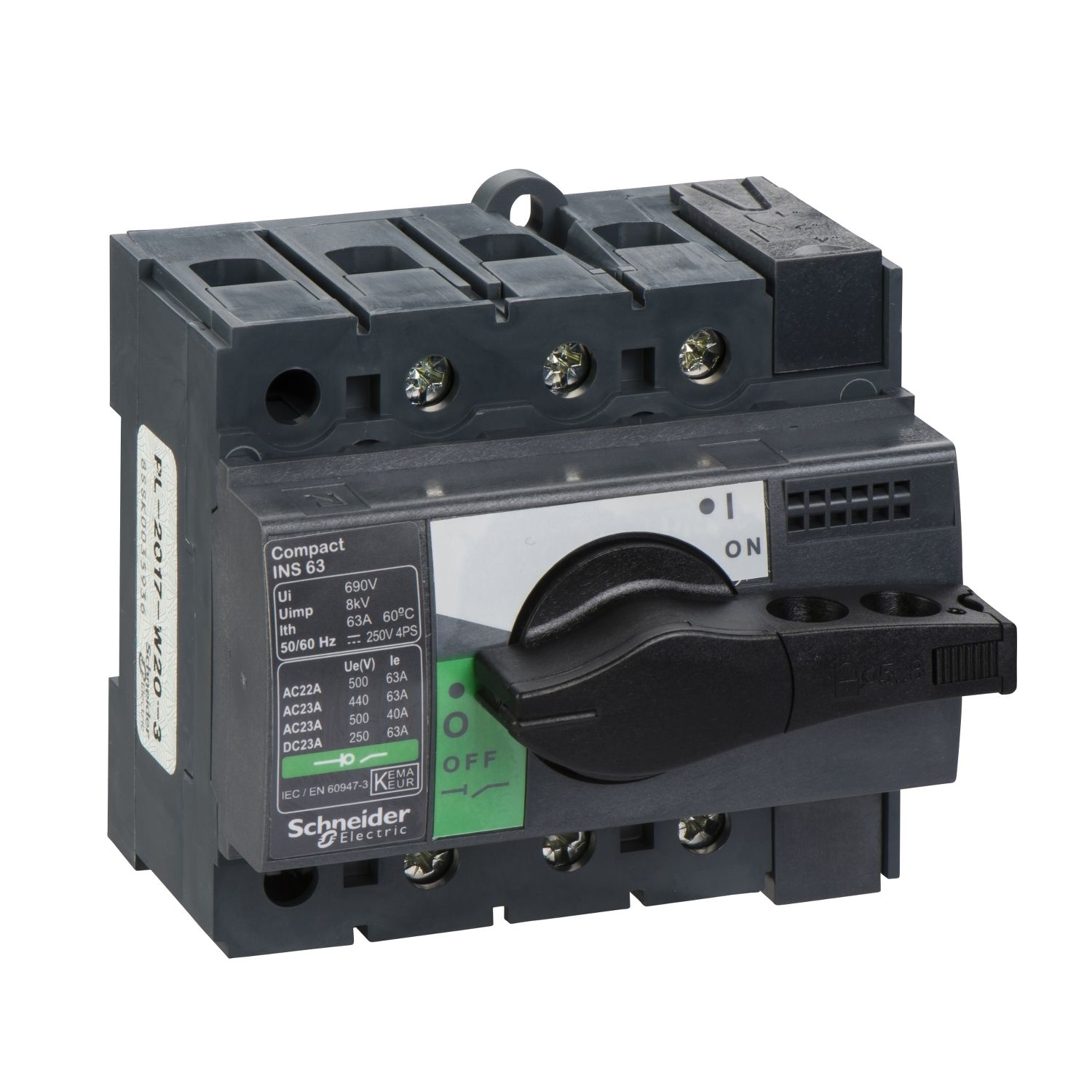

ComPact, Switch disconnector, Compact INS63 , 63 A, standard version with black rotary handle, 3 poles

$214.74
Product Selector
ComPact, Switch disconnector, Compact INS63 , 63 A, standard version with black rotary handle, 3 poles
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
End of life manual
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This Compact INS63 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 63A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS63 is a class II insulation level front-face device as per IEC 60664 standard.

Products specifications

Attribute nameAttribute value
Main
Device short nameCompact INS63
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational currentDC-23A: 63 A DC 125 V 2 poles in series, DC-22A: 63 A DC 50/60 Hz 125 V 2 poles in series, AC-23A: 63 A AC 50/60 Hz 440/480 V, AC-23A: 63 A AC 50/60 Hz 380/415 V, AC-23A: 63 A AC 50/60 Hz 220/240 V, AC-23A: 40 A AC 50/60 Hz 500 V, AC-22A: 63 A AC 50/60 Hz 500 V, AC-22A: 63 A AC 50/60 Hz 440/480 V, AC-22A: 63 A AC 50/60 Hz 380/415 V 2 poles in series, AC-22A: 63 A AC 50/60 Hz 220/240 V
Suitability for isolationyes
Pollution degree3
Switch-disconnector nameCompact INS63
RangeComPacT
[Ith] conventional free air thermal current63 A at 60 °C
Range of productINS40...160
Poles description3P
[Ui] rated insulation voltage690 V AC 50/60 Hz
[Icm] rated short-circuit making capacity75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz, 15 kA switch-disconnector alone 500 V AC at 50/60 Hz
Product nameComPacT INS
Product or component typeswitch disconnector
Visible breakno
Network typeAC, DC
Contact position indicatoryes
[Ue] rated operational voltage500 V AC 50/60 Hz, 125 V DC
Network frequency50/60 Hz
Complementary
Rated dutyuninterrupted
[Icw] rated short-time withstand current5.5 kA during 30 s conforming to IEC 60947-3, 3 kA during 1 s conforming to IEC 60947-3, 1.73 kA during 3 s conforming to IEC 60947-3, 0.067 kA during 20 s conforming to IEC 60947-3
Compatibility codeINS63
Cable cross section1.5-50 mm²
Electrical durabilityDC-23A: 1500 cycles 250 V DC 2 poles in series, DC-22A: 1500 cycles 250 V DC 50/60 Hz 2 poles in series, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 220/240 V AC 50/60 Hz
Mounting modefixed
Upside connectionfront
Control typerotary handle
Downside connectionfront
Connection pitch18 mm
Intermittent duty classclass 120 - 60 %
Height85 mm
Maximum powerAC-23: 30 kW at 440 V AC 50/60 Hz, AC-23: 30 kW at 380/415 V AC 50/60 Hz, AC-23: 22 kW at 500/525 V AC 50/60 Hz, AC-23: 15 kW at 220/240 V AC 50/60 Hz
Depth62.5 mm
Width90 mm
Enclosure dimensions for Ithe190 mm x 115 mm x 55 mm
Mechanical durability20000 cycles
Net weight0.5 kg
Handle colourblack
Mounting supportDIN rail, plate
Environment
Ambient air temperature for storage-50-85 °C
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to EN 50102
StandardsIEC 60947-3, IEC 60947-1
Product certificationsKEMA-KEUR, CCC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.400 cm
Package 1 Width10.200 cm
Package 1 Length10.200 cm
Package 1 Weight604.000 g
Unit Type of Package 22
Number of Units in Package 218
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight11.359 kg
Unit Type of Package 33
Number of Units in Package 3144
Package 3 Height50.000 cm
Package 3 Width80.000 cm
Package 3 Length120.000 cm
Package 3 Weight102.872 kg
