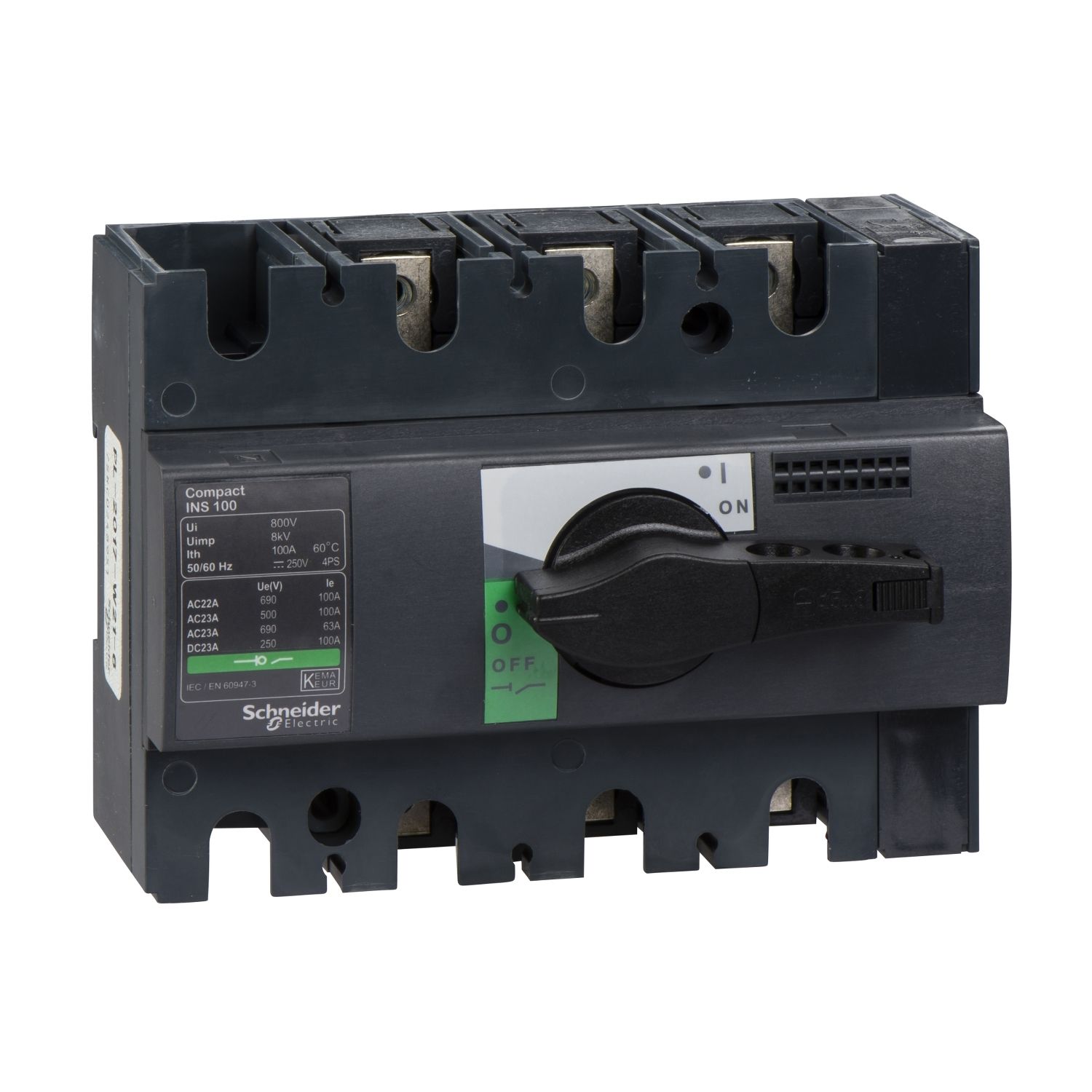

Picture of ComPact, Switch disconnector, Compact INS100 , 100 A, standard version with black rotary handle, 3 poles
SKU:

28908

ComPact, Switch disconnector, Compact INS100 , 100 A, standard version with black rotary handle, 3 poles

$378.67
Available for Shipping : 24-Nov-2024
Product Selector
ComPact, Switch disconnector, Compact INS100 , 100 A, standard version with black rotary handle, 3 poles
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Catalogue
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Compact INS100 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 100A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS100 is a class II insulation level front-face device as per IEC 60664 standard.

Products specifications

Attribute name Attribute value
Main
Device short name Compact INS100
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current DC-23A: 100 A DC 50/60 Hz 125 V 2 poles in series, DC-22A: 100 A DC 50/60 Hz 125 V 2 poles in series, AC-23A: 63 A AC 50/60 Hz 660/690 V, AC-23A: 100 A AC 50/60 Hz 500 V, AC-23A: 100 A AC 50/60 Hz 440/480 V, AC-23A: 100 A AC 50/60 Hz 380/415 V, AC-23A: 100 A AC 50/60 Hz 220/240 V, AC-22A: 100 A AC 50/60 Hz 660/690 V, AC-22A: 100 A AC 50/60 Hz 500 V 2 poles in series, AC-22A: 100 A AC 50/60 Hz 440/480 V 2 poles in series, AC-22A: 100 A AC 50/60 Hz 380/415 V, AC-22A: 100 A AC 50/60 Hz 220/240 V
Suitability for isolation yes
Pollution degree 3
Switch-disconnector name Compact INS100
Range ComPacT
[Ith] conventional free air thermal current 100 A at 60 °C
Range of product INS40...160
Poles description 3P
[Ui] rated insulation voltage 750 V AC 50/60 Hz
[Icm] rated short-circuit making capacity 20 kA switch-disconnector alone 690 V AC at 50/60 Hz, 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
Product name ComPacT INS
Product or component type switch disconnector
Visible break no
Network type DC, AC
Contact position indicator yes
[Ue] rated operational voltage 690 V AC 50/60 Hz, 125 V DC
Network frequency 50/60 Hz
Complementary
Rated duty uninterrupted
[Icw] rated short-time withstand current 5.5 kA during 1 s conforming to IEC 60947-3, 3.175 kA during 3 s conforming to IEC 60947-3, 1.23 kA during 20 s conforming to IEC 60947-3, 0.01 kA during 30 s conforming to IEC 60947-3
Compatibility code INS100
Electrical durability AC-23A: 1500 cycles 690 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 690 V AC 50/60 Hz, DC-23A: 1500 cycles 250 V DC 50/60 Hz 2 poles in series, DC-22A: 1500 cycles 250 V DC 50/60 Hz 2 poles in series, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 220/240 V AC 50/60 Hz
Mounting mode fixed
Upside connection front
Control type rotary handle
Downside connection front
Connection pitch 30 mm
Intermittent duty class class 120 - 60 %
Height 100 mm
Maximum power AC-23: 55 kW at 660/690 V AC 50/60 Hz, AC-23: 55 kW at 500/525 V AC 50/60 Hz, AC-23: 55 kW at 440 V AC 50/60 Hz, AC-23: 45 kW at 380/415 V AC 50/60 Hz, AC-23: 22 kW at 220/240 V AC 50/60 Hz
Depth 62.5 mm
Width 135 mm
Enclosure dimensions for Ithe 260 mm x 160 mm x 55 mm
Mechanical durability 15000 cycles
Net weight 0.8 kg
Handle colour black
Mounting support DIN rail, plate
Environment
Ambient air temperature for storage -50-85 °C
IP degree of protection IP40 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK07 conforming to EN 50102
Standards IEC 60947-1, IEC 60947-3
Product certifications KEMA-KEUR, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.400 cm
Package 1 Width 11.500 cm
Package 1 Length 15.400 cm
Package 1 Weight 1.024 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.572 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 44.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 99.000 kg
