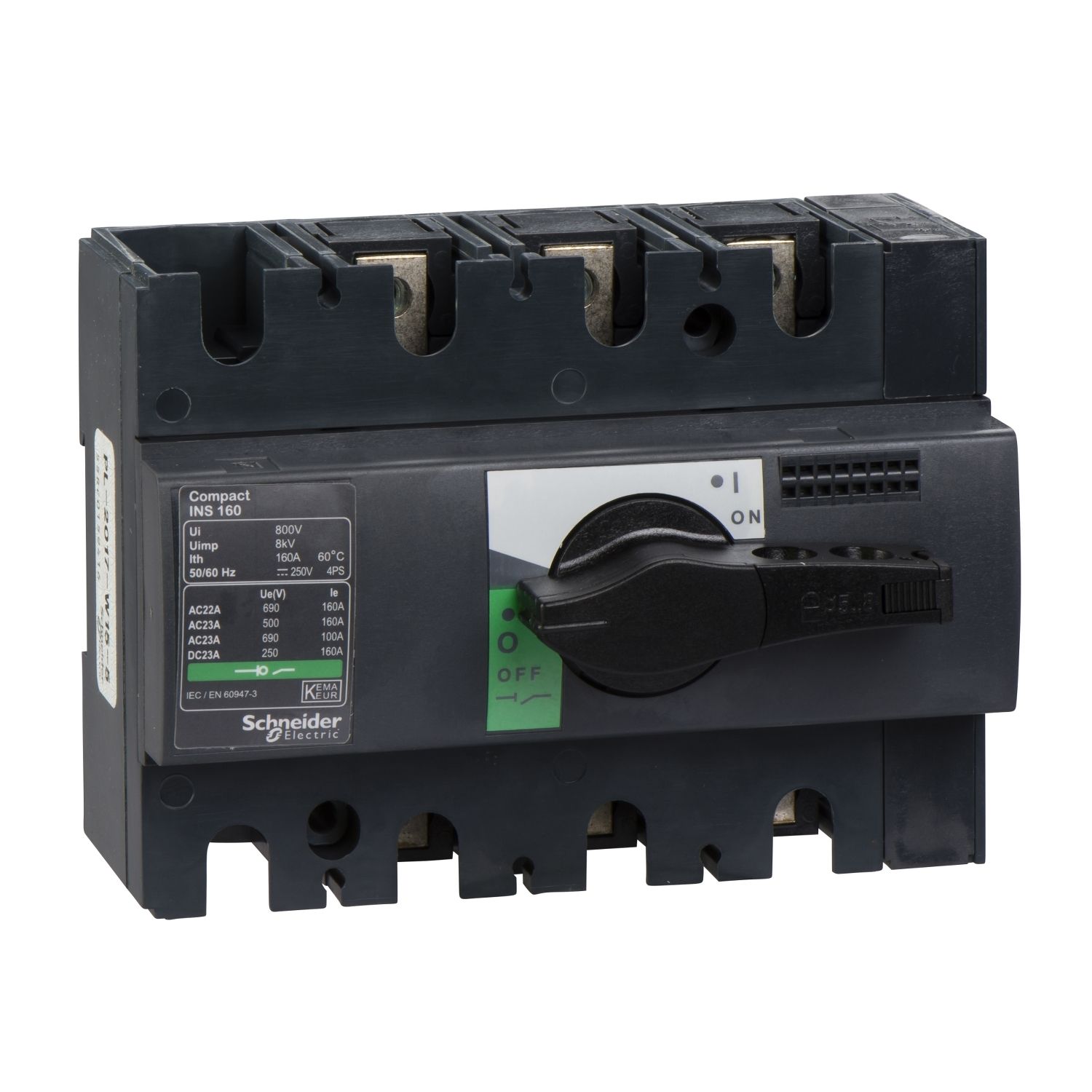

Picture of Interpact INS/INV, Compact Interpact Switch Disconnector INS160, 3 Poles, 160A
SKU:

28912

Interpact INS/INV, Compact Interpact Switch Disconnector INS160, 3 Poles, 160A

$587.88
Product Selector
Interpact INS/INV, Compact Interpact Switch Disconnector INS160, 3 Poles, 160A
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
End of life manual
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This Compact INS160 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 160A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS160 is a class II insulation level front-face device as per IEC 60664 standard.

Products specifications

Attribute nameAttribute value
Main
Device short nameCompact INS160
[Uimp] rated impulse withstand voltage8 kV
[Ie] rated operational currentDC-23A: 160 A DC 50/60 Hz 125 V 2 poles in series, DC-22A: 160 A DC 50/60 Hz 125 V 2 poles in series, AC-23A: 160 A AC 50/60 Hz 500 V, AC-23A: 160 A AC 50/60 Hz 440/480 V, AC-23A: 160 A AC 50/60 Hz 380/415 V, AC-23A: 160 A AC 50/60 Hz 220/240 V, AC-23A: 100 A AC 50/60 Hz 660/690 V, AC-22A: 160 A AC 50/60 Hz 660/690 V, AC-22A: 160 A AC 50/60 Hz 500 V 2 poles in series, DC-22A: 160 A DC 125 V 2 poles in series, AC-22A: 160 A AC 50/60 Hz 440/480 V, AC-22A: 160 A AC 50/60 Hz 380/415 V, AC-22A: 160 A AC 50/60 Hz 220/240 V
Suitability for isolationyes
Pollution degree3
Switch-disconnector nameCompact INS160
RangeComPacT
[Ith] conventional free air thermal current160 A at 60 °C
Range of productINS40...160
Poles description3P
[Ui] rated insulation voltage750 V AC 50/60 Hz
[Icm] rated short-circuit making capacity20 kA switch-disconnector alone 690 V AC at 50/60 Hz, 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
Product nameComPacT INS
Product or component typeswitch disconnector
Visible breakno
Network typeAC, DC
Contact position indicatoryes
[Ue] rated operational voltage690 V AC 50/60 Hz, 125 V DC
Network frequency50/60 Hz
Complementary
Rated dutyuninterrupted
[Icw] rated short-time withstand current5.5 kA during 1 s conforming to IEC 60947-3, 3.175 kA during 3 s conforming to IEC 60947-3, 1.23 kA during 20 s conforming to IEC 60947-3, 0.01 kA during 30 s conforming to IEC 60947-3
Compatibility codeINS160
Electrical durabilityAC-23A: 1500 cycles 690 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 690 V AC 50/60 Hz, DC-23A: 1500 cycles 125 V DC 50/60 Hz 2 poles in series, DC-22A: 1500 cycles 125 V DC 50/60 Hz 2 poles in series, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 220/240 V AC 50/60 Hz
Mounting modefixed
Upside connectionfront
Control typerotary handle
Downside connectionfront
Connection pitch30 mm
Intermittent duty classclass 120 - 60 %
Height100 mm
Maximum powerAC-23: 90 kW at 660/690 V AC 50/60 Hz, AC-23: 90 kW at 440 V AC 50/60 Hz, AC-23: 75 kW at 380/415 V AC 50/60 Hz, AC-23: 45 kW at 220/240 V AC 50/60 Hz, AC-23: 110 kW at 500/525 V AC 50/60 Hz
Depth62.5 mm
Width135 mm
Enclosure dimensions for Ithe260 mm x 160 mm x 55 mm
Mechanical durability15000 cycles
Net weight0.8 kg
Handle colourblack
Mounting supportDIN rail, plate
Environment
Ambient air temperature for storage-50-85 °C
IP degree of protectionIP40 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
IK degree of protectionIK07 conforming to EN 50102
StandardsIEC 60947-1, IEC 60947-3
Product certificationsKEMA-KEUR, CCC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height13.500 cm
Package 1 Width11.500 cm
Package 1 Length15.500 cm
Package 1 Weight1.032 kg
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight10.676 kg
Unit Type of Package 33
Number of Units in Package 380
Package 3 Height43.000 cm
Package 3 Width80.000 cm
Package 3 Length120.000 cm
Package 3 Weight97.000 kg

Related products

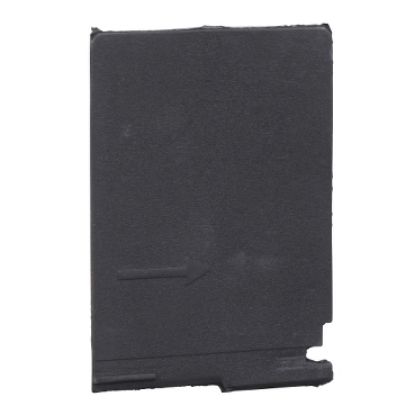

Picture of phase separators, Compact INS100 to 160, fixed mounting
