Picture of Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return
Picture of Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return
Picture of Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return
Picture of Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return
Picture of Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return
Picture of Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return
SKU:

9001SKR1U

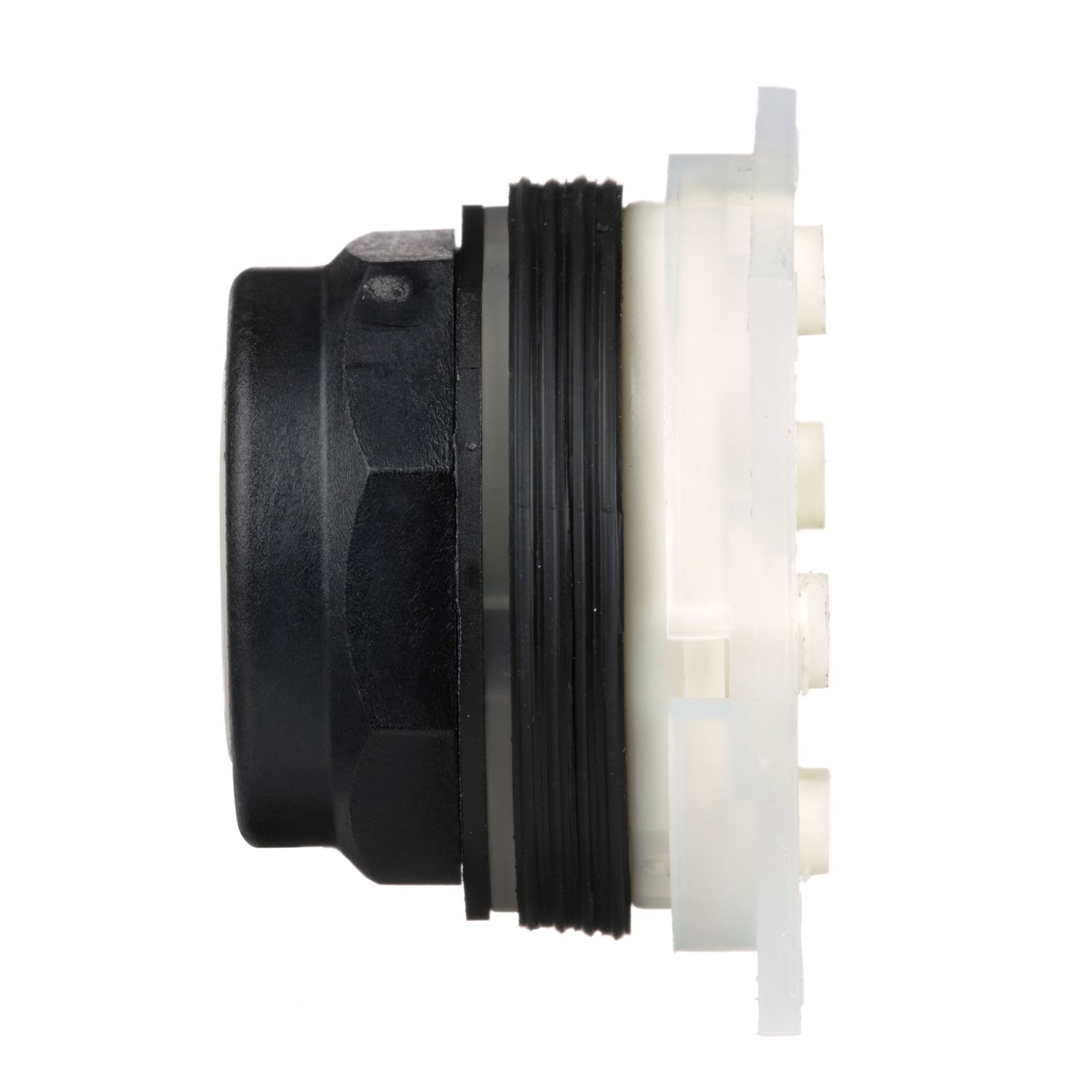

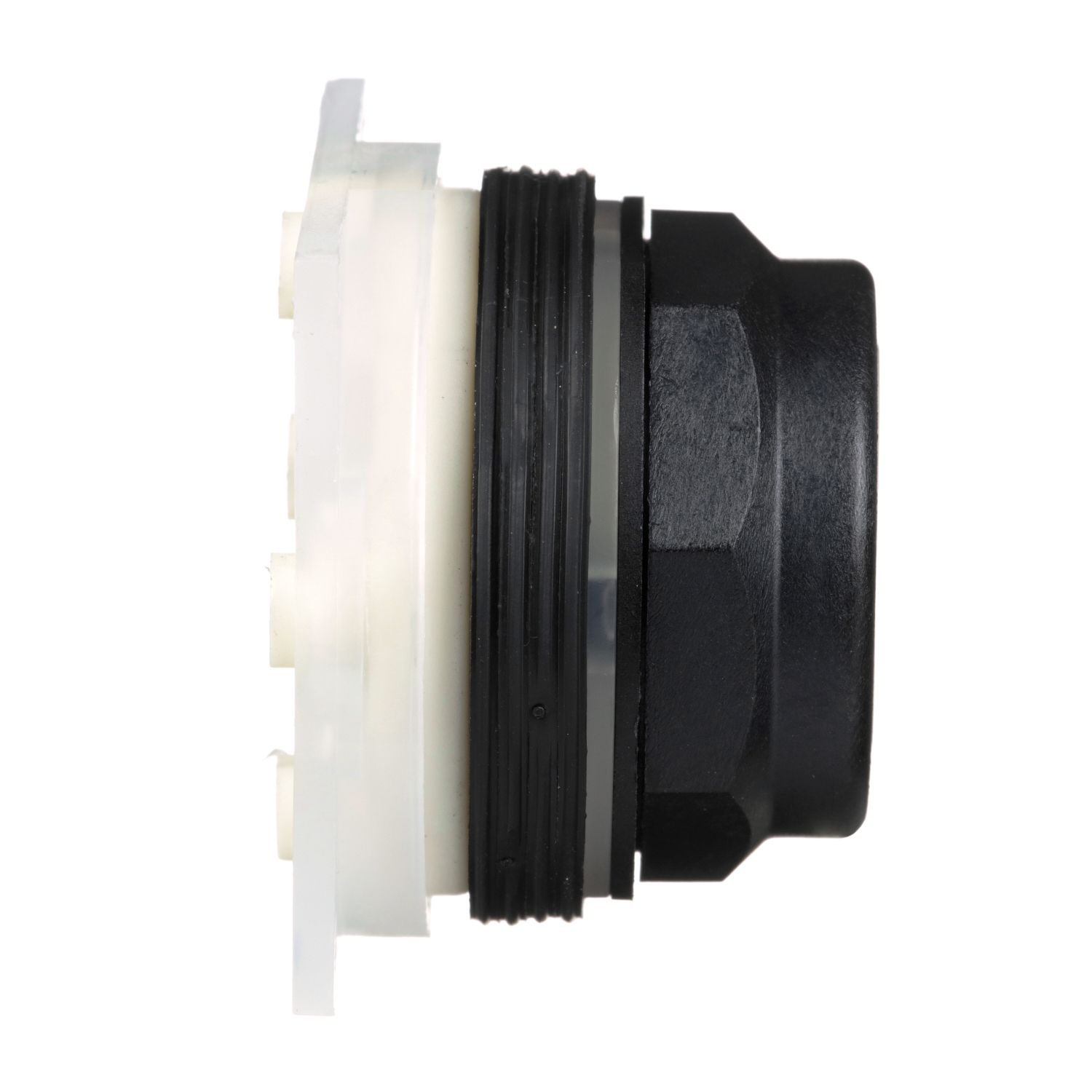

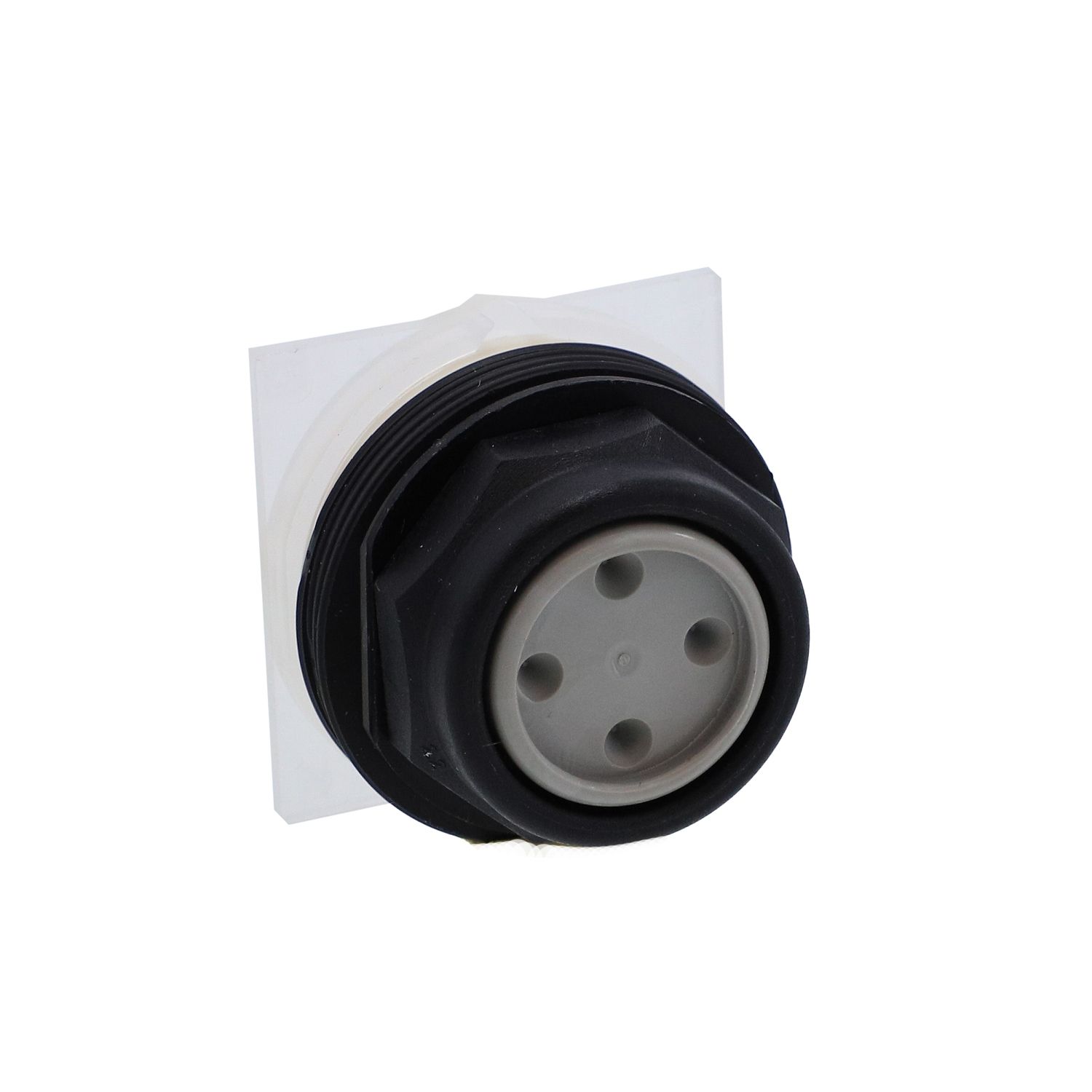

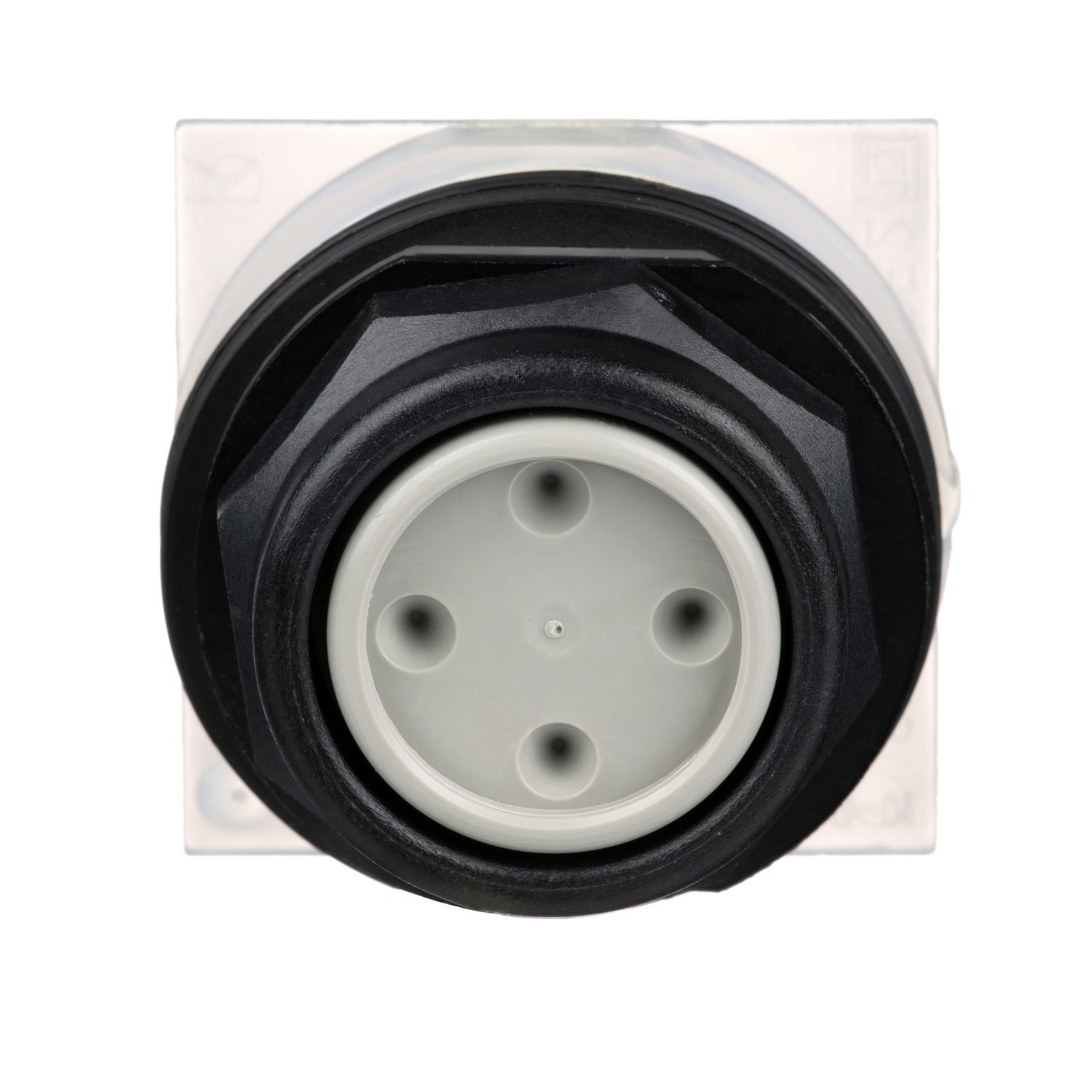

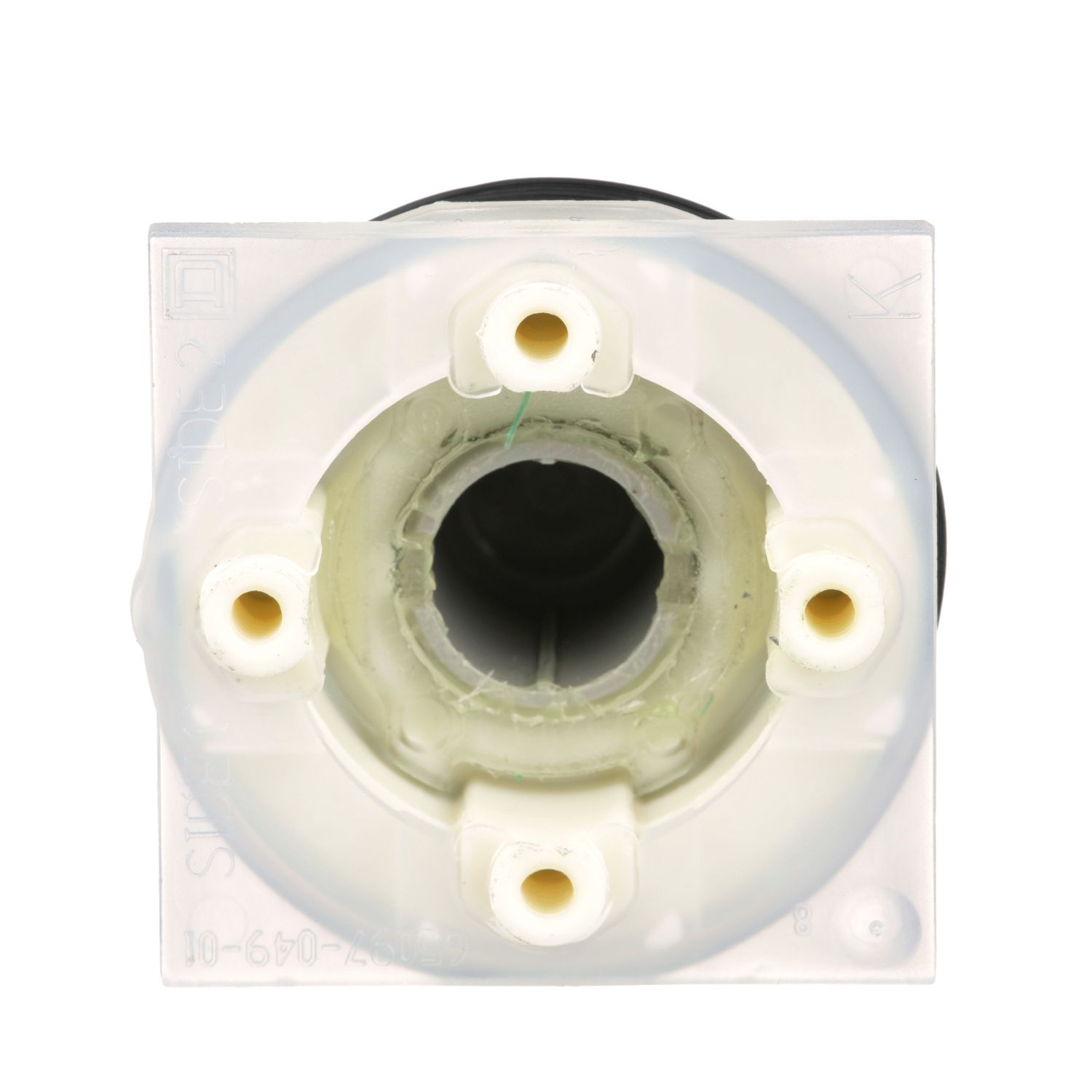

Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return

$53.77
Product Selector
Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Image of product
Instruction sheet
Image of product
Catalogue
Image of product
CAD
Declaration of conformity
Product environmental
Image of product
Product Page Link
Product Data Sheet
This Harmony 9001SK, modular flush push button with full guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Products specifications

Attribute nameAttribute value
Main
Device short name9001SK
Operator profileflush, unmarked
Product or component typehead for push-button
Range of productHarmony 9001SK
Operator additional informationplastic guard
Complementary
Type of operatorspring return
Compatibility code9001SK
Bezel materialplastic
Contacts type and compositionwithout contact block
Net weight0.05 kg
Cap/operator or lens colour7 colours choice
Shape of signaling unit headround
Operator profileflush
Mounting diameter30 mm
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height7.112 cm
Package 1 Width5.08 cm
Package 1 Length5.588 cm
Package 1 Weight49.895 g
Unit Type of Package 22
Number of Units in Package 24000
Package 2 Height101.6 cm
Package 2 Width101.6 cm
Package 2 Length121.92 cm
Package 2 Weight217.724 kg

Related products

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

9001KA1
$64.00
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

9001KA3
$46.01
View Detail
Picture of Padlocking device, Harmony 9001K, Harmony 9001SK, 30mm, for illuminated push button

Padlocking device, Harmony 9001K, Harmony 9001SK, 30mm, for illuminated push button

9001K62
$95.98
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

9001KA2
$46.01
View Detail

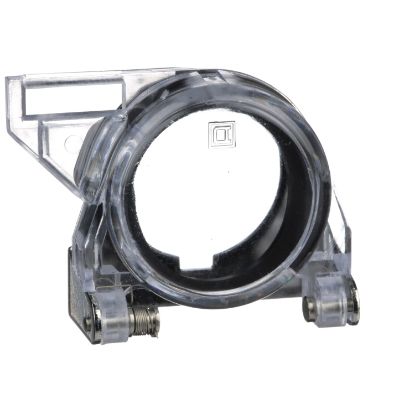

Cover, Harmony 9001K, Harmony 9001SK, 30 mm, for push button
