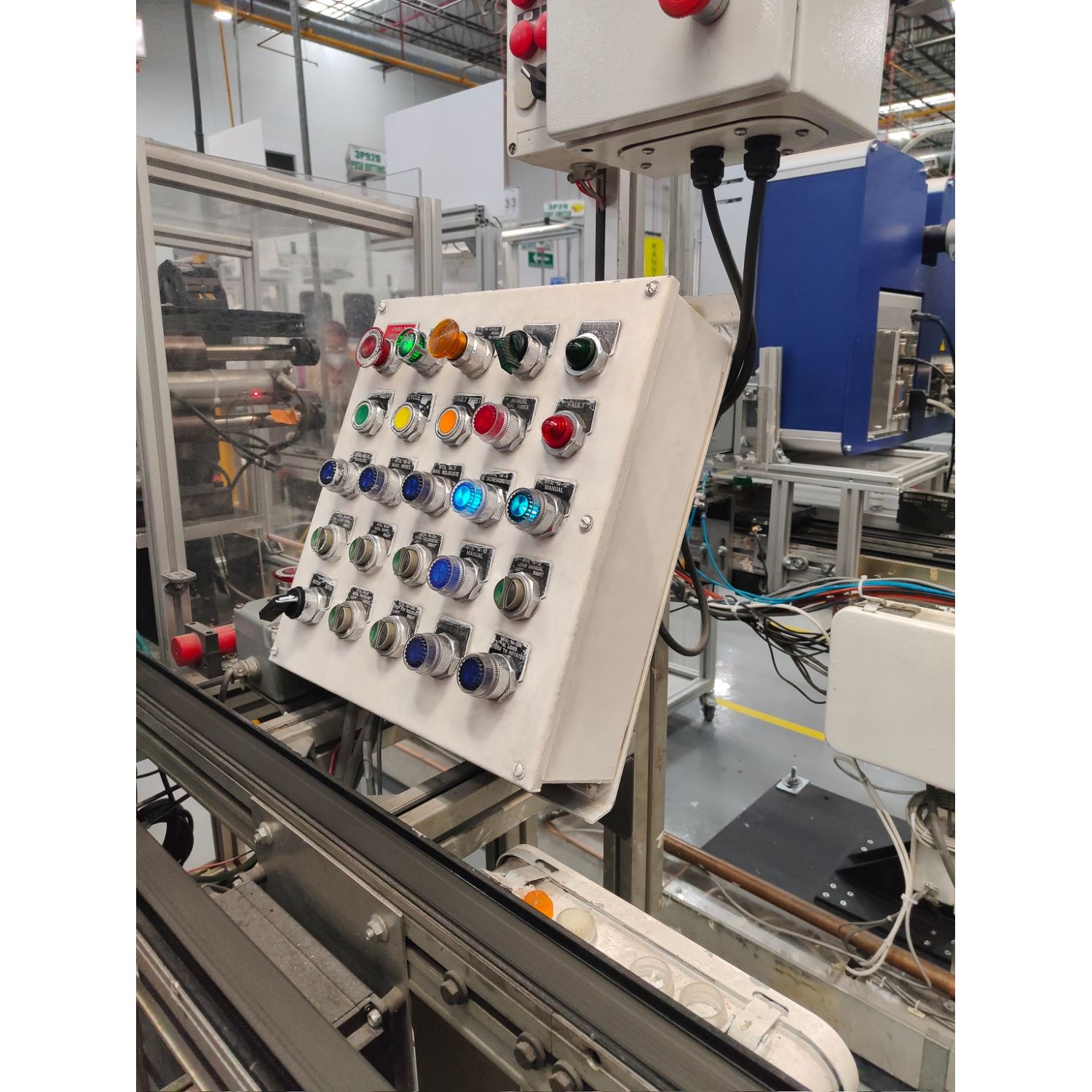

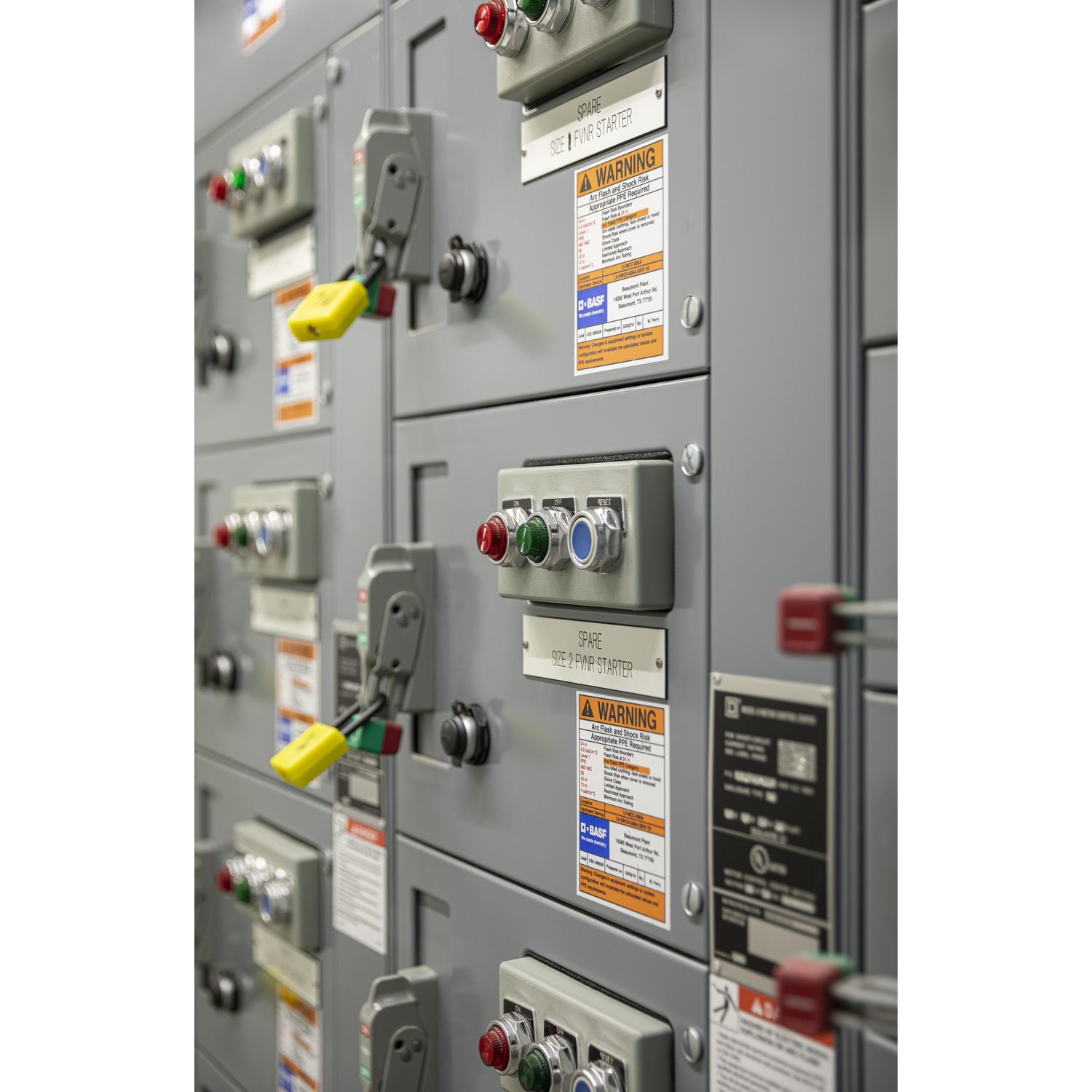

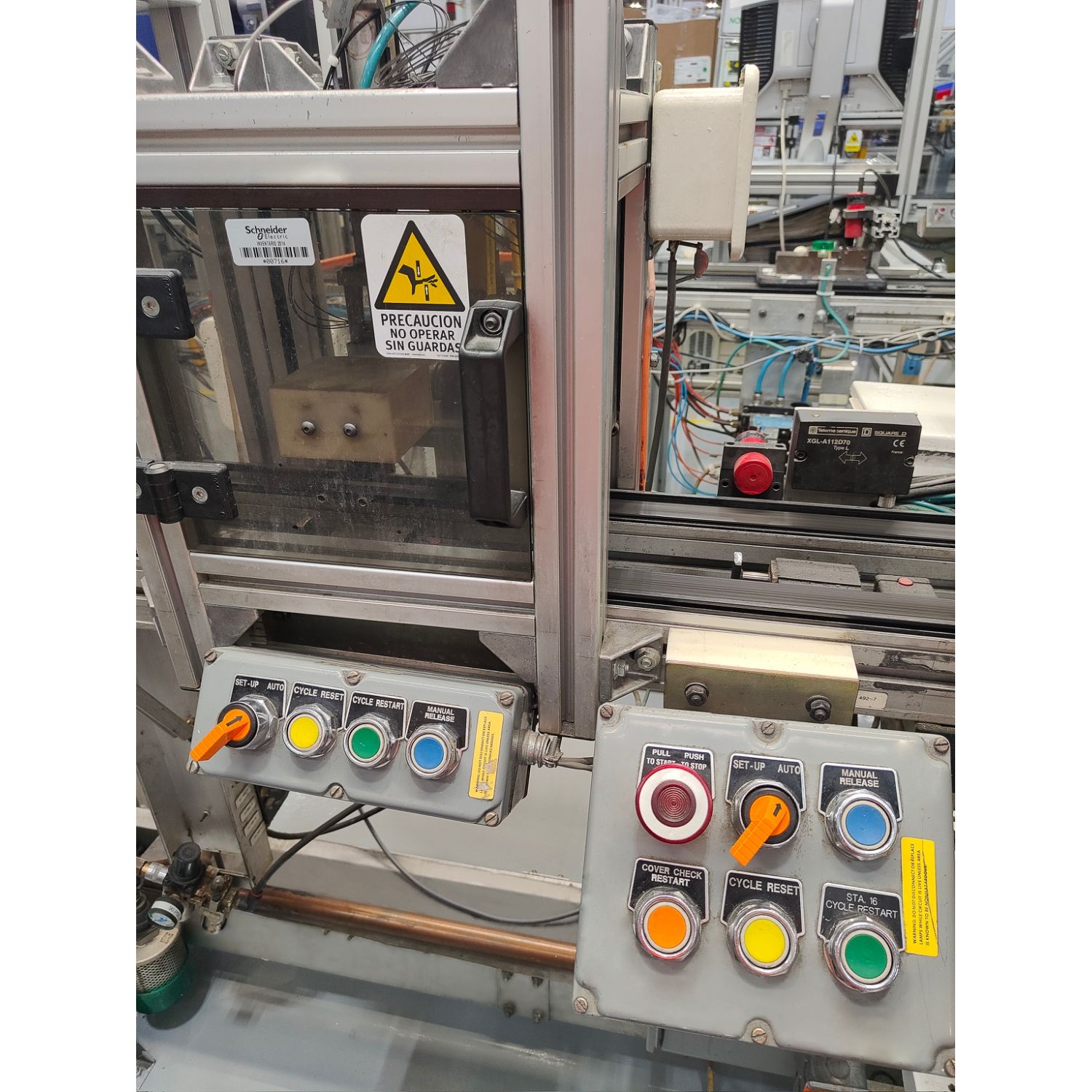

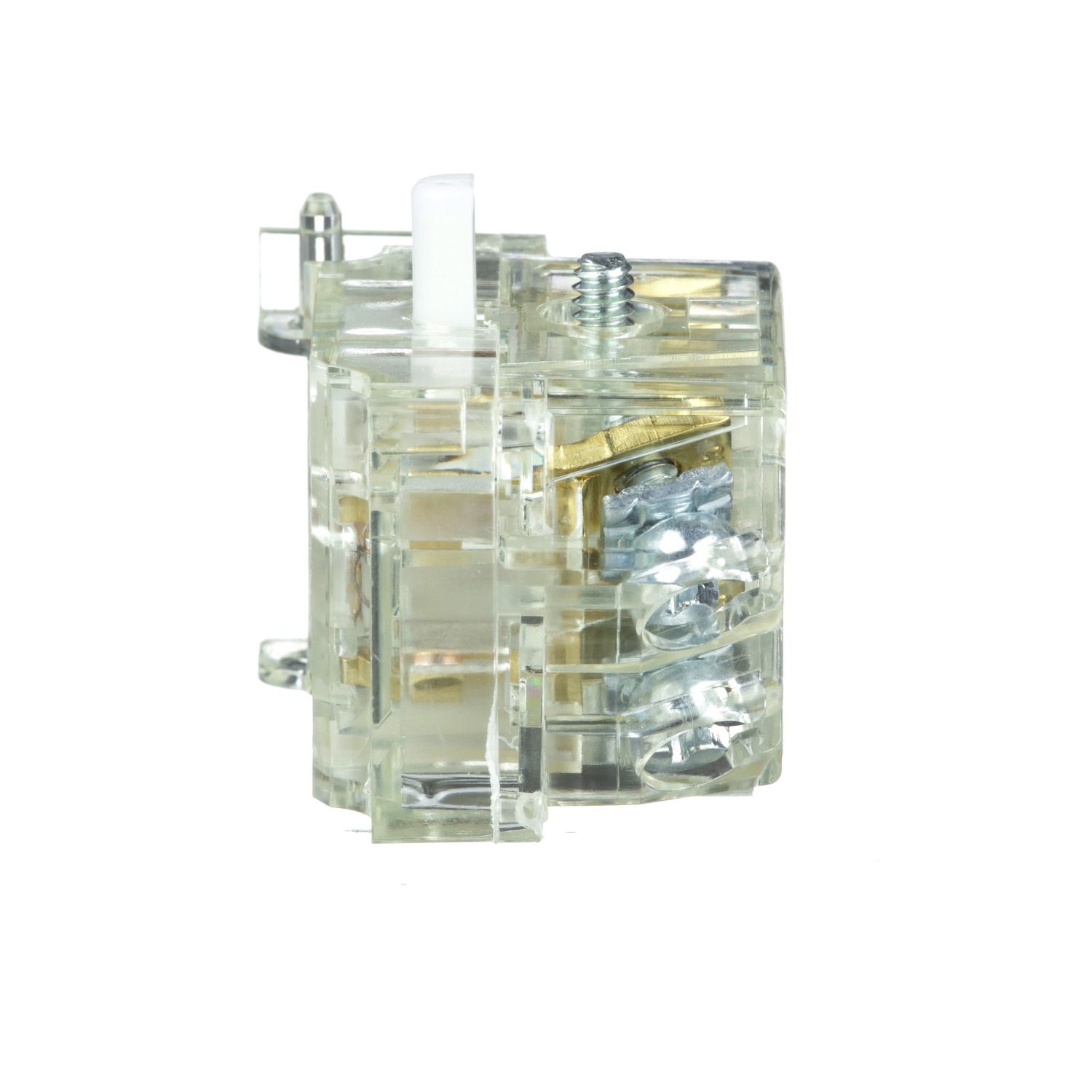

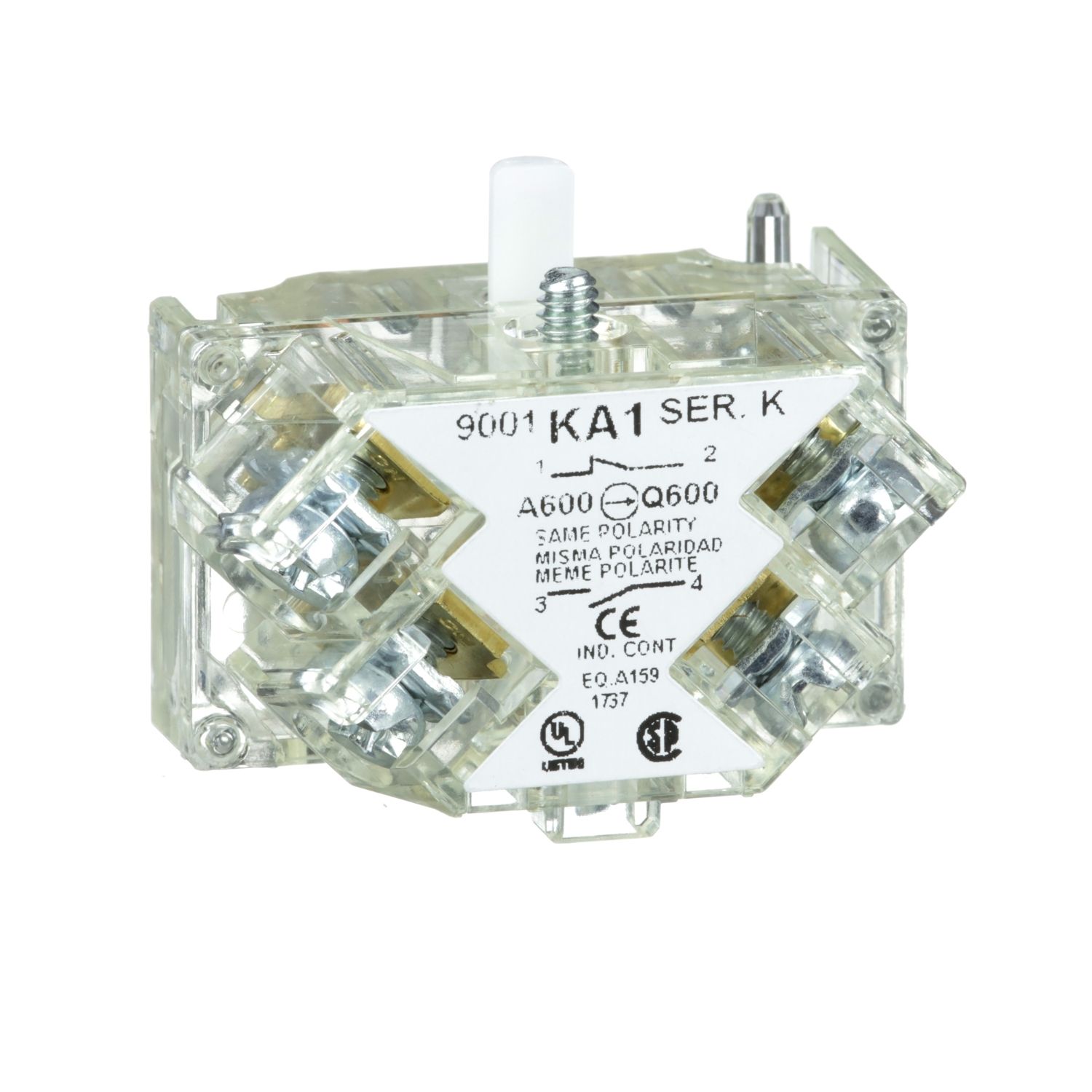

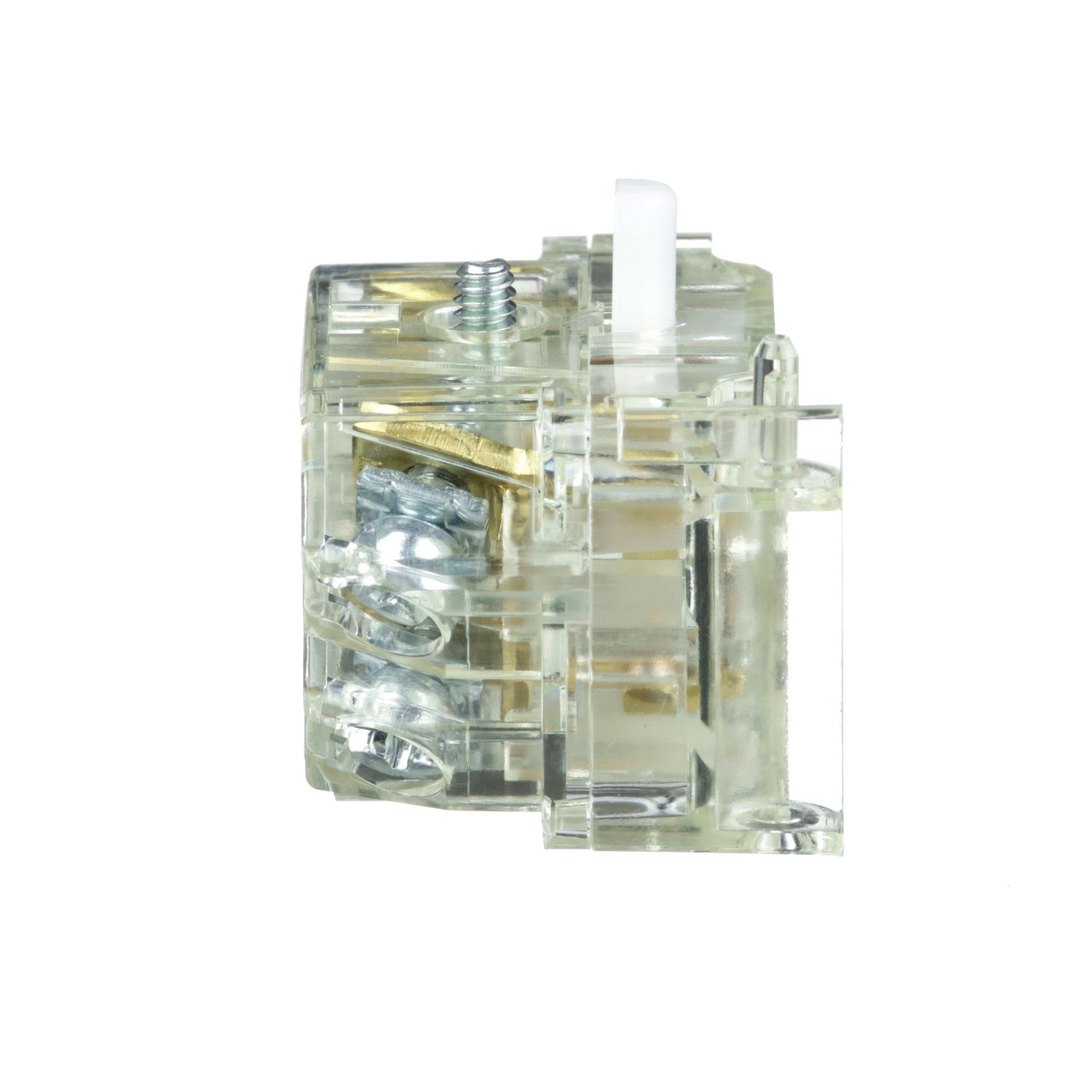

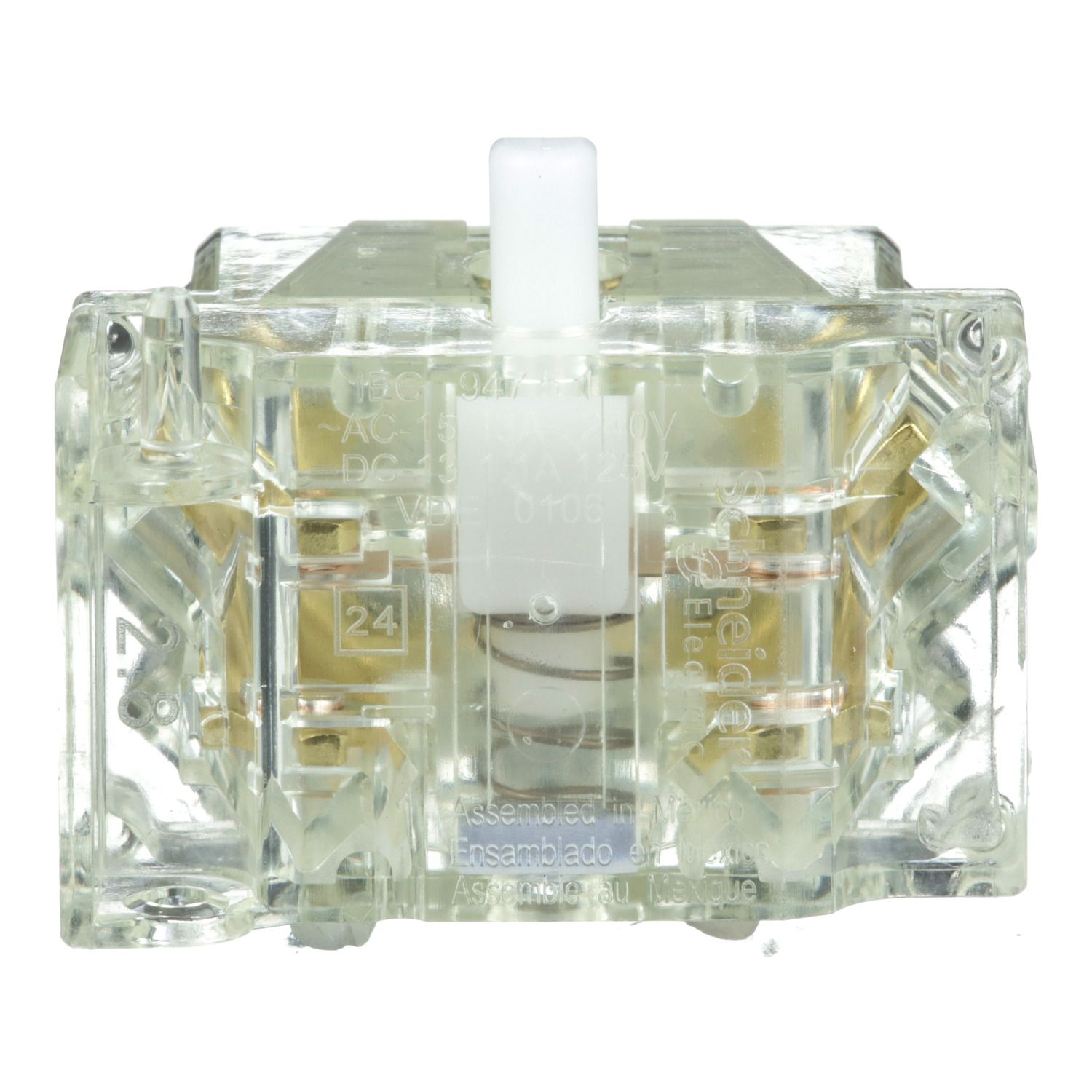

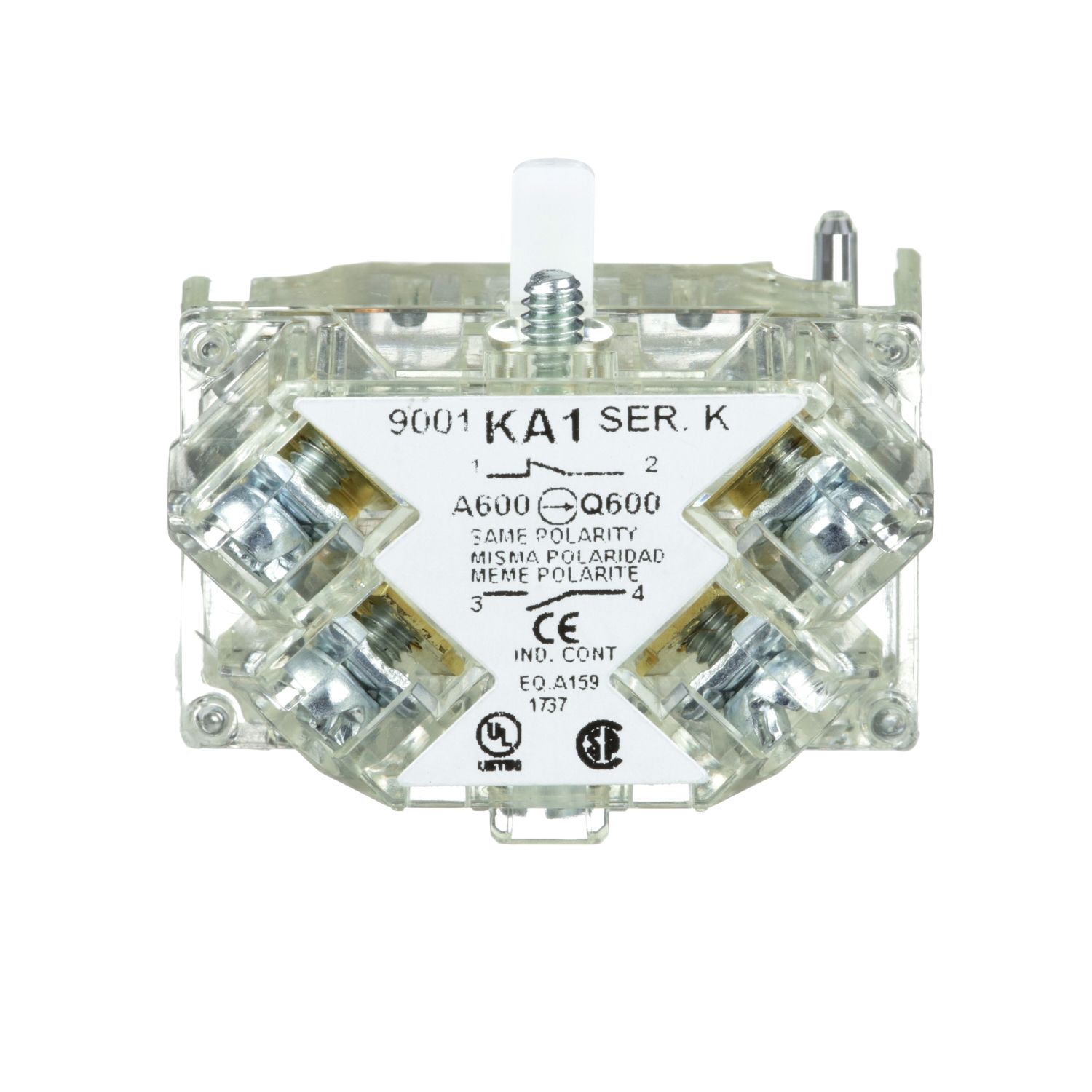

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO
SKU:

9001KA1

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

$64.00
Product Selector
Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO
Be the first to review this product
Manufacturer: Square D
Availability: Please contact our sales team on 1300 724 622.
Catalogue
Declaration of conformity
Instruction sheet
CAD
Product Page Link
Product Data Sheet
This Harmony 9001K, contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is compatible with Harmony 9001K push buttons and switches. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute nameAttribute value
Main
Device short name9001K
Range of productHarmony 9001SK, Harmony 9001K
Product or component typecontact block
Complementary
Shape of screw headcross slotted
Tightening torque0.8-0.8 N.m conforming to IEC 60947-1
Compatibility code9001K
Contact operationpositive opening
[Ie] rated operational current0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
Rated breaking capacity0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA
Contacts materialsilver alloy contacts
[Us] rated supply voltage0...600 V
[Ui] rated insulation voltage250 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition1 C/O
[Icm] rated short-circuit making capacity0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 7200 VA, 0.1 kA at 600 V DC-13, 7200 VA, 60 kA at 120 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 12 kA at 600 V AC-15, 7200 VA
Connections - terminalsscrew clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1, screw-clamp terminals
[Uimp] rated impulse withstand voltage2.5 kV conforming to IEC 60947-1
Net weight0.027 kg
[Ith] conventional free air thermal current10 A
Positive openingwithout
Short-circuit protection10 A cartridge fuse conforming to IEC 60947-5-1
Environment
Protective treatmentTC
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for operation-25-70 °C
Electrical shock protection classclass II conforming to IEC 61140
Vibration resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn conforming to IEC 60068-2-27
StandardsUL 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, JIS C 852, IEC 60947-1, UL 508, JIS C 4520, IEC 60947-5-1
Product certificationsUL 508, NEMA
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.500 cm
Package 1 Width3.000 cm
Package 1 Length4.000 cm
Package 1 Weight29.000 g
Unit Type of Package 22
Number of Units in Package 2100
Package 2 Height15.000 cm
Package 2 Width15.000 cm
Package 2 Length40.000 cm
Package 2 Weight3.040 kg

Related products

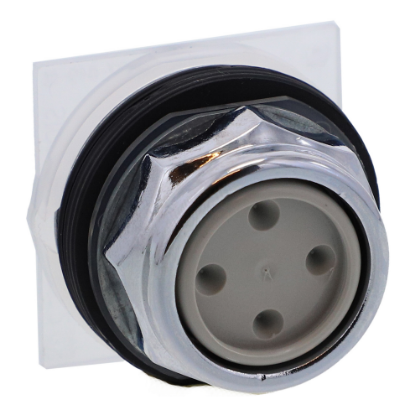

Head for spring return push button, Harmony 9001K, metal, flush, 7 colours choice, 30mm

9001KR1U
$53.77
View Detail
Picture of Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return to center

Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return to center

9001K35
$383.68
View Detail

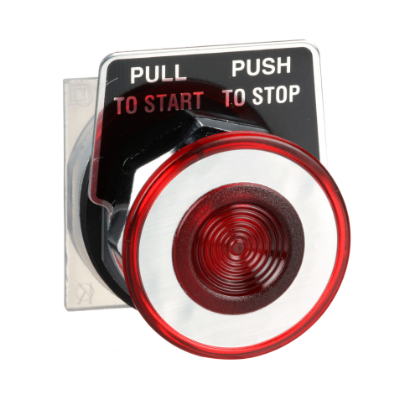

Picture of Head for push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull

Head for push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull

9001KR9R
$173.04
View Detail

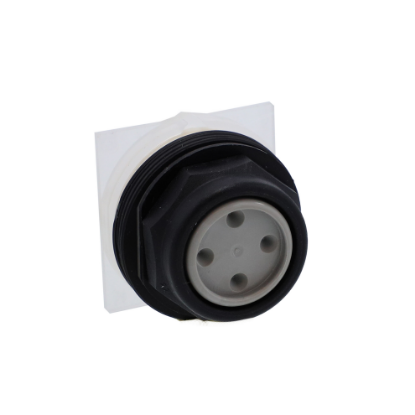

Push button head, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return

9001SKR1U
$53.77
View Detail

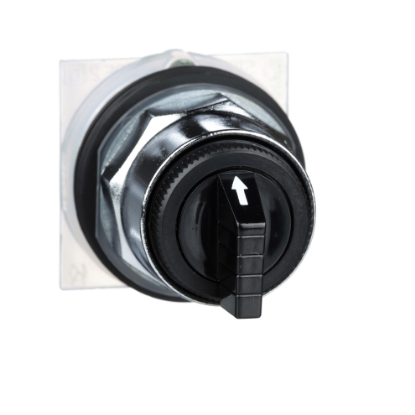

Picture of Head for selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, stay put, Cam C

Head for selector switch, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, stay put, Cam C

9001KS43B
$121.63
View Detail

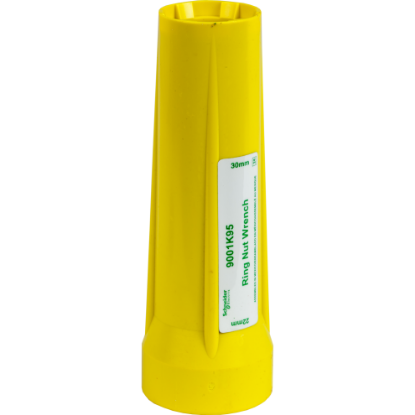

Picture of Tightening tool, Harmony 9001K, Harmony 9001SK, for ring nuts on 22 and 30mm control units

Tightening tool, Harmony 9001K, Harmony 9001SK, for ring nuts on 22 and 30mm control units

9001K95
$70.39
View Detail

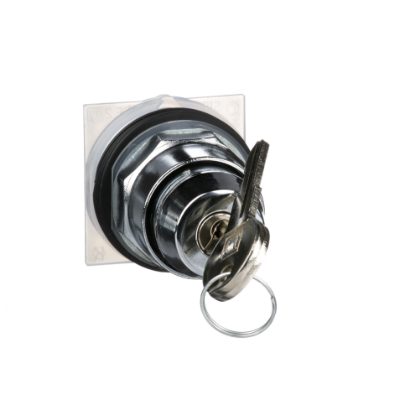

Picture of Head for key selector switch, Harmony 9001K, metal, key switch, key active left, 30mm, key E10, 2 positions, Cam E, stay put
