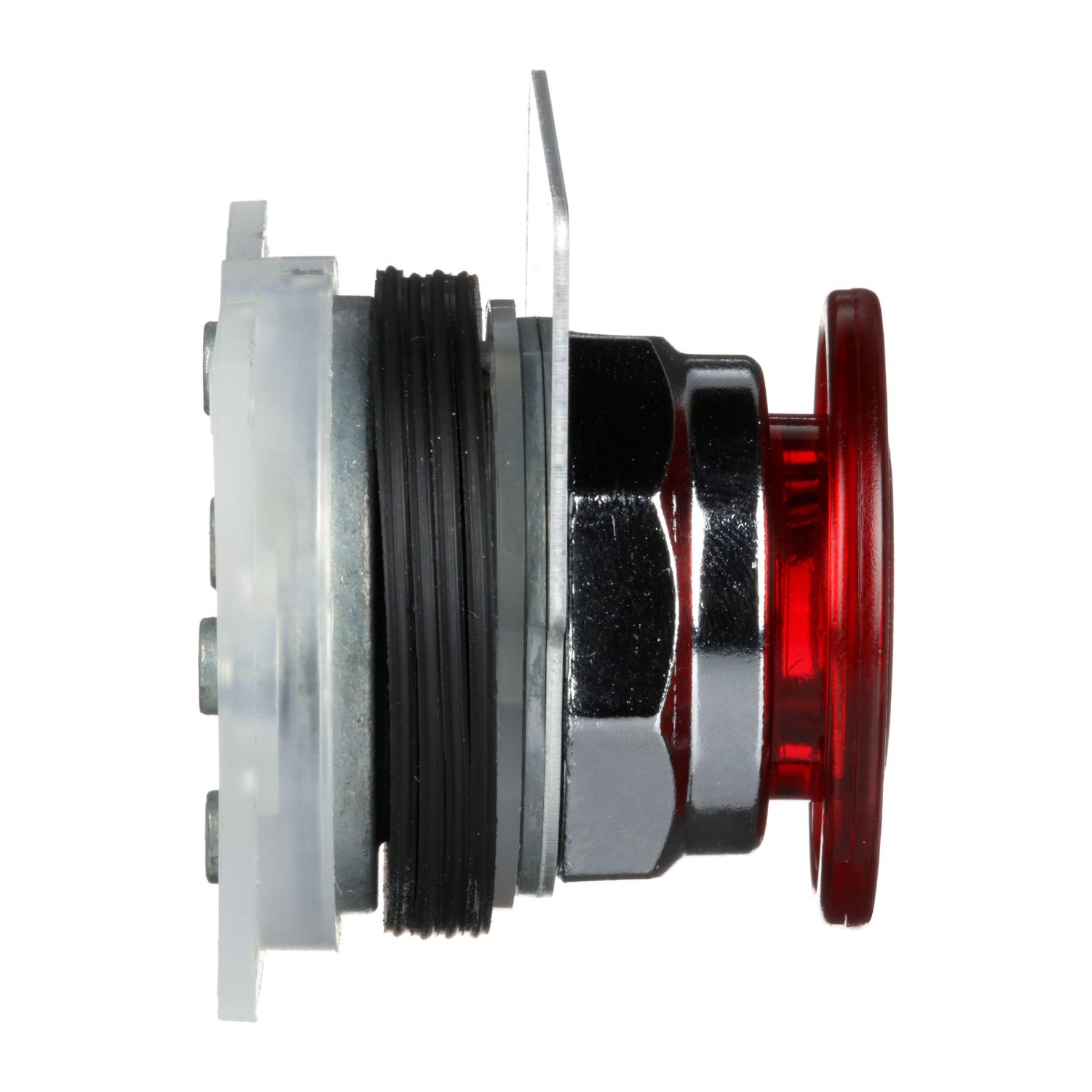

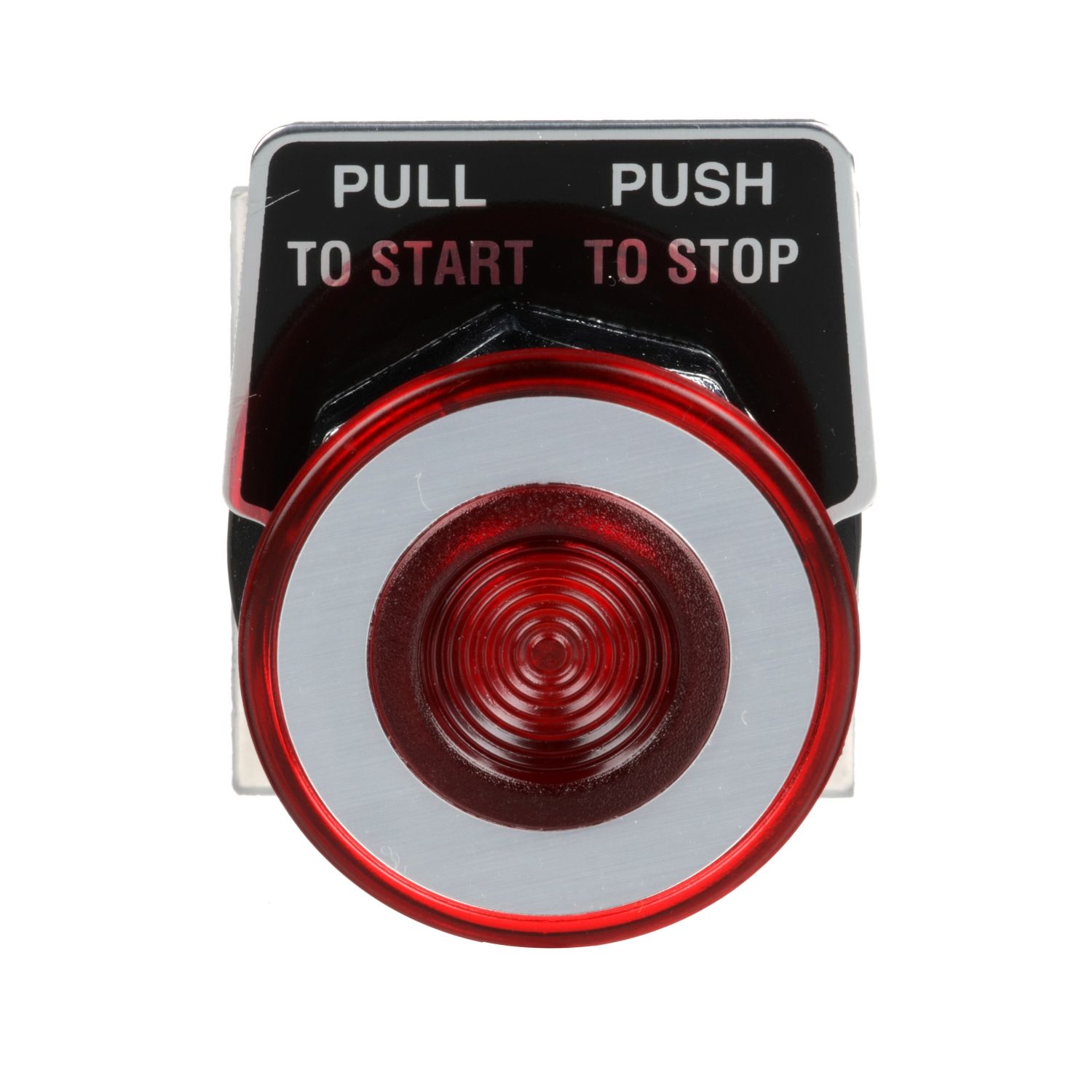

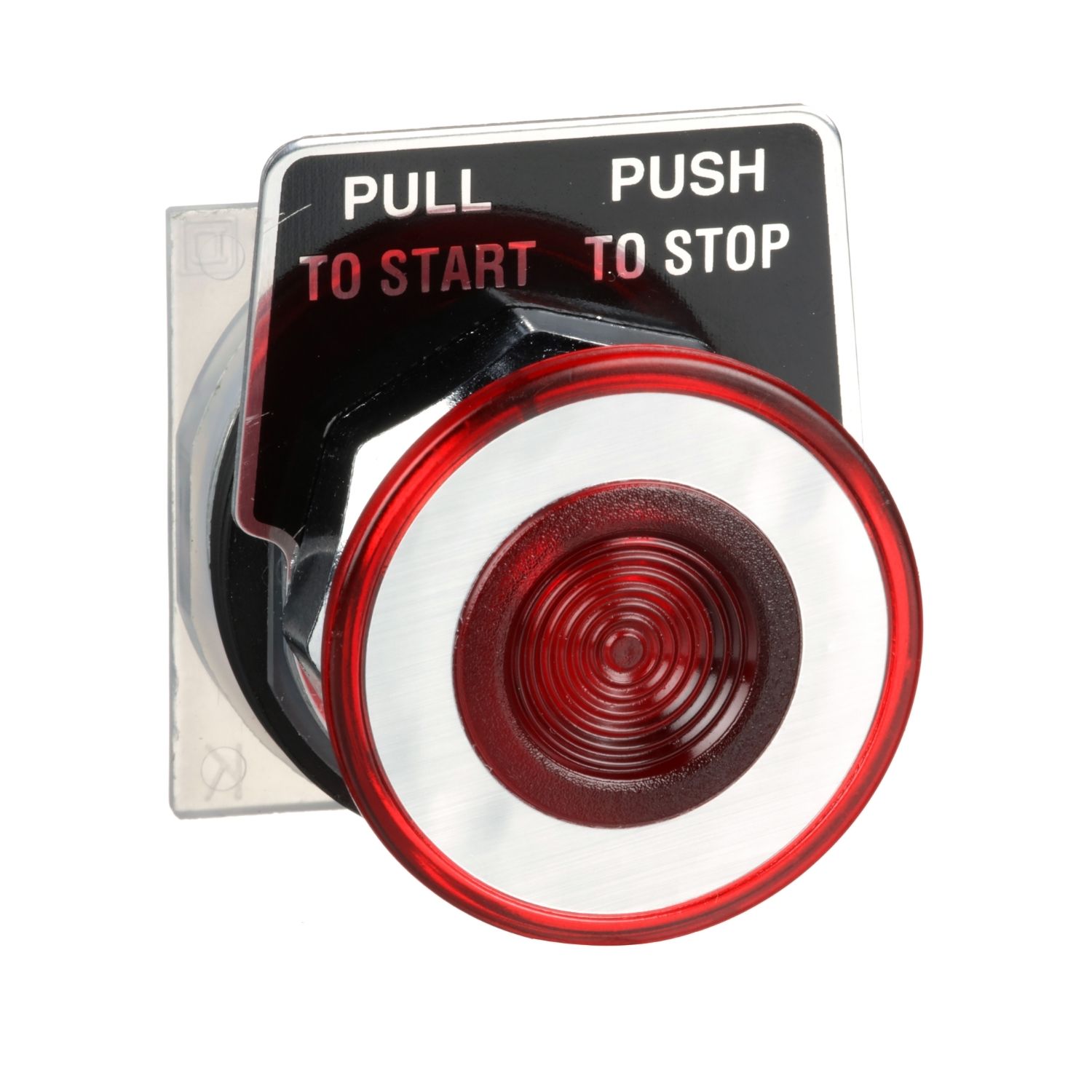

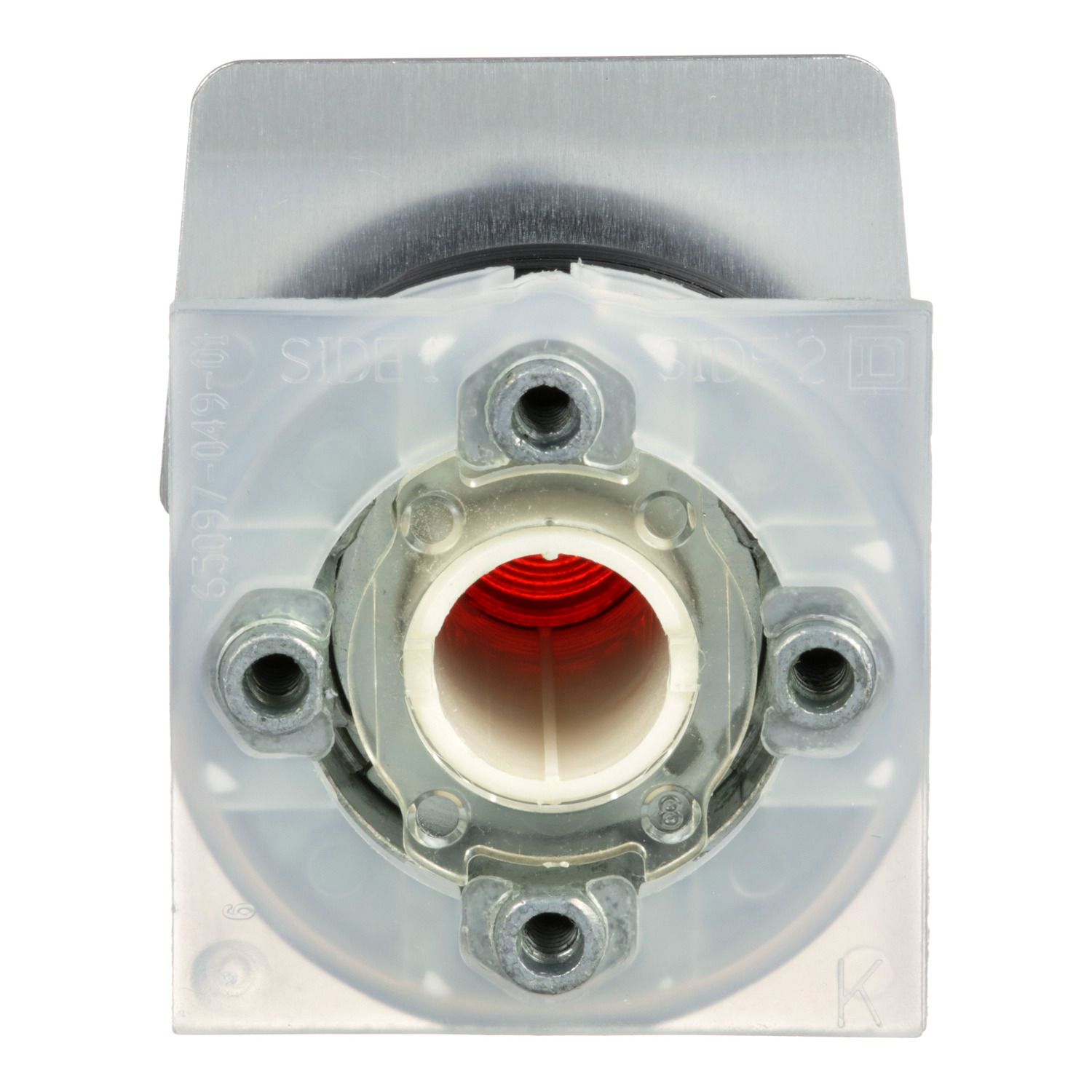

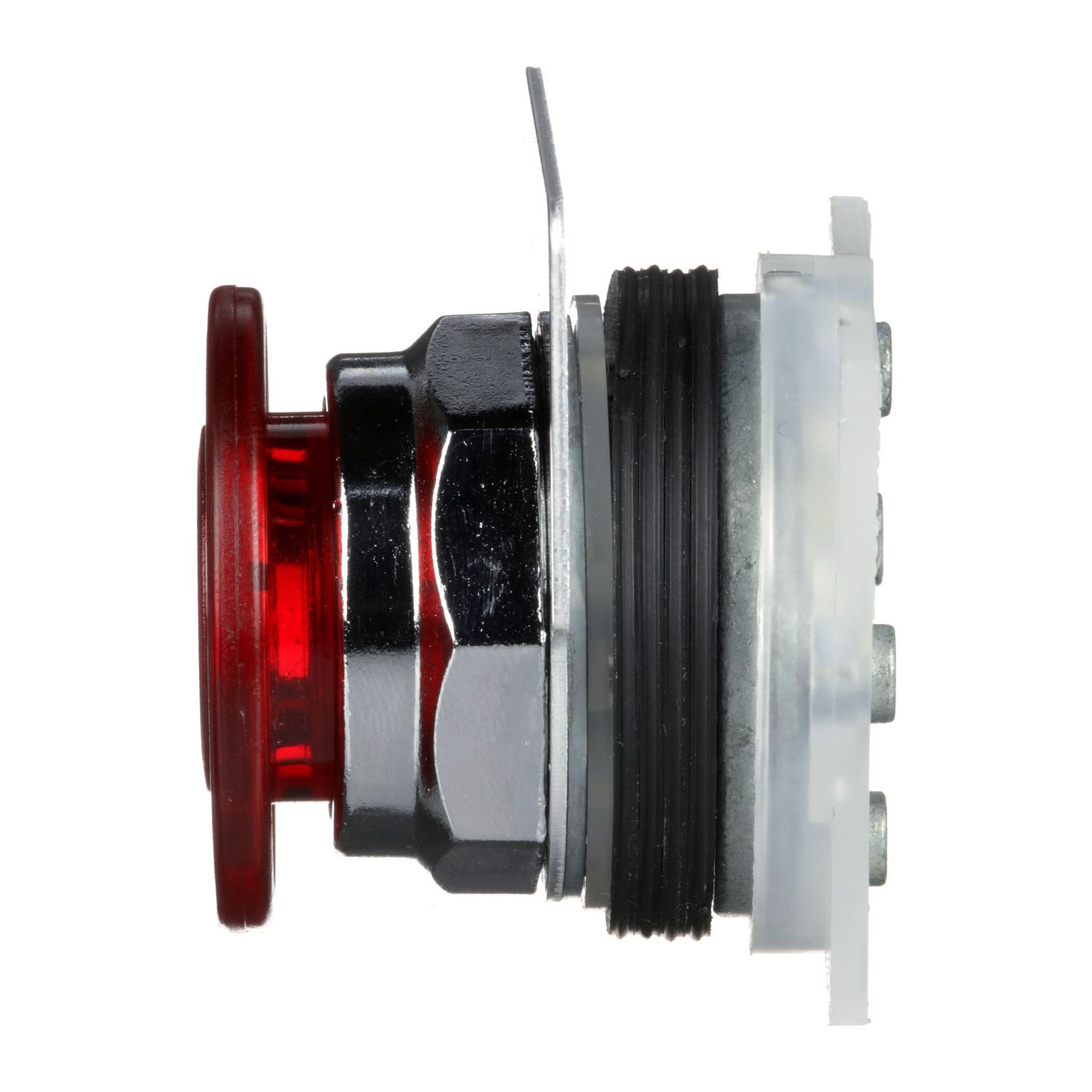

Picture of Head for push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull
SKU:

9001KR9R

Head for push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull

$173.04
Available for Shipping : 28-Nov-2024
Product Selector
Head for push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony 9001K, modular red push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape with 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile red flush
Product or component type head for push-button
Range of product Harmony 9001K
Operator additional information screw-on plastic
Complementary
Type of operator push-pull, spring return
Compatibility code 9001K
Operator position information 2 positions
Bezel material metal
Contacts type and composition without contact block
Cap/operator or lens colour red
Shape of signaling unit head round
Operator profile mushroom Ø 41 mm
Mounting diameter 30 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.826 cm
Package 1 Width 5.588 cm
Package 1 Length 9.398 cm
Package 1 Weight 113.398 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 3.033 kg
