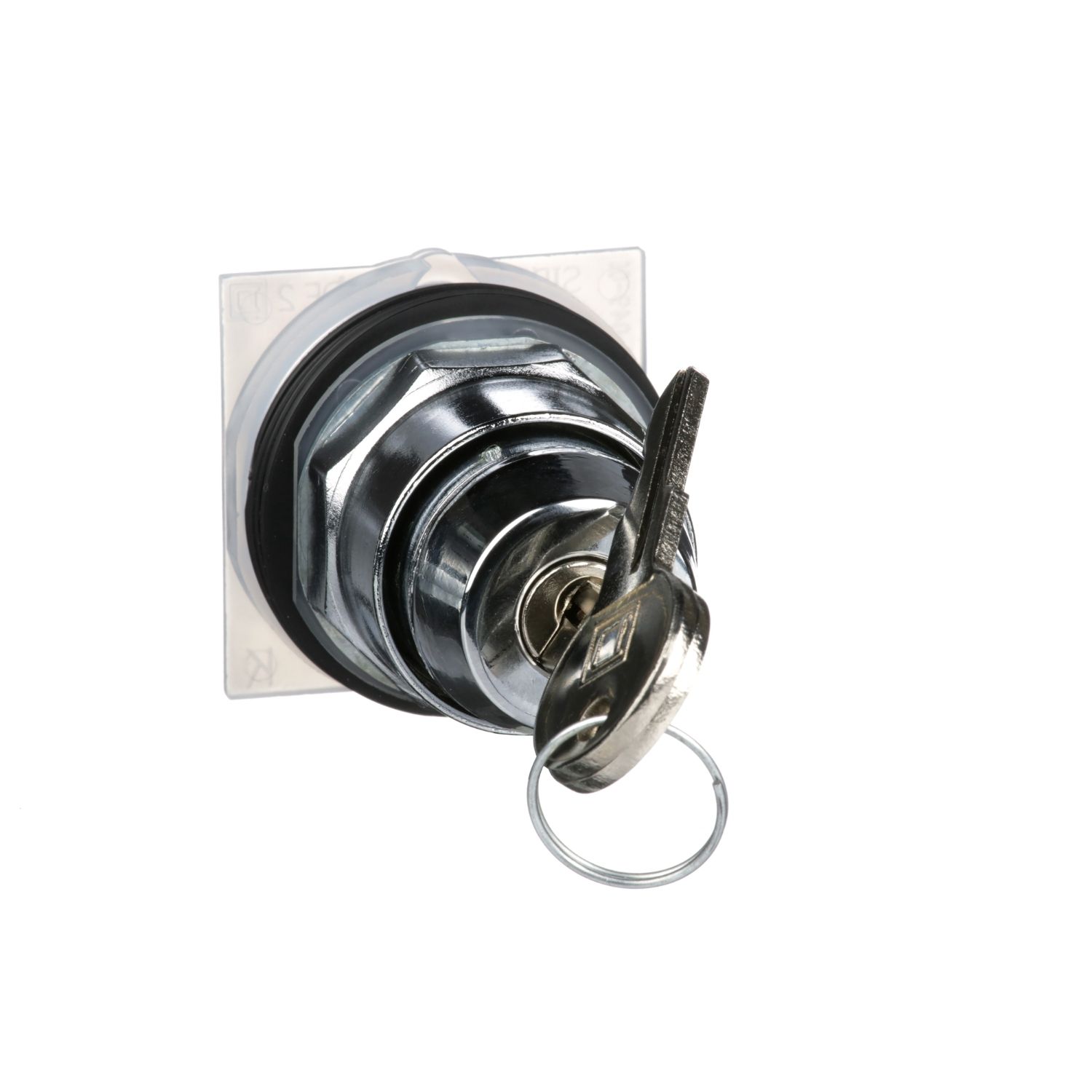

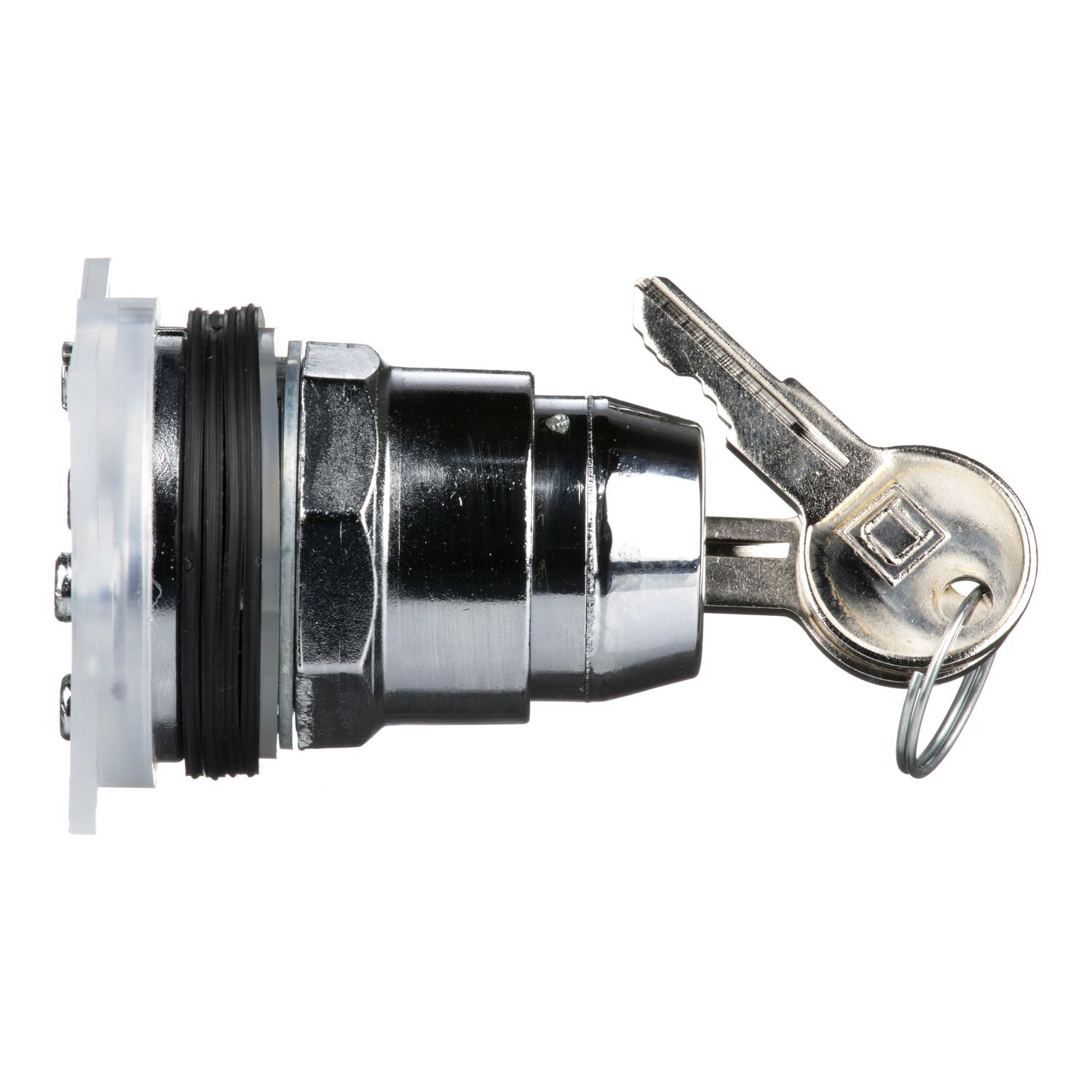

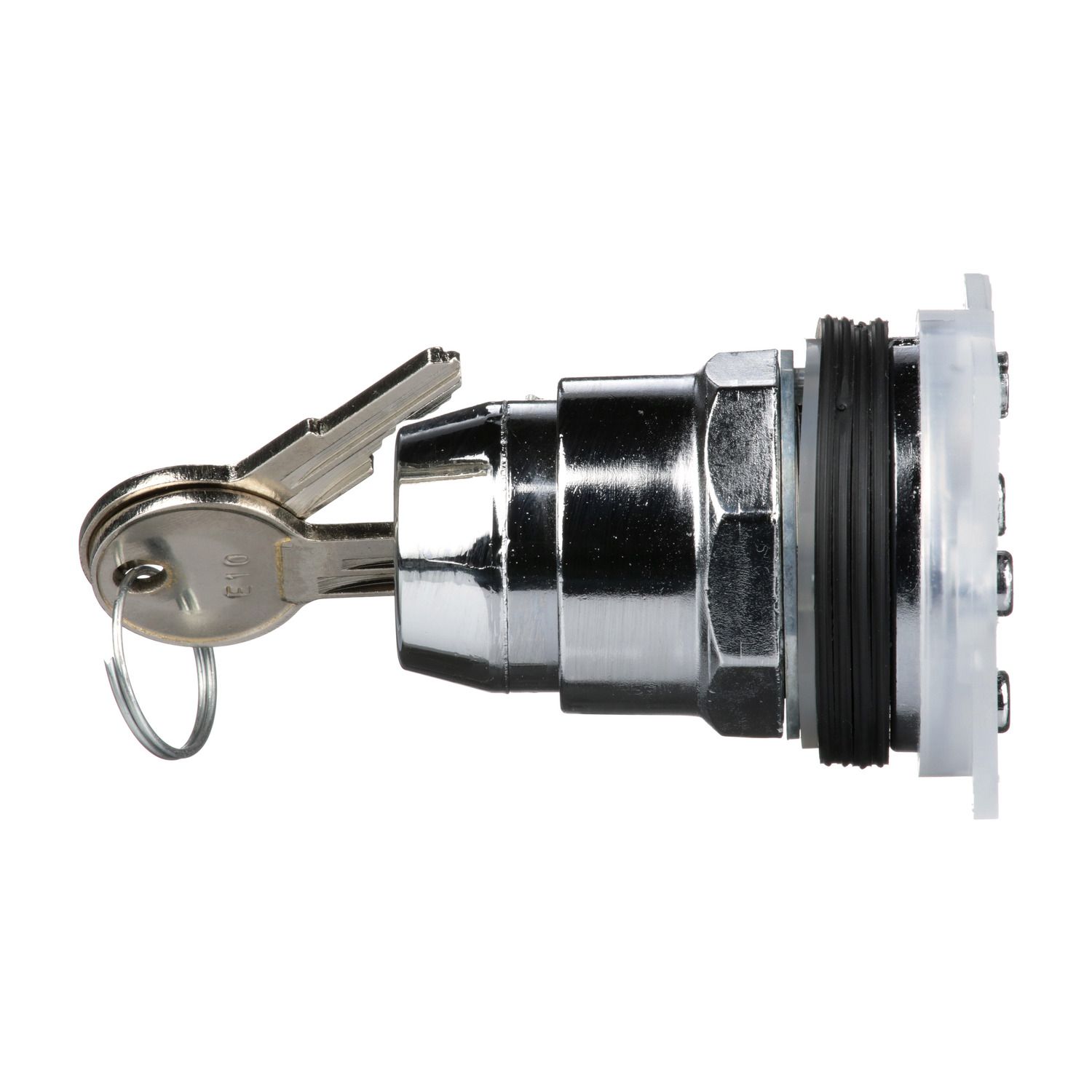

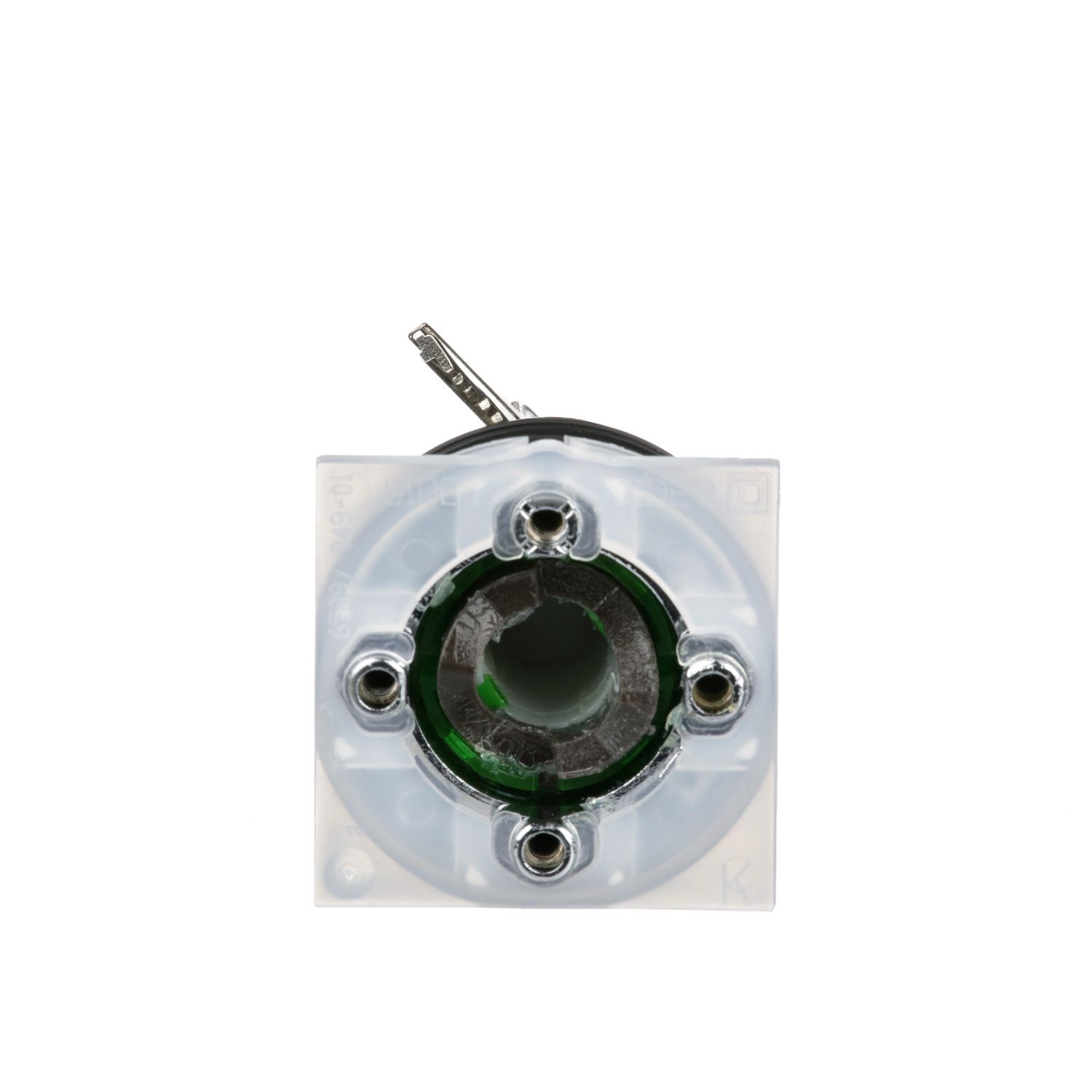

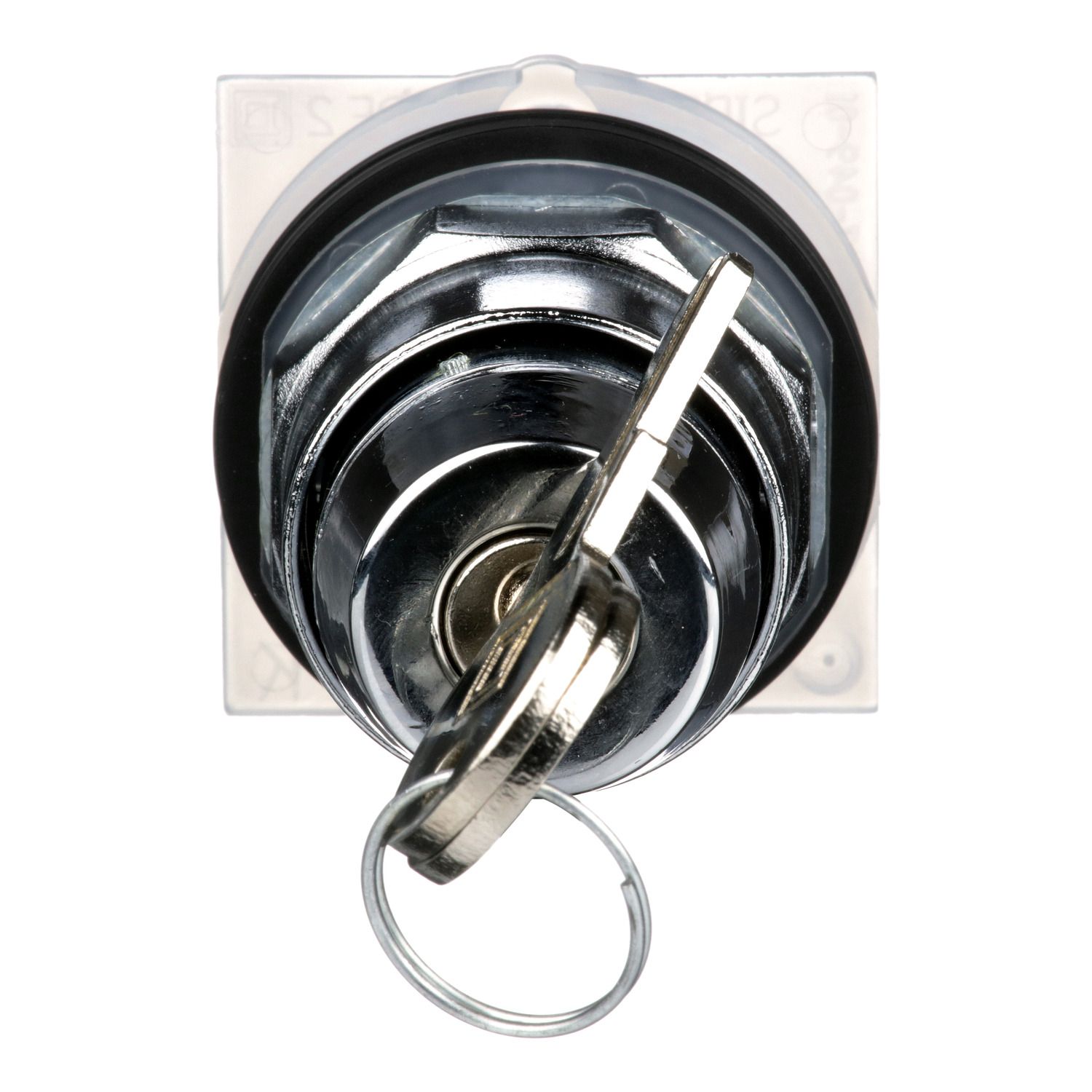

Picture of Head for key selector switch, Harmony 9001K, metal, key switch, key active left, 30mm, key E10, 2 positions, Cam E, stay put
SKU:

9001KS11K1

Head for key selector switch, Harmony 9001K, metal, key switch, key active left, 30mm, key E10, 2 positions, Cam E, stay put

$236.78
Available for Shipping : 10-Dec-2024
Product Selector
Head for key selector switch, Harmony 9001K, metal, key switch, key active left, 30mm, key E10, 2 positions, Cam E, stay put
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Declaration of conformity
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony 9001K, black key operated selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel. This key operated selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile key switch
Product or component type head for key selector switch
Type of operator stay put
Range of product Harmony 9001K
Complementary
Type of keylock E10
Type of operator stay put
Compatibility code 9001KS
Mechanical durability 500000 cycles
Operator position information 2 positions
Product compatibility 9001KA2, mounted side 1 or 2, 9001KA1, mounted side 1 or 2
Bezel material metal
Contacts type and composition without contact block
Key withdrawal position left
Device presentation basic element
Size 30 mm
Net weight 0.207 kg
Shape of signaling unit head octagonal
Operator profile key switch
Mounting diameter 30 mm
Cam profile 5
Key number E10
Environment
Protective treatment TC
NEMA degree of protection NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards IEC 60947-5-4, JIS C 852, JIS C 4520, UL 508, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Product certifications NEMA, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.588 cm
Package 1 Width 4.572 cm
Package 1 Length 9.144 cm
Package 1 Weight 226.796 g
