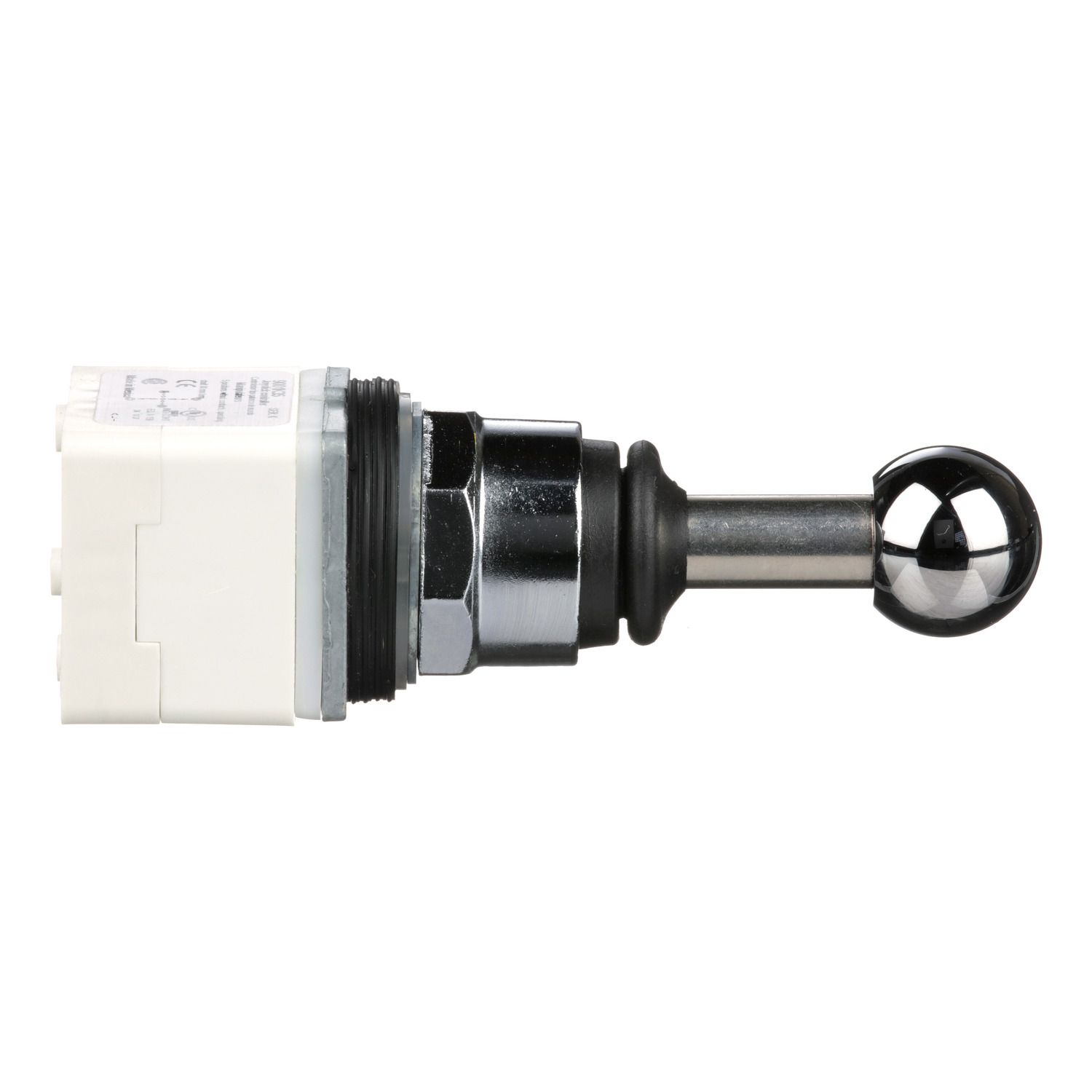

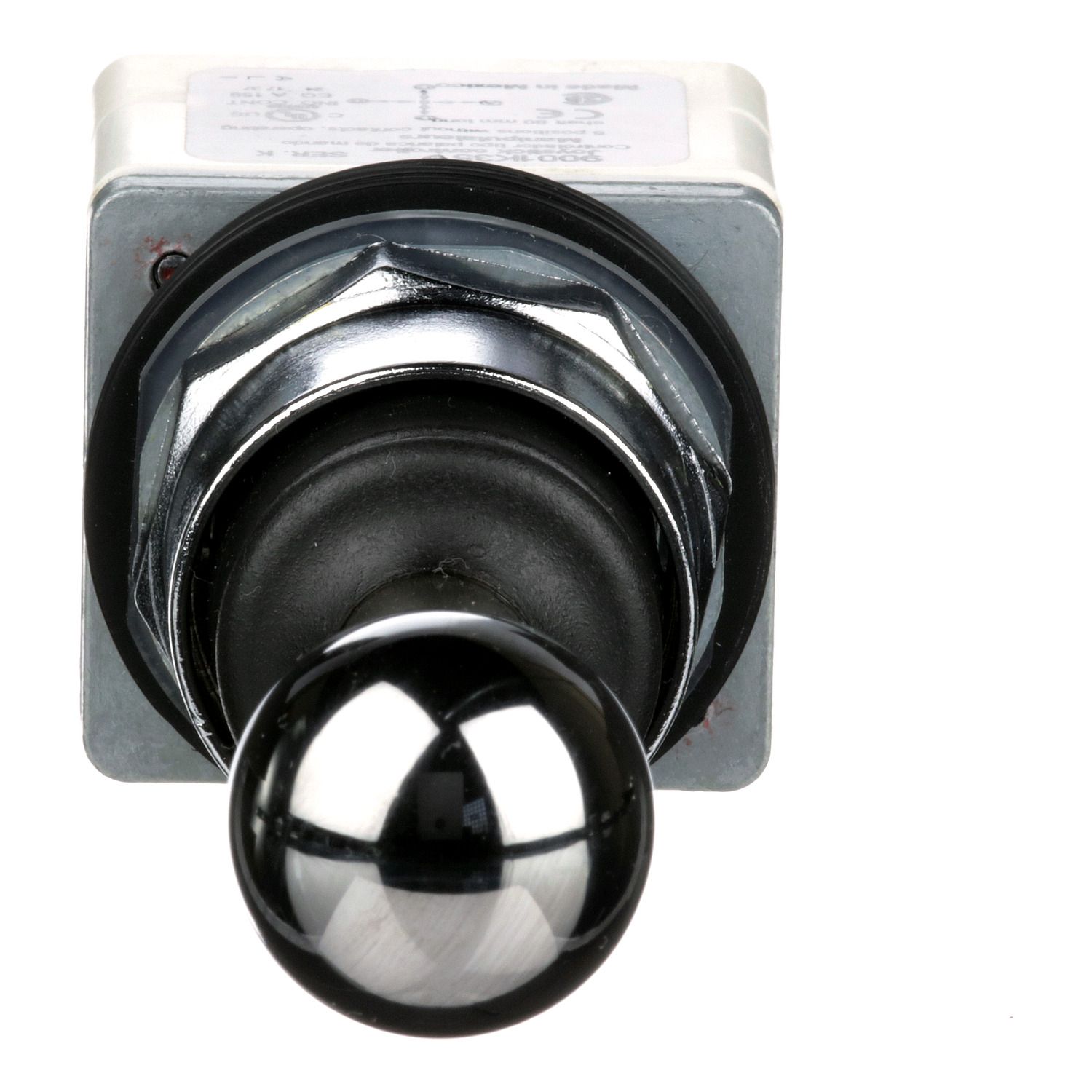

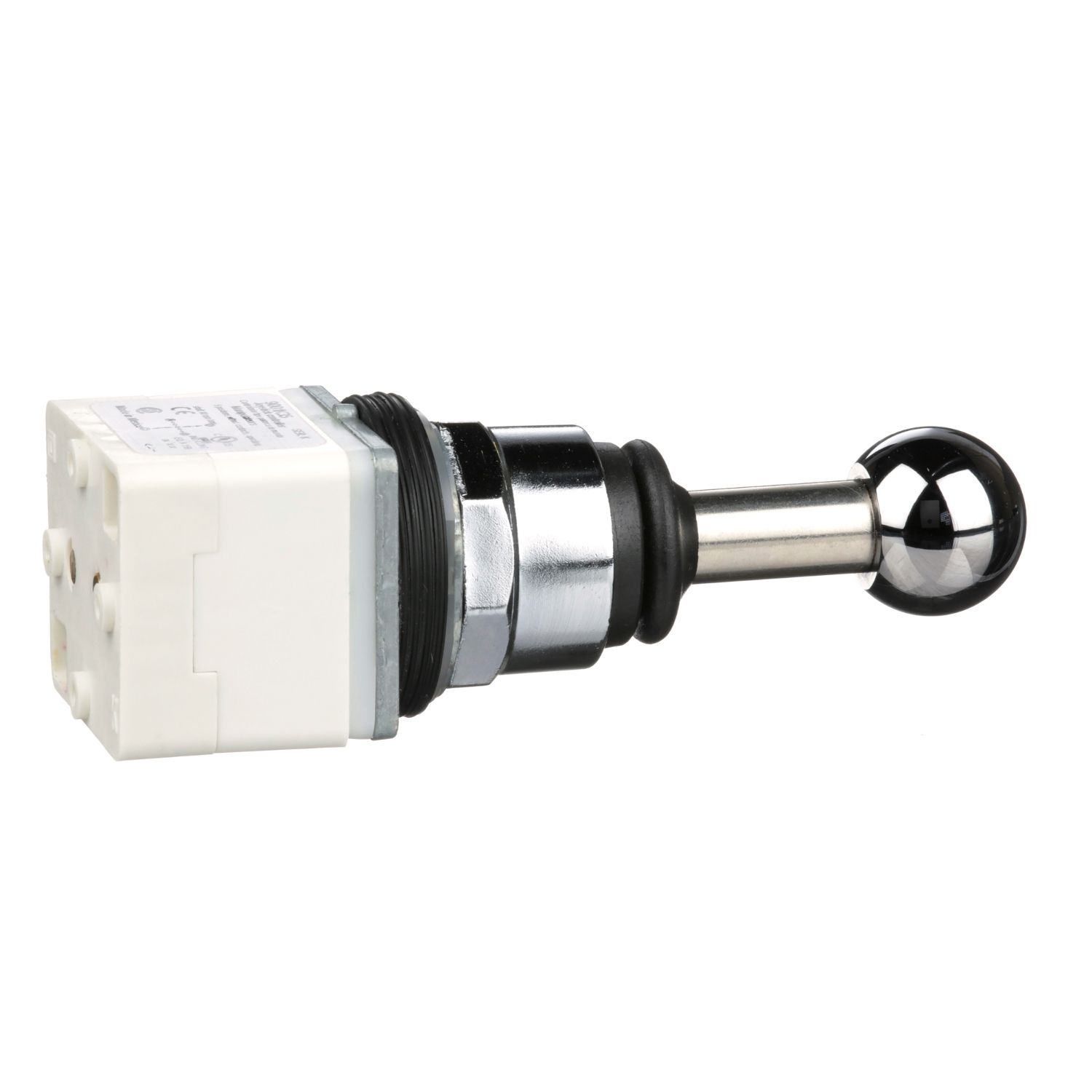

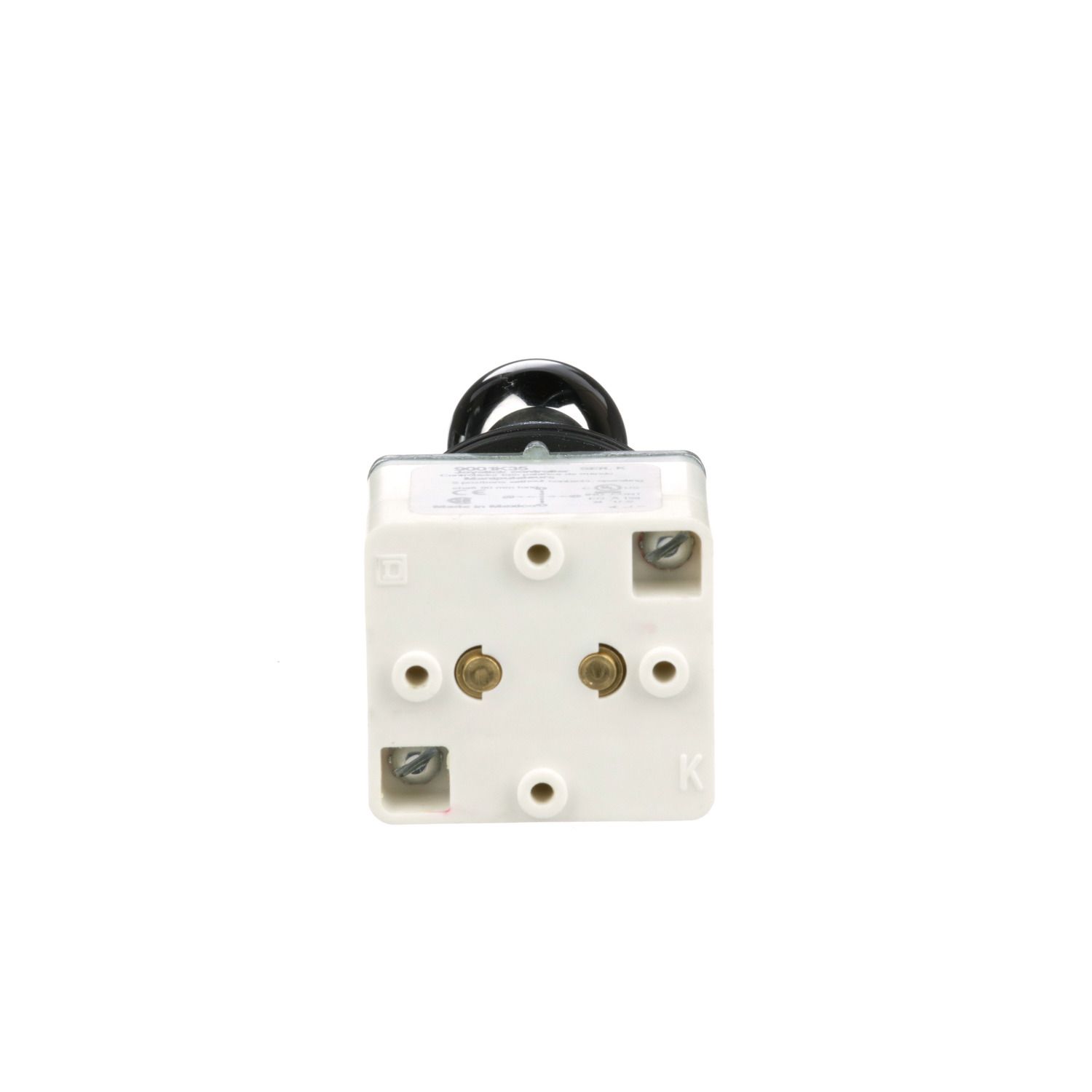

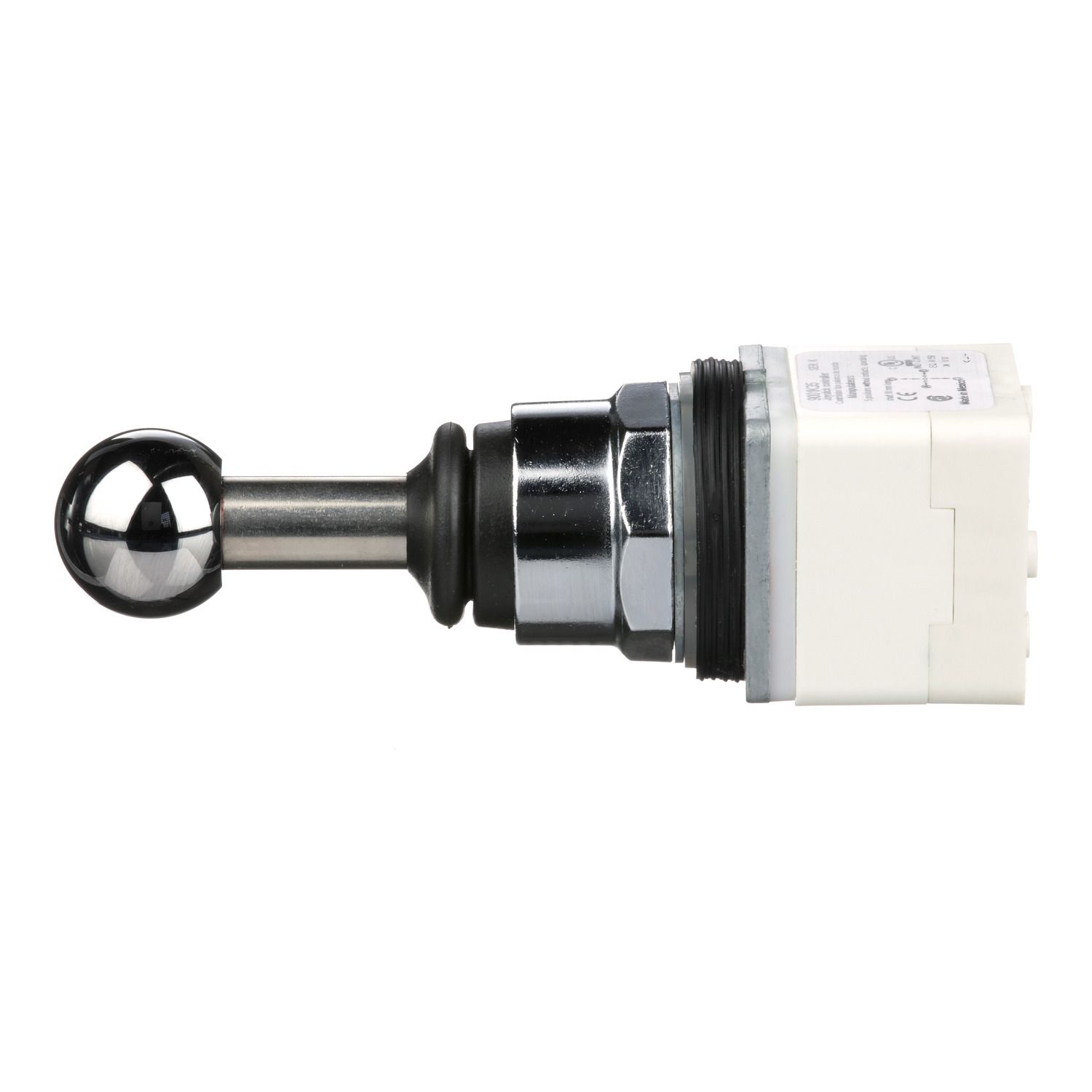

Picture of Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return to center
SKU:

9001K35

Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return to center

$383.68
Product Selector
Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return to center
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 24-Oct-2024
End of life manual
CAD
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony 9001K, joystick controller has 5-positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Products specifications

Attribute nameAttribute value
Main
Device short name9001K
Operator profile80 mm long operating shaft
Sale per indivisible quantity1
Product or component typehead for joystick controller
Type of operatorspring return
Range of productHarmony 9001K
Complementary
Returnto centre
Operating positionany position
Type of operatorspring return
Compatibility code9001K
Bezel materialmetal
Contacts type and compositionwithout contact block
Device presentationbasic element
Size30 mm
Net weight0.372 kg
Operator direction information4 directions
Shape of signaling unit headoctagonal
Mounting diameter30 mm
Environment
Protective treatmentTC
NEMA degree of protectionNEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage categoryII conforming to IEC 61140
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP66 conforming to IEC 60529
Vibration resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn conforming to IEC 60068-2-27
StandardsJIS C8201-1, IEC 60947-5-4, IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, JIS C8201-5-1
Ambient air temperature for operation-25-70 °C
Product certificationsNEMA, UL 508
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height5.000 cm
Package 1 Width4.200 cm
Package 1 Length13.400 cm
Package 1 Weight241.000 g
Unit Type of Package 22
Number of Units in Package 218
Package 2 Height15.000 cm
Package 2 Width15.000 cm
Package 2 Length40.000 cm
Package 2 Weight4.633 kg

Related products

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

9001KA1
$64.00
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

9001KA3
$46.01
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

9001KA2
$46.01
View Detail
Picture of Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO

Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO

9001KA4
$58.91
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO

9001KA41
$83.15
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, late break, 1NC

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, late break, 1NC

9001KA5
$46.01
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO

9001KA51
$255.79
View Detail

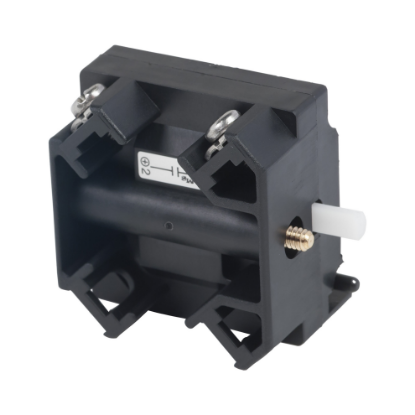

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1NO
