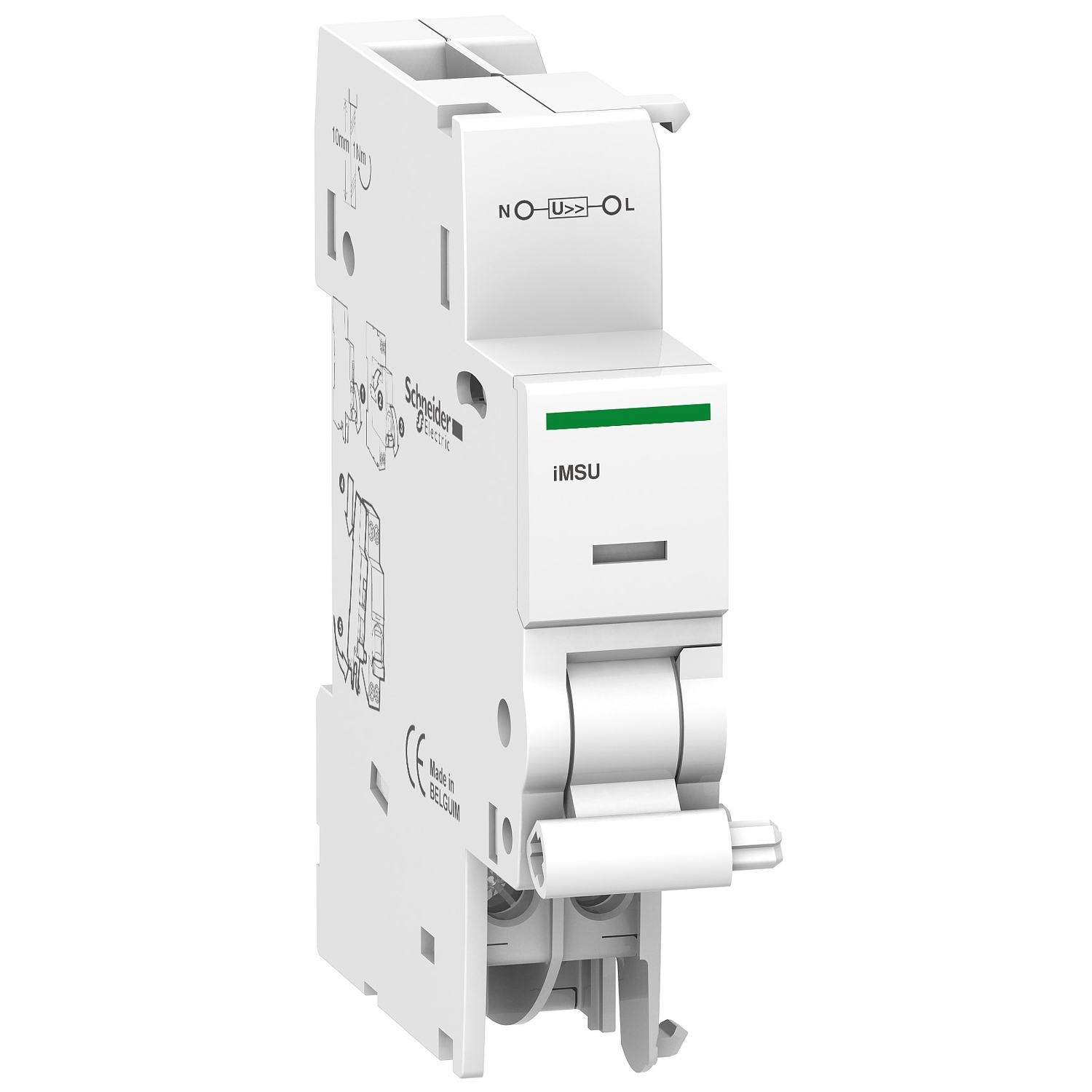

Acti9, Overvoltage release, Acti9, iMSU, voltage release, 230 V AC

$125.65
Available for Shipping : 03-Dec-2024
Product Selector
Acti9, Overvoltage release, Acti9, iMSU, voltage release, 230 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iMSU electrical auxiliary is an overvoltage release. It is dedicated to Acti9 iC60, iID, iID40, iDPN Vigi, iSW-NA, iC40, iCV40, iC40 XA, iCV40 XA, iCV40 XA, iC60 & iID double terminals, iC60 RCBO, iKQE RCBO. For a four-phase network, use three iMSU tripping auxiliaries. It provides a protection of equipment against overvoltage on the electrical network (neutral conductor break) and voltage monitoring between phase and neutral conductors. It switches of the power supply by opening the breaker with which it is combined, in the event that the phase/neutral voltage is exceeded. The width in 9mm pitches is 2. There is a red mechanical indicator on the front face of the product to indicate the tripped position of the associated device. The Ue rated operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iMSU
Product compatibility double terminal, single terminal, iC60, iSW-NA, iDPN Vigi, iID, ARA, RCA
Threshold tripping voltage 400 V 0.07...0.2 s, 350 V 0.25...0.75 s, 300 V 1...5 s, 275 V 3...15 s, 255 V
Range Acti9
Product or component type overvoltage release
9 mm pitches 2
Range of product iSW-NA, ARA, iID, iDPN Vigi, RCA, iC60
[Uc] control circuit voltage 230 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Depth 68 mm
Market segment small commercial, residential
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code iMSU
Mounting mode clip-on
Connections - terminals clamp terminal1-6 mm² - rigid, clamp terminal - 1 cable(s) 0.5-4 mm² - flexible
Wire stripping length 10 mm
Comb busbar and distribution block compatibility top and bottom: YES
Range compatibility Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support DIN rail
Height 82.5 mm
Environment
Quality labels CE
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN 50550
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.9 cm
Package 1 Width 8.2 cm
Package 1 Length 9.5 cm
Package 1 Weight 80 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.7 cm
Package 2 Width 10 cm
Package 2 Length 26.5 cm
Package 2 Weight 747 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 6.694 kg
