SKU:

A9F94210

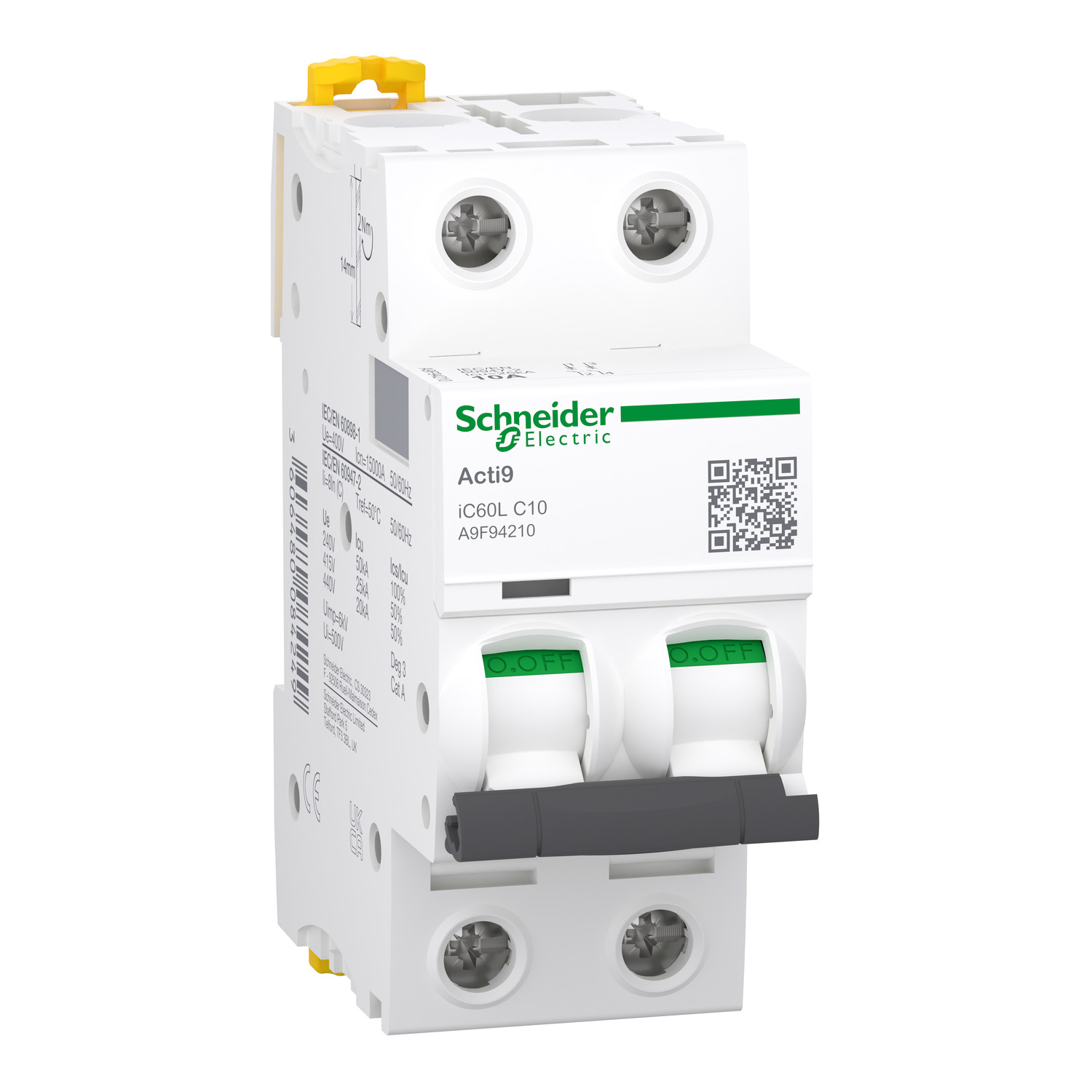

Miniature circuit breaker (MCB), Acti9 iC60L, 2P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

$154.30

Qty:

Available for Shipping : 03-Dec-2024

Product Selector

Miniature circuit breaker (MCB), Acti9 iC60L, 2P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

Suitability for industrial isolation according to IEC/EN 60947-2 standard

Combine short-circuit and overload currents protection

Visitrip system for fast detection of faulty outgoers for shorter repair times

VisiSafe system for offering enhanced security when it comes to circuit protection

Option to add auxiliaries, remote monitoring and residual current device (Vigi)

Faster, better and more flexible installation of device thanks to comb busbar

Fast closing independent of the speed of actuation of the toggle

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Declaration of conformity

Product Page Link

Product Data Sheet

This Acti9 iC60L is a low voltage miniature circuit breaker (MCB). It has 2P with 2 protected poles, rated current 10A and C tripping curve. The rated short circuit breaking capacity goes up to 50kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 15000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker is for protection against short circuit and overload current in all applications. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. It is DIN rail mountable. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 78.5mm. The weight is 0.25kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute name	Attribute value
Main
Device application	distribution
Suitability for isolation	yes conforming to IEC 60947-2, yes conforming to IEC 60898-1, yes conforming to EN 60947-2, yes conforming to EN 60898-1
Number of protected poles	2
Trip unit technology	thermal-magnetic
Network type	AC, DC
Device short name	iC60L
Breaking capacity	25 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 20 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 20 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2, 70 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2, 70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 15000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
Range	Acti9
Curve code	C
Range of product	iC60
Poles description	2P
Utilisation category	category A conforming to IEC 60947-2, category A conforming to EN 60947-2
Product name	Acti9 iC60
Product or component type	miniature circuit-breaker
Breaking capacity code	L
Standards	EN 60947-2, IEC 60947-2, IEC 60898-1, EN 60898-1
[In] rated current	10 A
Complementary
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2, 6 kV conforming to EN 60947-2
Compatibility code	iC60
Electrical durability	10000 cycles
Connections - terminals	single terminal (top or bottom) 1-16 mm² flexible, single terminal (top or bottom) 1-25 mm² rigid
Comb busbar and distribution block compatibility	top or bottom: YES
Earth-leakage protection	separate block
Height	85 mm
[Ics] rated service breaking capacity	20 kA 100 % conforming to IEC 60947-2 - 72...125 V DC, 20 kA 100 % conforming to EN 60947-2 - 72...125 V DC, 7500 A 50 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz, 7500 A 50 % conforming to EN 60898-1 - 400 V AC 50/60 Hz, 35 kA 50 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz, 35 kA 50 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz, 25 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz, 25 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz, 10 kA 50 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz, 12.5 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz, 10 kA 50 % conforming to EN 60947-2 - 440 V AC 50/60 Hz, 12.5 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
Market segment	residential, small commercial
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IEC 60947-2, 500 V AC 50/60 Hz conforming to EN 60947-2
Net weight	0.25 kg
Magnetic tripping limit	8 x In +/- 20 %
9 mm pitches	4
Tightening torque	2-2 N.m top or bottom
Colour	white
Connection pitch	18 mm between phases
Mechanical durability	20000 cycles
Power losses per pole	2.3 W
Mounting mode	fixed
Control type	toggle
Wire stripping length	14 mm for top or bottom connection
[Ue] rated operational voltage	72...125 V DC, 12...133 V AC 50/60 Hz, 440 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 400 V AC 50/60 Hz, 220...240 V AC 50/60 Hz
Depth	78.5 mm
Width	36 mm
Local signalling	trip indicator
Limitation class	3 conforming to IEC 60898-1, 3 conforming to EN 60898-1
Mounting support	DIN rail
Contact position indicator	yes
Total power losses	4.6 W
Network frequency	50/60 Hz
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to IEC 60068-1
Operating altitude	0...2000 m
Overvoltage category	IV
Pollution degree	3 conforming to IEC 60947-2, 3 conforming to EN 60947-2
IP degree of protection	IP20 conforming to EN 60529, IP20 conforming to IEC 60529
Ambient air temperature for operation	-35-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.500 cm
Package 1 Width	3.600 cm
Package 1 Length	9.500 cm
Package 1 Weight	220.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	8.000 cm
Package 2 Width	9.800 cm
Package 2 Length	22.500 cm
Package 2 Weight	1.376 kg
Unit Type of Package 3	3
Number of Units in Package 3	66
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	15.606 kg
