SKU:

A9A26380

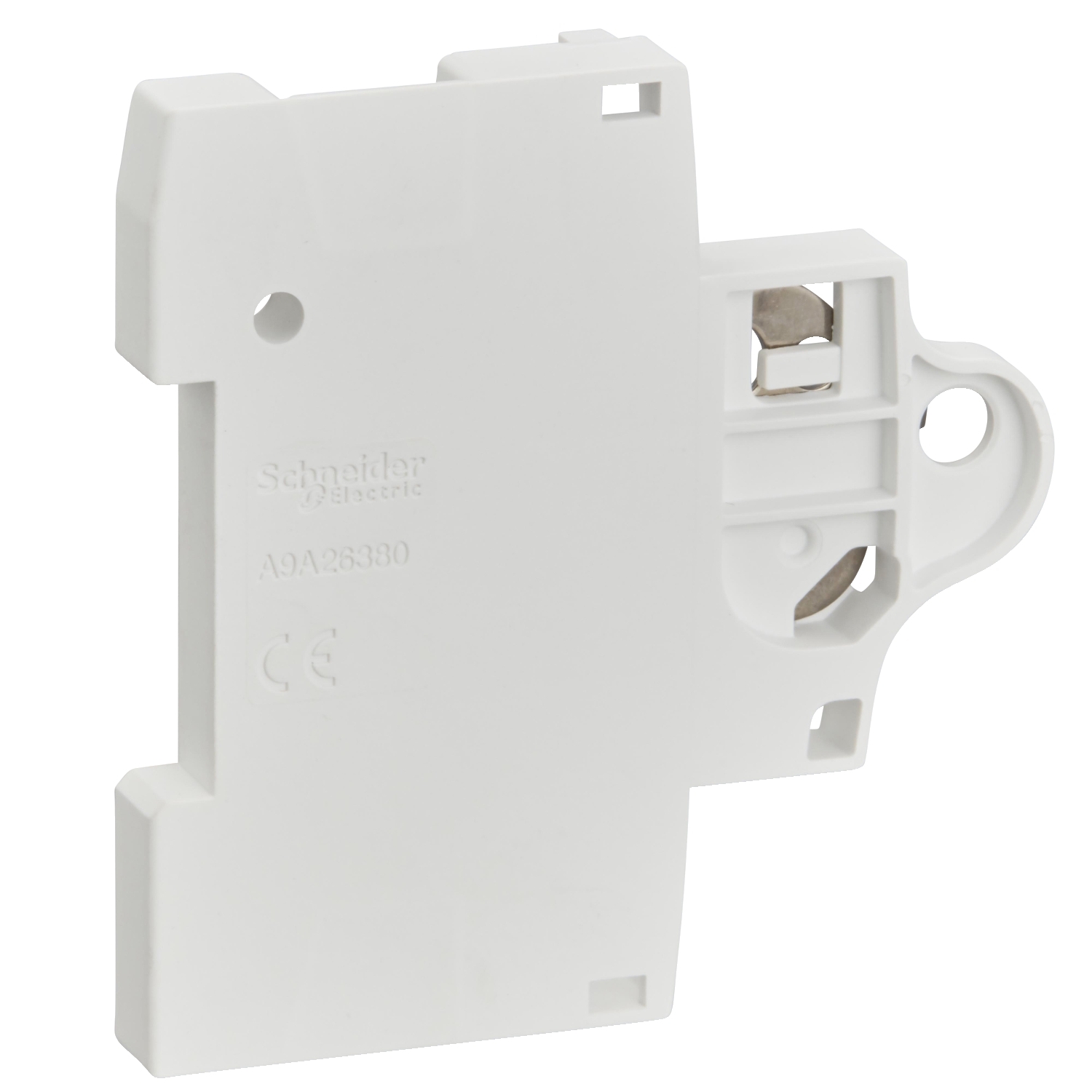

Acti9 - left padlocking device

$42.42
Available for Shipping : 16-Jan-2025
Acti9 - left padlocking device
  • Can be used to padlock a breaker in open position
  • Padlock diameter: 6 mm
  • Attached directly to the circuit breaker, it cannot be lost
Manufacturer: Schneider Electric
This Acti9 locking accessory is a padlocking device for the toggle of the circuit-breaker. It is compatible with Acti9 iC40 and iC60 miniature circuit-breaker, It is also suitable with the iCV40 residual current breaker with overcurrent protection (RCBO) and the iID residual current circuit breaker.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 1
Range Acti9
Product or component type padlocking device
Accessory / separate part category locking accessory
Range of product Acti9
Complementary
Depth 22.2 mm
Key locking position on the left
Market segment industry
Width 85.2 mm
Keylock destination toggle
Net weight 0.034 kg
Range compatibility Acti9 - Acti9 iCV40 XA,  Acti9 - Acti9 iCV40,  Acti9 - Acti9 iID40,  Acti9 - Acti9 iC40 XA,  Acti9 - Acti9 iC40,  Acti 9 - Acti9 iID,  Acti 9 - Acti9 iC60
Locking options description fixed
Height 87.2 mm
Targeted country all
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.22 cm
Package 1 Width 8.52 cm
Package 1 Length 8.72 cm
Package 1 Weight 34.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 2.495 kg
