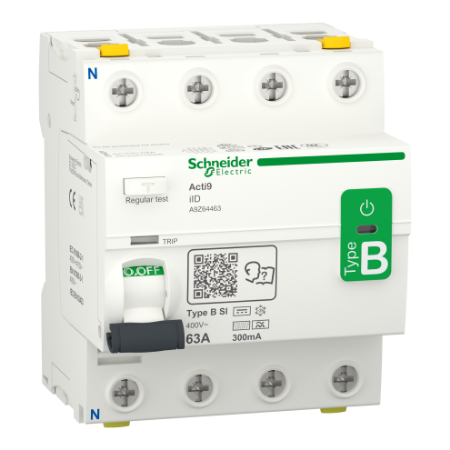

Picture of Residual current circuit breaker (RCCB), Acti9 iID, 4P, 63A, B-SI type, 300mA, double terminal
SKU:

A9Z64463

Residual current circuit breaker (RCCB), Acti9 iID, 4P, 63A, B-SI type, 300mA, double terminal

$895.34
Available for Shipping : 27-Nov-2024
Product Selector
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 63A, B-SI type, 300mA, double terminal
  • Protection of persons against electric shock by indirect contact
  • Suitability for isolation according to IEC 61008-1, IEC 61008-2-1, IEC 62423, IEC 61543 and VDE 0664 standards
  • Protection of installations against the risk of fire
  • Easy to install with unified terminal design and wiring indication
  • Earth fault indication by a red mechanical indicator in front face
  • Compatible with Acti9 captive padlocking device
  • Type B-SI provides increased immunity from electrical interference and polluted or corrosive environments
  • Voltage presence LED
  • Double terminals
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Declaration of conformity
End of life manual
Product environmental
Catalogue
Product Page Link
Product Data Sheet

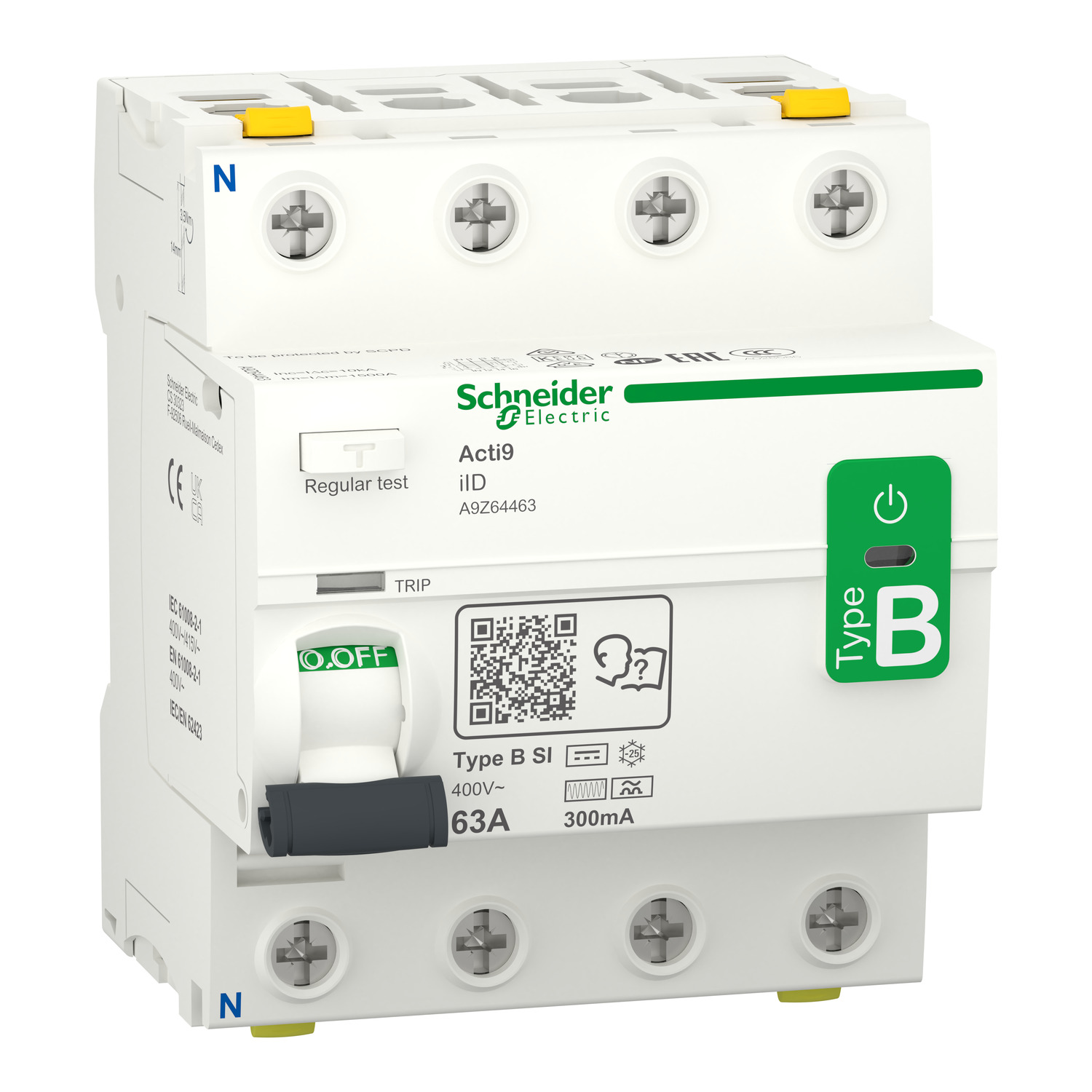

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 63A In rated current, a sensitivity of 300mA with a B-SI type protection class. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with IEC/EN 61008-2-1 and IEC/EN 62423 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The mechanical endurance is going up to 20000 cycles and electrical endurance going up to 15000 cycles. The Ue operational voltage is 400VAC. It is DIN rail mountable. The width in 9mm pitches is 8. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 88mm x (D) 79mm. The weight is 415g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
