SKU:

A9A26897

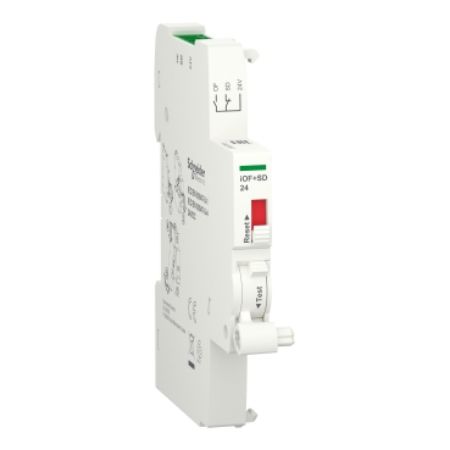

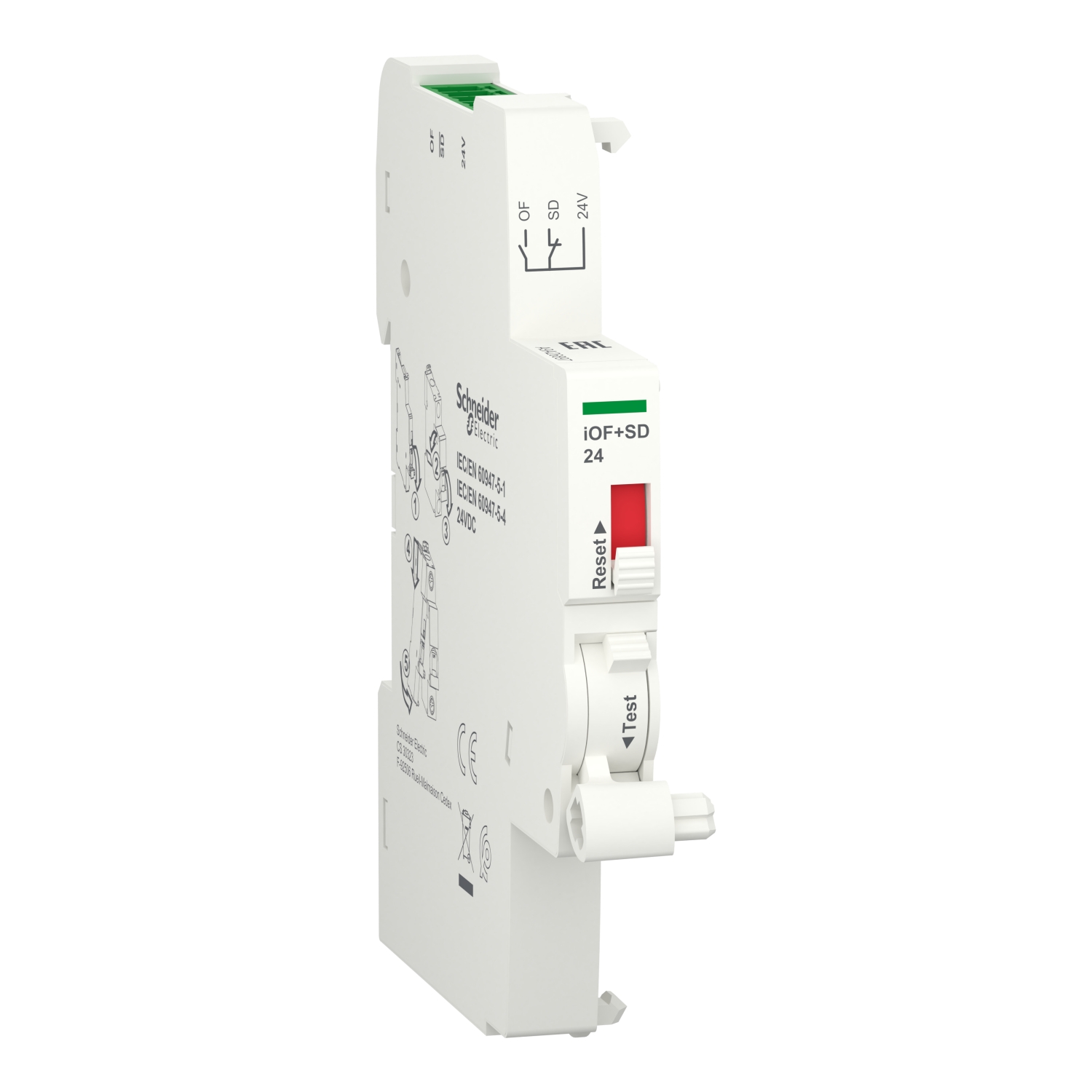

Acti9, Auxiliary contact, Acti9 A9A, iOF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on top (sold separately)

$157.07

Qty:

Available for Shipping : 14-Nov-2024

Acti9, Auxiliary contact, Acti9 A9A, iOF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on top (sold separately)

Can report the signaling information of the associated device to the Acti9 Smartlink

Compatible with Acti9 ranges such as Smartlink Modbus Slave, Smartlink Ethernet, and Smartlink SI B

Also compatible with iC60, iID, iC40, and iSW-NA

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

End of life manual

User guide

Brochure

Catalogue

Declaration of conformity

Product Page Link

Product Data Sheet

This Acti9 iOF+SD24 electrical auxiliary is a double open/close and fault indicating contact. It is dedicated to iC60, iC40, iCV40, iID, iID40, iDPN Vigi, iSW-NA, iC60 & iID double terminals. The 2 contacts 1 NO + 1NC can report the signalling information of the associated device to the Acti9 Smartlink. It reports also the electrical fault, actuation of the tripping auxiliary, Open or Closed position of the associated device informations to a programmable logic controller. The width in 9mm pitches is 1. It is compatible with downstream com busbar. Remote indication of position and tripping upon a fault of the associated device. The In rated operational current is from 2mA (mini) up to 100mA (maxi) depending on the rated voltage. The Ue rated operational voltage is 240VDC. The operating temperature is -25°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name	Attribute value
Main
Device short name	iOF+SD 24
Device application	for Smartlink interface
Range	Acti9
Range of product	iDPN Vigi, iSW-NA, iC60, RCA, iID, ARA
[In] rated current	DC-12 2-100 mA at 24 V, DC +/- 20 %
Signal contacts composition	1 NO + 1 NC
Product or component type	OC and fault contact
9 mm pitches	1
Complementary
Product compatibility	ARA, double terminal, RCA, iC60, Ti24, iSW-NA, iID, iDPN Vigi
Colour	white
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60664-1
Compatibility code	iOF+SD 24
Electrical durability	20000 cycles conforming to IEC 60947-5-4
Mounting mode	clip-on
Wire stripping length	10 mm
Comb busbar and distribution block compatibility	bottom: YES
Height	88 mm
Depth	73.5 mm
Market segment	residential, small commercial
Width	9 mm
Local signalling	mechanical indicator
[Ui] rated insulation voltage	500 V conforming to IEC 60664-1
Net weight	25 g
Connections - terminals	spring-loaded terminal Ti24 (top) 2 cable(s) 0.5-1.5 mm² - rigid, spring-loaded terminal Ti24 (top) 2 cable(s) 0.5-1.5 mm² - flexible
Range compatibility	Acti 9 Acti9 iC40, Acti 9 connectors Ti24, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 ARA, Acti 9 Acti9 iID, Acti 9 Acti9 iC60 RCBO, Acti 9 Acti9 iC65, Acti 9 Acti9 iC60, Acti 9 Acti9 iSW-NA
Mounting support	DIN rail
Environment
Relative humidity	93-93 % at 40-40 °C
Ambient air temperature for storage	-40-85 °C
Pollution degree	2 conforming to IEC 60664-1
Tropicalisation	2 conforming to IEC 60947-5-1
Ambient air temperature for operation	-25-70 °C
Overvoltage category	III
Quality labels	CE
Standards	IEC 60947-5-1, IEC 60947-5-4
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	2.2 cm
Package 1 Width	8.0 cm
Package 1 Length	9.2 cm
Package 1 Weight	39.0 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8.3 cm
Package 2 Width	9.8 cm
Package 2 Length	27.0 cm
Package 2 Weight	550.0 g
Unit Type of Package 3	3
Number of Units in Package 3	120
Package 3 Height	30.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	5.987 kg
