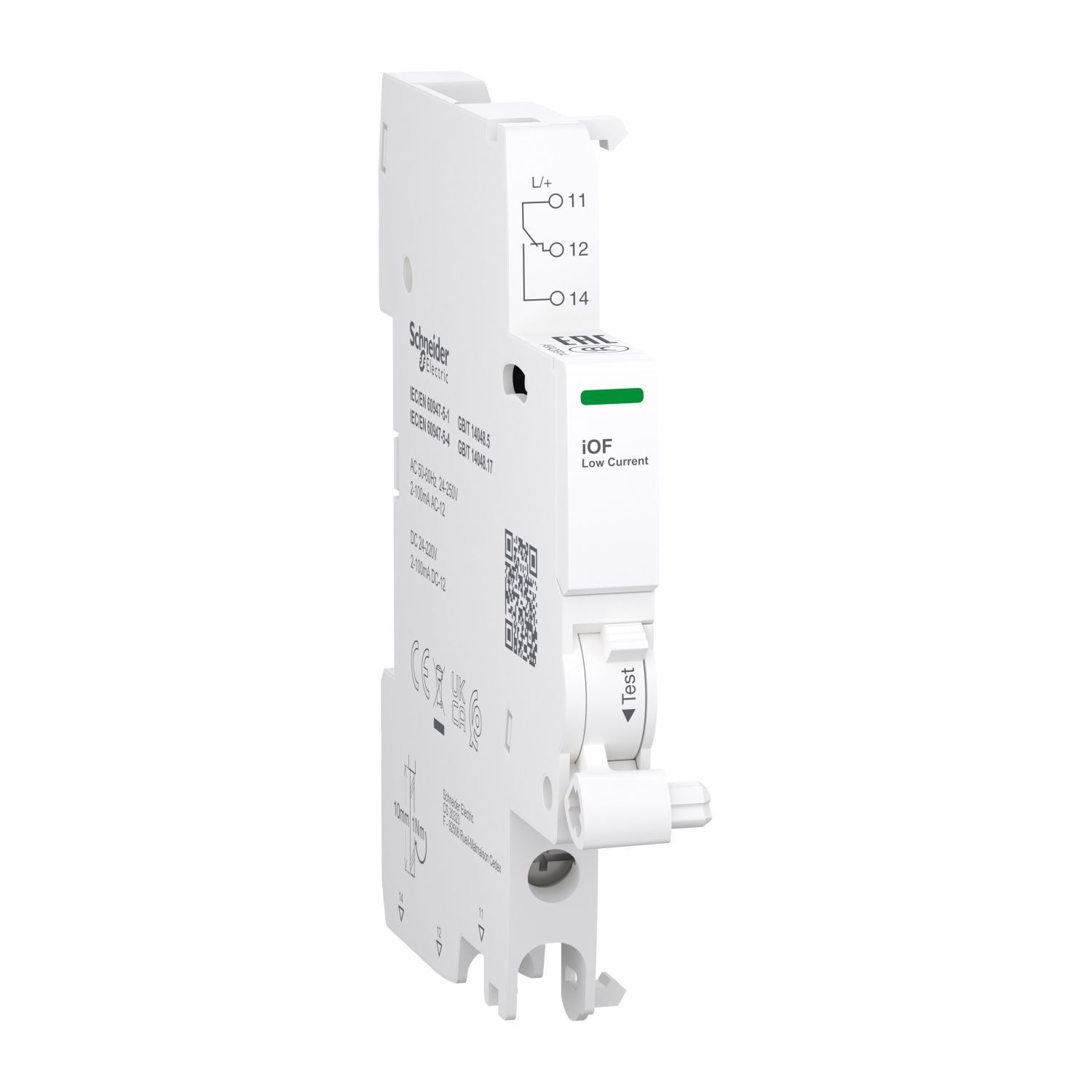

Picture of Auxiliary contact, Acti9 A9A, iOF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection
SKU:

A9A26914

Auxiliary contact, Acti9 A9A, iOF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection

$47.95
Available for Shipping : 14-Nov-2024
Product Selector
Auxiliary contact, Acti9 A9A, iOF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection
  • Can report the signaling to an Open/Closed Devices status
  • Compatible with PLC network when I/O module needs a current from 2mA up to 100mA
  • Compatible with iC60, iID, iC40, and iSW-NA
  • To be fixed with clips directly on the left of the MCB
  • Monitoring up to 100 protective devices (permanently close) under daisy chain
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Product environmental
Brochure
Product Page Link
Product Data Sheet
This Acti9 electrical auxiliary is a modular OC contact used as remote indication ot the position of the associated device. The rated current (In) is from 2mA to 100mA with operating frequency of 50Hz to 60Hz at 24VAC to 250VAC, and from 2mA to 100mA at 24VDC to 220VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial, buildings, critical buildings, healthcare, industry, data center and infrastructures. This OC contact is compatible with Acti9 ranges such as iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC40, iC40 ARC, iCV40, iCV40 Vigi ARC, iC40 XA, iCV40 XA, iC60 RCBO and iKQE RCBO. This OC contact is compatible with Acti9 ranges such as Acti9 iDT40, iDT40 XA and iDD40. The iOF is either used for device short name or compatibility code. It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm² to 4mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm². The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standards. This product is certified with CE and UKCA standards.

Products specifications

Attribute name Attribute value
Main
Device short name iOF
Range Acti9
[In] rated current 2-100 mA at 220 V, DC,  2-100 mA at 130 V, DC,  2-100 mA at 60 V, DC,  2-100 mA at 48 V, DC,  2-100 mA at 24 V, DC,  2-100 mA at 24...240 V, AC 50/60 Hz
Signal contacts composition 1 C/O
Product or component type OC contact
9 mm pitches 1
Complementary
Product compatibility single terminal
Tightening torque 1-1 N.m bottom
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code iOF
Mounting mode clip-on
Wire stripping length 10 mm
Comb busbar and distribution block compatibility top: YES
Height 86 mm
Depth 73 mm
Market segment infrastructures, data center, industry, healthcare, buildings, critical buildings, small commercial
Width 9 mm
[Ui] rated insulation voltage 500 V
Mounting location left side of circuit-breaker
Net weight 32 g
Connections - terminals screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) 2 cable(s) 2.5-2.5 mm² - rigid, screw clamp terminal (bottom) 1 cable(s) 0.5-2.5 mm² - flexible, screw clamp terminal (bottom) 1 cable(s) 1-4 mm² - rigid
Operating mode daisy chain up to 100 devices
Range compatibility Acti9 Acti9 iC40, Acti9 Acti9 iSW, Acti9 Acti9 iDPN Vigi, Acti9 Acti9 RCA, Acti9 Acti9 ARA, Acti9 Acti9 iID, Acti9 Acti9 iC60 RCBO, Acti9 Acti9 iC60, Acti9 Acti9 iSW-NA
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -25-70 °C
Quality labels CCC, EAC
Standards GB/T 14048.17, GB/T 14048.5, EN/IEC 60947-5-4, EN/IEC 60947-5-1
Product certifications UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.100 cm
Package 1 Width 8.000 cm
Package 1 Length 9.300 cm
Package 1 Weight 40.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 557.000 g
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.293 kg
Unit Type of Package 4 4
Number of Units in Package 4 960
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 59.000 kg
