A9A26898

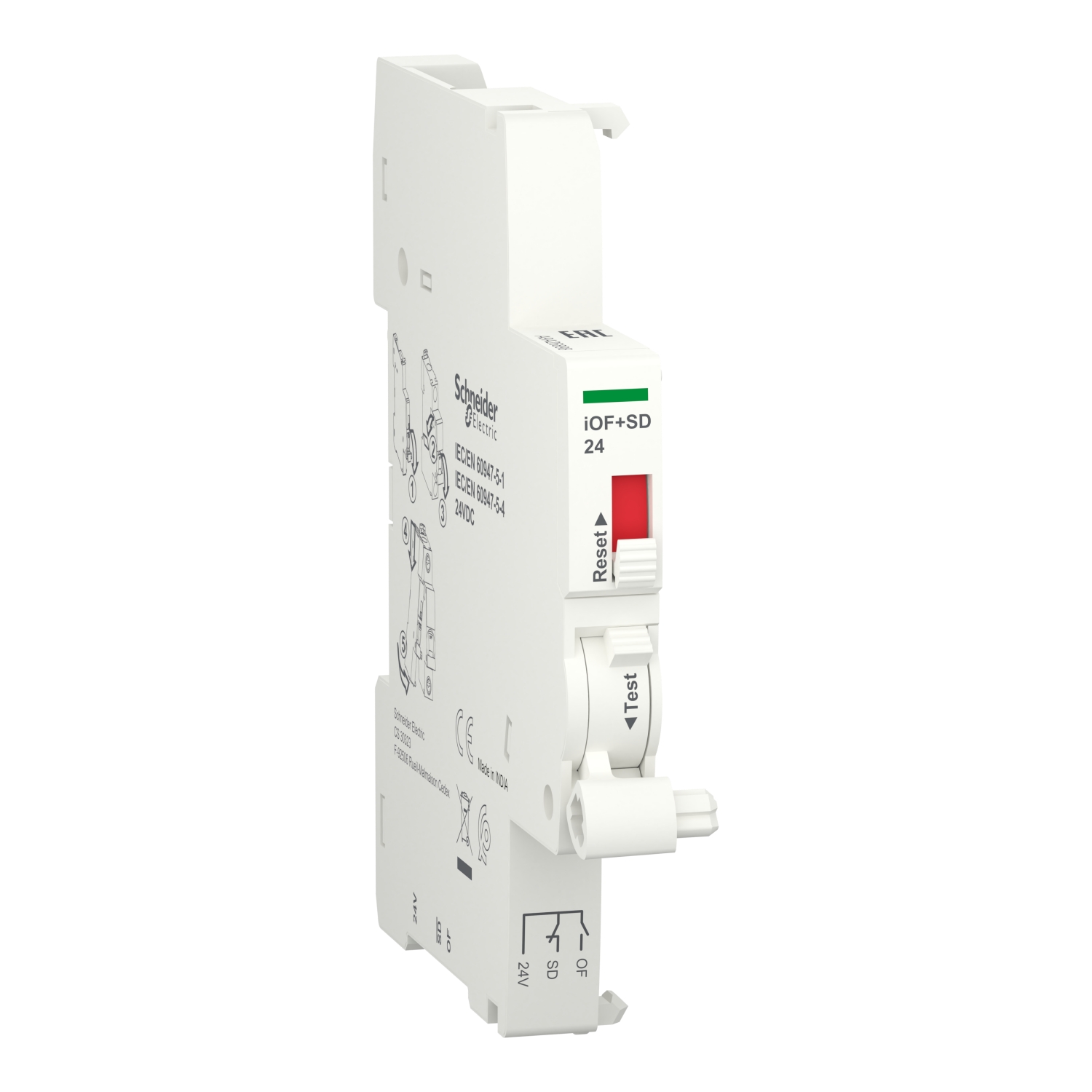

Auxiliary contact, Acti9 A9A, iOF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on bottom (sold separately)

$99.08

Qty:

Auxiliary contact, Acti9 A9A, iOF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on bottom (sold separately)

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Product environmental

End of life manual

Brochure

Declaration of conformity

Product Page Link

Product Data Sheet

This Acti9 iOF SD electrical auxiliary is an open/close and fault indicating contact. It is dedicated to iC60, iC40, iCV40, iID, iID40, iDPN Vigi, iSW-NA, iC60 & iID double terminals. The 2 contacts 1 NO + 1NC can report the signalling information of the associated device to the Acti9 Smartlink. It reports also the electrical fault, actuation of the tripping auxiliary, Open or Closed position of the associated device informations to a programmable logic controller. It is compatible with downstream comb busbar. Remote indication of position and tripping upon a fault of the associated device. The Ui rated insulation voltage is 500VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 85mm x (D) 73.5mm. Product weight is 25g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25°C to +70°C. The storage temperature is -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standard.

Products specifications

Attribute name	Attribute value
Main
Device short name	iOF+SD 24
Device application	for Smartlink interface
Range	Acti9
Range of product	iSW-NA, ARA, RCA, iID, iC60, iDPN Vigi
[In] rated current	DC-12 2-100 mA at 24 V, DC +/- 20 %
Signal contacts composition	1 NO + 1 NC
Product or component type	OC and fault contact
9 mm pitches	1
Complementary
Product compatibility	ARA, Ti24, iDPN Vigi, iID, RCA, iSW-NA, iC60, single terminal
Colour	white
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60664-1
Compatibility code	iOF+SD 24
Electrical durability	20000 cycles conforming to IEC 60947-5-4
Mounting mode	clip-on
Wire stripping length	10 mm
Comb busbar and distribution block compatibility	top: YES
Height	85 mm
Depth	73.5 mm
Market segment	small commercial, residential
Width	9 mm
Local signalling	mechanical indicator
[Ui] rated insulation voltage	500 V conforming to IEC 60664-1
Net weight	25 g
Connections - terminals	spring-loaded terminal Ti24 (bottom) 2 cable(s) 0.5-1.5 mm² - rigid, spring-loaded terminal Ti24 (bottom) 2 cable(s) 0.5-1.5 mm² - flexible
Range compatibility	Acti 9 Acti9 iC40, Acti 9 connectors Ti24, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 RCA, Acti 9 Acti9 ARA, Acti 9 Acti9 iID, Acti 9 Acti9 iC60 RCBO, Acti 9 Acti9 iC65, Acti 9 Acti9 iC60, Acti 9 Acti9 iSW-NA
Mounting support	DIN rail
Environment
Relative humidity	93-93 % at 40-40 °C
Ambient air temperature for storage	-40-85 °C
Pollution degree	2 conforming to IEC 60664-1
Tropicalisation	2 conforming to IEC 60947-5-1
Ambient air temperature for operation	-25-70 °C
Overvoltage category	III
Quality labels	CE
Standards	IEC 60947-5-1, IEC 60947-5-4
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	2 cm
Package 1 Length	10 cm
Package 1 Weight	39 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8.5 cm
Package 2 Width	9.7 cm
Package 2 Length	26.3 cm
Package 2 Weight	550 g
Unit Type of Package 3	3
Number of Units in Package 3	132
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	5.616 kg
Unit Type of Package 4	4
Number of Units in Package 4	1056
Package 4 Height	20 cm
Package 4 Width	60 cm
Package 4 Length	80 cm
Package 4 Weight	49.69 kg
