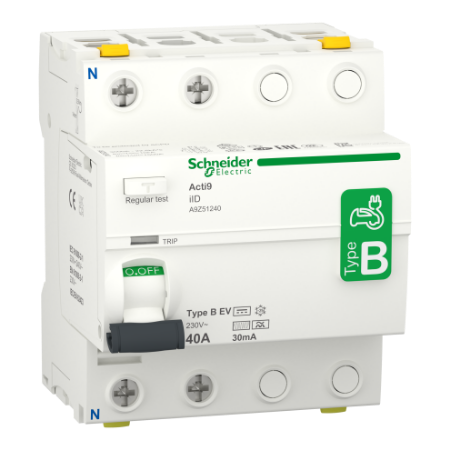

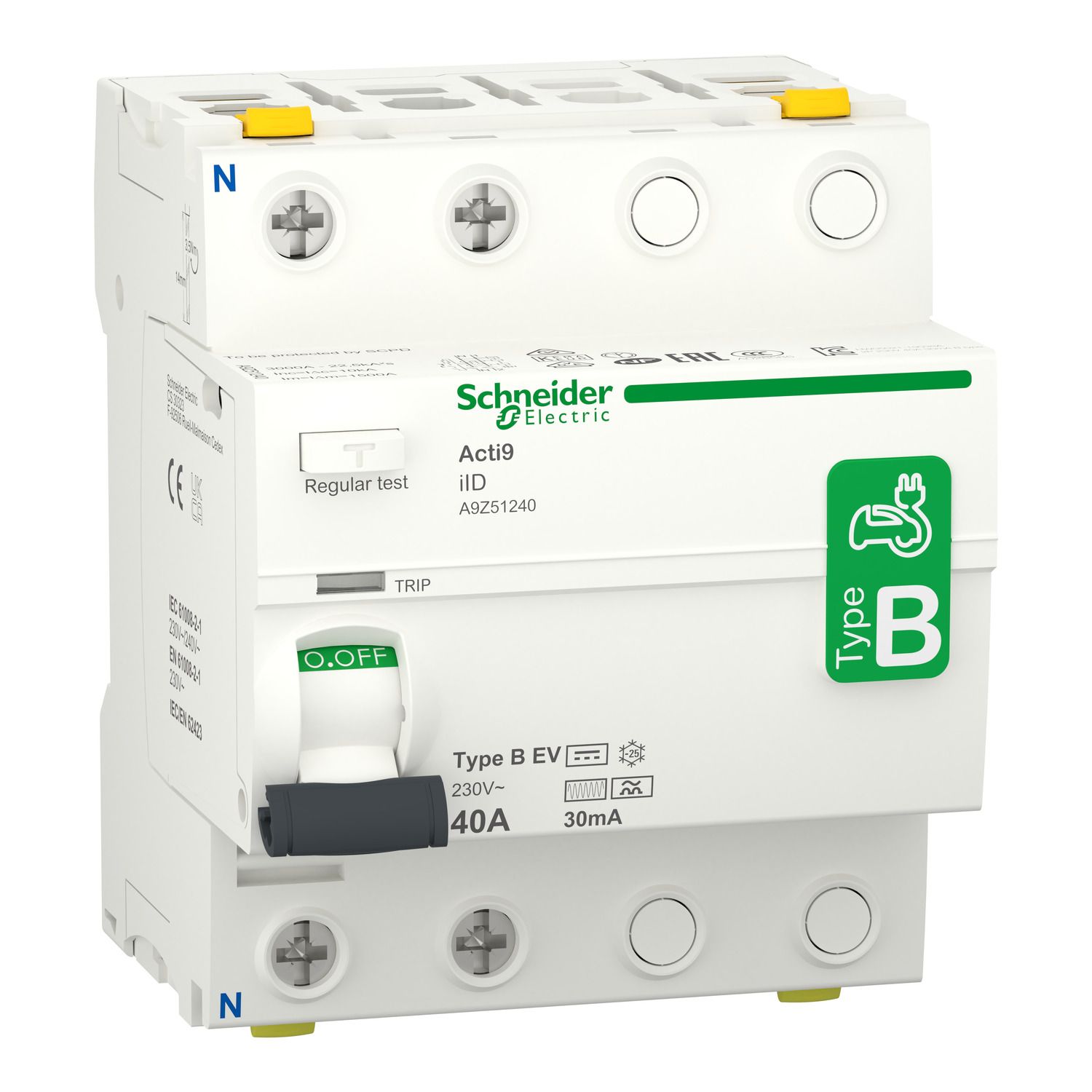

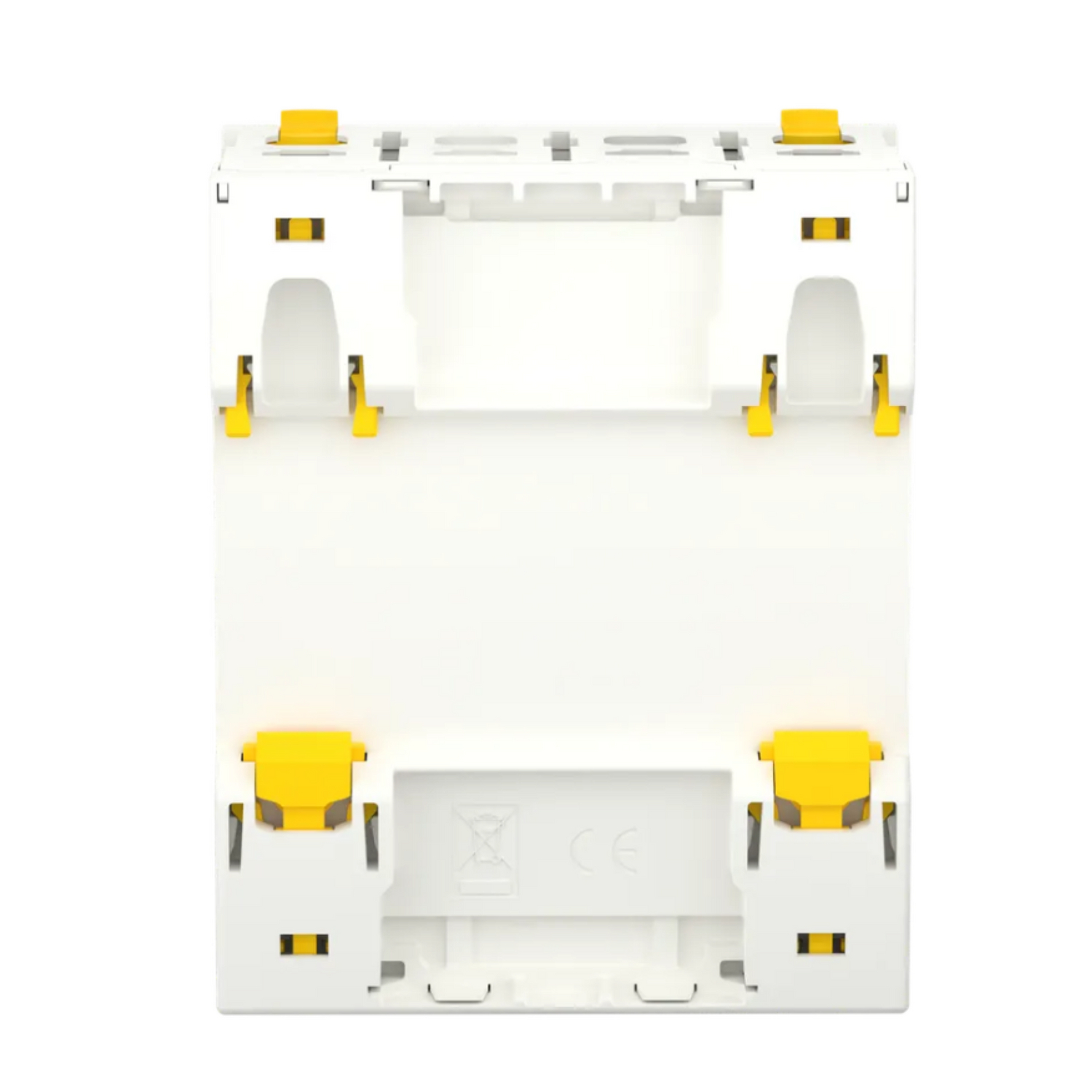

Acti9 iID - Residual Current Circuit Breaker - 2P - 40A - 30mA - B type

$453.20

Qty:

Product Selector

Acti9 iID - Residual Current Circuit Breaker - 2P - 40A - 30mA - B type

Protection of persons against electric shock by direct contact

Suitability for isolation according to IEC 61008-1, IEC 61008-2-1, IEC 62423, IEC 61543 and VDE 0664 standards

Easy to install with unified terminal design and wiring indication

Earth fault indication by a red mechanical indicator in front face

Compatible with Acti9 captive padlocking device

Double terminals

Protection for EV charging station

Compliant with global RoHS/Reach regulation to protect your family and environment

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Instruction sheet

User guide

Declaration of conformity

End of life manual

Product environmental

Product Page Link

Product Data Sheet

This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB) for Electrical Vehicle charger, Photovoltaic system, Variable Speed Drives, Elevator, Crane, etc. It is a 2P circuit breaker with In rated current of 40A, B type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with IEC/EN 61008-2-1, AS/NZS 61008-1 and IEC/EN 62423 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 15000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 230/240VAC. It is DIN rail mountable. The width in 9mm pitches is 8. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 88mm x (D) 79mm. The weight is 350g. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Products specifications

Attribute name	Attribute value
Main
Device short name	iID
Device application	Electrical Vehicle charger
Range	Acti9
Earth-leakage protection class	type B-EV (Electric Vehicle)
Neutral position	left
Poles description	2P
Quality labels	KEMA, IMQ, NF, VDE
Earth-leakage protection time delay	instantaneous
Product name	Acti9 iID
Product or component type	residual current circuit breaker (RCCB)
Earth-leakage sensitivity	30 mA
Network type	AC
[In] rated current	40 A
Complementary
Tightening torque	3.5-3.5 N.m top or bottom
Colour	white
[Uimp] rated impulse withstand voltage	6 kV
Connection pitch	18 mm
Mechanical durability	20000 cycles
Rated breaking and making capacity	Im 1500 A, Idm 1500 A
Power losses per pole	1.8 W
Electrical durability	15000 cycles
Mounting mode	clip-on
Residual current tripping technology	voltage independent
Control type	toggle
Wire stripping length	14 mm for top or bottom connection
Comb busbar and distribution block compatibility	top or bottom: tooth
Connections - terminals	double terminal back 1-16 mm² flexible with ferrule, double terminal back 1-16 mm² flexible, double terminal back 1-25 mm² rigid, double terminal front 1-25 mm² flexible with ferrule, double terminal front 1-25 mm² flexible, double terminal front 1-35 mm² rigid

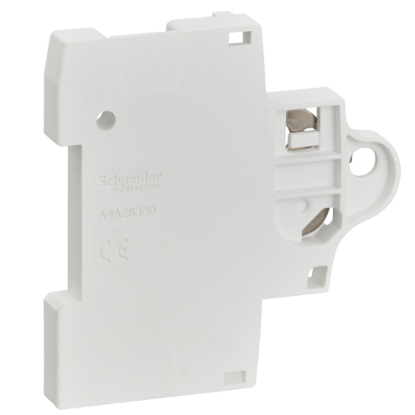

Locking options description	padlocking device
Height	88 mm
[Ue] rated operational voltage	230 V AC 50 Hz
Rated conditional short-circuit current	10 kA
Depth	79 mm
Width	72 mm
Local signalling	ON/OFF indication, trip indicator
[Ui] rated insulation voltage	250 V
Net weight	350 g
9 mm pitches	8
Device location in system	group incomer, outgoer
Mounting support	DIN rail
Contact position indicator	yes
Total power losses	3.6 W
Network frequency	50 Hz
Environment
Ambient air temperature for storage	-40-85 °C
Pollution degree	3
IP degree of protection	IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Electromagnetic compatibility	8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1
Product certifications	KC, CCC
Standards	EN 61008-2-1, IEC/EN 62423, IEC 61008-2-1
Ambient air temperature for operation	-25-60 °C
IK degree of protection	IK05
Operating altitude	0...2000 m
Overvoltage category	IV
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	7.5 cm
Package 1 Width	8.5 cm
Package 1 Length	10.0 cm
Package 1 Weight	361.0 g
Unit Type of Package 2	2
Number of Units in Package 2	27
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	10.227 kg
