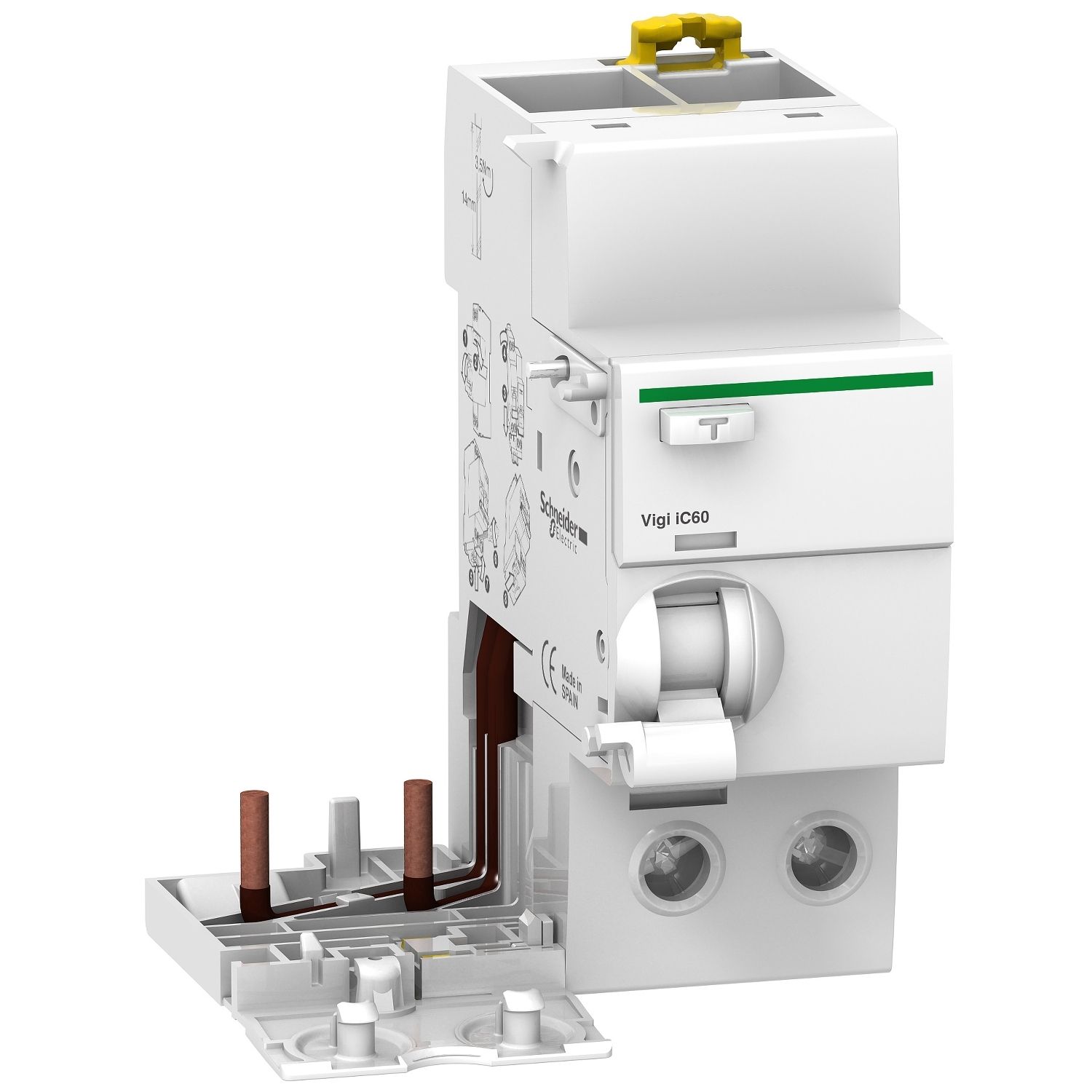

Picture of Acti9, Vigi iC60 - earth leakage add-on block - 2P - 63A - 30mA - A type
SKU:

A9V51263

Acti9, Vigi iC60 - earth leakage add-on block - 2P - 63A - 30mA - A type

$247.70
Available for Shipping : 17-Nov-2024
Acti9, Vigi iC60 - earth leakage add-on block - 2P - 63A - 30mA - A type
  • Protection of persons against electric shock by direct contact
  • Suitability for isolation according to IEC 61009-1 and IEC 61009-2-1 standards
  • Easy to install with unified terminal design and wiring indication
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This Acti9 Vigi iC60 is a modular add-on residual current device. It is a 2P, rated current is 63A, operating voltage is 230VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire risks. A VisiTrip window is present to indicate a fault tripping by a red mechanical indicator on the front face. It has to be combined with a iC60 circuit breaker. This product is compliant with IEC 61009-1 and EN 61009-1 standards. The Ue rated operational voltage is 230VAC or 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 165g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute name Attribute value
Main
Device short name Vigi iC60
Range Acti9
Earth-leakage protection class type A
Range of product Reflex iC60, iC60
[Ue] rated operational voltage 230...240 V AC 50/60 Hz conforming to EN/IEC 61009-2-1, 230...240 V AC 50/60 Hz conforming to EN/IEC 61009-1
Poles description 2P
Earth-leakage protection time delay instantaneous
Product or component type add-on residual current devices
9 mm pitches 4
Network type AC
Standards EN/IEC 61009-2-1, EN/IEC 61009-1
[In] rated current 63 A
Network frequency 50/60 Hz
Complementary
Product compatibility single terminal
Tightening torque 3.5-3.5 N.m bottom
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Width 72 mm
Mounting mode clip-on
Residual current tripping technology voltage independent
Electrical connection to mcb by screws
Wire stripping length 14 mm for bottom connection
Comb busbar and distribution block compatibility bottom: YES
Connections - terminals tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible with cable end, tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible without cable end, tunnel type terminal downside for 1 cable(s) 1-35 mm² rigid without cable end
Height 91 mm
Depth 73.5 mm
Market segment small commercial
Local signalling trip indicator
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60947-2
Net weight 0.165 kg
Device location in system outgoer
Range compatibility Acti 9 Acti9 Reflex iC60, Acti 9 Acti9 iC60
Mounting support DIN rail
Environment
Ambient air temperature for storage -40-85 °C
Pollution degree 3 conforming to IEC 60947-2
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Electromagnetic compatibility 8/20 µs impulse withstand, 250 A conforming to IEC 61009-1
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.8 cm
Package 1 Width 8.6 cm
Package 1 Length 11.5 cm
Package 1 Weight 191.0 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.575 kg
