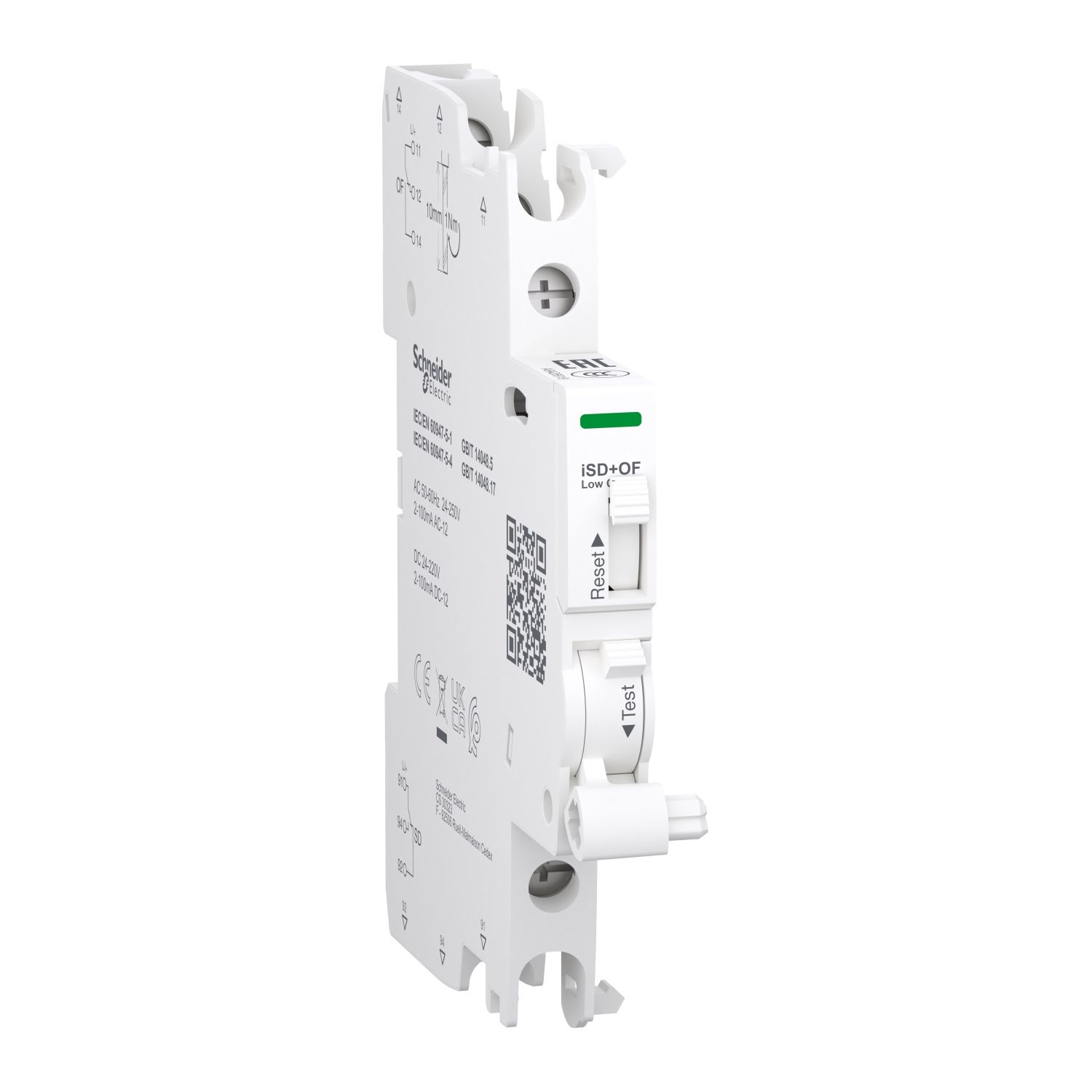

Picture of Auxiliary contact, Acti9 A9A, iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection
SKU:

A9A26919

Auxiliary contact, Acti9 A9A, iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection

$95.89
Available for Shipping : 24-Nov-2024
Auxiliary contact, Acti9 A9A, iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection
  • Can report the signaling to an Open/Closed or an Opening for Default Devices status
  • Compatible with PLC network when I/O module needs a current from 2mA up to 100mA
  • Compatible with iC60, iID, iC40, and iSW-NA
  • To be fixed with clips directly on the left of the MCB
  • Monitoring up to 100 protective devices (permanently close) under daisy chain
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Product environmental
Brochure
Catalogue
Product Page Link
Product Data Sheet
This Acti9 electrical auxiliary is a modular OC and fault contact. The 2 contacts (2 NO/NC) can report the signalling information of the associated device to a programmable logic controller. The rated current (In) is from 2mA to 100mA with operating frequency of 50Hz to 60Hz at 24VAC to 250VAC, and from 2mA to 100mA at 24VDC to 220VDC. It has 2 position switches with contacts type 2 C/O. It is intended for new or renovated installation in small commercial, buildings, critical buildings, healthcare, industry, data center and infrastructures. This OC and fault contact is compatible with Acti9 ranges such as iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC60 and iID double terminals residual current circuit breaker (RCCB). The OC and fault contact is installed for only Acti9 ranges such as iID, iDPN Vigi, iSW-NA, ARA, iC60 and RCA devices which includes 2 changeover contacts. If no comb busbar, also compatible with iC40, iC40 ARC, iCV40, iCV40 Vigi ARC. The iSD+OF is either used for device short name or compatibility code. The mechanical indicator is provided on the product for signalling (Local). It has a screw clamp terminal connection at top and bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm² to 4mm². It has a screw clamp terminal connection at top and bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm² to 2.5mm². It has a screw clamp terminal connection at top and bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm². It has a screw clamp terminal connection at top and bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm². The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 90mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standards. This product is certified with CE and UKCA standards.

Products specifications

Attribute name Attribute value
Main
Device short name iSD+OF
Range Acti9
[In] rated current 2-100 mA at 220 V, DC,  2-100 mA at 130 V, DC,  2-100 mA at 60 V, DC,  2-100 mA at 48 V, DC,  2-100 mA at 24 V, DC,  2-100 mA at 24...240 V, AC 50/60 Hz
Signal contacts composition 2 C/O
Product or component type OC and fault contact
9 mm pitches 1
Complementary
Product compatibility RCA, single terminal, double terminal, iC60, ARA, iSW-NA, iDPN Vigi, iID
Tightening torque 1-1 N.m top or bottom
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code iSD+OF
Mounting mode clip-on
Wire stripping length 10 mm
Comb busbar and distribution block compatibility NO
Height 90 mm
Depth 73 mm
Market segment infrastructures, data center, industry, healthcare, buildings, critical buildings, small commercial
Width 9 mm
Local signalling mechanical indicator
[Ui] rated insulation voltage 500 V
Mounting location left side of circuit-breaker
Net weight 40 g
Connections - terminals screw clamp terminal (top and bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (top and bottom) 2 cable(s) 2.5-2.5 mm² - rigid, screw clamp terminal (top and bottom) 1 cable(s) 0.5-2.5 mm² - flexible, screw clamp terminal (top and bottom) 1 cable(s) 1-4 mm² - rigid
Operating mode daisy chain up to 100 devices
Range compatibility Acti9 Acti9 iC40, Acti9 Acti9 iDPN Vigi, Acti9 Acti9 RCA, Acti9 Acti9 ARA, Acti9 Acti9 iID, Acti9 Acti9 iC60 RCBO, Acti9 Acti9 iC60, Acti9 Acti9 iSW-NA
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -25-70 °C
Quality labels CCC, EAC
Standards GB/T 14048.17, GB/T 14048.5, EN/IEC 60947-5-4, EN/IEC 60947-5-1
Product certifications UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.100 cm
Package 1 Width 8.000 cm
Package 1 Length 9.300 cm
Package 1 Weight 49.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.200 cm
Package 2 Width 10.000 cm
Package 2 Length 26.500 cm
Package 2 Weight 666.000 g
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.418 kg
Unit Type of Package 4 4
Number of Units in Package 4 960
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 67.500 kg

Related products

Picture of Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 16A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 16A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

A9F94116
$64.63
View Detail
Picture of Miniature circuit breaker (MCB), Acti9 iC60L, 2P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

Miniature circuit breaker (MCB), Acti9 iC60L, 2P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

A9F94210
$154.30
View Detail
Picture of Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 10A, C curve, 6000A, A type, 30mA

Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 10A, C curve, 6000A, A type, 30mA

A9D32610
$54.44
View Detail
Picture of Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 30mA

Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 30mA

A9D32616
$54.44
View Detail

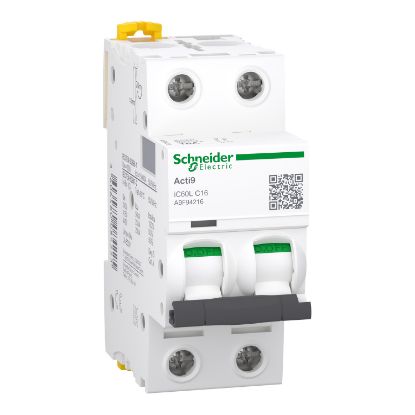

Picture of Miniature circuit breaker (MCB), Acti9 iC60L, 2P, 16A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)
