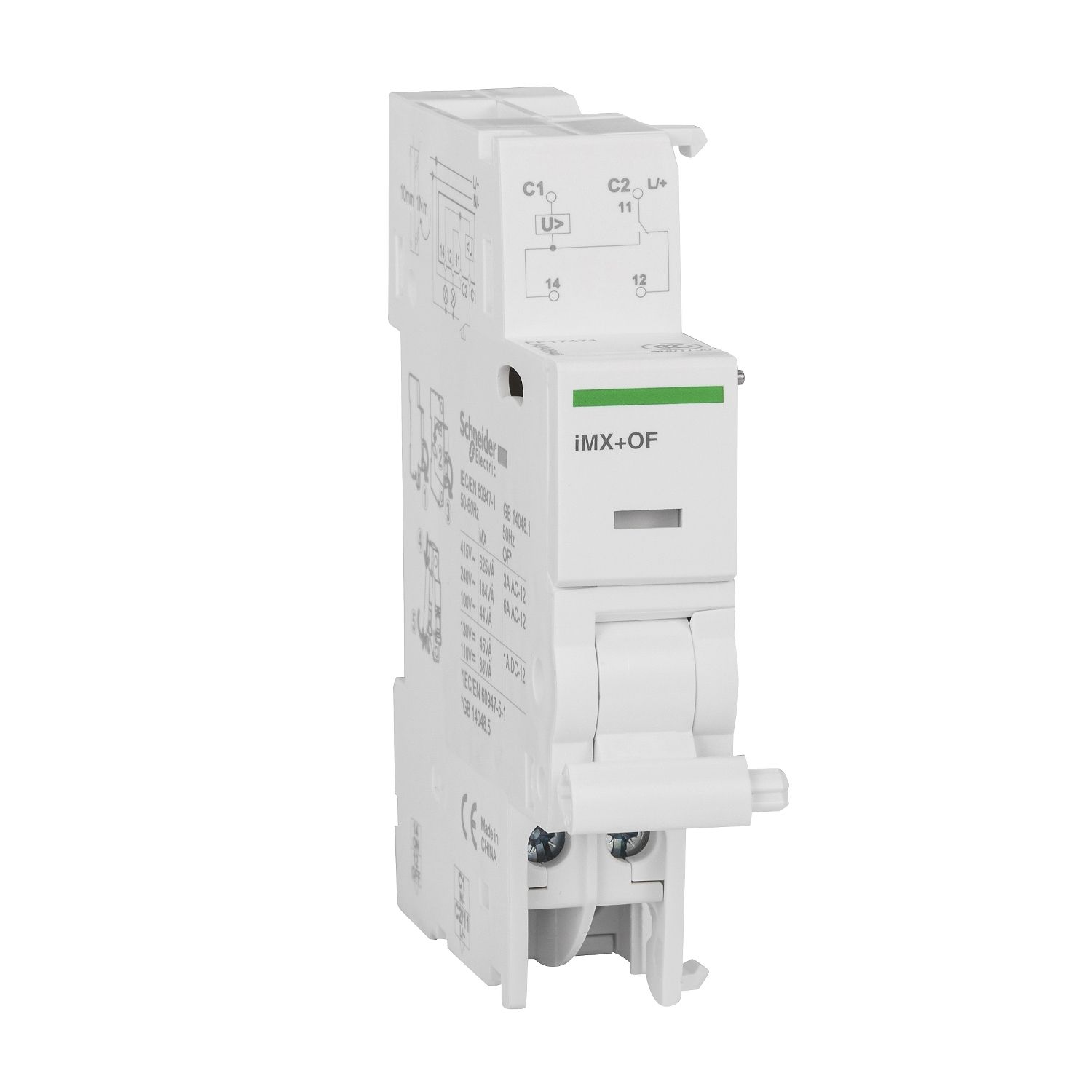

Picture of Acti9, Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 100...415 VAC
SKU:

A9A26946

Acti9, Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 100...415 VAC

$107.66
Available for Shipping : 01-Dec-2024
Product Selector
Acti9, Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 100...415 VAC
  • Trips the associated device when it is powered on
  • Includes an open/close contact (OF) to indicate the open or closed position of the device
  • Remote indication of the position of associated device
  • Compatible with Acti9 devices such as iC60, iID, iC40, and iSW-NA
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. Emergency stoppage by normally open pushbutton. The product trips the associated device when it is powered on by emergency pushbutton. The width in 9mm pitches is 2. The Ue rated operational voltage is 100VAC to 415VAC or 110VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator light, red on the front face. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iMX+OF
Product compatibility double terminal, single terminal, iID, ARA, iDPN Vigi, iC60, RCA, iSW-NA
Signal contacts composition 1 C/O
Range Acti9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product iSW-NA, iDPN Vigi, iID, iC60
[Uc] control circuit voltage 110...130 V DC, 100...415 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code iMX+OF
Mounting mode clip-on
Connections - terminals clamp terminal - 1 cable(s) 4-4 mm² - flexible, clamp terminal - 2 cable(s) 2.5-2.5 mm² - rigid, clamp terminal - 1 cable(s) 6-6 mm² - rigid, clamp terminal - 2 cable(s) 2.5-2.5 mm² - flexible with cable end
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.100 cm
Package 1 Width 8.000 cm
Package 1 Length 9.300 cm
Package 1 Weight 77.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.800 cm
Package 2 Width 10.200 cm
Package 2 Length 27.200 cm
Package 2 Weight 682.000 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.706 kg
