Acti9, Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 48 V AC

$125.65
Available for Shipping : 03-Dec-2024
Product Selector
Acti9, Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 48 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

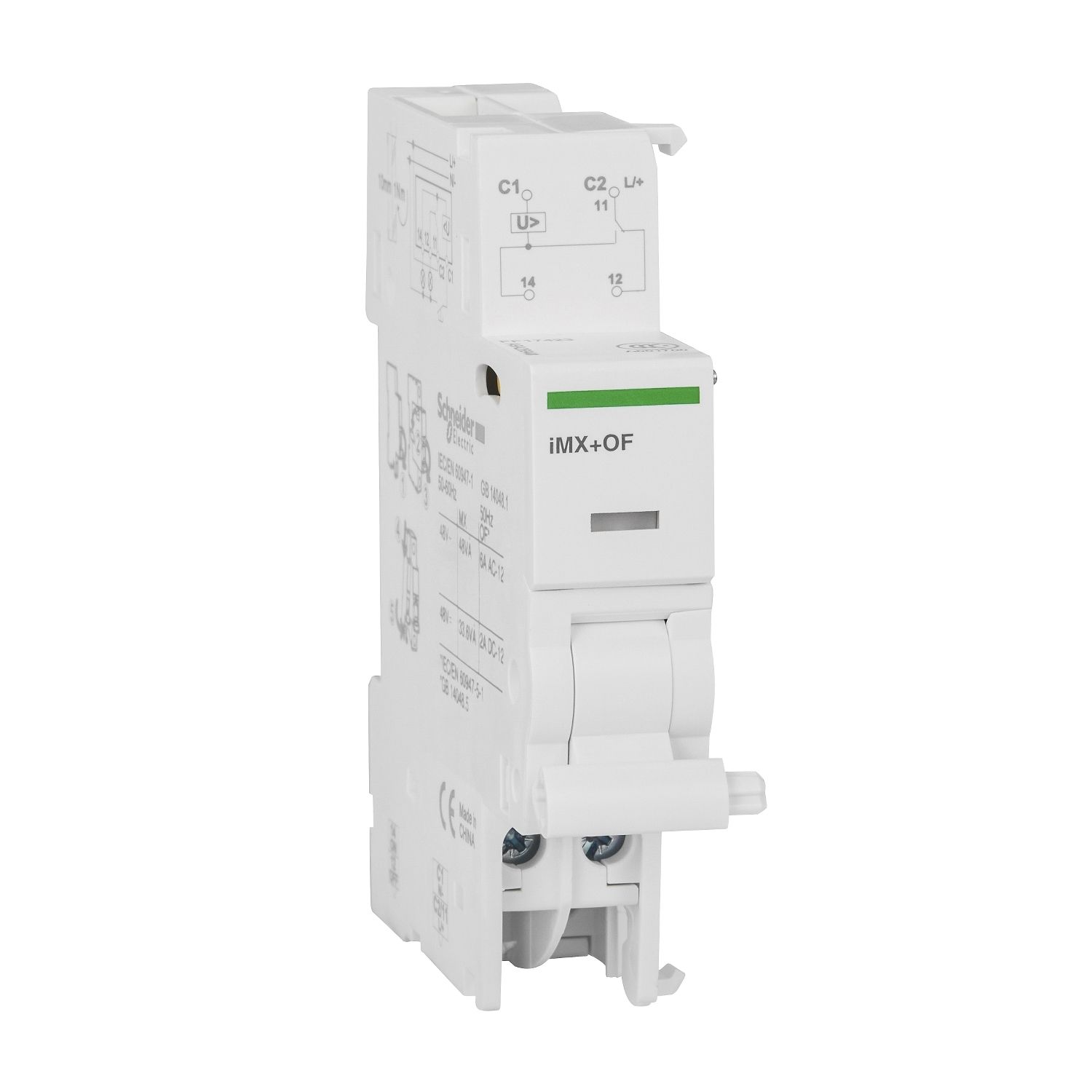

This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 48VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iMX+OF
Product compatibility iDPN Vigi, iSW-NA, ARA, double terminal, iID, single terminal, RCA, iC60
Signal contacts composition 1 C/O
Range Acti9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product iC60, iID, iDPN Vigi, iSW-NA
[Uc] control circuit voltage 48 V DC, 48 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Market segment small commercial, residential
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code iMX+OF
Mounting mode clip-on
Connections - terminals clamp terminal - 2 cable(s) 2.4-2.4 mm² - flexible with cable end, clamp terminal - 1 cable(s) 3-3 mm² - flexible, clamp terminal - 2 cable(s) 2.4-2.4 mm² - rigid, clamp terminal - 1 cable(s) 5-5 mm² - rigid
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 7.900 cm
Package 1 Length 9.300 cm
Package 1 Weight 80.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 26.500 cm
Package 2 Weight 700.000 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.783 kg
