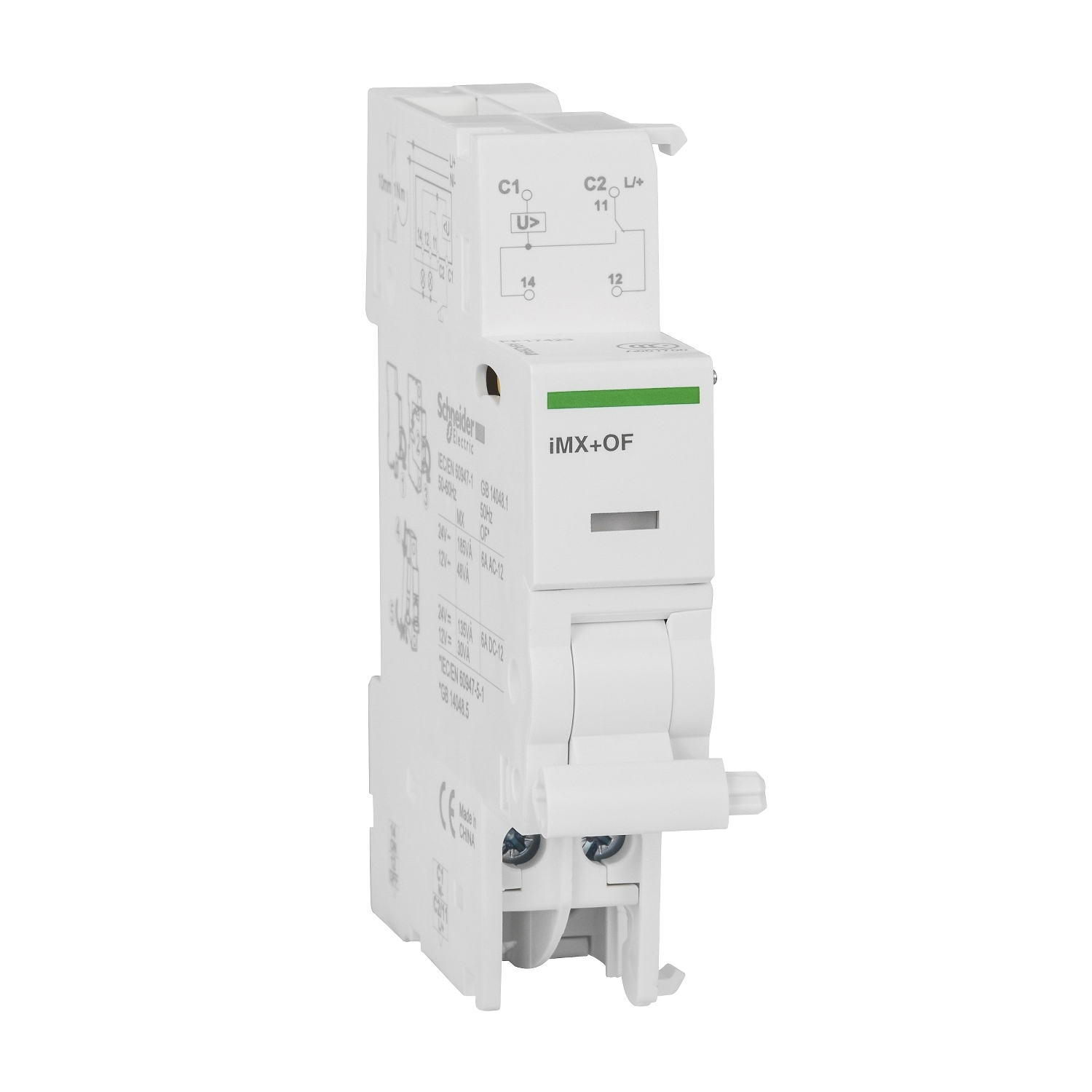

Picture of Acti9, Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 12...24 VAC
SKU:

A9A26948

Acti9, Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 12...24 VAC

$143.23
Available for Shipping : 17-Nov-2024
Product Selector
Acti9, Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 12...24 VAC
  • Trips the associated device when it is powered on
  • Includes an open/close contact (OF) to indicate the open or closed position of the device
  • Remote indication of the position of associated device
  • Compatible with Acti9 devices such as iC60, iID, iC40, and iSW-NA
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This Acti9 iMX+OF electrical auxiliary is a shunt release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the circuit breaker. Emergency stoppage by normally open pushbutton. It provides a remote indication of the position of the associated device. The width in 9mm pitches is 2. The product trips the associated device when it is powered on. The In rated operational current is from 10mA (mini) up to 6A (maxi) under 24VDC, 48VDC, 130VDC, 240VDC, 415VDC. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iMX+OF
Product compatibility iSW-NA, ARA, RCA, iDPN Vigi, double terminal, iC60, iID, single terminal
Signal contacts composition 1 C/O
Range Acti9
Product or component type shunt trip release with OC contact
9 mm pitches 2
Range of product iC60, iDPN Vigi, iID, iSW-NA
[Uc] control circuit voltage 12...24 V DC, 12...24 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Market segment small commercial, residential
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code iMX+OF
Mounting mode clip-on
Connections - terminals clamp terminal - 1 cable(s) 4-4 mm² - flexible, clamp terminal - 2 cable(s) 2.5-2.5 mm² - rigid, clamp terminal - 1 cable(s) 6-6 mm² - rigid, clamp terminal - 2 cable(s) 2.5-2.5 mm² - flexible with cable end
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.7 cm
Package 1 Width 8 cm
Package 1 Length 9.5 cm
Package 1 Weight 82 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.5 cm
Package 2 Width 10 cm
Package 2 Length 26.5 cm
Package 2 Weight 713 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 6.898 kg
