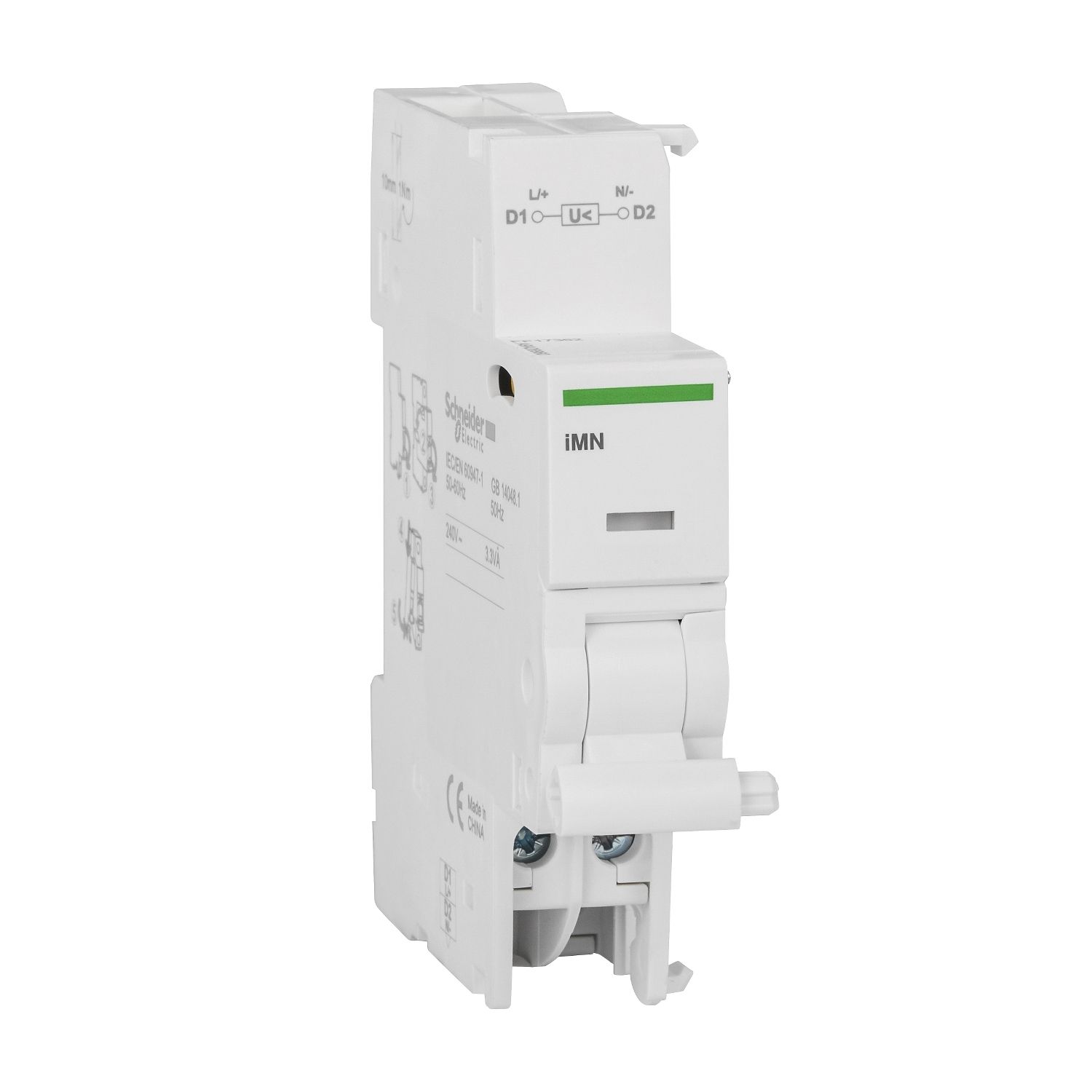

Picture of Acti9, Undervoltage release, Acti9, iMN, voltage release, 220...240 V AC
SKU:

A9A26960

Acti9, Undervoltage release, Acti9, iMN, voltage release, 220...240 V AC

$125.65
Available for Shipping : 17-Nov-2024
Product Selector
Acti9, Undervoltage release, Acti9, iMN, voltage release, 220...240 V AC
  • Trips the device with which it is combined when its input voltage decreases
  • Prevents device closing again until its input voltage is restored
  • Improve the safety of power supply circuits for several machines by preventing uncontrolled restarting
  • Compatible with Acti9 devices such as iC60, iID, iC40, and iSW-NA
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. Emergency stoppage by normally open pushbutton. It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting. The width in 9mm pitches is 2. It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un). The Uc control circuit voltage is 220…240VAC. The Ue rated operational voltage is 200VAC to 240VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iMN
Product compatibility double terminal, iC60, iID, single terminal, RCA, iSW-NA, iDPN Vigi, ARA
Control type standard
Range Acti9
Product or component type undervoltage release
9 mm pitches 2
Range of product iC60, iID, iDPN Vigi, iSW-NA
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code iMN
Mounting mode clip-on
Connections - terminals clamp terminal - 2 cable(s) 2.7-2.7 mm² - flexible with cable end, clamp terminal - 1 cable(s) 6-6 mm² - flexible, clamp terminal - 2 cable(s) 2.7-2.7 mm² - rigid, clamp terminal - 1 cable(s) 8-8 mm² - rigid
Comb busbar and distribution block compatibility top and bottom: YES
Range compatibility Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 8 cm
Package 1 Length 9.5 cm
Package 1 Weight 81 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.7 cm
Package 2 Width 10 cm
Package 2 Length 26.7 cm
Package 2 Weight 707 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 6.864 kg
