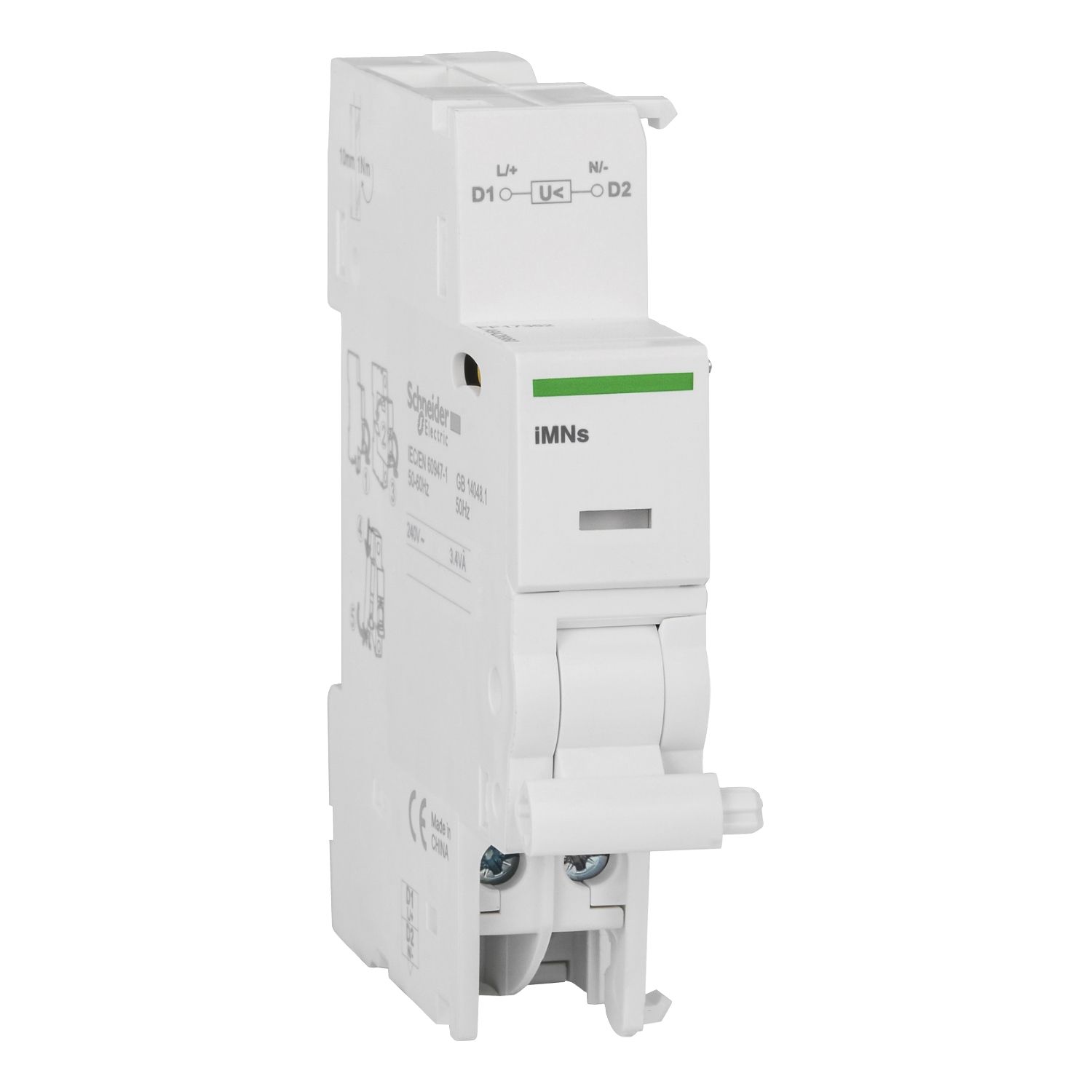

Picture of Acti9, Undervoltage release, Acti9, iMNs, voltage release, 220...240 V AC
SKU:

A9A26963

Acti9, Undervoltage release, Acti9, iMNs, voltage release, 220...240 V AC

$125.65
Available for Shipping : 11-Dec-2024
Product Selector
Acti9, Undervoltage release, Acti9, iMNs, voltage release, 220...240 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. The width in 9mm pitches is 2. The Uc control circuit voltage is 220…240VAC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iMNs
Product compatibility RCA, iDPN Vigi, iC60, iSW-NA, iID, single terminal, ARA, double terminal
Control type delayed
Range Acti9
Product or component type undervoltage release
9 mm pitches 2
Range of product iC60, iDPN Vigi, iID, iSW-NA
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code iMNs
Mounting mode clip-on
Connections - terminals clamp terminal - 2 cable(s) 2.9-2.9 mm² - flexible with cable end, clamp terminal - 1 cable(s) 8-8 mm² - flexible, clamp terminal - 2 cable(s) 2.9-2.9 mm² - rigid, clamp terminal - 1 cable(s) 10-10 mm² - rigid
Comb busbar and distribution block compatibility top and bottom: YES
Range compatibility Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 8 cm
Package 1 Length 9.6 cm
Package 1 Weight 80 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 9 cm
Package 2 Width 26.5 cm
Package 2 Length 10 cm
Package 2 Weight 710 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 6.882 kg
