Acti9, Undervoltage release, Acti9, iMNx, voltage release, 220...240 V AC

$125.65 INC GST
Available for Shipping : 23-Jan-2025
Product Selector

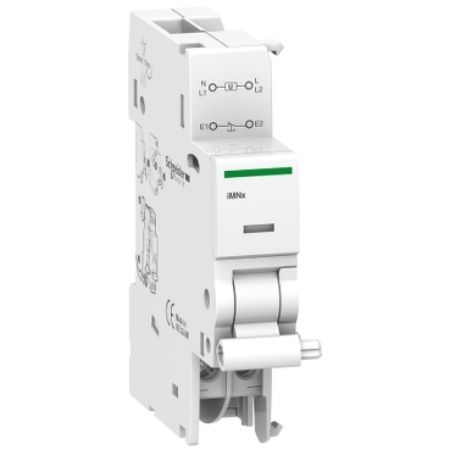

Acti9, Undervoltage release, Acti9, iMNx, voltage release, 220...240 V AC
  • Fastened by clips (without tools) to the left side of the breaker
  • Undervoltage release independant from supply voltage to improve the continuity of service
  • Utilisation in case of emergency stoppage with fail-safe principle
  • Place in security configuration the protected circuit by a locking push-button control
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Catalogue
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iMNx electrical auxiliary is an undervoltage release independent of the supply voltage. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA and iC60, iID double terminals. The width in 9mm pitches is 2. It trips the associated device by opening of the control circuit. A drop in the supply voltage does not trip the associated device. There is a red mechanical indicator on the front face of the product to indicate the tripped position of the associated device. The Ue rated operational voltage is 220VAC to 240VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iMNx
Product compatibility iID, single terminal, iSW-NA, iDPN Vigi, double terminal, RCA, ARA, iC60
Control type with external feeding
Range Acti9
Product or component type undervoltage release
9 mm pitches 2
Range of product iID, iDPN Vigi, iC60, iSW-NA
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code iMNx
Mounting mode clip-on
Connections - terminals clamp terminal - 2 cable(s) 2.1-2.1 mm² - flexible with cable end, clamp terminal - 1 cable(s) 9-9 mm² - flexible, clamp terminal - 2 cable(s) 2.1-2.1 mm² - rigid, clamp terminal - 1 cable(s) 11-11 mm² - rigid
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 8.1 cm
Package 1 Length 9.3 cm
Package 1 Weight 88 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.8 cm
Package 2 Width 10.4 cm
Package 2 Length 26.7 cm
Package 2 Weight 758 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 7.311 kg

Related products

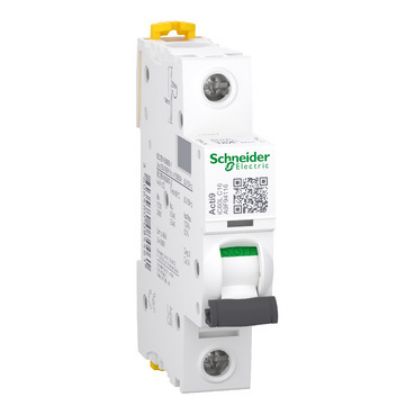

Picture of Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 16A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 16A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

A9F94116
$64.63 INC GST
View Detail
Picture of Miniature circuit breaker (MCB), Acti9 iC60L, 2P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

Miniature circuit breaker (MCB), Acti9 iC60L, 2P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)

A9F94210
$154.30 INC GST
View Detail

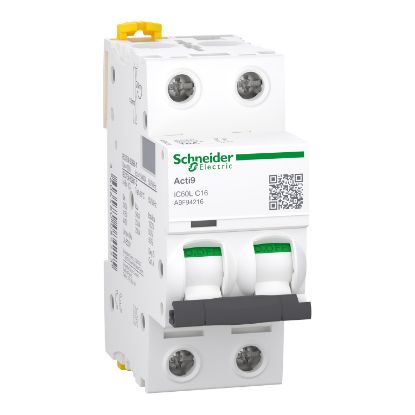

Picture of Miniature circuit breaker (MCB), Acti9 iC60L, 2P, 16A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)
