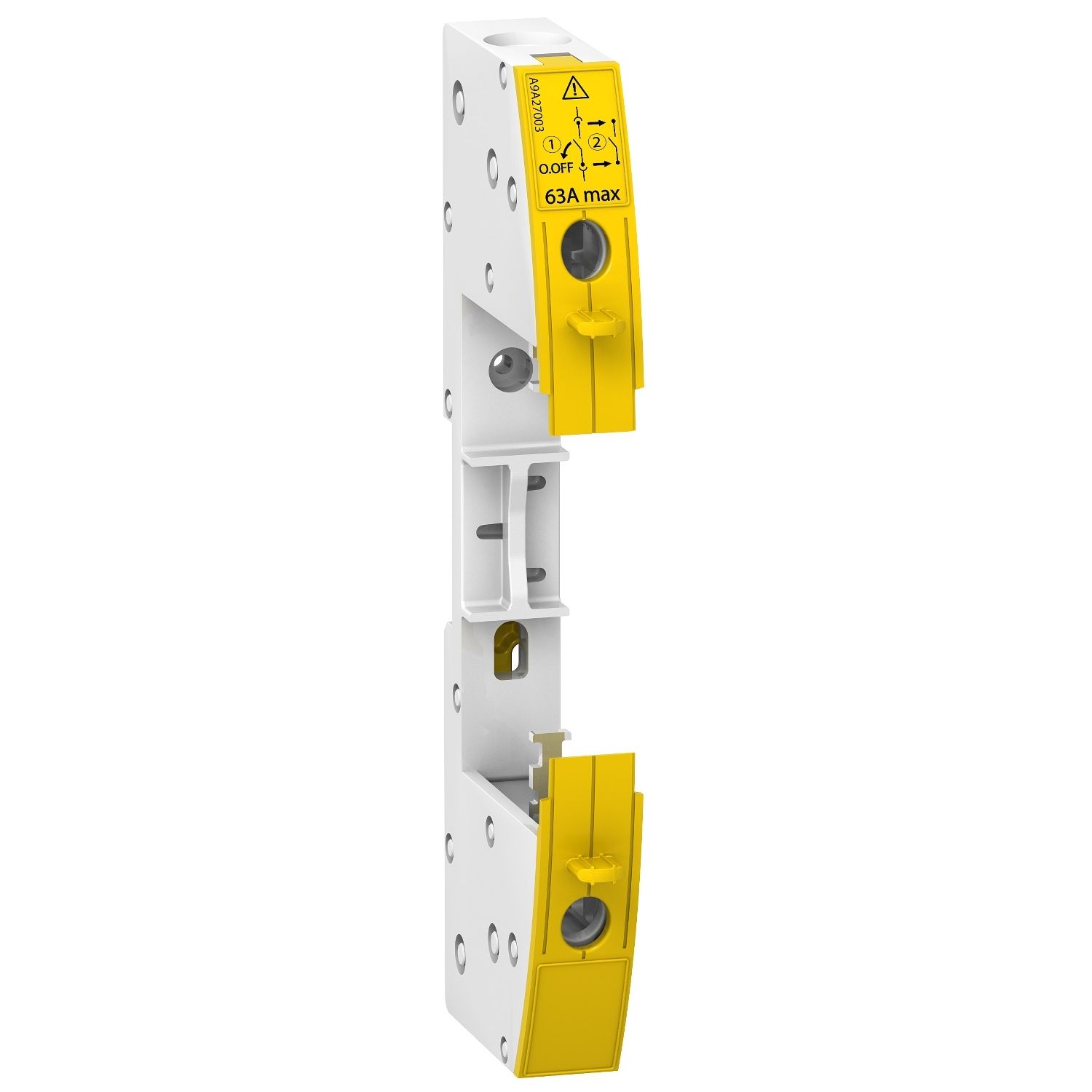

Picture of plug-in base - 1P - 18mm Acti9
SKU:

A9A27003

plug-in base - 1P - 18mm Acti9

$88.70
Available for Shipping : 10-Dec-2024
plug-in base - 1P - 18mm Acti9
  • Allows a breaker to be removed or replaced quickly, without handling the connections
  • Can be installed in universal enclosure or on horizontal rail
  • Can be locked by a padlock, not supplied with the device
  • Compatible with Acti9 devices such as iC60, iID, iC40, iSW-NA, Reflex iC60, RCA, ARA, and iSW
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This Acti9 accessory is a plug in base for modular products. This accessory is compatible the Acti9 products like Acti9 iC60, Acti9 iID, Acti9 iSW and Acti9 iSW-NA. It is dedicated for 1 pole. The dimensions are (W) 19mm x (H) 177mm x (D) 70mm.

Products specifications

Attribute name Attribute value
Main
Device short name plug-in base
Market segment residential, small commercial
Colour white
Product or component type plug-in base
Accessory / separate part category installation accessory
Range of product iSW-NA, iSW 40...125, iC60, iID
Complementary
Depth 70 mm
Width 19 mm
Quantity per set 1
Compatibility code iSW-NA, iSW 40...125, iC60, iID
Poles description 1P
Mounting mode clip-on
Height 177 mm
Environment
IP degree of protection IP20
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 1.9 cm
Package 1 Length 17.8 cm
Package 1 Weight 129 g
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 8.5 cm
Package 2 Width 9.7 cm
Package 2 Length 21.8 cm
Package 2 Weight 430 g
Unit Type of Package 3 3
Number of Units in Package 3 33
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 5.218 kg
Unit Type of Package 4 4
Number of Units in Package 4 264
Package 4 Height 45 cm
Package 4 Width 80 cm
Package 4 Length 120 cm
Package 4 Weight 53.936 kg
