SKU:

A9C15914

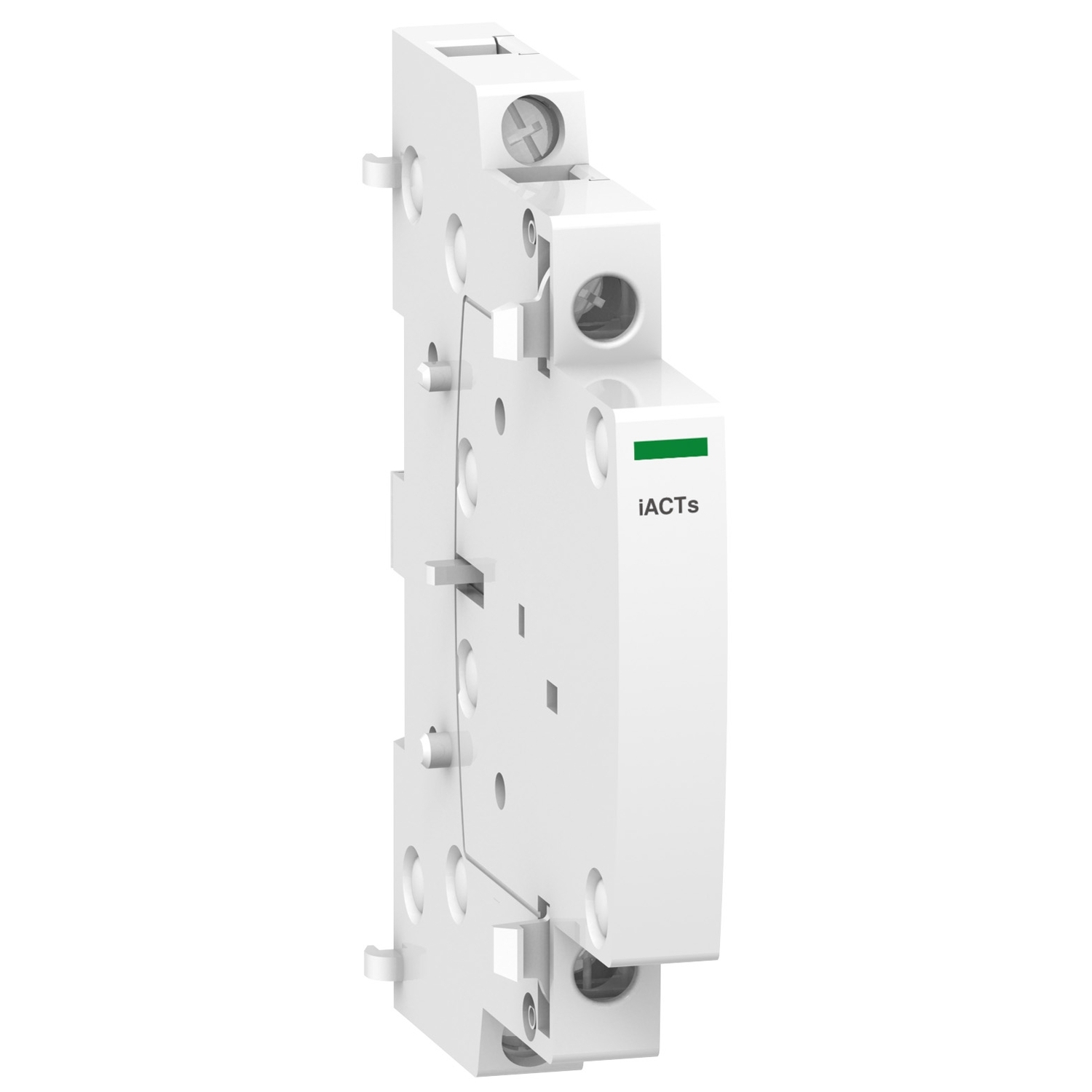

Acti9, Remote indication auxiliary, Acti9 iACTs, 1 NO + 1 NC

$94.38

Qty:

Available for Shipping : 12-Dec-2024

Acti9, Remote indication auxiliary, Acti9 iACTs, 1 NO + 1 NC

Suitable with all Acti9 iCT contactors

DIN rail mountable

Compliant with EN 60947-5 standard

Be the first to review this product

Manufacturer: Schneider Electric

Product Page Link

Product Data Sheet

This Acti9 iACTs is reliable remote indication auxiliary. It has 1 open and close 1 contacts, it operates from 24VAC to 240VAC and 24VDC to 130VDC. Mounting is performed on the right of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is compatible with all Acti9 iCT Contactors. This product helps reporting the status of a contactor and is especially required in a connected environment. This product is compliant with EN 60947-5.

Products specifications

Attribute name	Attribute value
Main
Device short name	iACTs
Signal contacts composition	1 NO + 1 NC
Range	Acti9
Product or component type	remote indication auxiliary
Range of product	iCT
Complementary
Auxiliary connection terminal	tunnel type terminals1 cable(s) flexible 1.5-2.5 mm², tunnel type terminals1 cable(s) rigid 1.5-2.5 mm², tunnel type terminals2 cable(s) rigid 1.5-1.5 mm², tunnel type terminals2 cable(s) flexible 2.5-2.5 mm²
Product compatibility	iCT
Tightening torque	0.8-0.8 N.m
Depth	68 mm
Market segment	residential, small commercial
Width	9 mm
[Uimp] rated impulse withstand voltage	4 kV
Compatibility code	iACTs
Colour	white
Mounting mode	fixed, on the right of CT
[Ui] rated insulation voltage	440 V
Wire stripping length	9 mm
Signalling circuit voltage	130 V DC: 1 A, 230 V AC: 50/60 Hz 2 A, 230 V AC: 50/60 Hz 5 A, 24 V AC/DC: 10 mA
9 mm pitches	1
[Uc] control circuit voltage	24...130 V DC, 24...240 V AC 50/60 Hz
Range compatibility	Acti 9 Acti9 iCT
Mounting support	35 mm symmetrical DIN rail
Height	81 mm
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP20 conforming to IEC 60529, IP20
Tropicalisation	2
Standards	EN 60947-5
Ambient air temperature for operation	-5-50 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	2.2 cm
Package 1 Width	7.5 cm
Package 1 Length	8.5 cm
Package 1 Weight	43.0 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	8.1 cm
Package 2 Width	9.3 cm
Package 2 Length	22.8 cm
Package 2 Weight	490.0 g
Unit Type of Package 3	3
Number of Units in Package 3	120
Package 3 Height	30.0 cm
Package 3 Width	30.0 cm
Package 3 Length	40.0 cm
Package 3 Weight	6.36 kg
