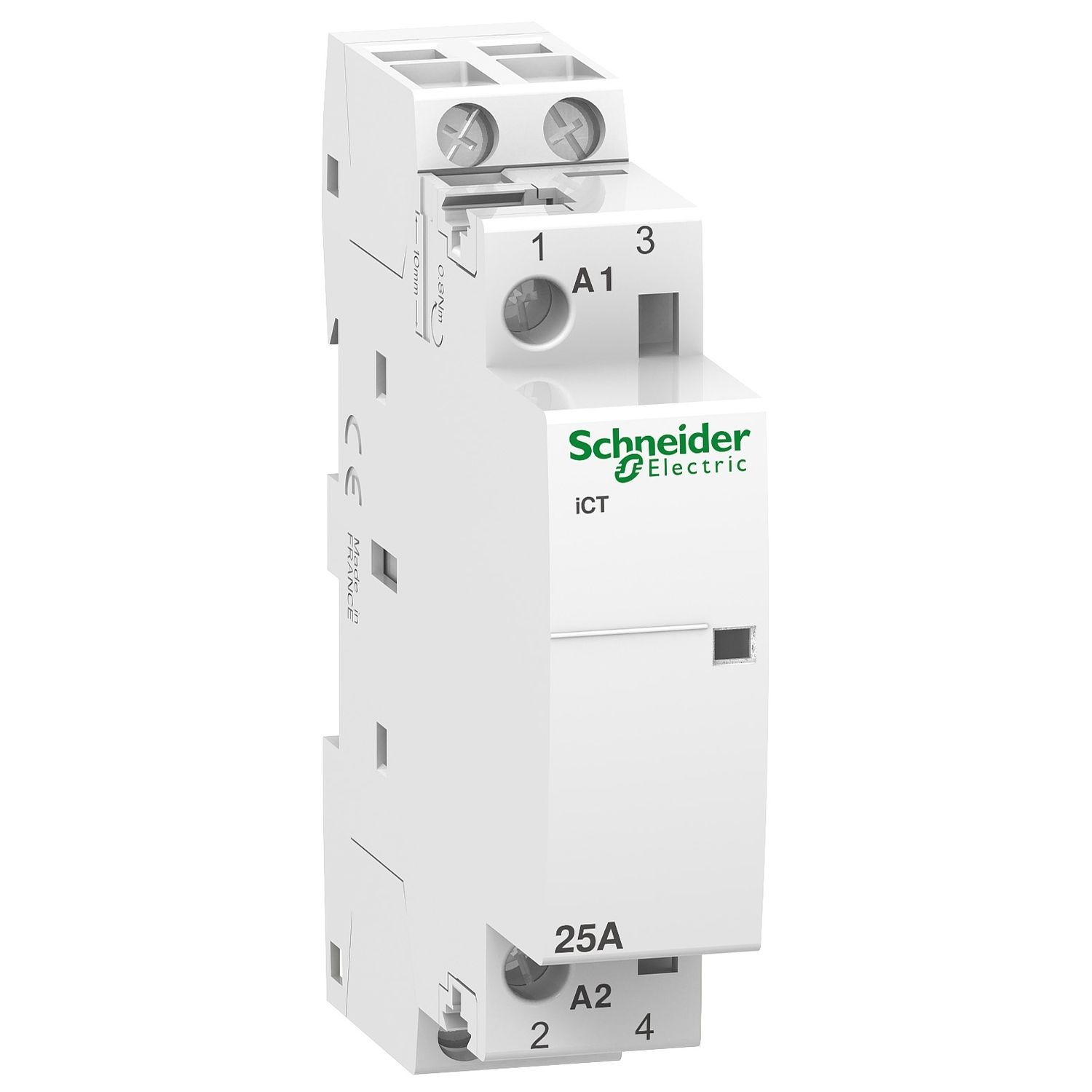

Picture of iCT 25A 2NO 24V 50Hz contactor
SKU:

A9C20132

iCT 25A 2NO 24V 50Hz contactor

$69.47
Product Selector
iCT 25A 2NO 24V 50Hz contactor
  • Compatible with all the Acti9 control auxiliaries, for lighting, heating, and ventilation control
  • Could be used for control circuits and remote switching small motors such as fans, mixers
  • Compliant to IEC 61095 standard
  • Mechanical contact position indicator
  • Clip-on system for electrical and mechanical connections between contactors up to 25A and their auxiliaries
  • Low noise and large circuit labeling area
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iCT is a modular contactor. It is a 2P remote control device with 2 normally open contacts. The rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 24VAC. This device could be used for control circuits. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 18mm x (D) 68.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
